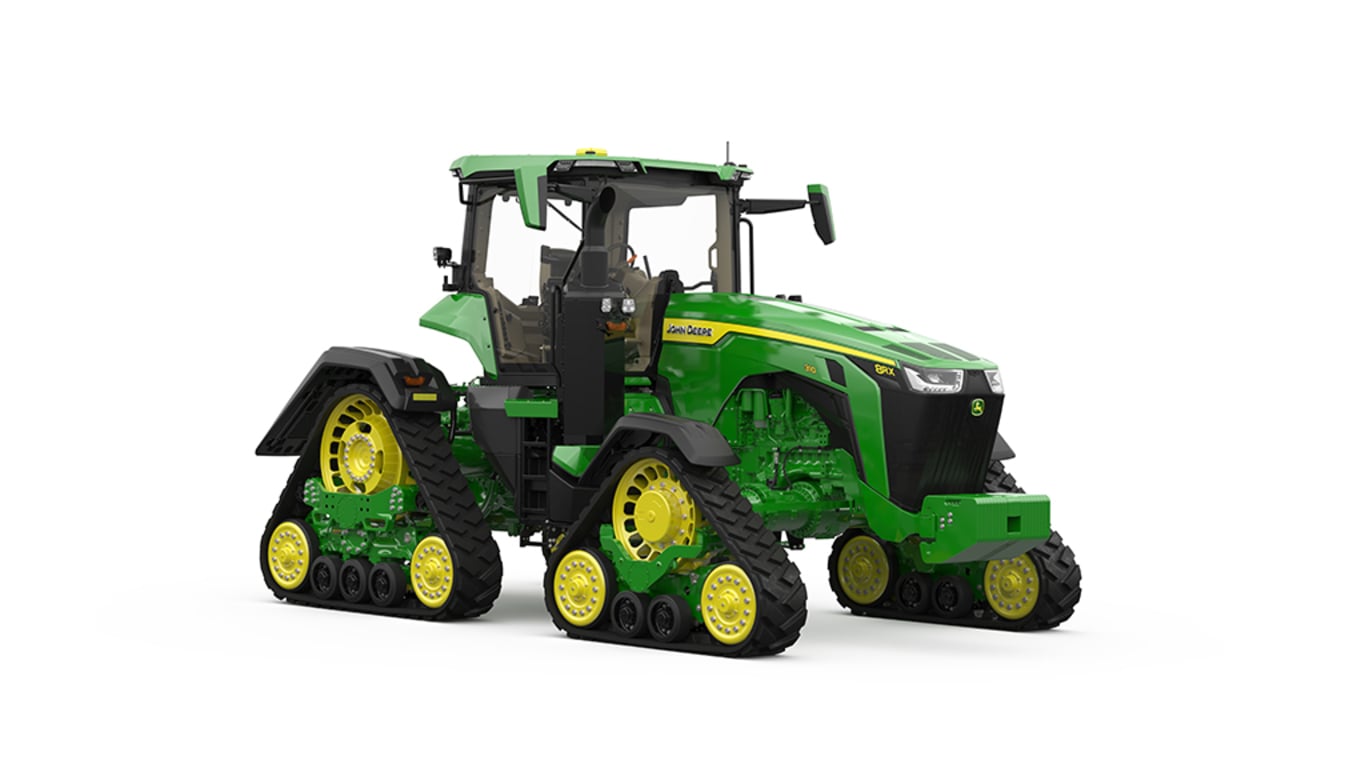

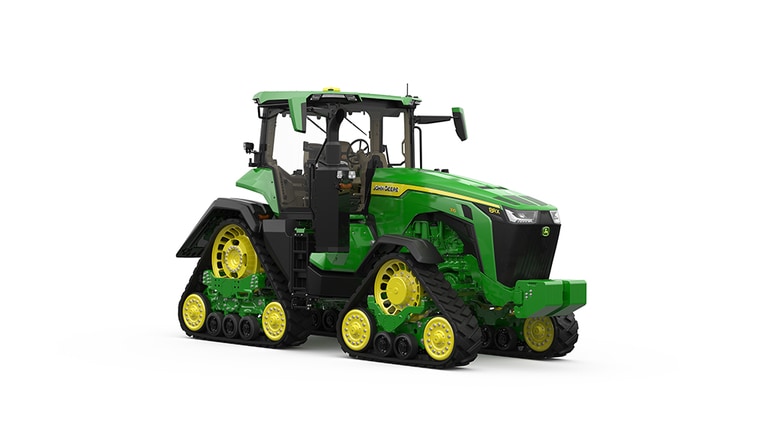

Front-right-facing studio shot of a 4-tracked green tractor on a white background.

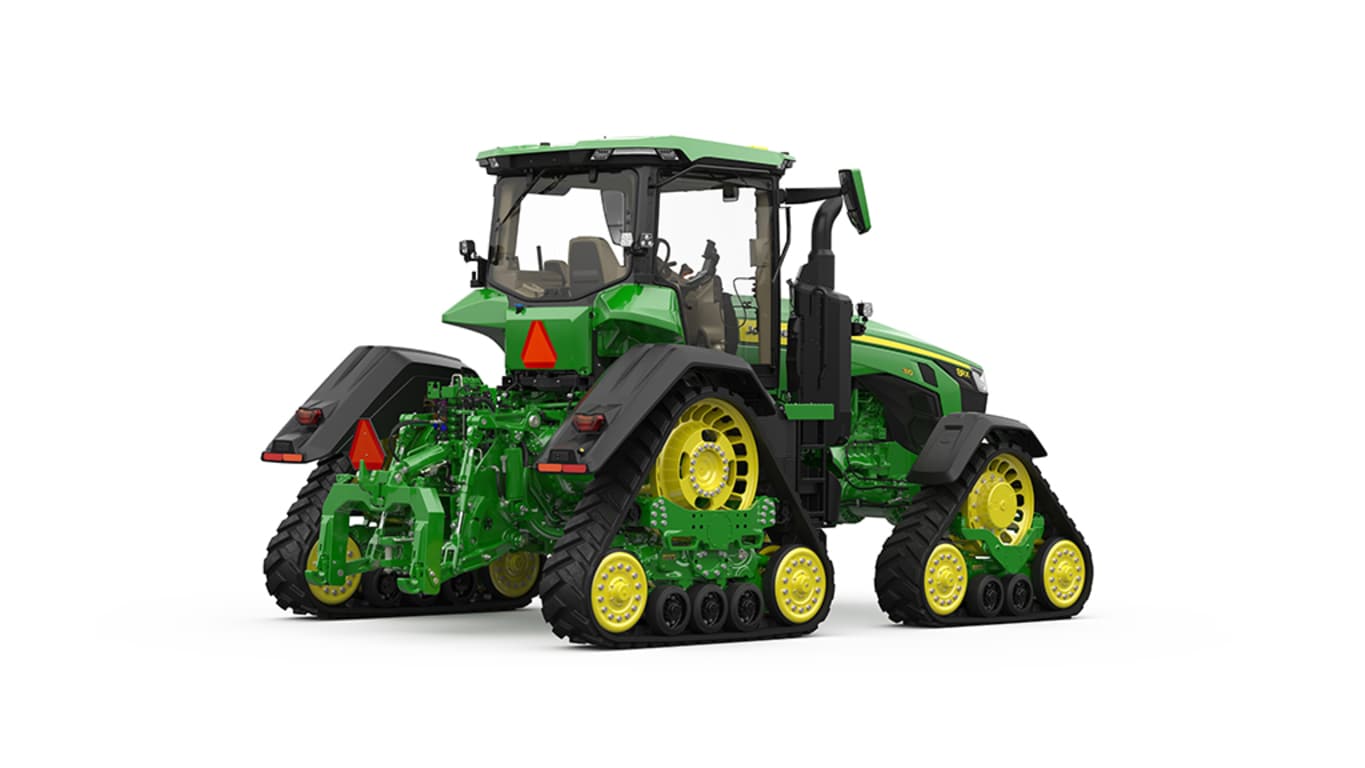

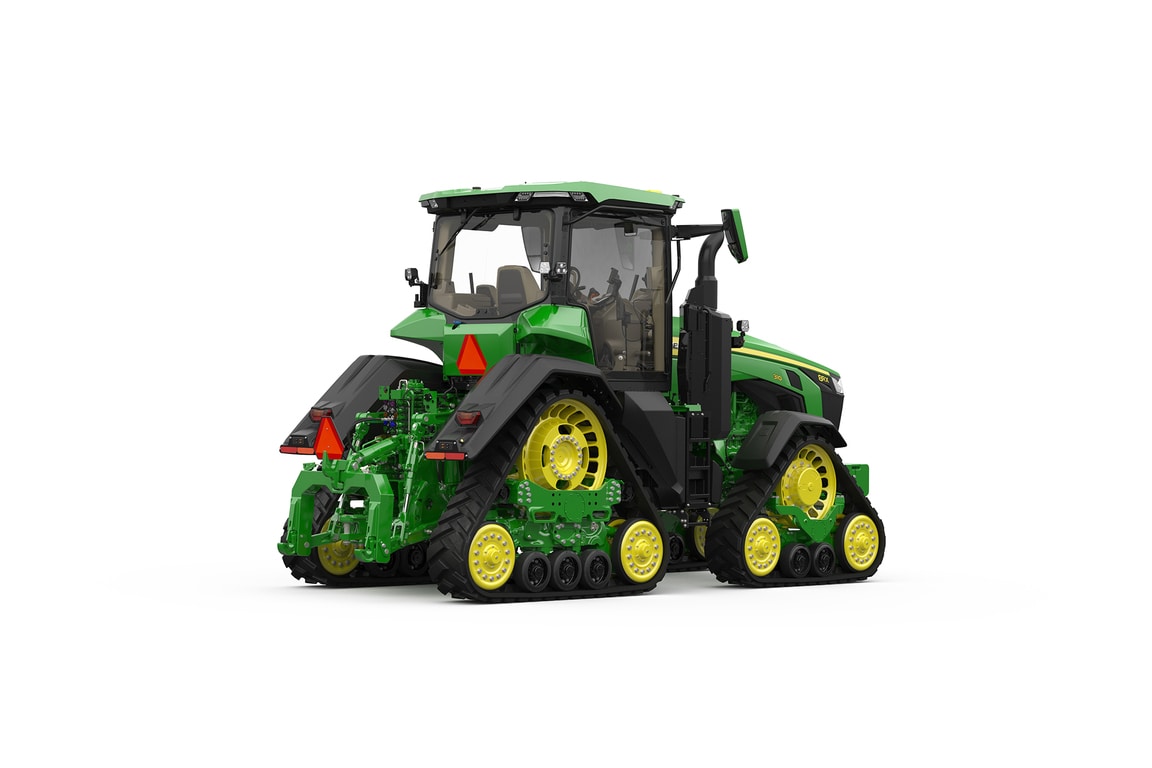

Rear-right-facing studio shot of a 4-tracked green tractor on a white background.

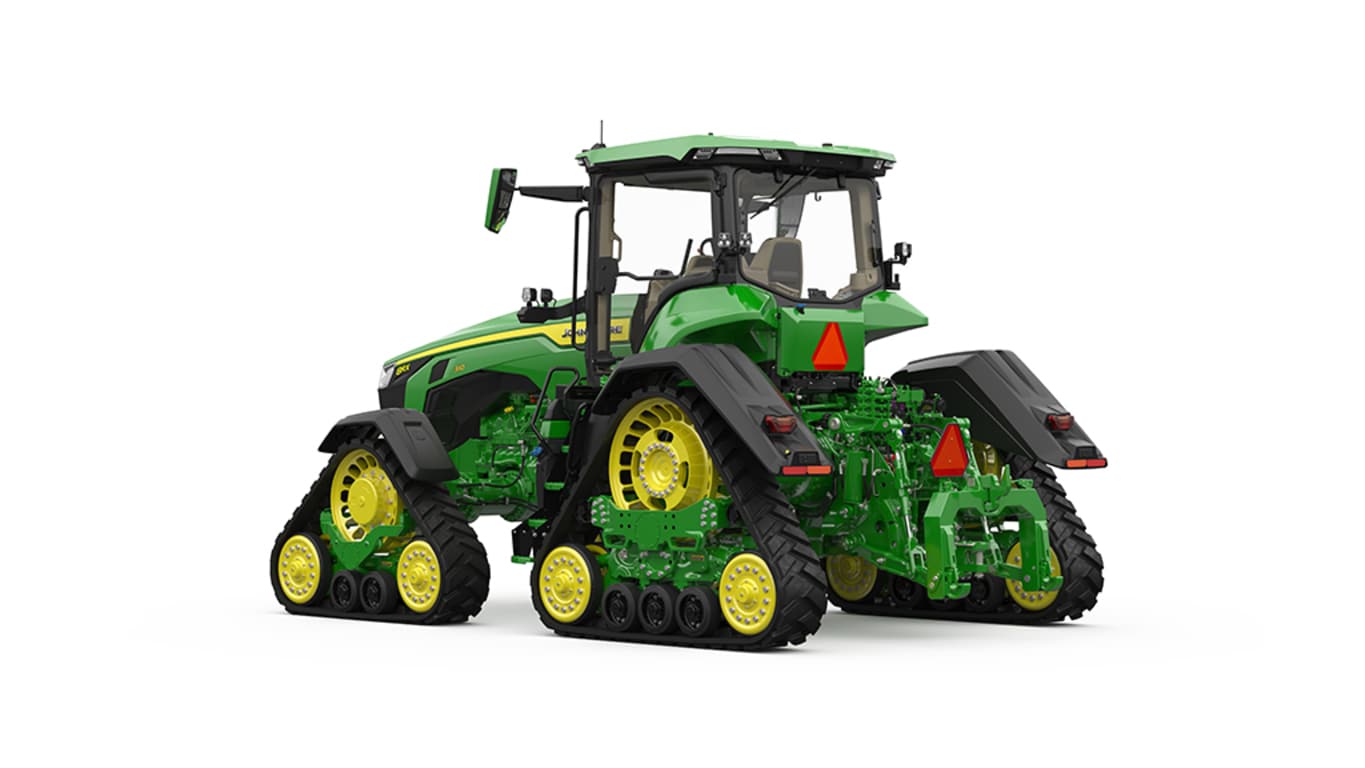

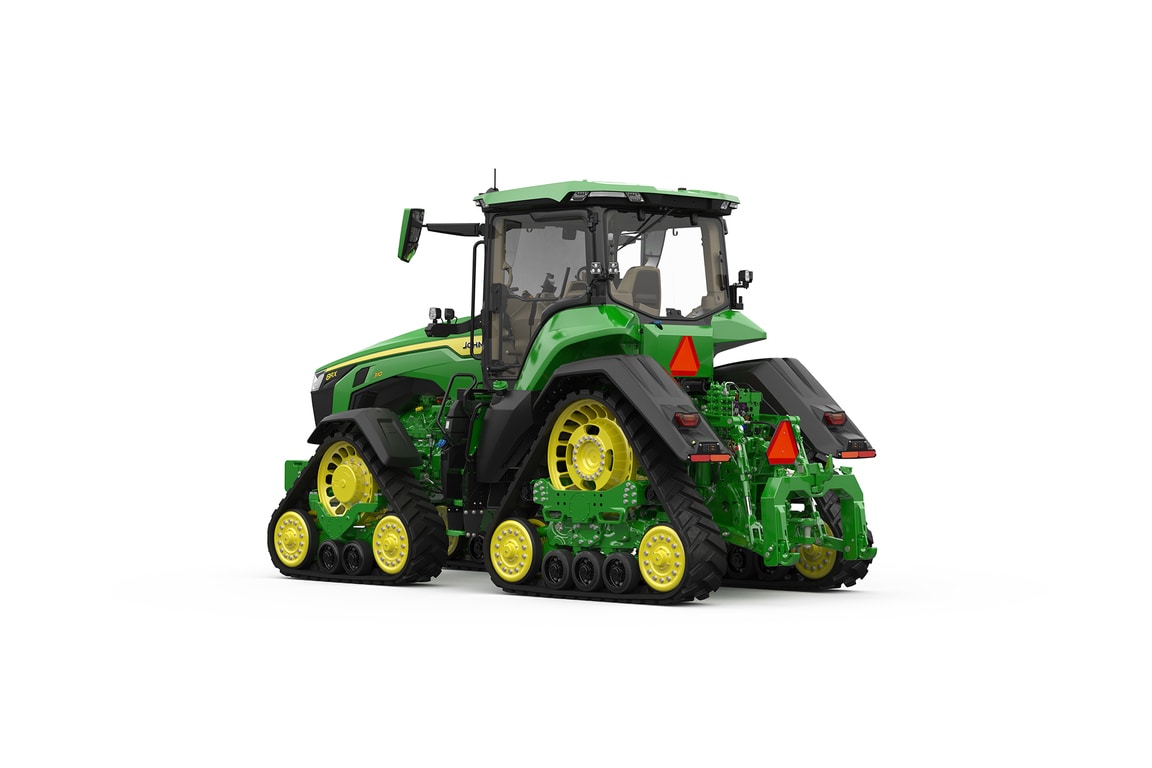

Rear-left-facing studio shot of a 4-tracked green tractor on a white background.

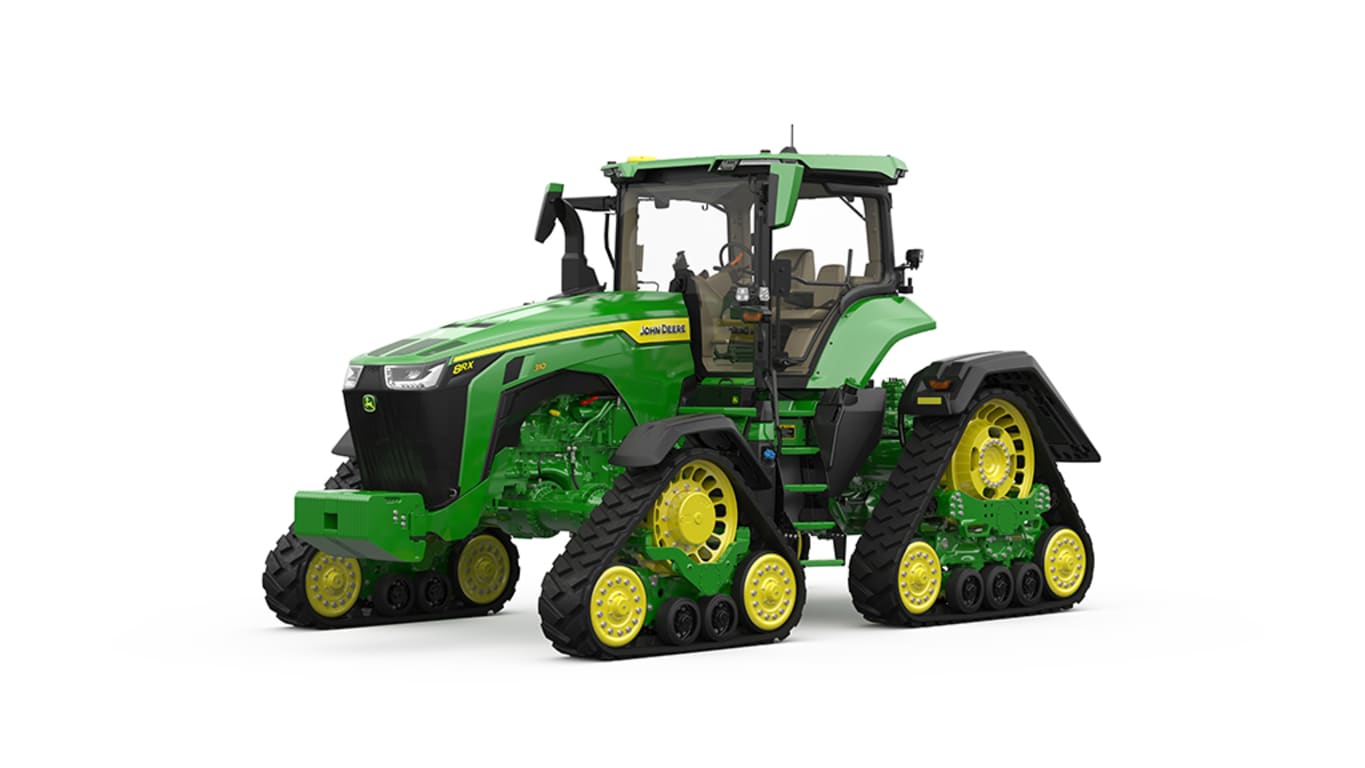

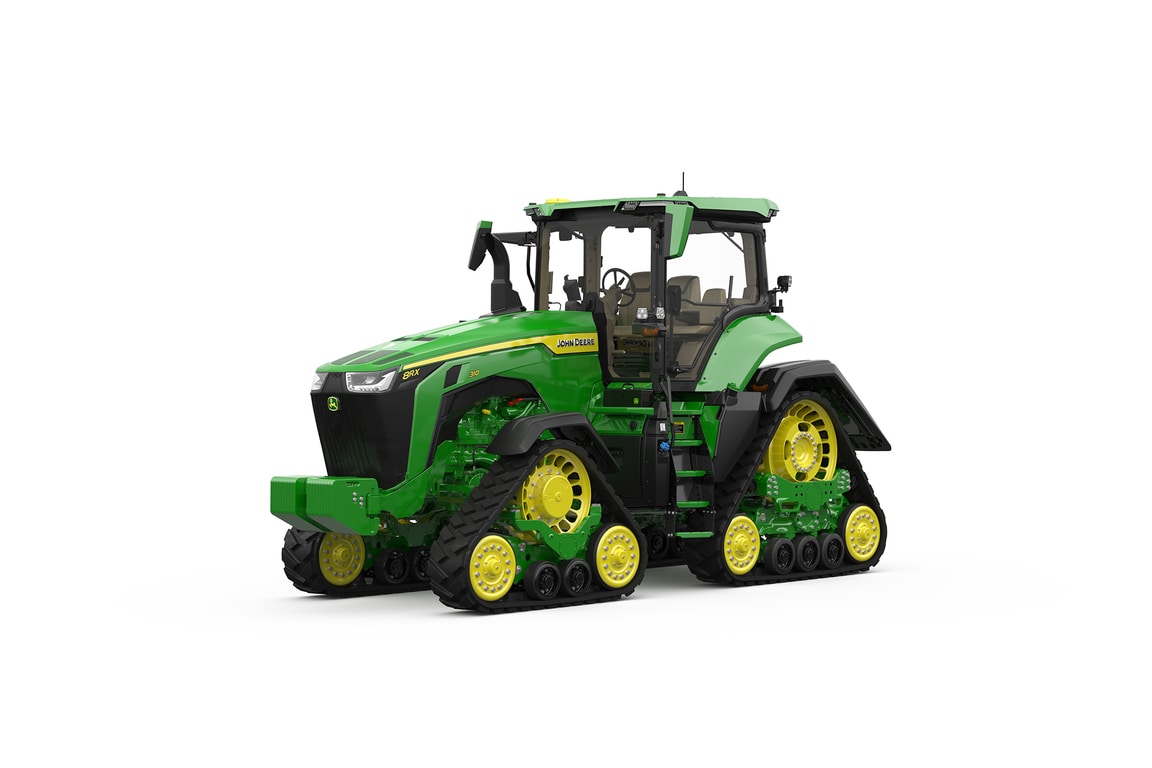

Front-left-facing studio shot of a 4-tracked green tractor on a white background.

8RX 310HP: 341 Max¹ / 310 Rated²

Updated controls and displays for enhanced operator experience
Choice of e23™ PowerShift or Infinitely Variable Transmission (IVT™)
CommandView™ 4 Plus cab with increased floor space³
Fully integrated precision ag technology and Autonomy Ready

Build Your Own

Find a Dealer

Request a Demo

View Product Brochure

Print

8RX 310

Build Your Own

Features

Expand All Collapse All

John Deere Operator Experience

The John Deere Operator Experience transforms the way operators interact with their machine by delivering a more intuitive, comfortable, and future-ready cab environment. Building on the 8R and 8RX high-horsepower tractors, this in cab experience is being brought across all 8 Series models, creating a more consistent drive experience regardless of machine. With CommandX, CommandX Plus, and CommandX Pro, drive lever options operators benefit from a unified drive strategy that enhances specific customer preferences and precision in the field. The modern, configurable layout—including the CommandARM™ updates, all new Convenience Display, and strategically placed quick access controls—puts everything within reach, minimizing distractions and maximizing productivity. Added features like the wireless phone charger, advanced seat adjustments with ventilation, and smooth door cinch feature ensure operators stay comfortable, connected, and focused throughout long days. Together, these enhancements deliver a more refined, consistent operating experience that helps operators stay productive and perform at their best across every task.

Hitch Active Downforce

Enhance your planting precision with Hitch Active Downforce. By actively adjusting to changing field conditions, it helps maintain consistent seed depth and stable planter performance—reducing the need for manual adjustments and helping you stay on your intended settings across every acre.

CommandView™ 4 Plus Cab

John Deere Operator Experience

CommandView 4 Plus Cab

The John Deere CommandView 4 Plus Cab on 8RX models enhances operator productivity with a more open and visible work environment. Increased floor space provides greater comfort and freedom of movement, while improved right-hand side visibility gives operators a clearer view of implements and field conditions for better control and precision. Together, these improvements help operators stay comfortable, aware, and efficient throughout the day.

Show More Show Less

Specs & Compare

ADD MODEL

Add Model

ADD MODEL

Select Different Model

Specs & Compare

Select up to 4 models to compare specifications

John Deere

8RX 310

HP: 341 Max¹ / 310 Rated²

Export to Excel

1 2

Key Specs

Engine Make	John Deere
Engine Model	JD9
Engine Family	VJDXL09.0333
Displacement (L)	9
Displacement (cu in.)	549
Rated Engine Power (hp)	306
Rated Engine Power (kw)	228
Rated Engine Power (PS)	310
Maximum Engine Power (hp)	336
Maximum Engine Power (kW)	251
Maximum Engine Power (PS)	341
Transmission Type	Standard: e23™ PowerShift™ 40K, 40 km/h 24.9 mph Optional: John Deere AutoPowr™ IVT™ 40K, 0.05-42 km/h 0.03-26 mph
Rear Hitch Category (SAE Designation)	Category 4N/3 at 610 mm (24 in.) behind hitch point: 9,072 kg 20,000 lb Optional: Category 4N/3 at 610 mm (24 in.) behind hitch point: 6,803 kg 15,000 lb
Pump Rated Output	Standard: 85-cc pump: 227.1 L/min 60 gpm Optional: 85-cc plus 35-cc dual pump: 318 L/min 84 gpm
Base Machine Weight (lb)	43,300
Base Machine Weight (kg)	19,600

Machine Configuration

Wheel or Track Configuration	2-Track
Drive Type

Engine

Engine Make	John Deere
Engine Model	JD9
Engine Family	VJDXL09.0333
Emissions Certifications	Final Tier 4
Displacement (L)	9
Displacement (cu in.)	549
Aspiration	Dual turbochargers, variable geometry turbo with fixed geometry turbo in series; air-to-air aftercooling and cooled exhaust gas recirculation
Number of Cylinders	Six
Cylinder Liners	Wet-sleeve
Aftertreatment Type	Diesel oxidation catalyst (DOC)/diesel particulate filter (DPF)/selective catalytic reduction (SCR)
Intelligent Power Management (IPM)
Rated Engine Speed (rpm)	2,100
Rated Engine Power (hp)	306
Rated Engine Power (kW)	228
Rated Engine Power (PS)	310
Rated Engine Power with IPM (hp)
Rated Engine Power with IPM (kw)
Rated Engine Power with IPM (PS)
Engine Torque at Rated Speed (lb-ft)	1,070
Engine Torque at Rated Speed (Nm)	1,452
Maximum Engine Speed (rpm)
Maximum Engine Power (hp)	336
Maximum Engine Power (kW)	251
Maximum Engine Power (PS)	341
Maximum Engine Power with IPM (hp)
Maximum Engine Power with IPM (kW)
Maximum Engine Power with IPM (PS)
Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628) (hp)
Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628) (KW)
Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628) (PS)
Maximum Engine Torque	At 1,600 rpm: 1,452 Nm 1,070 lb-ft
Constant Power Range
Power Bulge (%)	10
Bore and Stroke (in.)
Bore and Stroke (mm)
Compression Ratio
Lubrication
Cooling System Type
Fuel Type	Diesel
Alternative Fuel Type	B30 Diesel Compatible
Air Cleaner Type
Torque Rise (%)	40

Transmission

Transmission Type	Standard: e23™ PowerShift™ 40K, 40 km/h 24.9 mph Optional: John Deere AutoPowr™ IVT™ 40K, 0.05-42 km/h 0.03-26 mph
Maximum Speed Forward	42 km/h 26 mph
Minimum Speed Forward	0.05 km/h 0.03 mph
Creeper
Reverser
Clutch
Cruise Control

Rear Power Take-Off (PTO)

PTO Category	Standard: 45 mm 1.75 in. 20-spline, 1,000 rpm Optional: 45 mm (1.75 in.), 20-spline, 1000 rpm capable of 35 mm 1.375 in. 540/1000 rpm 45 mm 20-spline, 1000/1000E rpm
Optional PTO Category
Rated PTO Power (hp)	257
Rated PTO Power (kW)	191
Rated PTO Power (PS)	260
Rated PTO Power with IPM (hp)
Rated PTO Power with IPM (kW)
Rated PTO Power with IPM (PS)
Economy PTO Speeds	1000E rpm
Engine rpm at Rated PTO Speeds (540/1.000)	1810 / 1995
Engine rpm at Rated PTO Speeds (540/540E/1.000)
Engine rpm at Rated PTO Speeds (540E/1000/1.000E)	-- / 1995 / 1590
Engine rpm at Rated PTO Speeds (1000/1000E/1.300)
Engagement Method	Electrohydraulic with adjustable modulation
PTO Clutch
Number of Splines	20
Brake (For Mid and Rear PTO)

Front PTO

Front PTO Category
PTO Speed
Front PTO Rotation
Front Rated PTO Power (hp)
Front Rated PTO Power (kW)
Front Rated PTO Power (PS)
Engine rpm (at Rated PTO Speeds)
Maximum PTO Power (hp)
Maximum PTO Power (kW)
Maximum PTO Power (PS)
Engine rpm (at Maximum PTO Speeds) (rpm)
Front Number of Splines

Front Hitch

Front Hitch Category
Lift Capacity Through Full Lift Range at Coupling Points (lb)
Lift Capacity Through Full Lift Range at Coupling Points (kg)
Maximum Lift Capacity at Coupling Points (lb)
Maximum Lift Capacity at Coupling Points (kg)
Number of Front Selective Control Valves (SCVs)
Electric Power

Rear Hitch

Rear Hitch Category (SAE Designation)	Category 4N/3
Maximum Lift Capacity Directly at Coupling Points
Lift Capacity Through Full Lift Range Directly at Coupling Points
Maximum Lift Capacity at 610-mm Behind Hitch Point	9,072 kg 20,000 lb
Lift Capacity Through Full Lift Range at 610-mm Behind Hitch Point	6,803 / 9,072 kg 15,000 / 20,000 lb
Sensing Type	Electrohydraulic
Draft Control Sensing

Drawbar

Drawbar Category	Standard: Category 4 with heavy-duty support Optional: Category 4
Maximum Vertical Load	Standard: 4,990 kg 11,000 lb Optional: 2,245 kg 4,950 lb

Hydraulics

Hydraulic System Type	Closed-center, pressure/flow compensated system with load sensing
Pump Rated Output	Standard: 85-cc pump: 227.1 L/min 60 gpm Optional: 85-cc plus 35-cc dual pump: 318 L/min 84 gpm
Maximum Operating Pressure (psi)
Maximum Operating Pressure (bar)
Number of Rear Selective Control Valves (SCVs)	Standard: 1.3-cm (1/2-in.) ISO couplers: four Optional: 1.3-cm (1/2-in.) ISO couplers: five and six available
Available Flow at a Single Rear SCV	1.3-cm (1/2-in.) couplers: 132 L/min 35 gpm
Hydraulics Number of Mid Selective Control Valves (SCVs)
Available Flow at Front SCVs (gpm)	25
Available Flow at Front SCVs (L/min)	96
SCV Control	Electronic
Auxiliary Hydraulic Features

Front Axle

Front Axle Type	1700 Series MFWD
Front Axle Differential Lock	Full-locking electrohydraulic (actuated at same time as rear diff-lock)

Rear Axle

Rear Axle Type	Flange
Rear Differential Lock	Full-locking electrohydraulic
Differential Control
Final Drive	Inboard planetary

Steering &Brakes

Steering Type	Hydraulic power-steering with electric pump back-up
Primary Brakes
Secondary Brake
Trailer Brakes
Parking Brake

Tires

Front Tires Size
Front Tread Spacing (in.)
Front Tread Spacing (mm)
Rear Tread Spacing (in.)
Rear Tread Spacing (mm)
Wheel Tread Range
Central Tire Inflation System (CTIS)

Tracks

Track Drive Type	Camso™ AG 4500 (MICHELIN® BIBTRACK® 150) Friction Drive
Track Tread Spacing	1,930.4 mm 76 in. 2,032 mm 80 in. 2,235.2 mm 88 in. 3,048 mm 120 in.
Track Width	419 mm 16.5 in. 457 mm 18 in. 609 mm 24 in. 762 mm 30 in.
Number Of Mid Rollers	Front: Two Rear: Three

Electrical System

Battery Voltage (V)	12
Electrical System Voltage (V)
Battery Cold Cranking Amps (CCA)	1,900
Battery Capacity
Alternator Capacity	200 amp Optional: 330 amp
Working Lights	18–24 light-emitting diode (LED)
Driving Lights	LED

Operator Station

ROPS Type
Gearshift Location
Db(A) Rating (dBA)
Seat Suspension	Air seat
Degree of Seat Swivel, Left Hand (degree (angle))	25
Degree of Seat Swivel, Right Hand (degree (angle))	40
Cab Suspension	Four-post cab suspension
Instructional Seat	Standard
Primary Display	G5ᴾˡᵘˢ Display - 325 mm 12.8 in.
Radio	AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna
Inner Cab Volume (cu ft)	114
Inner Cab Volume (m³)	3.24
Cab Glass Area (sq ft)	70.18
Cab Glass Area (m²)	6.52

Technology Integration

Guidance	Integrated AutoTrac™; Autonomy Ready (available in select regions)
Secondary Display
Receiver
Connectivity	JDLink™ hardware standard, activations, and Ethernet harnesses (availability dependent upon destination)
Remote Diagnostics	JDLink hardware standard
ISOBUS Ready
TIM Compatibility

Capacities

Fuel Tank Capacity (gal.)	244
Fuel Tank Capacity (L)	924 CTIS: 651
Diesel Exhaust Fluid (DEF) Tank Capacity (gal.)	9.8
Diesel Exhaust Fluid (DEF) Tank Capacity (L)	37.2
Cooling System Capacity (gal.)	11.2
Cooling System Capacity (L)	42.3
Transmission - Hydraulic System (gal)	66.1 / 68.8
Transmission - Hydraulic System (L)	250 / 260.6
Crankcase Oil Volume (gal)	7
Crankcase Oil Volume (L)	26.6

Dimensions & Weights

Wheelbase (in.)	127.36
Wheelbase (mm)	3,235
Base Machine Weight (lb)	43,300
Base Machine Weight (kg)	19,600
Overall Height (in.)
Overall Height (mm)
Transport Height (in.)
Transport Height (mm)
Overall Width (in.)
Overall Width (mm)
Overall Length (in.)
Overall Length (mm)
Ground Clearance (in.)
Ground Clearance (mm)
Front Axle Ground Clearance (in.)
Front Axle Ground Clearance (mm)
Drawbar Ground Clearance (in.)
Drawbar Ground Clearance (mm)
Maximum Ballast Level (lb)	44,100
Maximum Ballast Level (kg)	20,000
Maximum Permissible Weight (lb)	53,000
Maximum Permissible Weight (kg)	24,000
