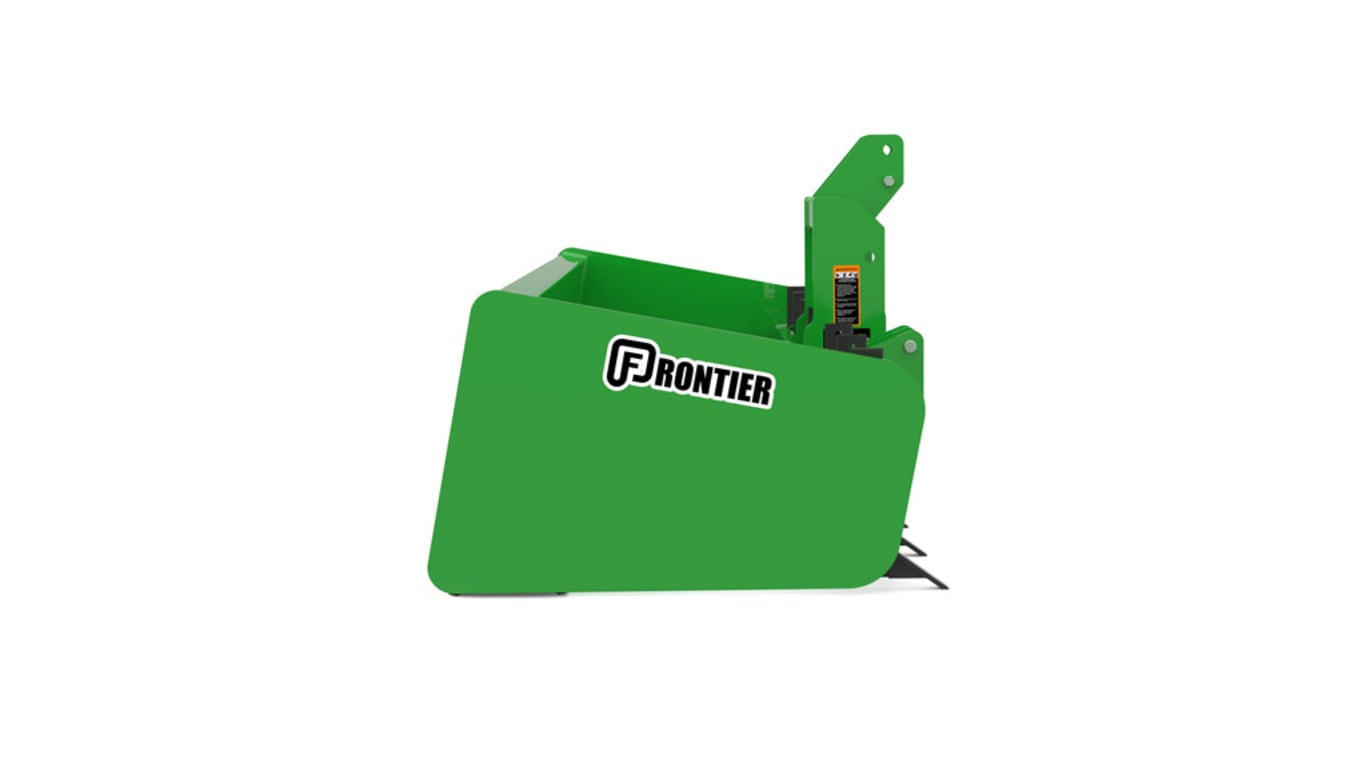

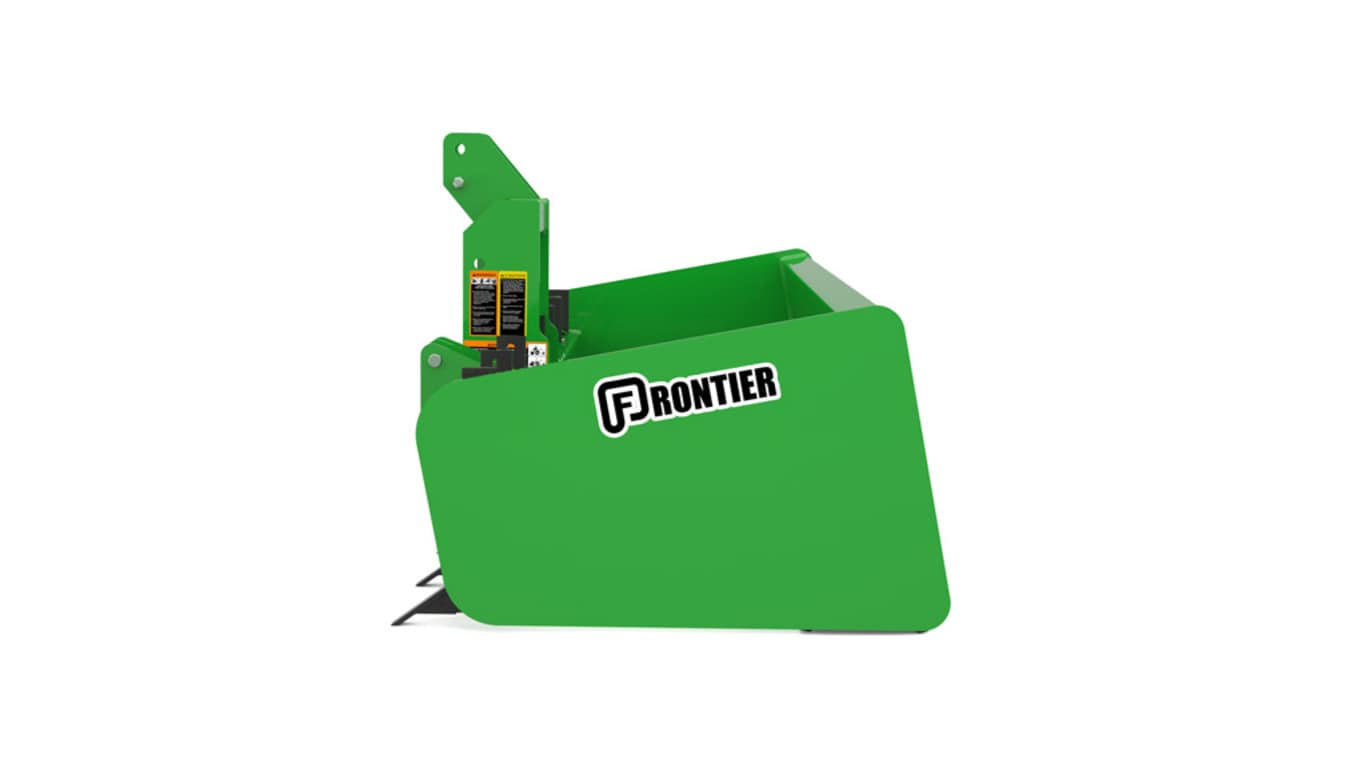

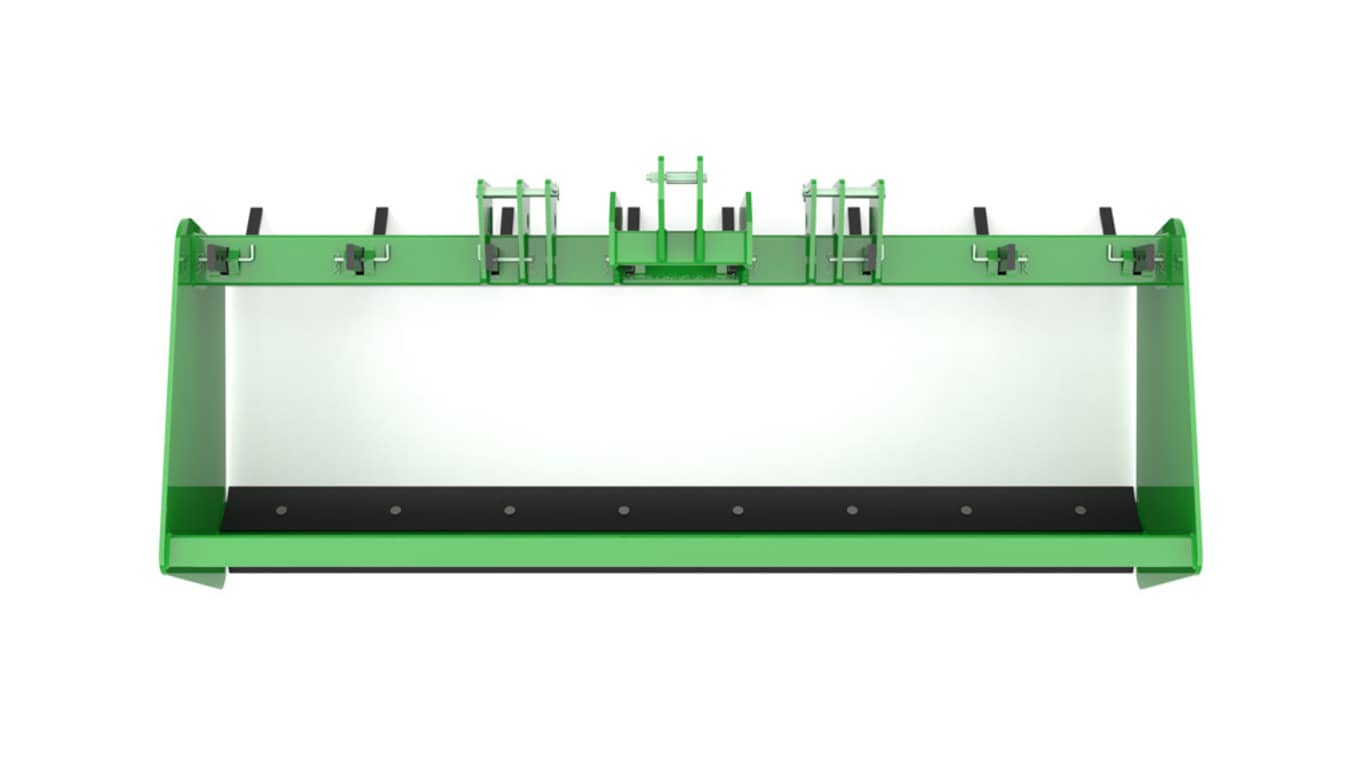

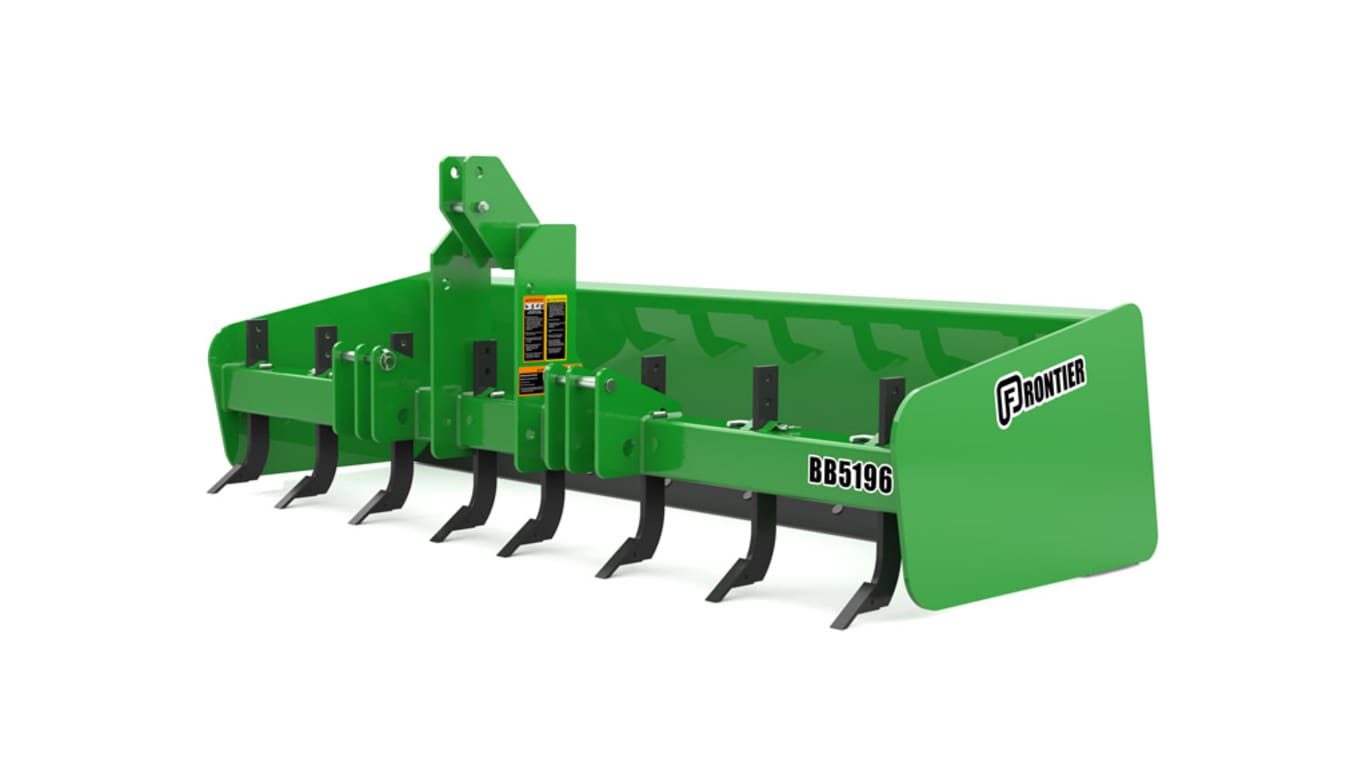

BB51 SeriesHeavy-Duty Box Blades
- Durable construction for heavy-duty jobs
- Replaceable and adjustable scarifiers
- Cat. 1 and Cat. 2 3-point hitch compatible
- Replaceable and reversible cutting edge
Features
Expand All
Collapse All
Heavy-duty Scarifiers
Heavy-duty Scarifiers
Easy hitch connections
Precise leveling with steel cutting edge
Durable Solid Moldboard
Replaceable and Adjustable Scarifiers

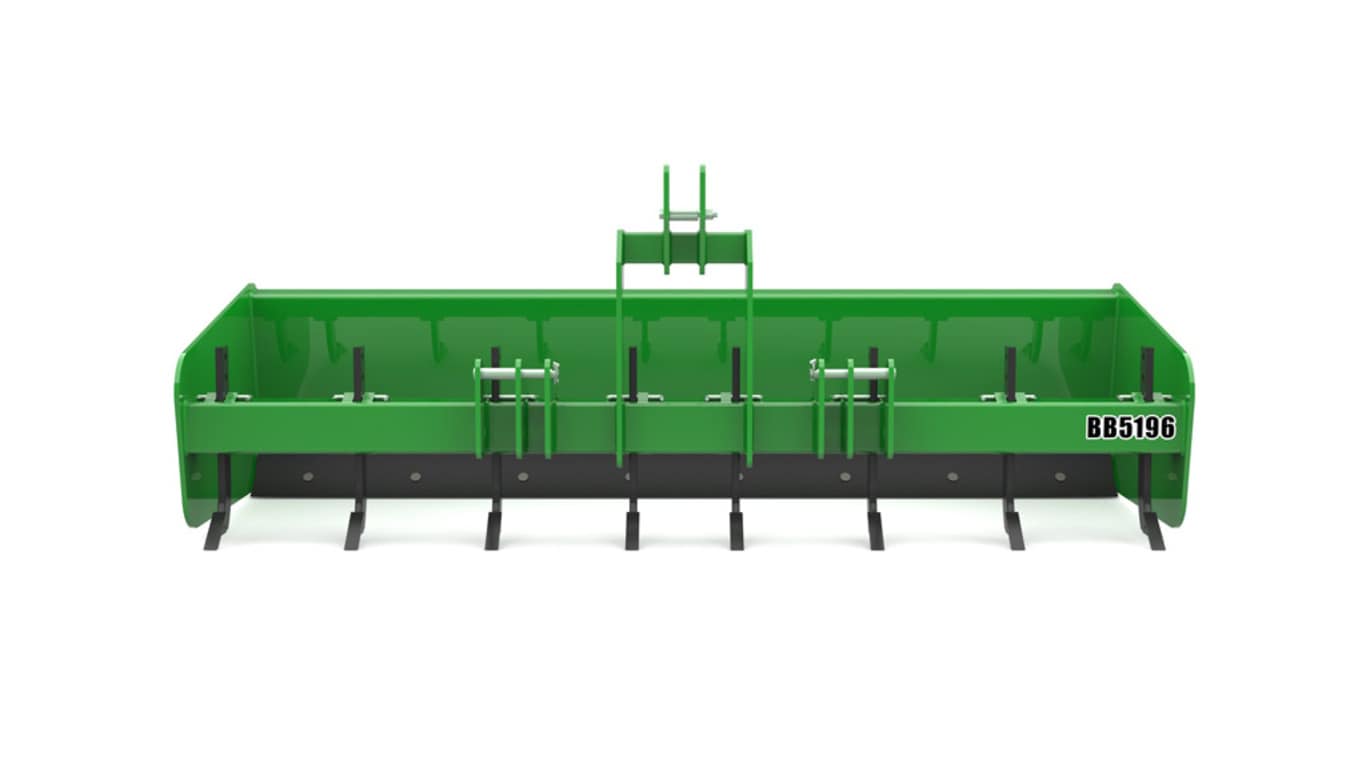

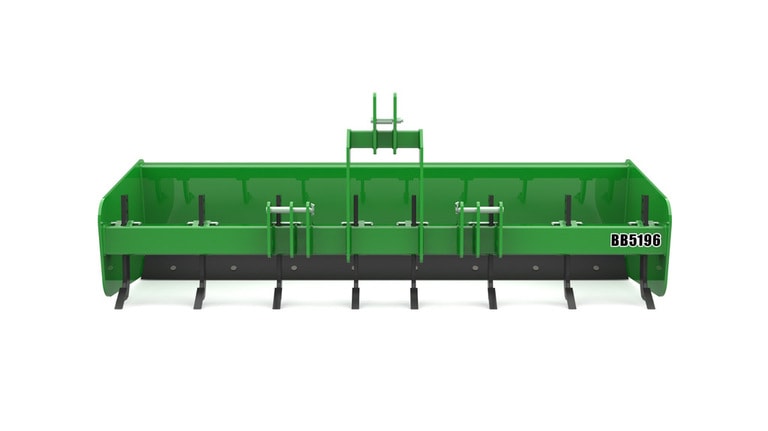

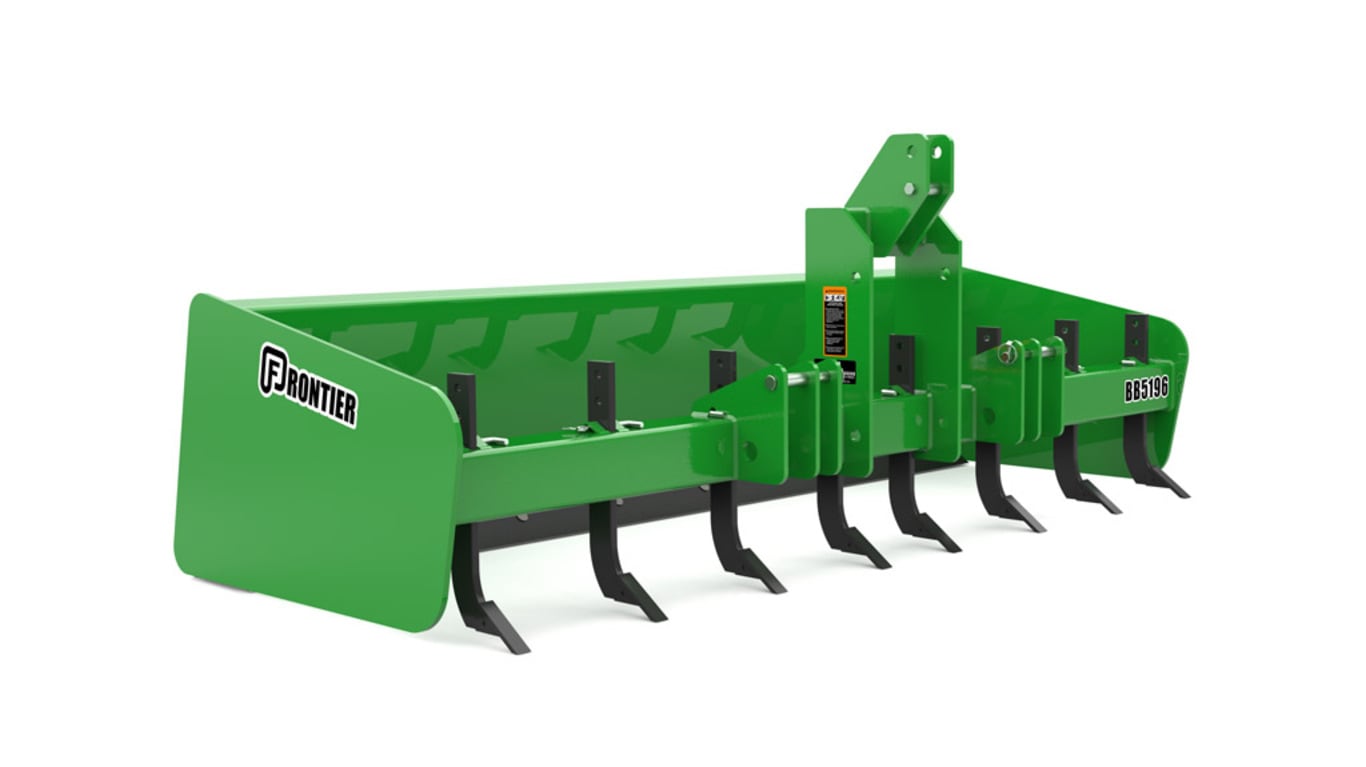

Heavy-duty Scarifiers
Heavy-duty Scarifiers
Replaceable heavy-duty scarifiers have multiple adjustment holes for quick and easy changes to shank penetration level. The scarifiers work great for the purposes of chipping or deep digging.
Quick Hitch System Attaches Easily
Easy hitch connections
iMatch™ quick-hitch compatibility provides quick, efficient hookup. The iMatch Category 1 quick-attach hitch system is an innovative device that converts a 3-point hitch to fixed hooks and makes attaching implements an easy connection.

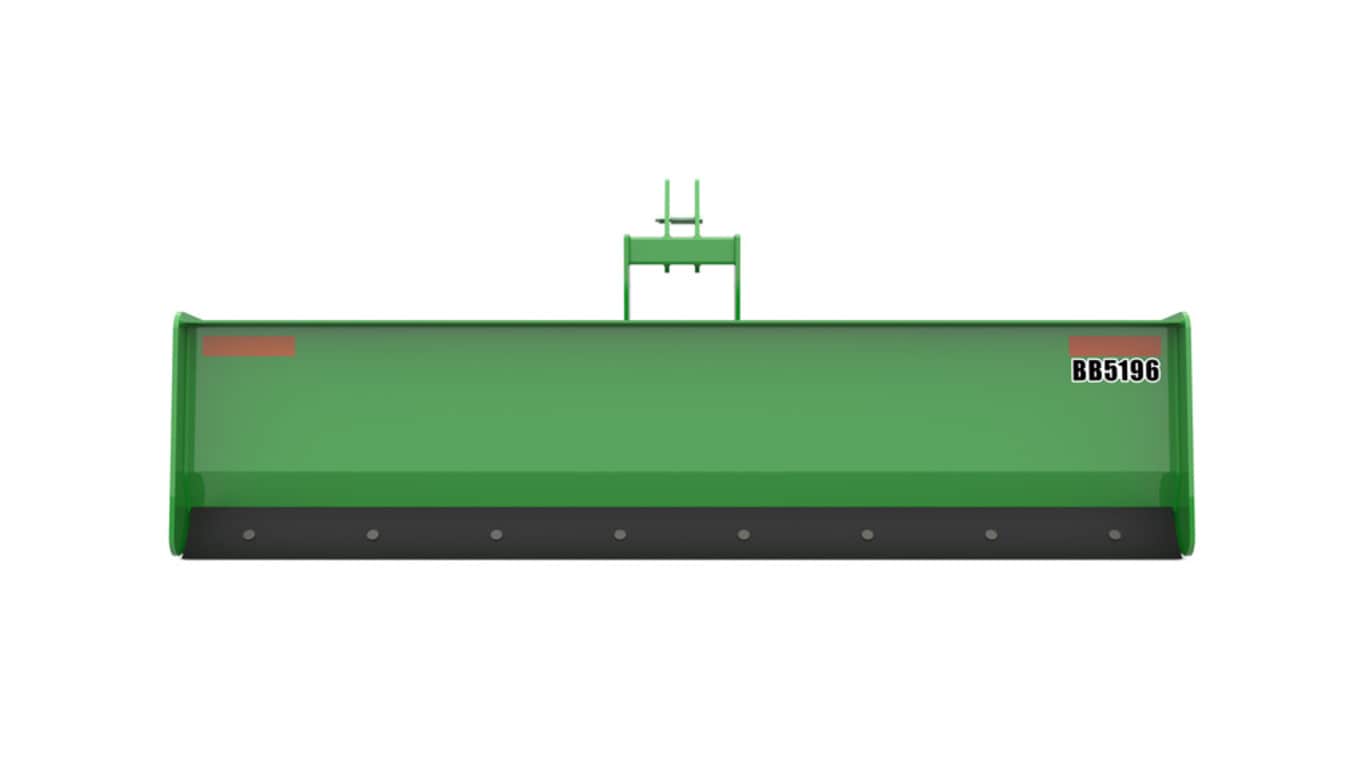

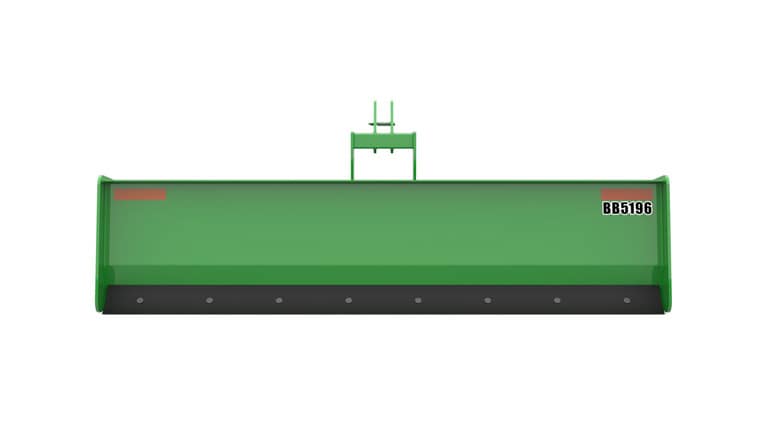

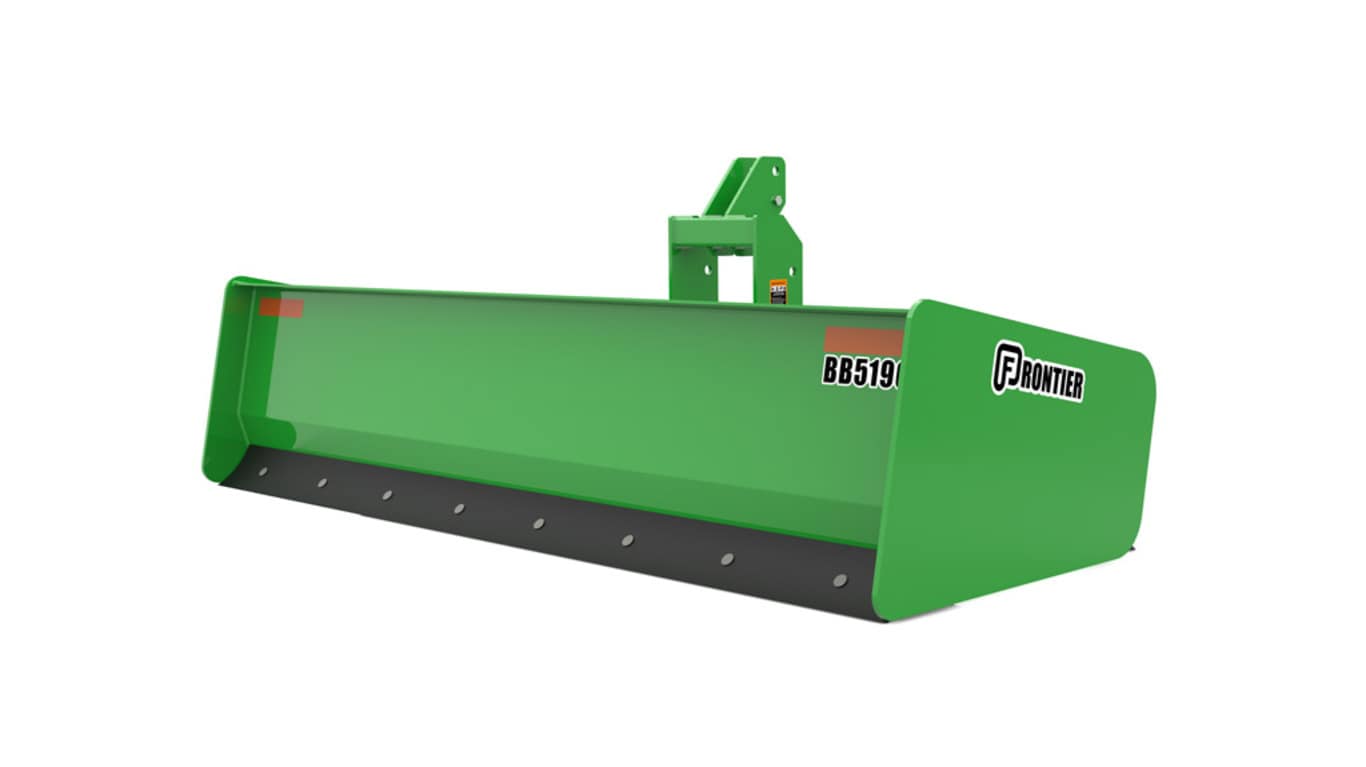

Replaceable and Reversible Blade for Longevity
Precise leveling with steel cutting edge
Rear replaceable steel cutting edge ensures precise leveling and a fine finish. The rear blade is reversible for longer life.

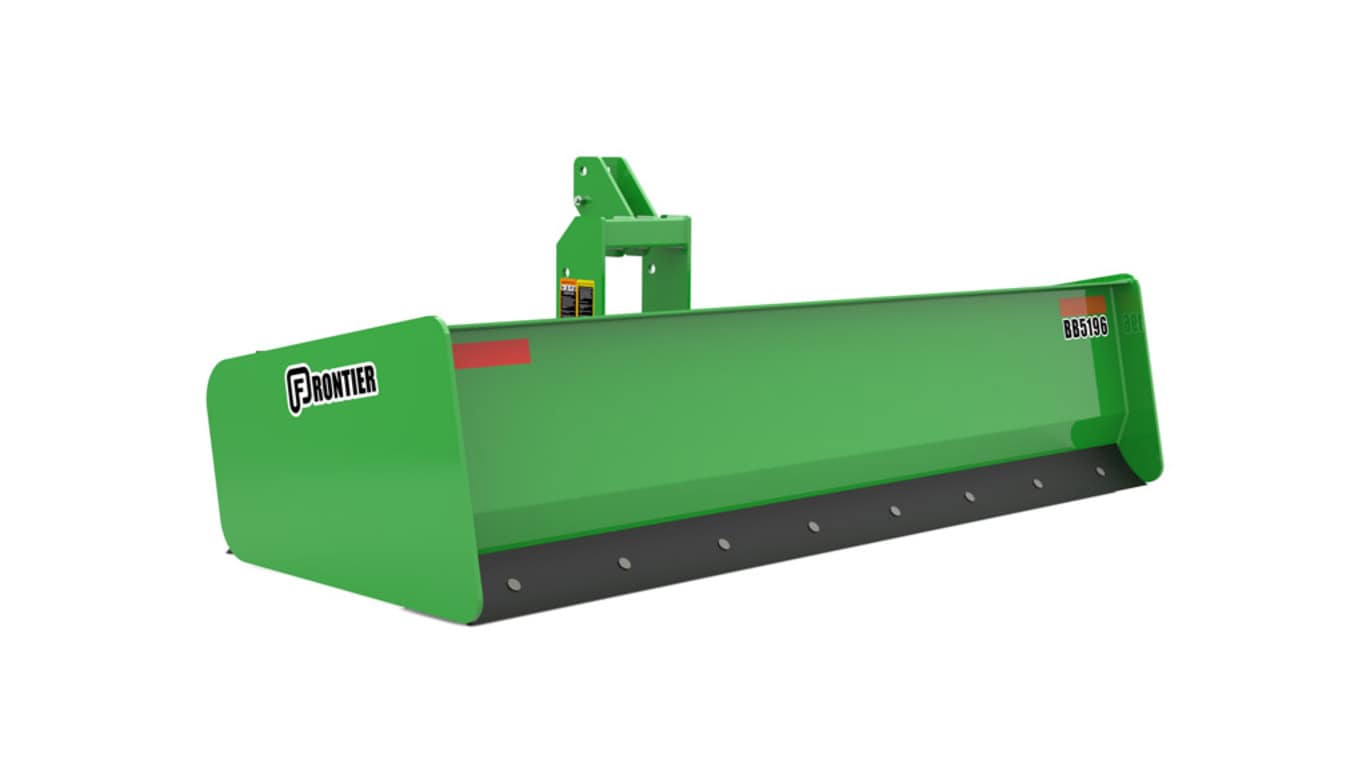

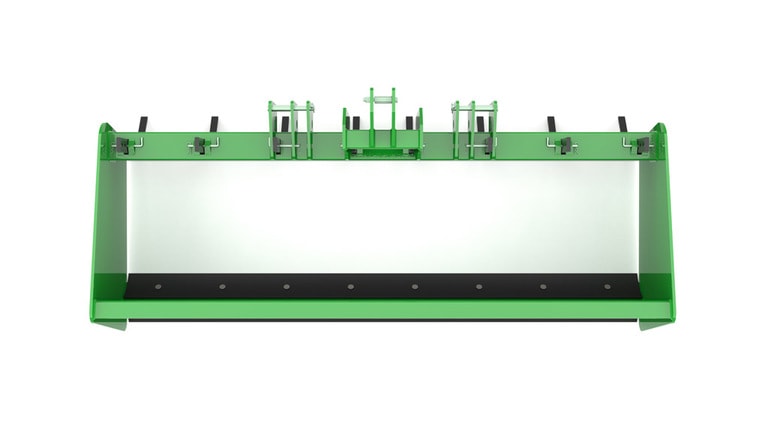

Solid Moldboard Provides Extra Durability
Durable Solid Moldboard
A solid moldboard helps in rough conditions. The moldboard give the cutting edge extra power to slice through hard, compacted ground.
Specs & Compare
| Specs & Compare | ||||
|---|---|---|---|---|
| John Deere BB51 Series Heavy-Duty Box Blades |
Key Specs
| Working width | BB5172: 182.88 cm 72 in. BB5184: 213.36 cm 84 in. BB5196: 243.84 cm 96 in. |
|||
|---|---|---|---|---|
| Cutting edge - Reversible | All BB51: Yes | |||
| Shank type | All BB51: Four position with holes | |||
| Hitch | Compatibility All BB51: Category 1 & 2 iMatch™ compatible (Cat. 1) All BB51: Yes |
|||
| Max Engine Horsepower | All BB51: 86.48 kW 120 hp |
|||
| PTO Horsepower |
Dimensions
| Working width | BB5172: 182.88 cm 72 in. BB5184: 213.36 cm 84 in. BB5196: 243.84 cm 96 in. |
|||
|---|---|---|---|---|
| Unit height | All BB51: 91.44 cm 36 in. |
|||
| Unit depth | All BB51: 81.28 cm 32 in. |
|||
| Endplate thickness | All BB51: 1.27 cm 0.5 in. |
|||
| Moldboard thickness | All BB51: 0.64 cm 0.25 in. |
Weight
| Operating weight | BB5172: 317.5 kg 720 lb BB5184: 362.9 kg 800 lb BB5196: 387.8 kg 855 lb |
|||
|---|---|---|---|---|
| Shipping | BB5172: 337.92 kg 745 lb BB5184: 374.21 kg 825 lb BB5196: 399.16 kg 880 lb |
Tractor compatibility
| Max Engine Horsepower | All BB51: 86.48 kW 120 hp |
|||
|---|---|---|---|---|
| PTO Horsepower |
Hitch
| Compatibility | All BB51: Category 1 & 2 | |||
|---|---|---|---|---|
| iMatch™ compatible (Cat. 1) | All BB51: Yes | |||
| Quick coupler (Cat. 2) |
Box
| Capacity | BB5172: 0.8 m3 28.42 cu ft BB5184: 0.94 m3 33.13 cu ft BB5196: 1.07 m3 37.85 cu ft |
|||
|---|---|---|---|---|
| Design | All BB51: High Back Box |
Cutting edge
| Reversible | All BB51: Yes | |||
|---|---|---|---|---|
| Quantity | All BB51: Two | |||
| Size | All BB51: 0.95x15.24 cm 0.375x6 in. |
Scarifier shank and beam
| Shank type | All BB51: Four position with holes | |||
|---|---|---|---|---|
| Points | All BB51: Replaceable, Heat treated | |||
| Quantity | BB5172: Six BB5184: Eight BB5196: Eight |
|||
| Scarifier Tube | All BB51: 12.7x12.7x0.64 cm 5x5x0.25 in. |
|||
| Tubular scarifier beam size | ||||
| Beam reinforcement bar size |
Tailgate
| Type | All BB51: Fixed |
|---|
Mast
| Type | All BB51: Welded |
|---|
Paint
| Color | All BB51: JD Green |
|---|
Shipping
| Configuration | All BB51: One per |
|---|
Set-up time
| Labor hours | All BB51: 0.50 |
|---|
Warranty
| Time period | All BB51: One year |
|---|
Additional information
| Date collected |
|---|
-
