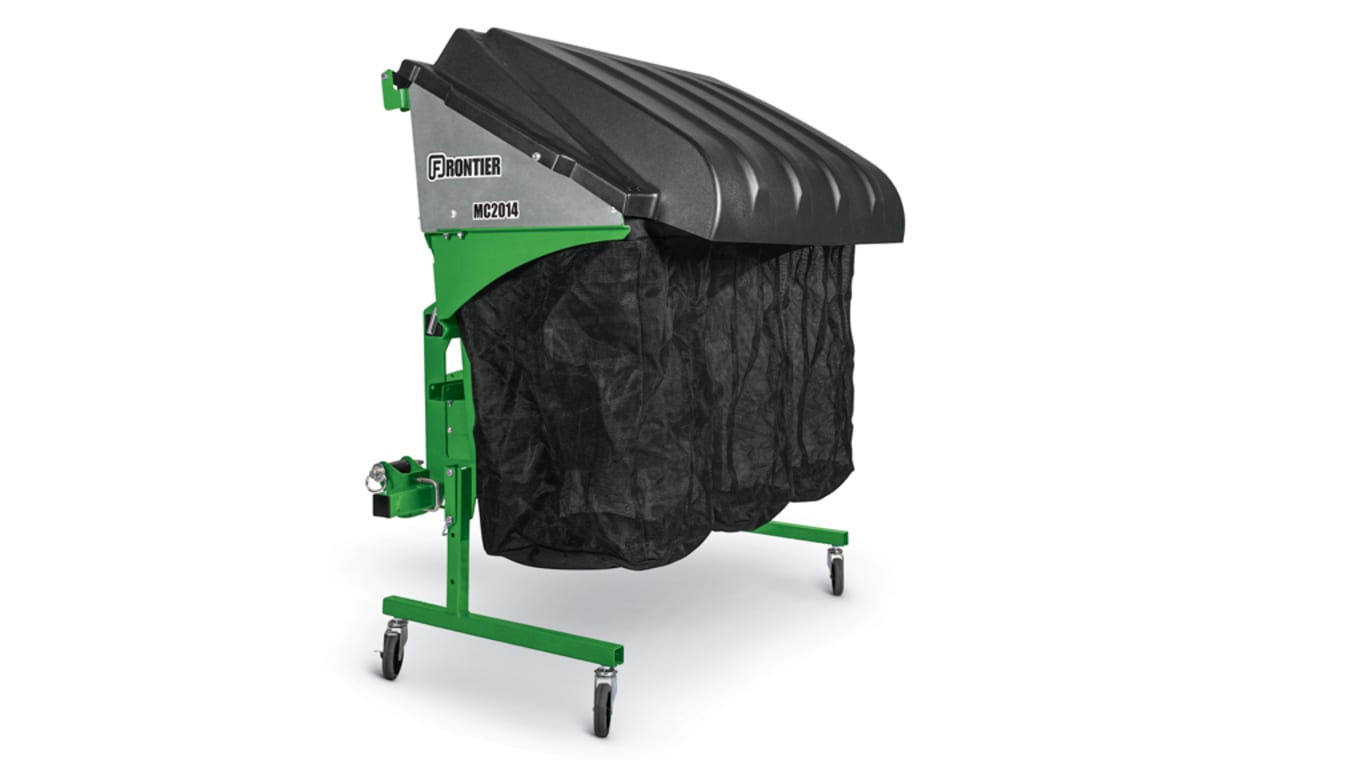

MC2014Material Collection System
- 14-bushel collection hopper
- Integrated parking stand is standard
- Available with optional locking casters
- Boot attaches to compatible mower deck without using tools
- iMatch™ compatible
Features
Expand All
Collapse All
High-performance PTO-driven blower
Connection to the PTO
Three individual bags
Individual bags are easy to empty
Individual bags are easy to reinstall
Mower deck boot connection
Blower hose connection from the deck boot to the impeller housing
Storage stands with the optional caster wheel kit
Audible fill indicator
Hopper lid with gas springs
Hopper on 3-point hitch with iMatch™ hitch system
Hopper is quickly removed

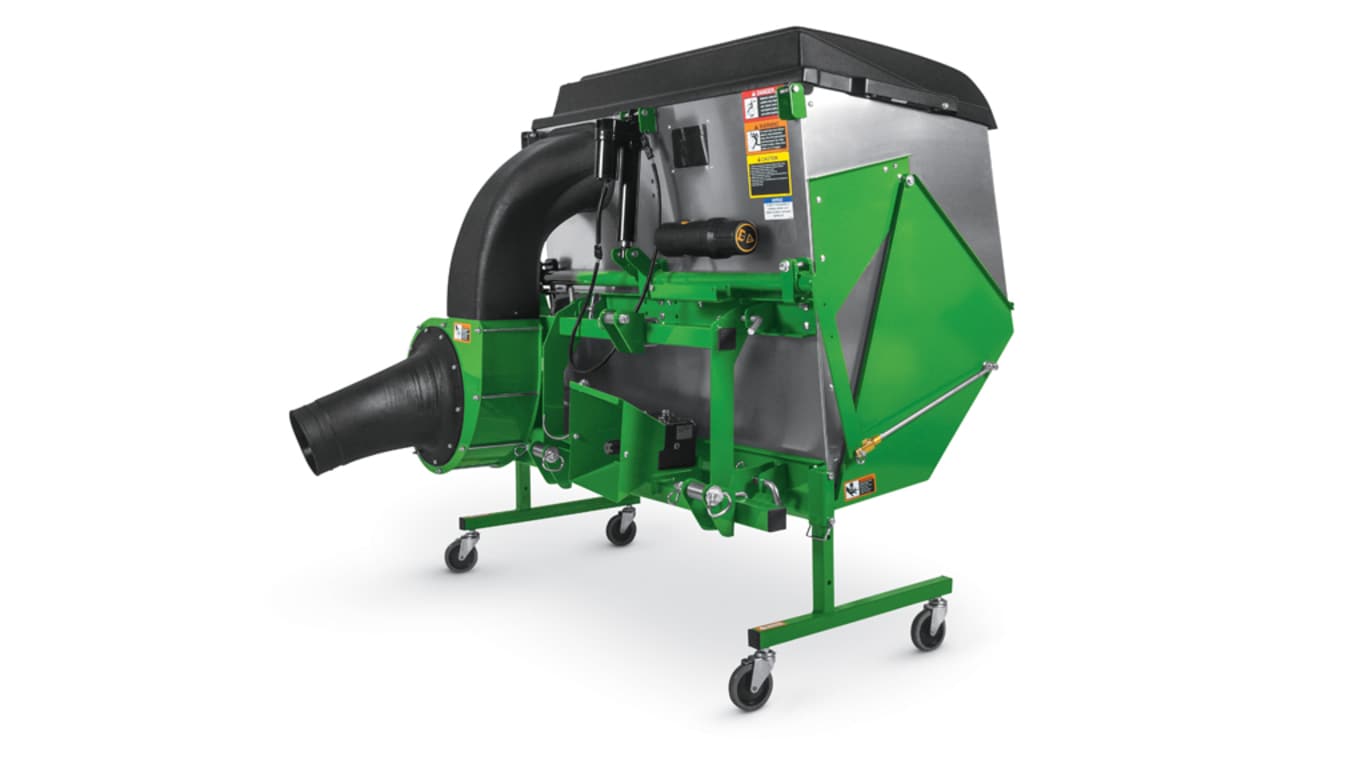

High-performance power take-off (PTO) driven blower provides easier hookup and higher performance
High-performance PTO-driven blower
Connection to the PTO
The high-performance, robust PTO-driven blower has been designed especially for the high-capacity MC2014 Material Collection System. It handles the capacity of the mower and provides plenty of velocity to fill the bags completely. At the heart is a 190.5-mm (7.5-in.) urethane impeller with 3042 rpm that generates the suction. By having the blower directly mounted on the Material Collection System instead of on the end of the mower deck, weight distribution remains uncompromised, ensuring that your lawn receives a level cut that you expect.
Material collecting system with three individual bags
Three individual bags
With the MC2014 Material Collection System, the material is transferred from the high-performance steel blower into the three bags for a total capacity of 493 L (14 bu).
The three-bag system makes emptying and reinstallation of the bags easy. The weaving is designed to not swell in the center to ease emptying.
Individual bags are easy to empty
Individual bags are easy to reinstall
Mower deck boot is easily installed and removed
Mower deck boot connection
The boot kit connects the MC2014 Material Collection System to mid-mount mower decks on 1E, 1R, and 2R Series Tractors equipped with a mid-mount mower deck. Boot removal and installation is toolless for quick changing of implements (after initial installation). The boot is connected to the blower with a 203-mm (8-in.) diameter smooth bore hose to handle material throughput efficiently.
Blower hose connection from the deck boot to the impeller housing
Hose clamps use the helicoidal pattern on the hose to maintain a tight seal without adjustment during each installation. Clamps are retained and do not require tools to adjust (if required), providing a greater seal for increased suction. Easy access to the chute and boot for in-field removal of a clog is accomplished with tool-free clamps.
Two integrated stands make storage fast and convenient
Storage stands with the optional caster wheel kit
To store the Material Collection System, two integrated steel storage stands make attaching and detaching quick and easy.
An optional caster wheel kit for the bottom of the stands provides a solution to further simplify maneuvering during attachment, detachment, and storage. The wheels enable the operator to move the hopper into tight spaces for better storage. Four caster wheels (two locking) and the required hardware for installation on the bottom of the two storage stands are included in the kit.
Audible fill indicator alerts the operator when bags are getting full
Audible fill indicator
The optional fill sensor (wireless) alerts the operator when the bags are getting full. When the indicator begins to beep, the operator should turn off the mower to prevent plugging and overfilling.
In addition, a plexiglas sight window is standard on the MC2014.
Hopper lid easily stays open
Hopper lid with gas springs
Gas springs keep the lid open for easy access and screen cleaning.
Hopper is quickly removable for maintenance
Hopper on 3-point hitch with iMatch™ hitch system
Hopper is quickly removed
The hopper is quickly removable from the blower frame for ease of maintenance.
Specs & Compare
| Specs & Compare | ||||
|---|---|---|---|---|
| John Deere MC2014 Material Collection System |
Key Specs
| Hopper capacity | 493 L 14 bu |
|||
|---|---|---|---|---|
| Blower fan diameter | 381 mm 15 in. |
|||
| Blower fan speed | 3402 rpm | |||
| Hose diameter | 203 mm 8 in. |
Hopper
| Capacity | 493 L 14 bu |
|||
|---|---|---|---|---|
| Weight | Empty: 117.5 kg 259 lb Full (varies based on material): 200 kg 441 lb |
Blower system
| Drive type | Gearbox | |||
|---|---|---|---|---|
| Materials | Fan: Cast urethane with machine steel hub Fan housing: Steel, 11 gauge 3.03 mm 0.12 in. |
|||
| Fan diameter | 381 mm 15 in. |
|||
| Number of blades | 5 | |||
| Fan speed | 3402 rpm |
Hose
| Material | Clear polyurethane with black helix | |||
|---|---|---|---|---|
| Diameter | 203 mm 8 in. |
Requirements and compatibility
| PTO | 540 rpm | |||
|---|---|---|---|---|
| 3-point hitch | Category 1 | |||
| Electrical | ||||
| Mower deck | Mid-mount side-discharge deck | |||
| Counterweight | Implement code: 19a |
Warranty
| Time period | 1 year |
|---|
Additional information
| Date collected |
|---|
-

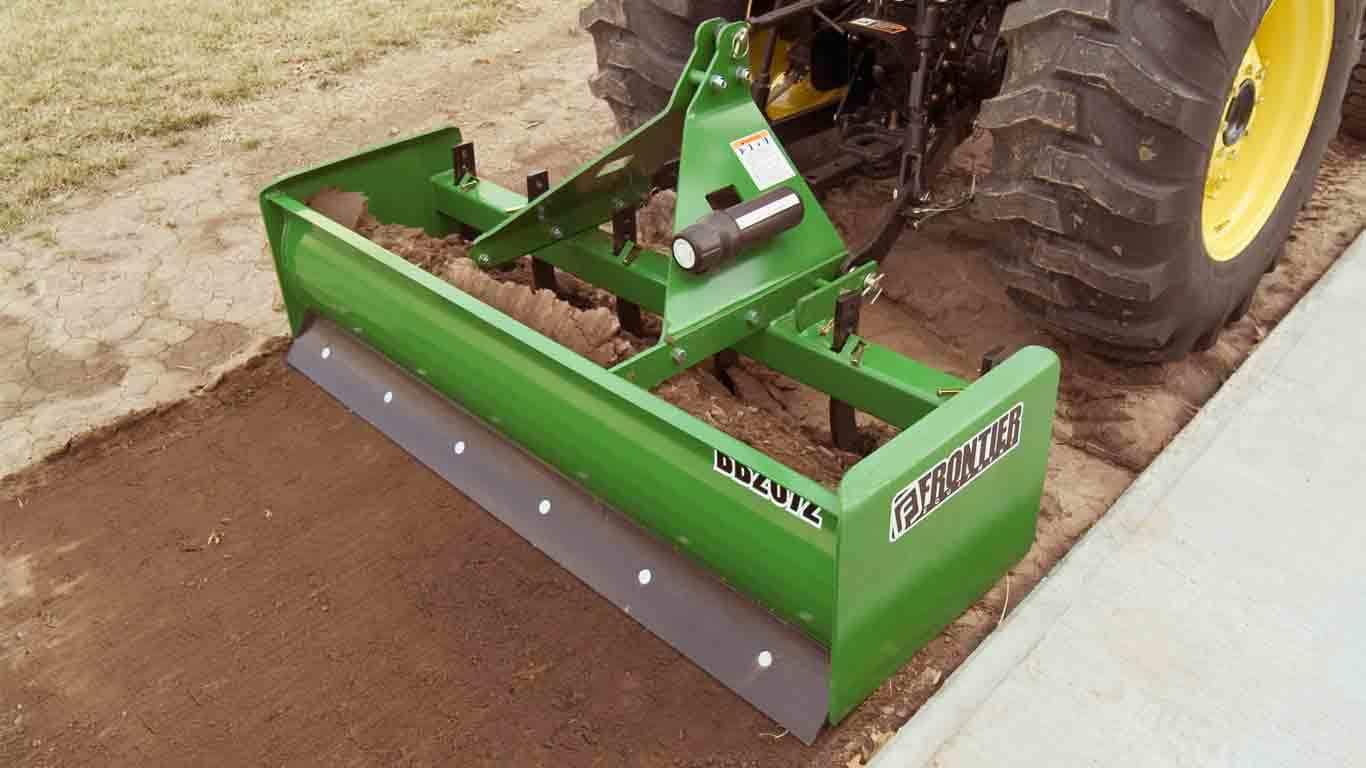

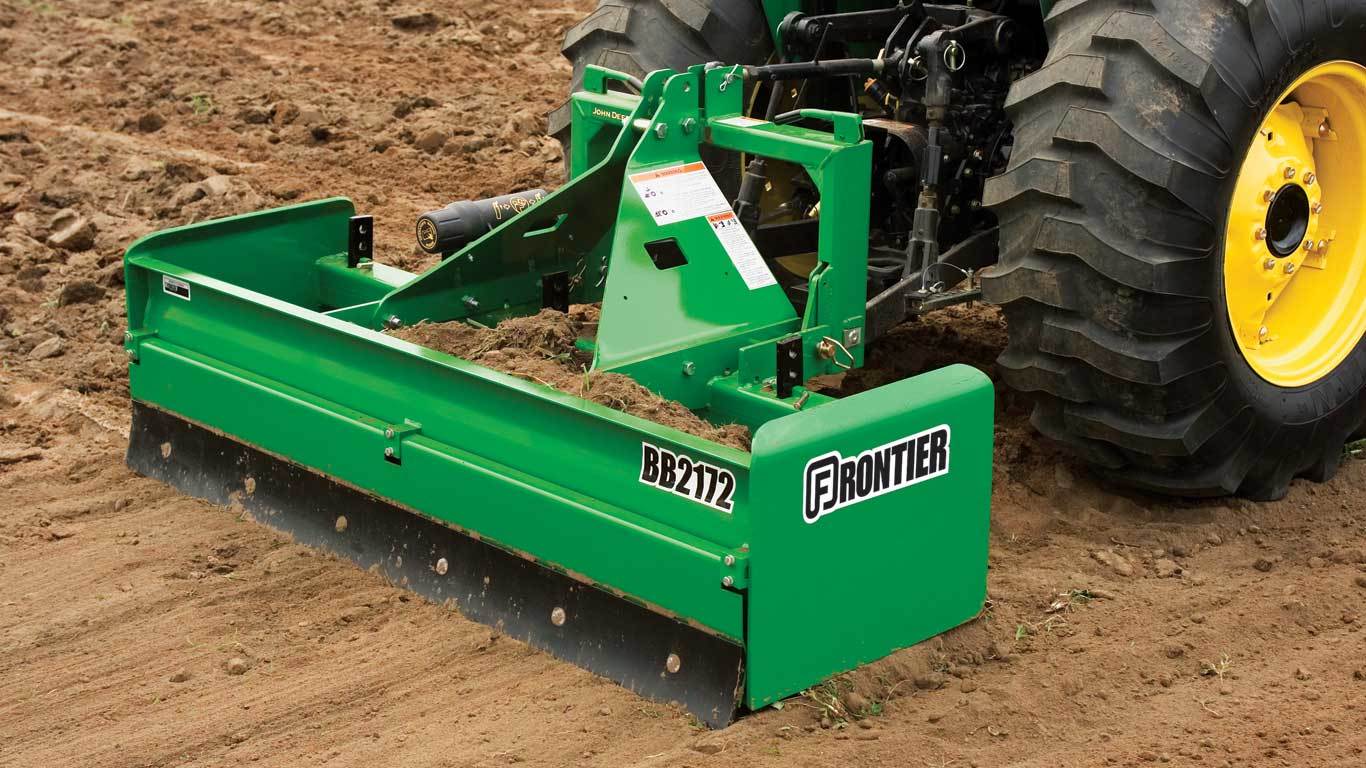

BB20 Series Box Blades -
BB20L Series Box Blades -
BB21 Series Box Blades -
BB50 Series Box Blades -
BB50L Series Box Blades -
BL11 Series Debris Blowers -
CA20 Core Aerators -
CA20E Series Core Aerators -
DT11 Series Trenchers -

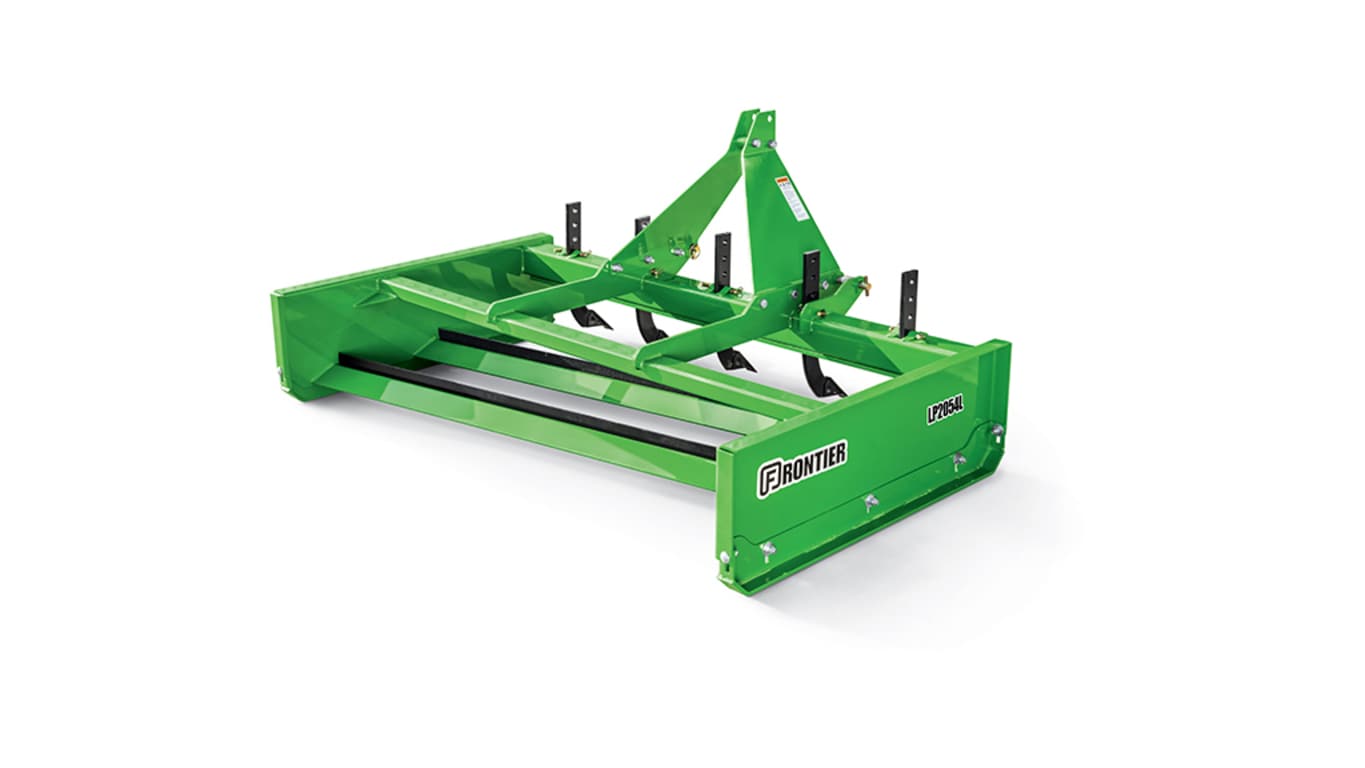

LP20 Series Land Planes -
LP21 Series Land Planes -
LR20 Series Landscape Rakes -
LR20L Series Landscape Rakes
-
LR21 Series Landscape Rakes -
LR50 Series Landscape Rakes -
LR50L Series Landscape Rakes -
MC2014 Material Collection System -
MC2120 Material Collection System -
PHD0 Series Post Hole Diggers -
PHD1 Series Post Hole Diggers -

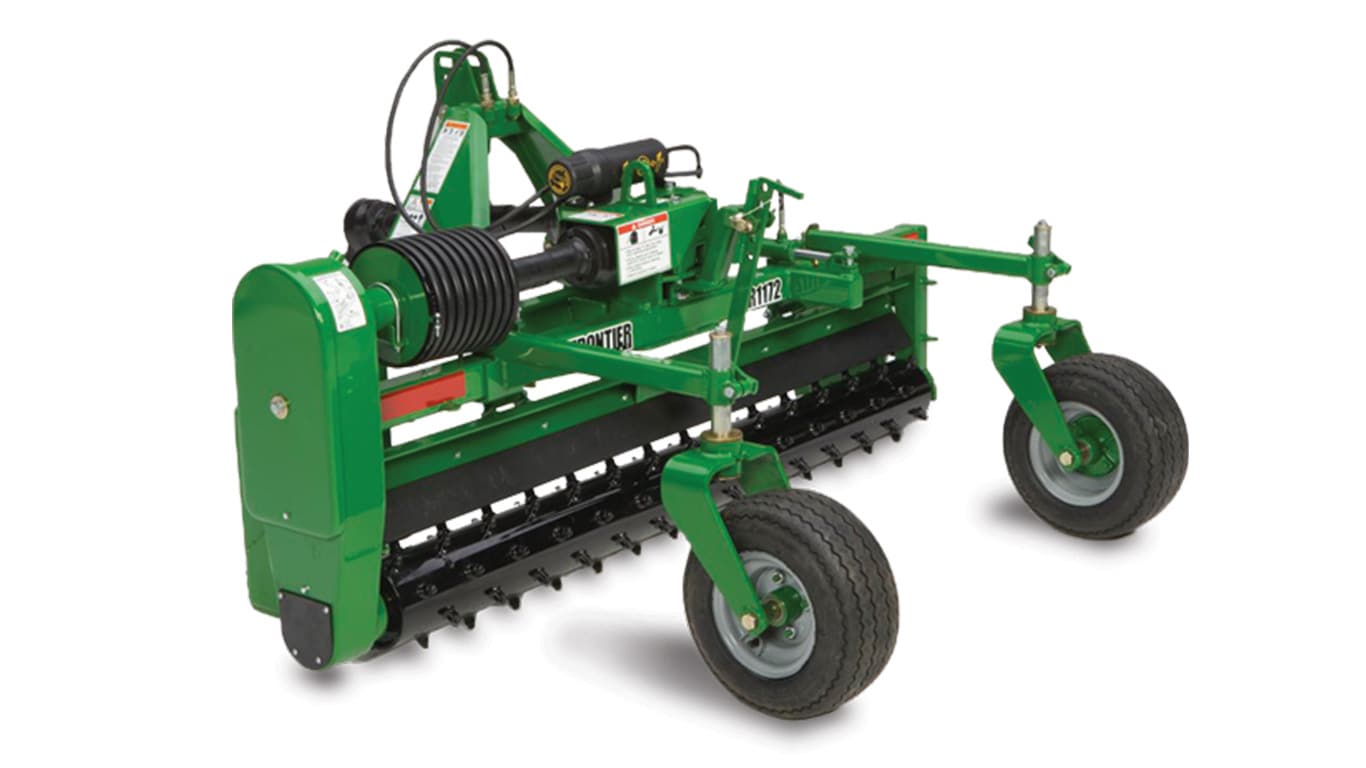

PR11 Series Power Rakes -
