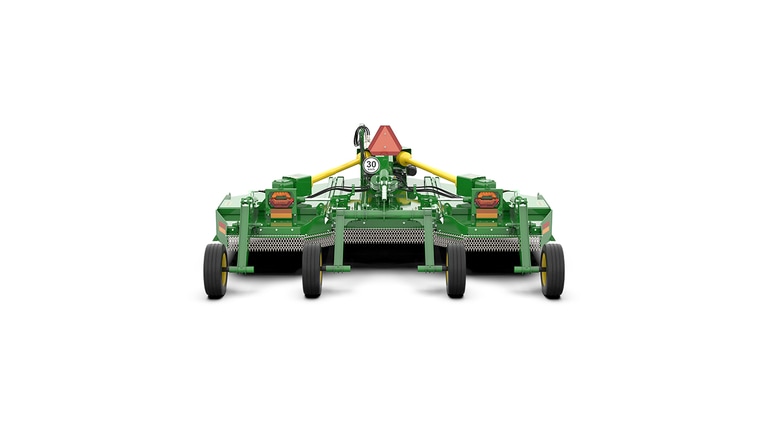

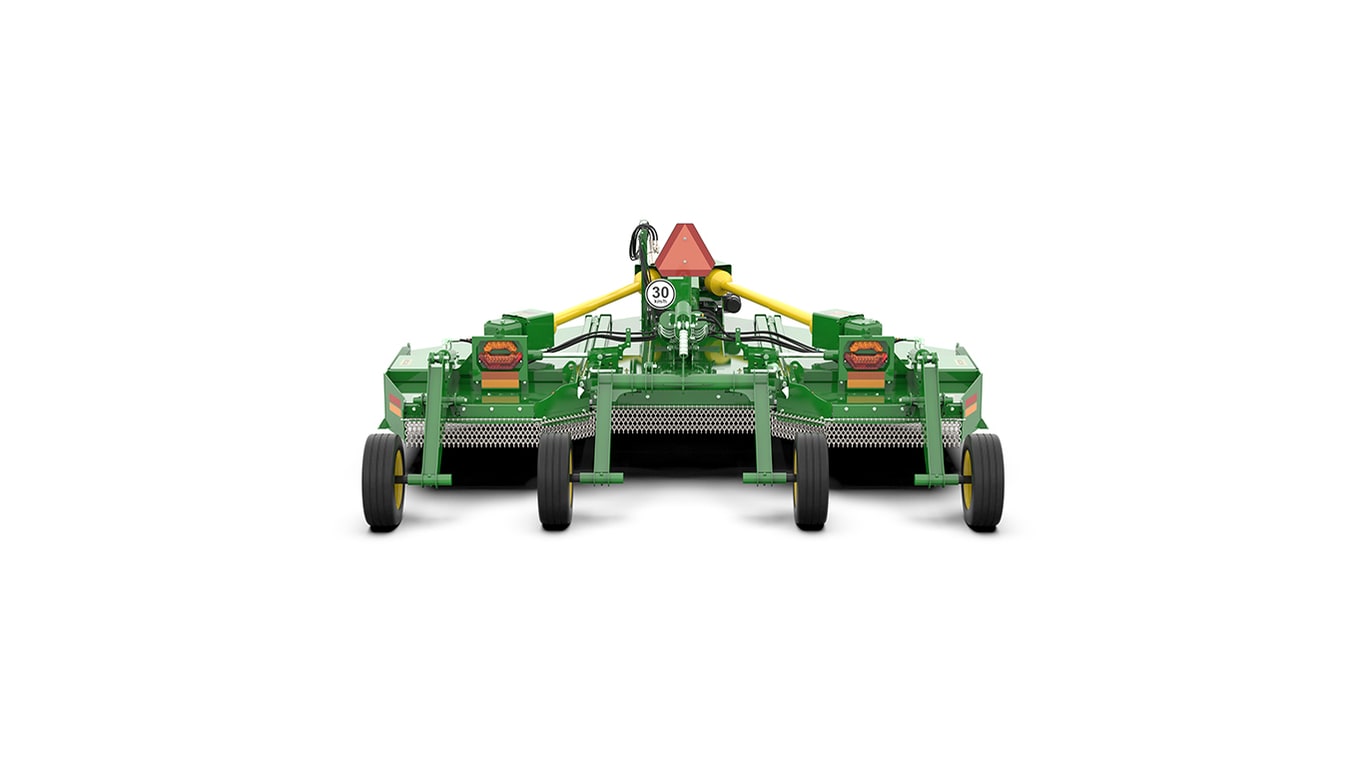

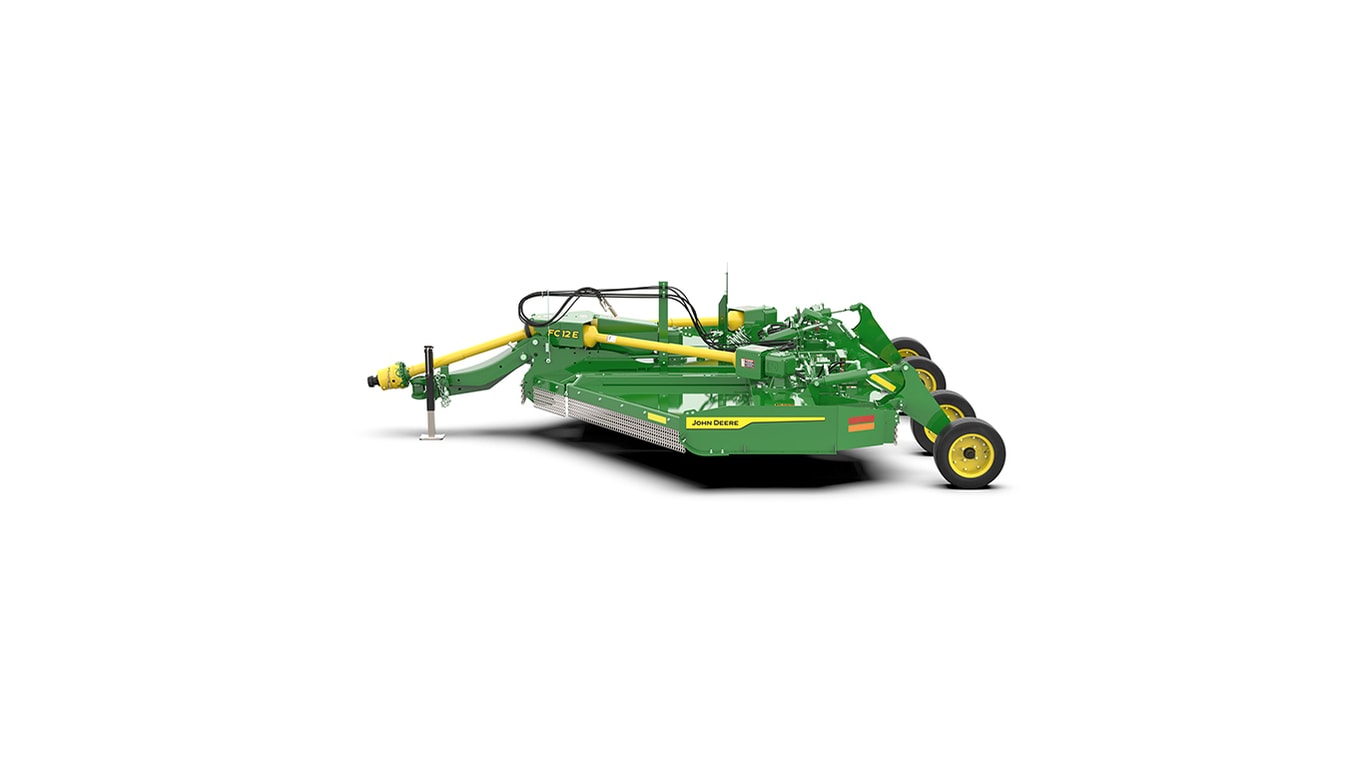

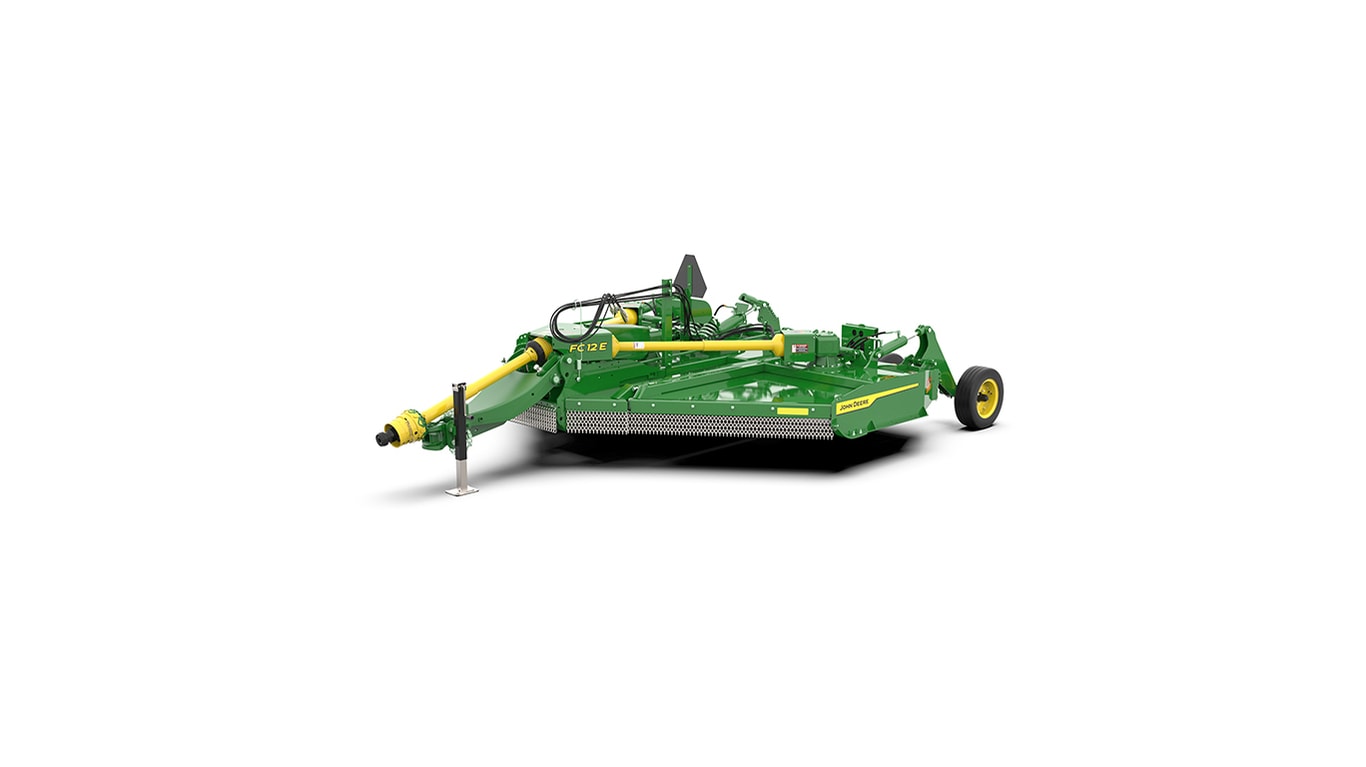

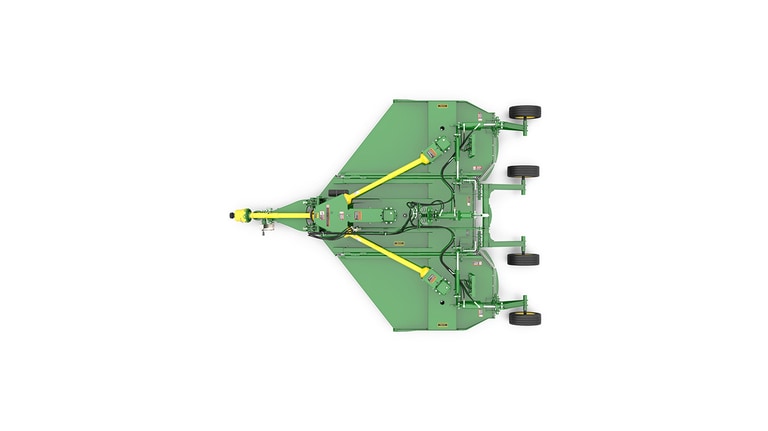

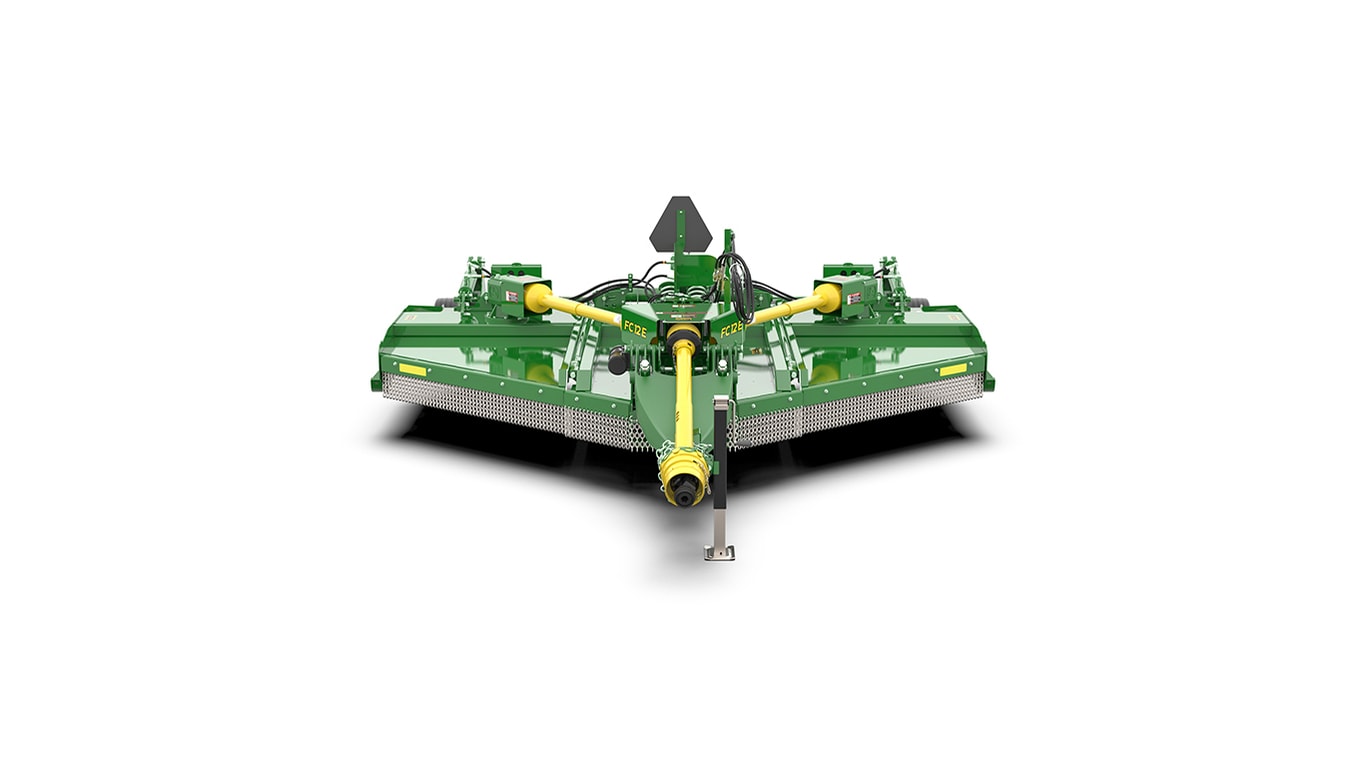

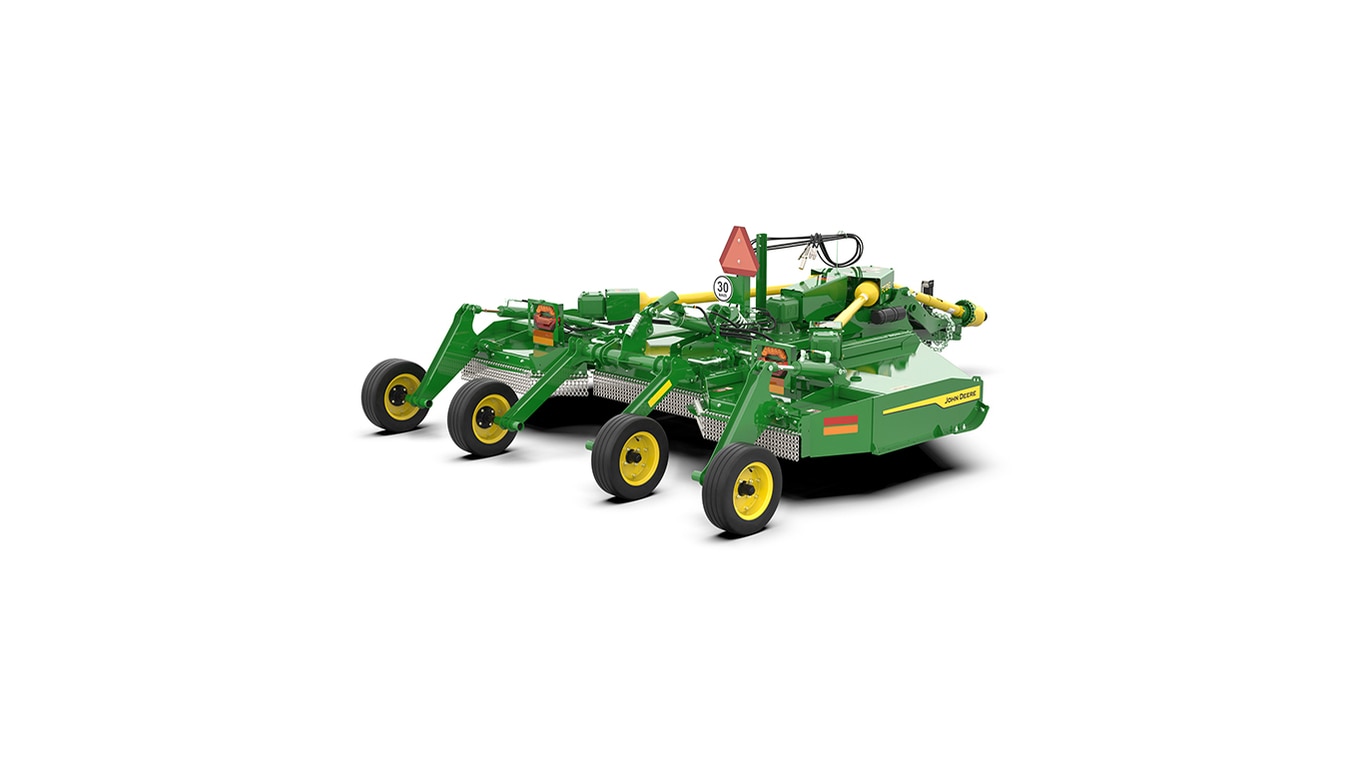

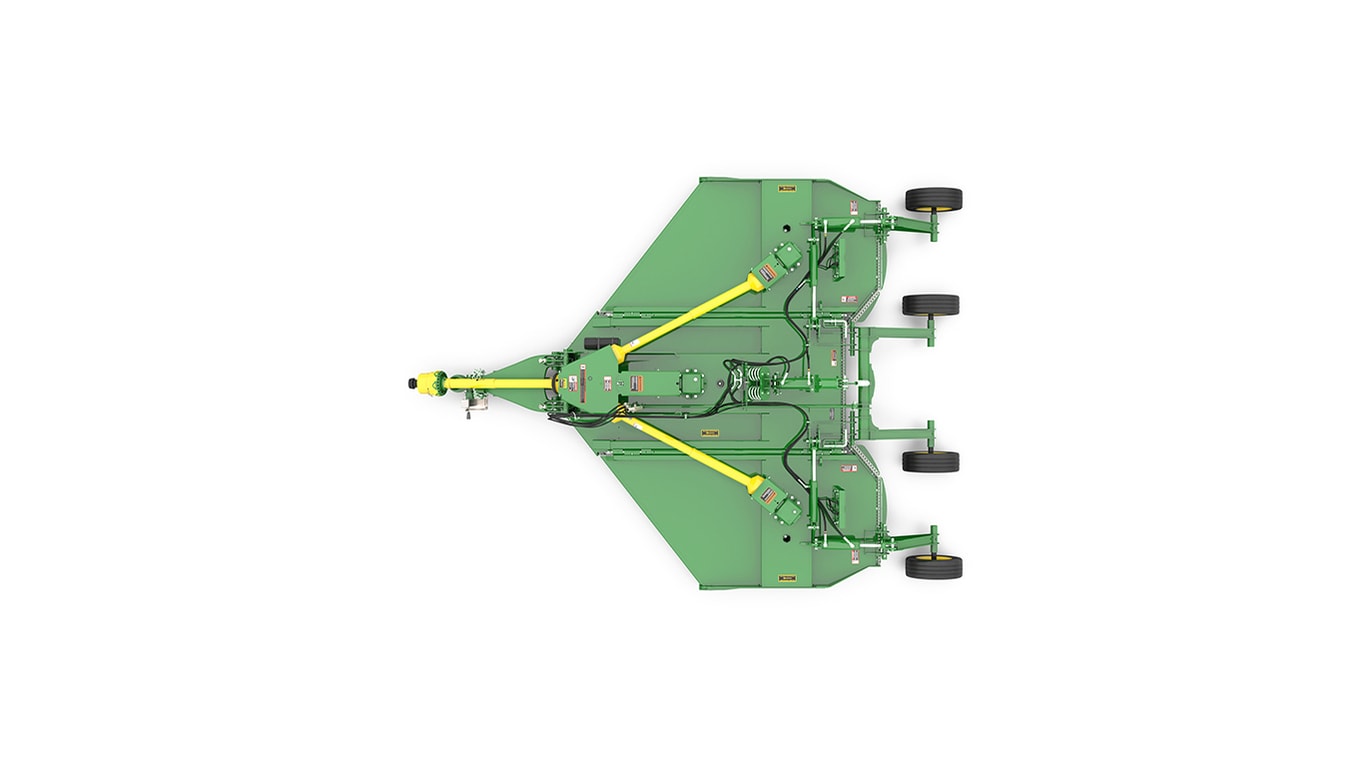

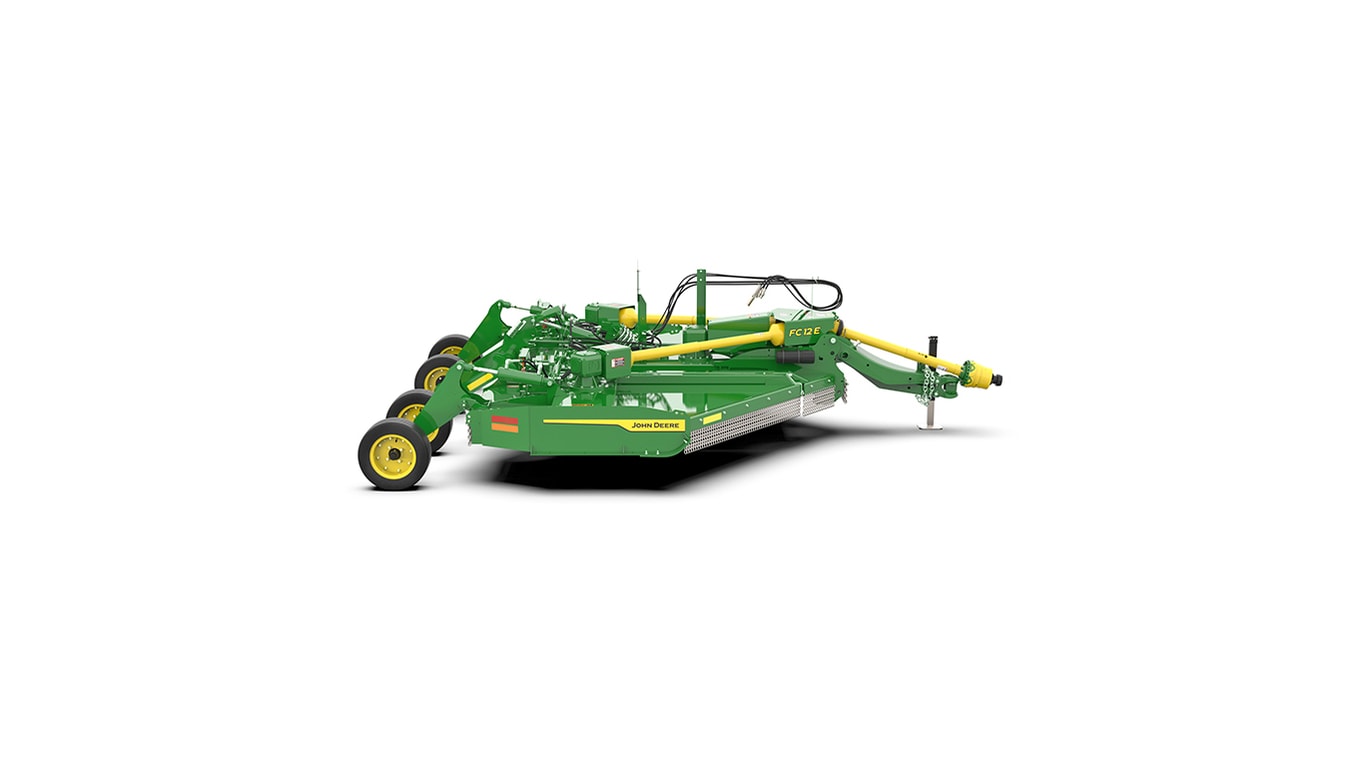

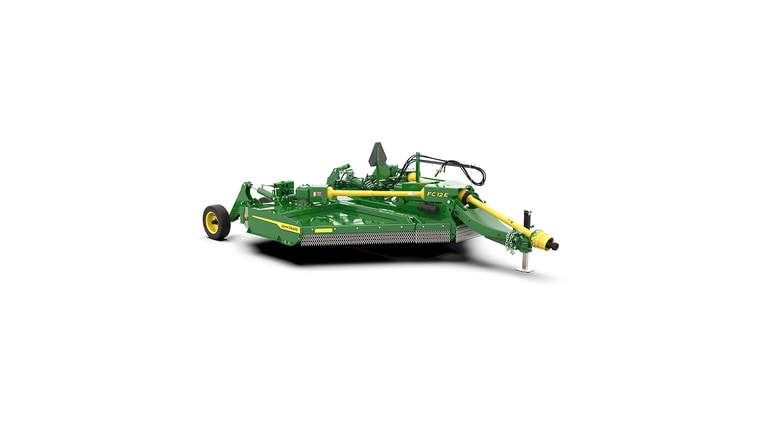

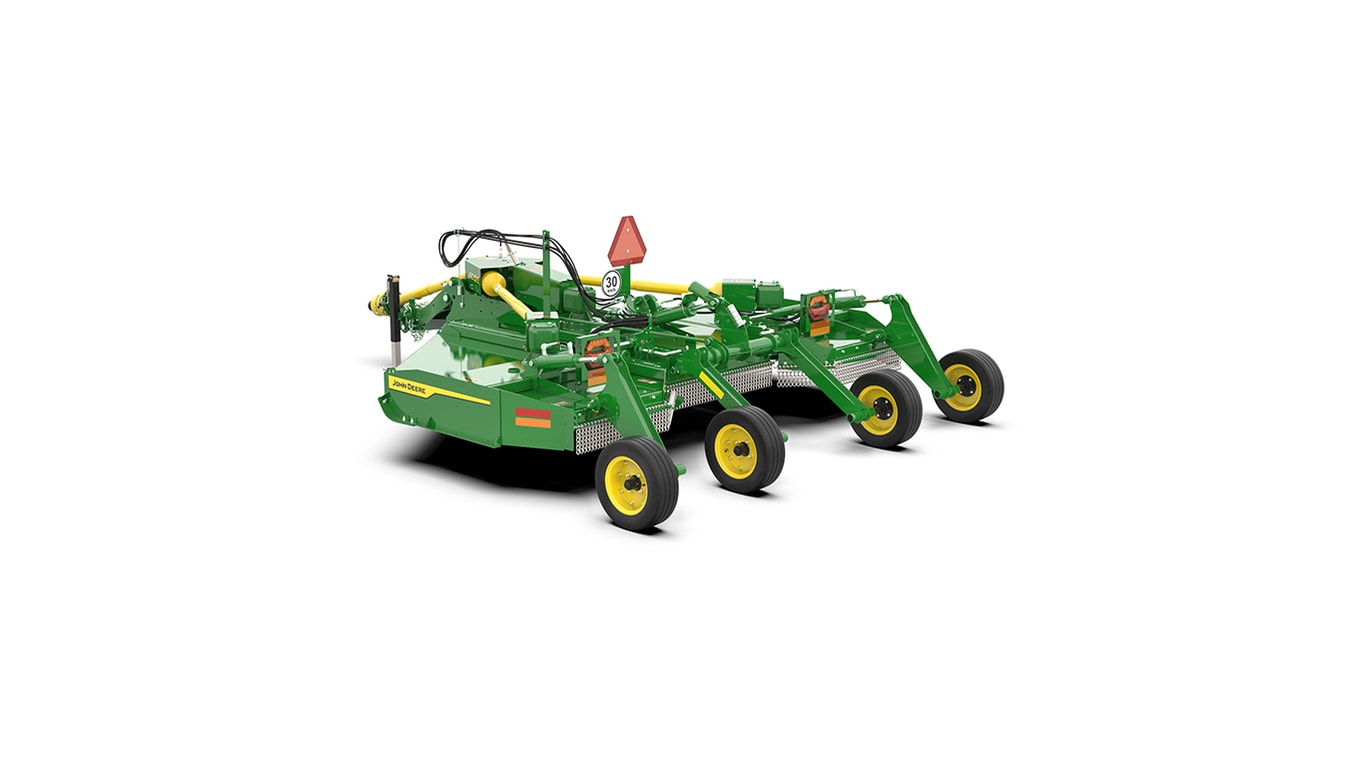

FC12EFlex Wing Rotary Cutter
- 12 ft. cutting width
- 540 PTO RPM
- 40-plus HP tractor PTO compatibility
- Newly added 1 SCV connection, optional 2 SCVs
NOTE: Only for E, M, and R flex-wing models.
John Deere flex-wing rotary cutters lead the way with innovative design, superior durability, and proven performance. Valuable features are included such as a dome-shaped smooth deck, which prevent water and debris from accumulating on the top of the machine and makes it easy to clean up.
Built with a superior structural design that will satisfy different applications and segment desires, the single deck on the flex-wing cutters adds volume on the cutting chamber, allowing the machine to process more material and translating into an improvement in cut quality. The cutting chamber design allows the material to flow through the area and be discharged evenly throughout the width of the machine.
To help promote safe operation, John Deere rotary cutters are equipped with front and rear safety-chain shields and lighting kits to comply with U.S. regulations. John Deere rotary cutters continue to advance in value with larger, more powerful gearboxes, and updated constant-velocity (CV) drivelines.
Here are situations when a rotary cutter provides value:
Decide what model to use based on:
John Deere flex-wing rotary cutters are available in three duty-level categories and four width sizes.
E-Series Flex-Wing Cutters are designed for your utility tractor to increase efficiency in each pass. They are ideal for making short work of grass, weeds, small bushes, and light shrubs.
The E Series is a rotary cutter that targets small farm owners and large homesteads, but with its 5.1-cm (2-in.) diameter cut capacity, it is applicable for all types of livestock pastures, as well as general mid-duty property maintenance applications. Improved pasture maintenance results in better growth of edible plant material. The E Series allows flex-wing operators to use a smaller tractor with a minimum 29.8 power take-off (PTO) kW (40 PTO hp), which means fuel savings. It is available both in 4.6-m (15-ft) and 3.6-m (12-ft) sizes, providing increases productivity and terrain coverage.
The E Series is equipped with a 540-rpm Category 5 driveline, rigid axles with four puncture-proof laminated tires, and round pan-type blade holders. The E Series shares many design features of the M and R Series, such as the easy-clean deck, round blade pans, and a cast self-leveling clevis hitch.
M-Series Flex-Wing Cutters are suited for larger property owners and ag producers.
A flex-wing rotary cutter is the best way to go when dealing with large areas and uneven terrain. Get a lot done on the job and then fold up the wings for easy transport. Choices include 540 PTO rpm or 1000 PTO rpm, laminated or severe-duty ag tires, and round stump jumper or bar-type blade holder. Put these M-Series Rotary Cutters to work reclaiming overgrown pastures, mowing rights-of-way, and chopping row-crop residue. With the redesigned cutting chamber, you are ready with great capacity and better crop flow. That means an unrestricted airflow, which translates into cleaner cutting and more uniform distribution of cut material.
A tractor with a minimum of 41 PTO kW (55 PTO hp) is required. The type and volume of material being cut will affect horsepower requirements.
R-Series Cutters are designed to multi-task in tough conditions, from cleaning roadside ditches to cutting under power line easements, recovering Conservation Reserve Program (CRP) land, airfield mowing, and road-rail verges. The R-Series range is ideal for contractors and government users requiring an industrial-strength machine with a narrow road transport width.
The R-Series Flex-Wing Rotary Cutter was engineered for the toughest roadside mowing and commercial applications. It comes in the standard 4.6-m (15-ft) and 6.1-m (20-ft) dual-wing configurations and in a right-wing-only weight-box configuration.
The 3.1-m (10-ft) FC10R Weight-Box Rotary Cutter is designed from the FC15R base model and incorporates many of the same features, but it is specifically enhanced for roadside cutting. The left wing of the cutter is removed and replaced with a weight box to provide stability for the unit. This allows the tractor to be operated alongside the road for mowing. Municipalities and commercial mowing operators utilize these units for roadside mowing where a full-sized unit is too wide and where the desired roadside cutting width is less. It is available in 540 rpm only.
The main difference between the R-spec and M-spec models is that the R-spec is a heavier, more durable rotary cutter that can handle more challenging conditions and terrains for longer working times. A thicker deck, standard deck rings, ball hitch, independent wing hydraulics, and larger tires.
The terrain and type and volume of material being cut affect horsepower requirements.
Area cut with John Deere rotary cutters
Rotary cutter width | Acres per hour | Minutes per acre |
1.2 m (4 ft) | 2 | 29 |
1.5 m (5 ft) | 2.5 | 23 |
1.8 m (6 ft) | 3 | 20 |
2.1 m (7 ft) | 3.5 | 16 |
2.4 m (8 ft) | 4 | 14 |
3.05 m (10 ft) | 5 | 12 |
3.7 m (12 ft) | 6 | 10 |
4.3 m (14 ft) | 7 | 8 |
4.6 m (15 ft) | 7.5 | 8 |
6.1 m (20 ft) | 10 | 6 |
NOTE:
John Deere flex-wing rotary cutters are equipped with chains and lights as standard in all models.
Chain shields offer protection to the operator and the area surrounding the cutter yet allow uncut material to pass into the cutting chamber with minimal restriction.
An extra row of chain shields for the front, back or both sides can be added for increased protection against debris coming from the cutting chamber.
Lights are required for U.S. regulations on implements wider than 3.05 m (10 ft). All cutters come standard from the factory with lights.
The center axle can be locked easily for transport or service by flipping the lock over the cylinder rod. Wing locks use a pin that can be conveniently stored when not in use. Additionally, on M and R Series, the wing locks are spring-loaded so they can unfold against gravity on slopes up to 5 degrees. Always use the transport lock on the wings and center axle while transporting or moving the machine.
John Deere is so confident in the reliability of the gearbox that rotary cutters come with a 5-year limited gearbox warranty.
There is also 1-year warranty on the complete machine, including drivelines, clutches, and many other components.
John Deere flex-wing rotary cutters are equipped with an easy-clean, smooth-top single deck that allows material, debris, and water to be easily removed from the top of the machine.
