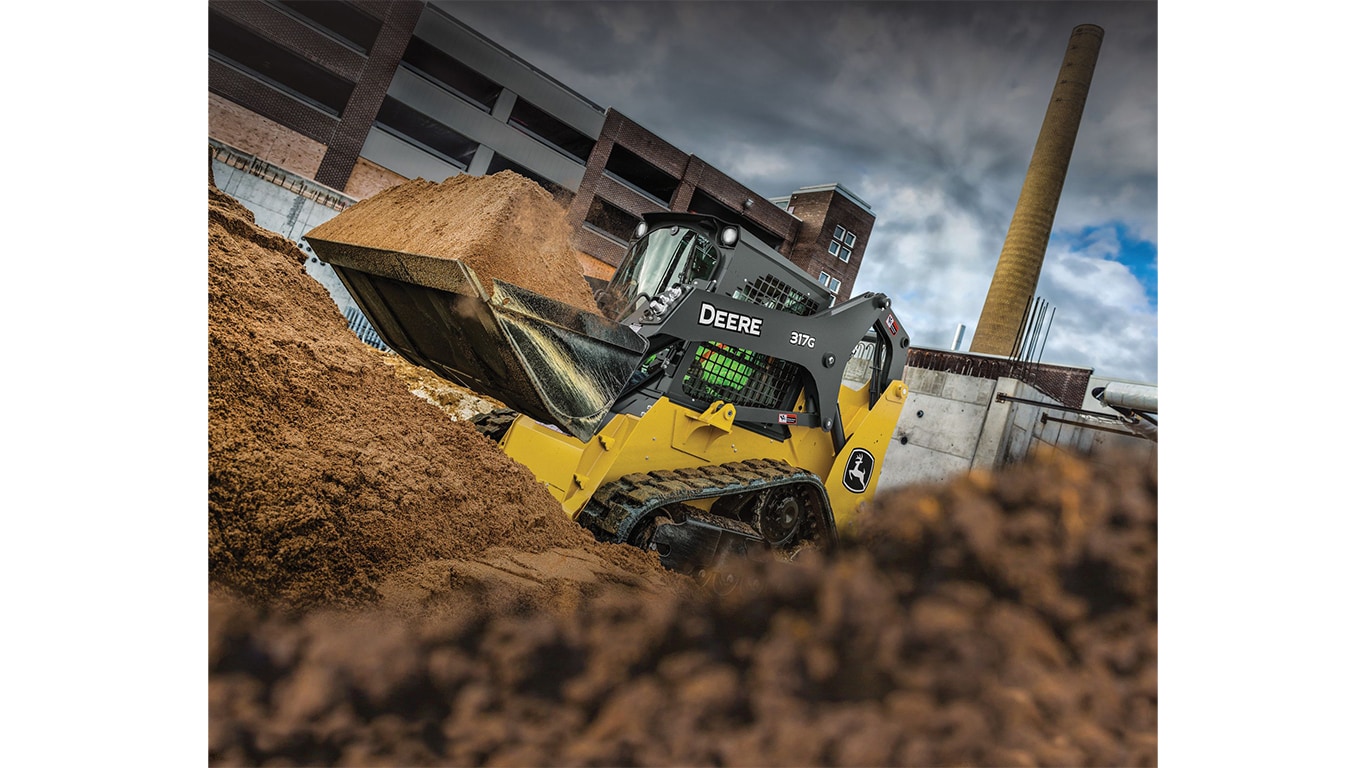

The vertical-lift boom offers more lift height and reach at the top of the lift path, for more stability and truck-loading ability.
Final Tier 4 (FT4)/EU Stage IV diesel engine packs plenty of power and torque.
Auxiliary flow rates make the most of an even broader range of attachments.
Large coolers increase heat rejection for uninterrupted performance in severe, high-load conditions. Engine-mounted, belt-driven cooling fan delivers efficient, reliable performance.
Equipped with optional 15.8-inch-wide track, this CTL’s ground pressure is just 4.5 psi, enabling work in soft underfoot conditions and side-slope stability.
Electrohydraulic (EH) joysticks are standard.
Excellent all-around visibility is further enhanced with an LED side-lighting option.
Optional rearview camera allows operators to see the jobsite behind the machine.
Swing-out rear door enables easy, ground-level access to daily service checkpoints and cooling system components.
Hinged rear door and hydraulic cooler swing open, making trash removal and core cleanout simple.
Spin-on engine oil and fuel filers mounted remotely behind the rear door allow quick changes.

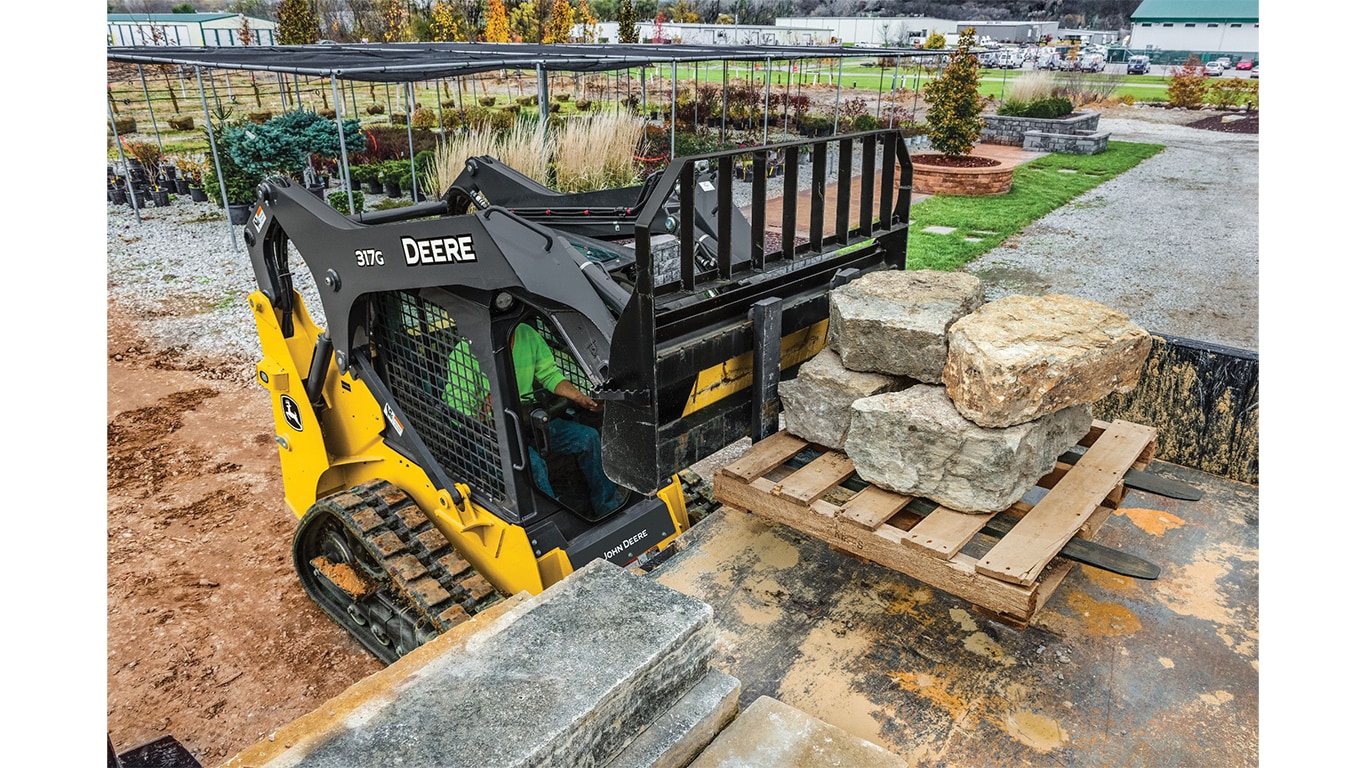

With the universal Quik-Tatch,™ you can go from compact loader bucket, to forks, to whatever, in just seconds. Each loader model delivers plenty of standard hydraulic power to operate augers, hydraulic hammers, roller levels, trenchers, or power rakes, to list just a few.
|Specs & Compare|
|Select up to 4 models to compare specifications||

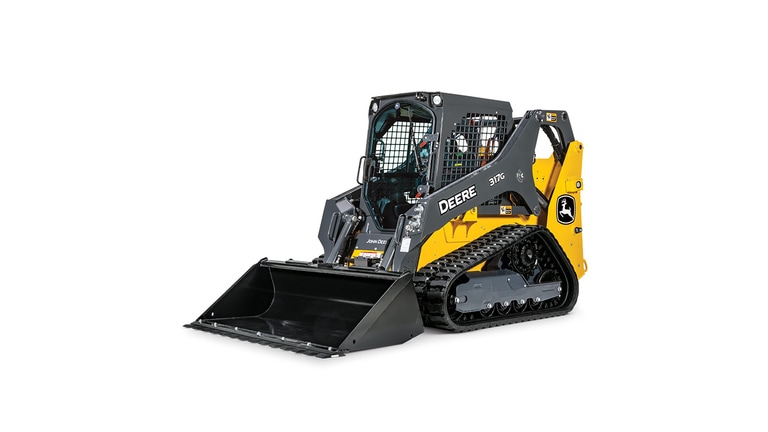

Compact Track Loader
|Emission Rating||Tier 4 / Stage IV|
|Displacement, ltr (Inches³)||2.1 (128)|
|Rated Speed, rpm||2600|
|Engine Output - Net, kW (hp)||45.6 (61)|
|Engine Output - Gross, kW (hp)||48.5 (65)|
|Torque, Nm (lbf / ft)||207 (153)|
|Track Shoe Width, mm (inches)||320 (12.6)|
|Length - No Bucket, mm (inches)||2630 (103)|
|Length - Foundry Bucket, mm (inches)||3240 (127.6)|
|Width - No Bucket, mm (inches)||1650 (65.1)|
|Height - Top Of Cab, mm (inches)||1990 (78.5)|
|Ground Clearance, mm (inches)||210 (8.3)|
|Rear Departure Angle, Degrees||32.3|
|Track Gauge, mm (inches)||1330 (52.5)|
|Height to Hinge Pin, mm (inches)||3070 (121)|
|Dump Angle, Degrees||42|
|Dump Height - Maximum Foundry, mm (inches)||2430 (95.6)|
|Rollback - Ground Level, Degrees||30|
|Fuel Tank, ltr (gallons (US))||71 (19)|
|Rated Operating Capacity - Foundry, kg (lbs)||965 (2125)|
|Tipping Load - Foundry, kg (lbs)||2756 (6070)|
|Ground Bearing Pressure - Foundry, kPa (PSI)||38 (5.5)|
|Speed - Maximum, kph (mph)||11.3 (7)|
|Breakout - Lift Foundry, kN (lbf)||23.3 (5250)|
|Breakout - Bucket Foundry, kN (lbf)||26.6 (6000)|
|Hydraulic Power, kW (hp)||24.729 (33.1)|
|Pump Flow, lt/min (gallons (US) / min)||63 (17)|
|System Pressure, bar (PSI)||237.87 (3450)|
|Operating Weight - Foundry, kg (lbs)||3824 (8423)|
on new John Deere Compact Track Loaders.
For complete details regarding this offer, please select the corresponding link.
Every John Deere machine comes with a level of comfort through our full machine standard warranty. It promises we’ll fix any defects in materials or workmanship on our compact equipment for two years after delivery or 2,000 hours.*
¹Offer valid on qualifying purchases of new equipment made between 1 July 2020 to 31 October 2020 and is subject to John Deere Financial installment credit approval. Purchase financing for 60 months on select new John Deere Compact Construction Equipment. For commercial use only. Down payment may be required. Minimum purchase/finance may be required. The charge for amounts past due is 24% per annum. Taxes, set-up, delivery, freight, insurance and preparation charges, documentation fees and additional dealer fees may apply. Some restrictions apply. Dealers free to set individual prices. Contact dealer for details and other financing options. May not be combined with other offers. Offer subject to change, without notice, at any time. Available at participating Canadian dealers. Pricing and savings in Canadian dollars.
Qualified equipment includes the 317G canopy package (0730) or cab package (0735) with 12.6" offset block lug tracks, vinyl mechanical suspension seat, seat belt (2" for canopy package and 3" for cab package), and 66" construction bucket.
Features and specifications are based on published information at the time of publication. Features and specifications are subject to change without notice.
* As of June 1, 2018, applies to purchases of new John Deere skid steers, compact track loaders, compact excavators, and compact wheel loaders from John Deere or authorized John Deere dealers. Warranty expires two years after the delivery receipt date or after 2,000 machine hours, whichever occurs first. Offer valid at participating dealers only. Some restrictions may apply. See your dealer for complete details.
