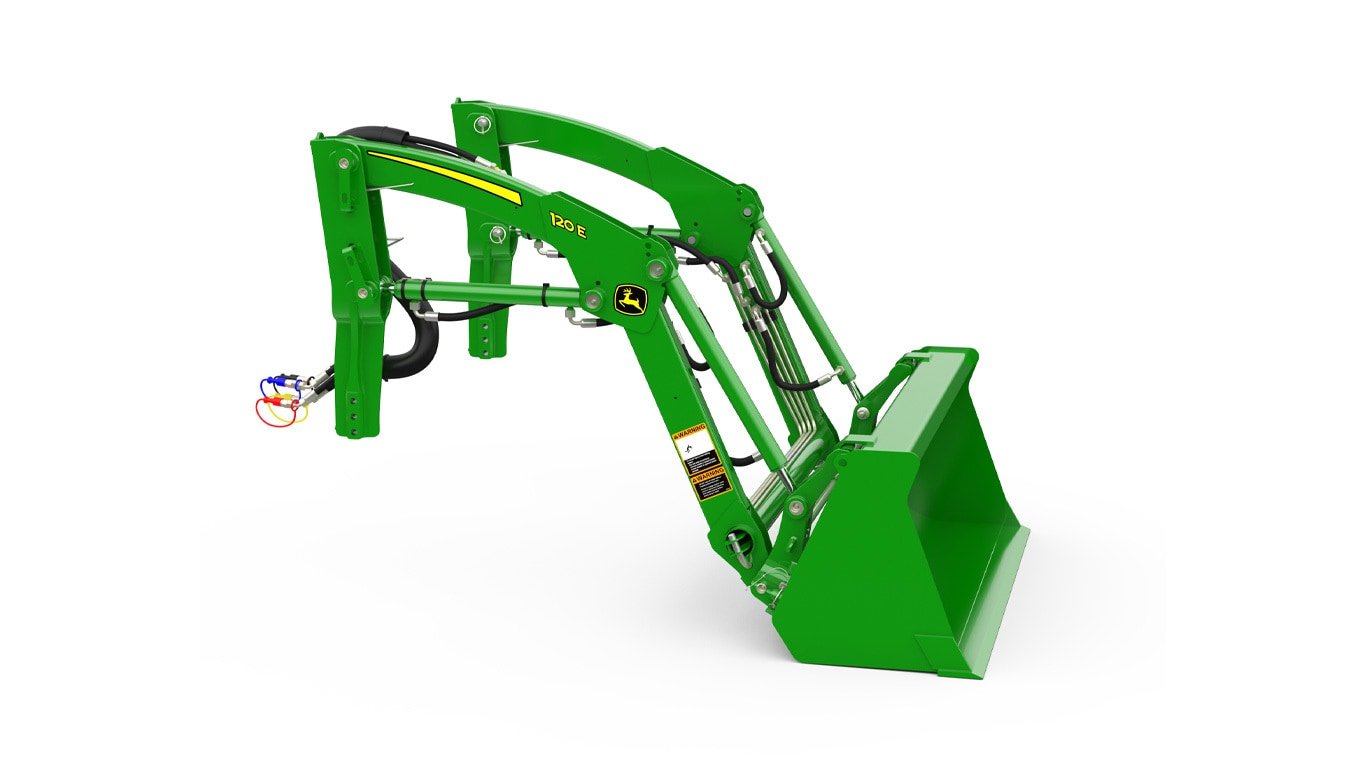

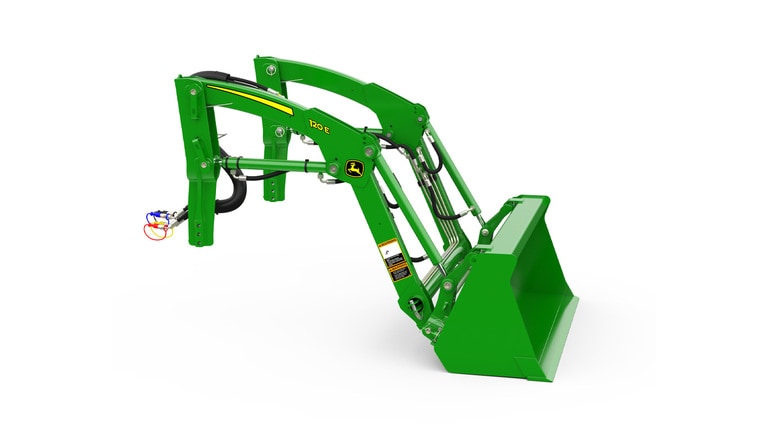

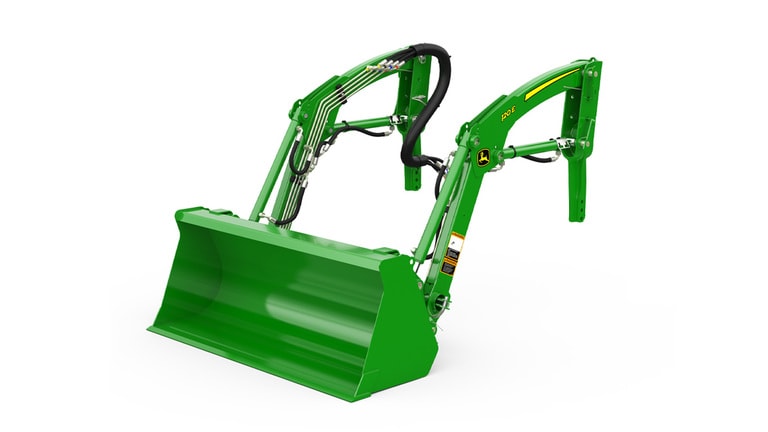

120ELoader
- Compatible with 1023E and 1025R Tractors
- Curved boom design
- Quik-Change attachment carrier standard
- Parkable
Specs & Compare | ||||
---|---|---|---|---|
Select up to 4 models to compare specifications | John Deere 120E Loader |
Maximum lift height | 1809 mm 71.2 in. |
|||
---|---|---|---|---|
Lift capacity at full height | Measured at pivot 375 kg 825 lb Measured at 500 mm ahead of pivot 259 kg 570 lb |
|||
Boom breakout force | Measured at pivot 806 kg 1808 lb Measured at 500 mm ahead of pivot 552 kg 1238 lb |
|||
Bucket rollback force capacity | At ground-level line 707 kg 1559 lb |
|||
Clearance at full height - bucket dumped | 1371 mm 54 in. |
|||
Dump angle, degrees | -40.1 degree (angle) | |||
Rollback angle, degrees | 31.2 degree (angle) |
Model | 1023E/1026R Tractor | |||
---|---|---|---|---|
Front tire | 18x8.5-10 4PR R4 | |||
Rear tire | 26x12.00-12 4PR R4 | |||
Front axle configuration | ||||
Wheelbase | 1450 mm 57 in. |
|||
Pump capacity | 3.5 gpm | |||
Rated pressure | 1987 psi |
Base weight | 220.5 kg | |||
---|---|---|---|---|
Leveling configuration | ||||
Bucket used | Pin on Materials 1250 mm 49 in. |
|||
Bucket weight | 53 kg 117 lb |
|||
Lift capacity at full height | Measured at pivot 375 kg 825 lb Measured at 500 mm ahead of pivot 259 kg 570 lb |
|||
Lift capacity at 59 in. (1500 mm) | Measured at pivot 429 kg 944 lb Measured at 500 mm ahead of pivot 309 kg 680 lb |
|||
Boom breakout force | Measured at pivot 806 kg 1808 lb Measured at 500 mm ahead of pivot 552 kg 1238 lb |
|||
Bucket rollback force capacity | At maximum height 593 kg 1330 lb At 59-in. (1500-mm) lift height 711 kg 1568 lb At ground-level line 707 kg 1559 lb |
|||
Dimensions | Maximum lift height 1809 mm 71.2 in. At full height - bucket level 1653 mm 65.1 in. At full height - bucket dumped 1371 mm 54 in. |
|||
Overall length | 2.6 m 8.6 ft |
|||
Overall height in carry position | ||||
Digging depth | -101 mm -4.0 in. |
|||
Reach | At maximum height 571 mm 22.5 in. At ground level - bucket level 1176 mm 46.3 in. |
|||
Bucket angle | Dump angle, degrees -40.1 degree (angle) Rollback angle, degrees 31.2 degree (angle) Dump angle, ground -114.0 degree (angle) |
|||
Cycle times | Loader raise, seconds 4.0 seconds Loader lower, seconds 2.5 seconds Bucket dump, seconds 5.7 (without regen)/2.2 (with regen) seconds Bucket rollback, seconds 3.5 seconds |
