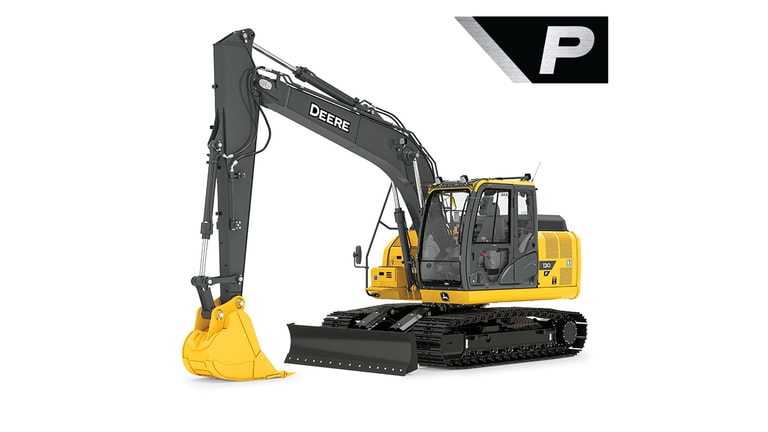

P-Tier updates build on the proven G-Series design. Take front joint durability to new levels compared to G-Series.
Factory installed hydraulic plumbing all the way to the end of the arm. Coupler controls integrated into a switch in the cab. Quick and efficient coupler installation. Popular in the underground segment, couplers allow excavators to efficiently switch attachments and get more productive working hours each day.
Optional Right Rear and Left Camera system with additional light-emitting diode (LED) surround lighting work together to provide the operator enhanced 270 degree visibility around the machine. All integrated into the main monitor.
|Specs & Compare|
|Select up to 4 models to compare specifications||
|Emission Rating||Tier 4 / Stage IV|
|Engine Manufacturer||John Deere Power Tech|
|Number Of Cylinders||4|
|Displacement, ltr (Inches³)||4.5 (275)|
|Rated speed, rpm||2000|
|Engine Output - Net, kW (hp)||73 (98)|
|Number Of Carrier Rollers - Each Side||1|
|Number Of Track Rollers - Each Side||7|
|Track Shoe Width, mm (inches)||600 (24)|
|Transport Length Mono Boom, mm (ft/in)||7710 (25 ft 4 in)|
|Transport Height - Maximum, mm (ft/in)||2870 (9 ft 5 in)|
|Overall Undercarriage Width, mm (ft/in)||2590 (8 ft 6 in)|
|Track Length On Ground, mm (ft/in)||2880 (9 ft 5 in)|
|Overall Undercarriage Length, mm (ft/in)||3580 (11 ft 9 in)|
|Tailswing Radius, mm (ft/in)||2190 (7 ft 2 in)|
|Ground Clearance, mm (inches)||410 (16)|
|Dozer Blade Height, mm (inches)||523 (21)|
|Dozer Blade Width, mm (ft/in)||2590 (8 ft 6 in)|
|Width over fixed tracks, mm (ft/in)||2590 (8 ft 6 in)|
|Track Gauge, mm (ft/in)||1990 (6 ft 6 in)|
|Digging Reach - Mono Boom, mm (ft/in)||8770 (28 ft 9 in)|
|Ground Level Reach - Mono Boom, mm (ft/in)||8670 (28 ft 5 in)|
|Dig Height - Mono Boom, mm (ft/in)||8930 (29 ft 4 in)|
|Dump Height - Mono Boom, mm (ft/in)||6520 (21 ft 5 in)|
|Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in)||5880 (19 ft 3 in)|
|Dig Depth - Mono Boom, mm (ft/in)||6030 (19 ft 9 in)|
|Fuel Tank, ltr (gallons (US))||285 (75.3)|
|Hydraulic Tank, ltr (gallons (US))||69 (18.2)|
|Ground Bearing Pressure, kPa (PSI)||35 (5.11)|
|Swing Speed, rpm||13.3|
|Swing Torque, kNm (lbf / ft)||34 (25000)|
|Travel Speed - High, kph (mph)||5.5 (3.4)|
|Tractive Force, kN (lbf)||110 (24729)|
|Arm Tearout, kN (lbf)||60 (13521)|
|Bucket Breakout, kN (lbf)||96 (21480)|
|Total Flow, lt/min (gallons (US) / min)||210 (56)|
|Bucket Pressure, bar (PSI)||343 (4980)|
|Boost Pressure, bar (PSI)||363 (5265)|
|Operating Weight, kg (lbs)||13624 (30009)|
