Zero ash-service intervals. Zero regenerations. Extremely efficient combustion allows Isuzu® engines to burn particulate matter in cylinder during combustion. Diesel exhaust fluid (DEF) is injected into the exhaust stream and through Selective Catalytic Reduction (SCR), emissions standards are achieved.
Isuzu is a trademark of Isuzu Motors Limited Corporation.
Factory installed auxiliary hydraulic lines enable your excavator to run a number of attachments and increase the versatility of your machine, without the need for additional machines or operators.
Pumps 1 and 2 combined control the boom and arm functions. Pump 3 is dedicated to swing. The result is fast cycle times and increased productivity.

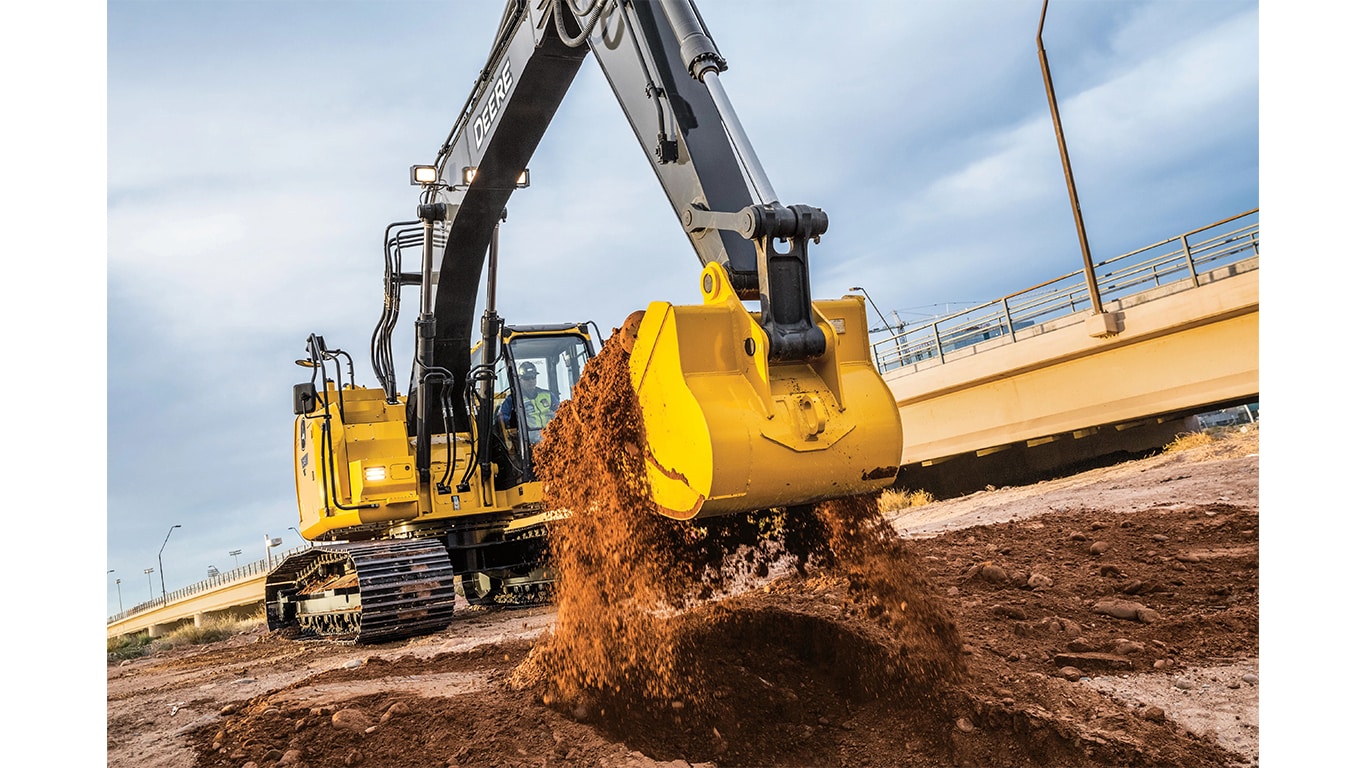

Take digging forces to new levels with power boost when you need it. This machine is a well-balanced, smooth operating machine in a reduced tailswing configuration.
Optional Right Rear and Left Camera system with additional light-emitting diode (LED) surround lighting work together to provide the operator enhanced 270 degree visibility around the machine. All integrated into the main monitor.
|Specs & Compare|
|Select up to 4 models to compare specifications||
|Emission Rating||Tier 4 / Stage IV|
|Number Of Cylinders||4|
|Displacement, ltr (Inches³)||5.19 (317)|
|Rated speed, rpm||2000|
|Engine Output - Net, kW (hp)||119 (159)|
|Number Of Carrier Rollers - Each Side||2|
|Number Of Track Rollers - Each Side||8|
|Track Shoe Width, mm (inches)||700 (28)|
|Transport Length Mono Boom, mm (ft/in)||9120 (29 ft 11 in)|
|Transport Height - Maximum, mm (ft/in)||3030 (9 ft 11 in)|
|Overall Undercarriage Width, mm (ft/in)||3090 (10 ft 1 in)|
|Track Length On Ground, mm (ft/in)||3660 (12 ft )|
|Overall Undercarriage Length, mm (ft/in)||4460 (14 ft 7 in)|
|Tailswing Radius, mm (ft/in)||1680 (5 ft 6 in)|
|Ground Clearance, mm (inches)||450 (18)|
|Width over fixed tracks, mm (ft/in)||3090 (10 ft 1 in)|
|Track Gauge, mm (ft/in)||2390 (7 ft 10 in)|
|Digging Reach - Mono Boom, mm (ft/in)||10110 (33 ft 2 in)|
|Ground Level Reach - Mono Boom, mm (ft/in)||9900 (32 ft 6 in)|
|Dig Height - Mono Boom, mm (ft/in)||11230 (36 ft 10 in)|
|Dump Height - Mono Boom, mm (ft/in)||8290 (27 ft 2 in)|
|Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in)||6410 (21 ft )|
|Dig Depth - Mono Boom, mm (ft/in)||6620 (21 ft 8 in)|
|Fuel Tank, ltr (gallons (US))||380 (100)|
|Hydraulic Tank, ltr (gallons (US))||130 (34.3)|
|Ground Bearing Pressure, kPa (PSI)||45 (6.53)|
|Swing Speed, rpm||11.8|
|Swing Torque, kNm (lbf / ft)||68 (50000)|
|Travel Speed - High, kph (mph)||5.5 (3.4)|
|Tractive Force, kN (lbf)||203 (45640)|
|Arm Tearout, kN (lbf)||114 (25630)|
|Bucket Breakout, kN (lbf)||158 (35520)|
|End lift - 7.5m Reach, kg (lbs)||5590 (12050)|
|Side lift - 7.5m Reach, kg (lbs)||3390 (7330)|
|Total Flow, lt/min (gallons (US) / min)||613 (162)|
|Bucket Pressure, bar (PSI)||343 (4970)|
|Boost Pressure, bar (PSI)||380 (5510)|
|Operating Weight, kg (lbs)||25500 (56218)|
