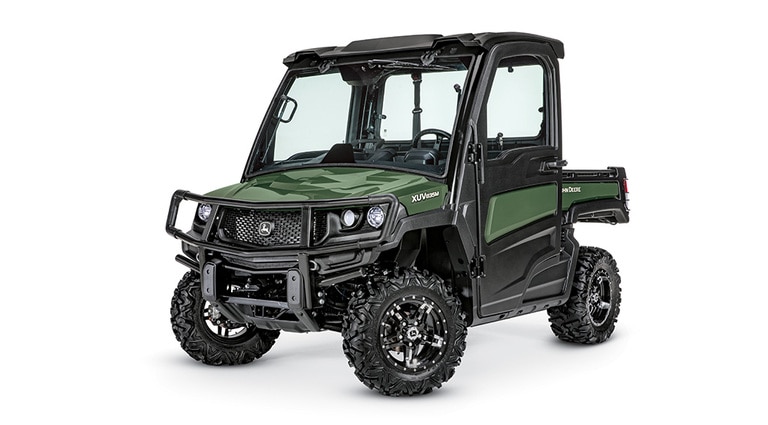

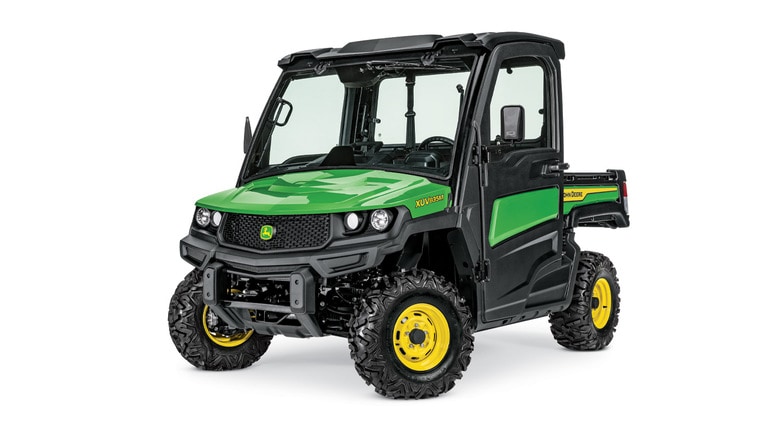

XUV835M HVAC CabCrossover Utility Vehicle
- Climate-controlled cab with heat and air conditioning
- Smooth, power steering
- Cargo box with spray-in liner, brake and taillights
- Up to 4,000-lb towing capacity
Specs & Compare | ||||
---|---|---|---|---|
Select up to 4 models to compare specifications | John Deere XUV835M HVAC Cab Crossover Utility Vehicle |
Engine power | 40.3 kW 54 hp |
|||
---|---|---|---|---|
Cargo box dimensions | 1143 x 305 x 1320 mm 45 x 12 x 52 in. |
|||
Cargo box capacity (weight) | 454 kg 1000 lb |
|||
Towing capacity | Up to 1814 kg 4000 lb |
|||
Front suspension | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel | |||
Rear suspension | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel | |||
Final drive | Park, high, low, neutral, reverse transaxle | |||
Four wheel drive | Dash switch actuated four-wheel drive system | |||
Fuel capacity | 42.4 L 11.2 U.S. gal. |
Type | 4-cycle gas, electronic fuel injection (EFI) | |||
---|---|---|---|---|
Displacement | 812 cc | |||
Power | 40.3 kW 54 hp |
|||
Cooling system | Liquid |
Transmission | Continuously Variable Transmission (CVT) with clutch enclosure | |||
---|---|---|---|---|
Final drive | Park, high, low, neutral, reverse transaxle | |||
Four wheel drive | Dash switch actuated four-wheel drive system | |||
Traction assist | Limited slip front differential, Positive locking, switch actuated rear differential lock | |||
Descent control | Yes |
Front | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel | |||
---|---|---|---|---|
Rear | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel |
Type | Front/rear hydraulic disc with twin piston front calipers | |||
---|---|---|---|---|
Park brake | Park in-transmission, Optional factory-installed secondary foot operated with hand release |
Front | 27x9-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on steel or alloy wheels 27x9-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels |
|||
---|---|---|---|---|
Rear | 27x11-R14 Maxxis Bighorn 2.0 extreme terrain radials on steel or alloy wheels 27x11-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels |
Wheelbase | 2146 mm 84.5 in. |
|||
---|---|---|---|---|
Weight | With fuel and fluids: 1022 kg 2253 lb |
|||
Length | 3228 mm 127 in. |
|||
Width | 1763 mm 69.4 in. |
|||
Height | 1987 mm 78.2 in. |
|||
Tread centers | Front: 1341 mm 52.8 in. Rear: 1259 mm 49.6 in. |
|||
Ground clearance | 284 mm 11.2 in. |
|||
Fuel capacity | 42.4 L 11.2 U.S. gal. |
|||
Cargo box dimensions | 1143 x 305 x 1320 mm 45 x 12 x 52 in. |
|||
Cargo box capacity (weight) | 454 kg 1000 lb |
|||
Payload capacity | 523 kg 1153 lb |
|||
Towing capacity | Up to 1814 kg 4000 lb |
|||
Hitch | Standard receiver: 5.1 cm 2 in. |
Color | Green and yellow, TrueTimber® KANATI® camo, olive and black | |||
---|---|---|---|---|
Power steering | Yes | |||
Battery / Alternator / Power port | Battery: 12 V 480 CCA Alternator: 85 amp DC outlet: 12 V |
|||
Instrumentation | Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light) | |||
Storage | Total: 69.5 L 18.4 gal. Six cup holders: 4.6 L 1.2 gal. Center tray: 1.2 L 0.3 gal. Two dash bins: 3.3 L 0.9 gal. Storage pocket: 1.4 L 0.4 gal. Glove box: 3.8 L 1.0 gal. Under seat: 55.3 L 14.6 gal. |
|||
Seating | Black vinyl 40/60 split three-passenger bench |
Country of Manufacture | U.S. | |||
---|---|---|---|---|
Date collected | 8-Jun-22 |
