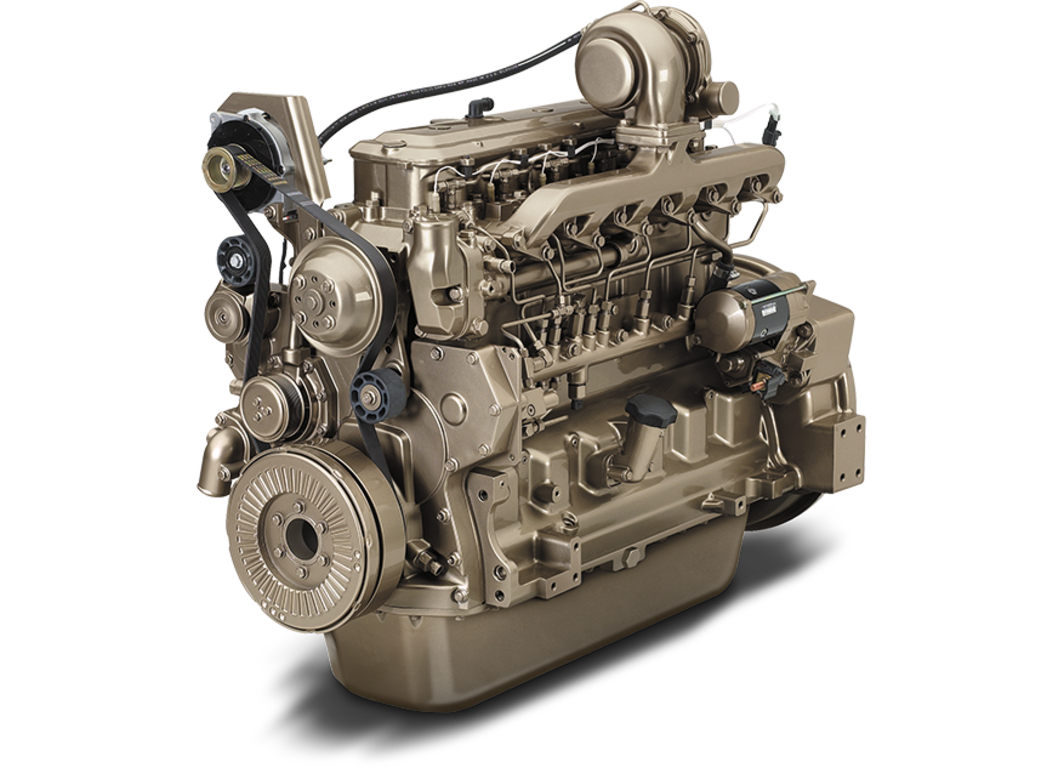

6068HF2756.8L Generator Drive Engine
- PowerTech ™ M
- Standby: 123 kW (165 hp) @ 1500 rpm
- Prime: 111 kW (149 hp) @ 1500 rpm
Specifications
| Specifications | ||||
|---|---|---|---|---|
| John Deere 6068HF275 6.8L Generator Drive Engine |
Emissions Certifications
| EU Stage II |
|---|
General engine data
| Model | 6068HF275 | |||
|---|---|---|---|---|
| Number of cylinders | 6 | |||
| Displacement-- L (cu in) | 6.8 (415) | |||
| Bore and Stroke-- mm (in) | 106 x 127 (4.17 x 5.00) | |||
| Compression Ratio | 17.0:1 | |||
| Engine Type | In-line, 4-Cycle | |||
| Aspiration | Turbocharged and air-to-air aftercooled | |||
| Length - mm (in) | 1116 (43.9) | |||
| Width-- mm (in) | 623 (24.5) | |||
| Height-- mm (in) | 1012 (39.8) | |||
| Weight, dry - kg (lb) | 587 (1294) |
Performance data range
| Hz (rpm) | 50 ( 1500 ) | |||
|---|---|---|---|---|
| Generator Efficiency % | 88-92 | |||
| Power Factor | 0.8 | |||
| Engine power - Prime kW | 111 | |||
| Engine power - Prime hp | 149 | |||
| Engine power - Standby kW | 123 | |||
| Engine power - Standby hp | 165 | |||
| Rated Fan Power - kW | 4.5 | |||
| Rated Fan Power - hp | 6 | |||
| Calculated generator set output - Prime kWe | 95-99 | |||
| Calculated generator set output - Prime kVA | 118-124 | |||
| Calculated generator set output - Standby kWe | 105-110 | |||
| Calculated generator set output - Standby kVA | 132-138 |
