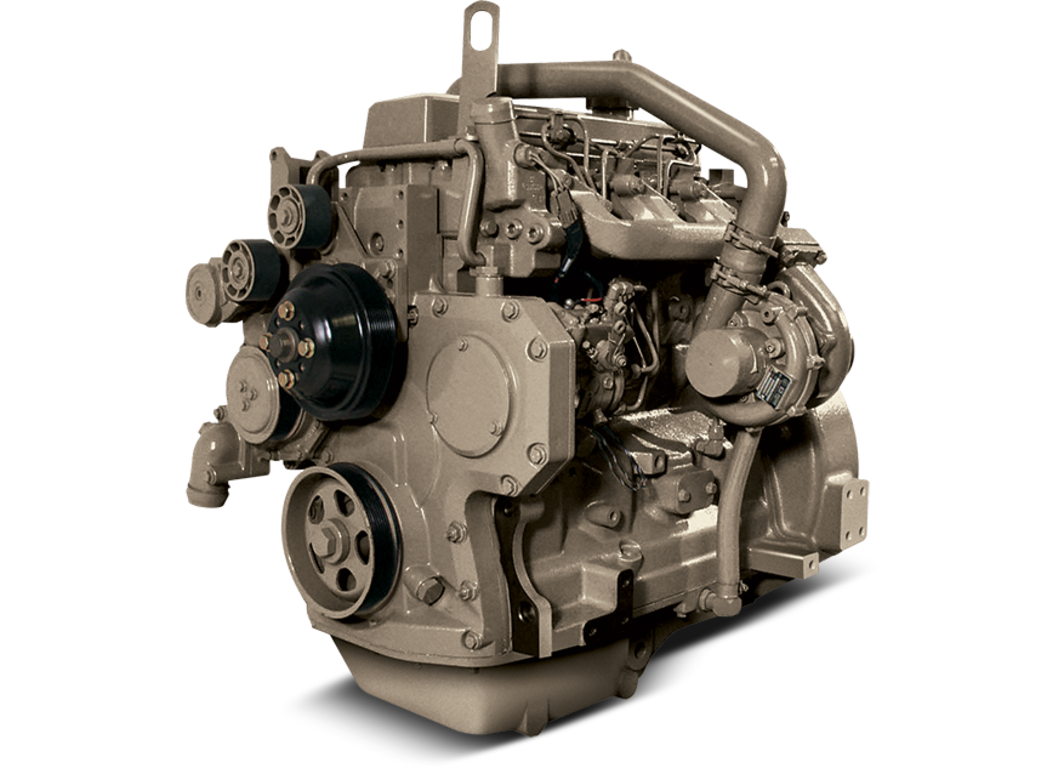

4045TF2754.5L Generator Drive Engine
- PowerTech™ M
- Standby: 84 kW (113 hp) @ 1800 rpm
- Prime: 76 kW (102 hp) @ 1800 rpm
Specifications
| Specifications | ||||
|---|---|---|---|---|
| John Deere 4045TF275 4.5L Generator Drive Engine |
Emissions Certifications
| CARB | ||||
|---|---|---|---|---|
| EPA Tier 2 |
General engine data
| Model | 4045TF275 | |||
|---|---|---|---|---|
| Number of cylinders | 4 | |||
| Displacement-- L (cu in) | 4.5 (275) | |||
| Bore and Stroke-- mm (in) | 106 x 127 (4.17 x 5.00) | |||
| Compression Ratio | 17.0:1 | |||
| Engine Type | In-line, 4-Cycle | |||
| Aspiration | Turbocharged | |||
| Length - mm (in) | 867 (34.1) | |||
| Width-- mm (in) | 637 (25.1) | |||
| Height-- mm (in) | 982 (38.7) | |||
| Weight, dry - kg (lb) | 451 (994) |
Performance data range
| Hz (rpm) | 60 ( 1800 ) | |||
|---|---|---|---|---|
| Generator Efficiency % | 88-92 | |||
| Power Factor | 0.8 | |||
| Engine power - Prime kW | 76 | |||
| Engine power - Prime hp | 102 | |||
| Engine power - Standby kW | 84 | |||
| Engine power - Standby hp | 113 | |||
| Rated Fan Power - kW | 4.2 | |||
| Rated Fan Power - hp | 5.6 | |||
| Calculated generator set output - Prime kWe | 64-66 | |||
| Calculated generator set output - Prime kVA | 79-83 | |||
| Calculated generator set output - Standby kWe | 70-73 | |||
| Calculated generator set output - Standby kVA | 88-92 |
