SmartWeigh™ is a John Deere designed and supported payload weighing solution that delivers accurate measurements, dynamic weighing capabilities, and is easy to calibrate. For those not sold on whether or not a payload weighing solutions is a fit for your application, John Deere offers a low cost 250-hour trial period that provides you full SmartWeigh™ capabilities to help enable you to make the decision.
The addition of enhanced visibility and radar object detection systems improves situation awareness and can help prevent costly damage to machines and equipment. The addition of the advanced vision system and obstacle intelligence can help lower total cost of ownership and machine downtime.

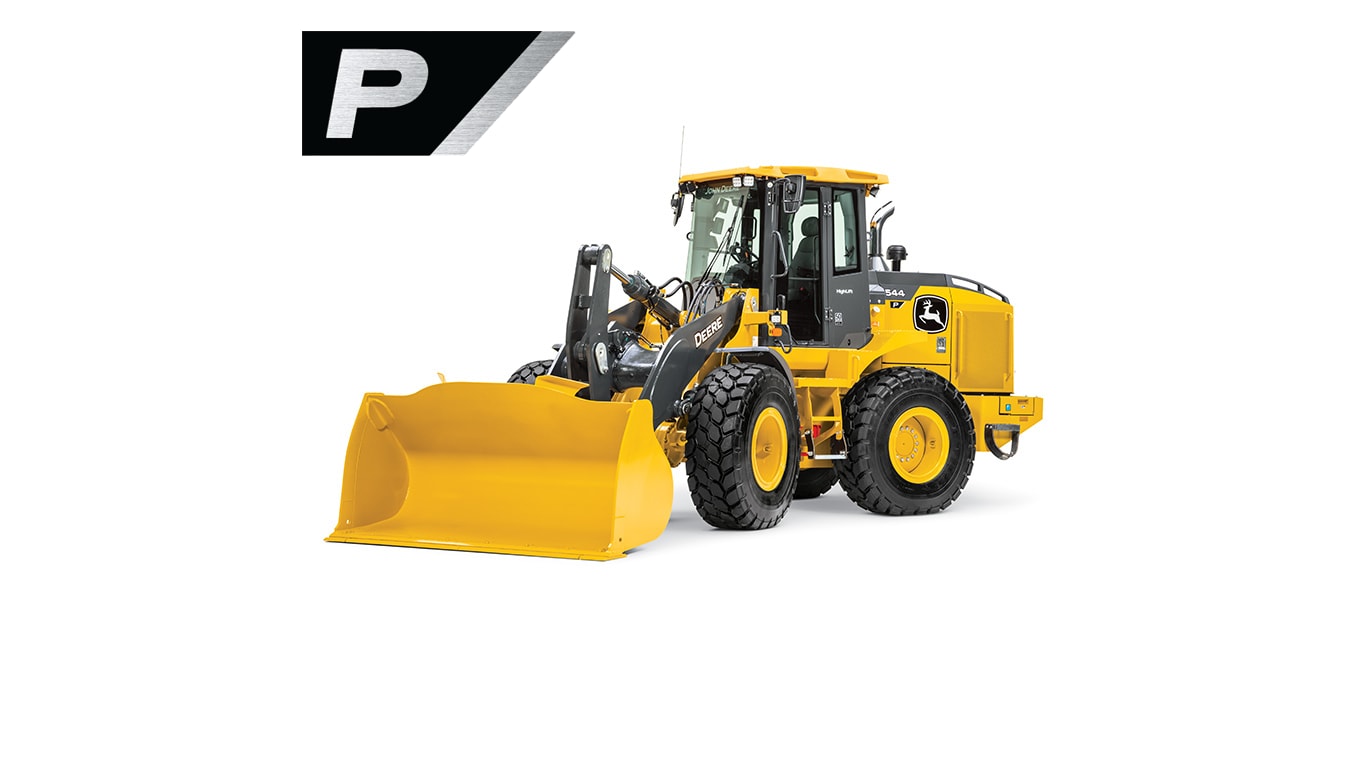

New P and X-tier utility loaders will now be equipped with Auto Level that enables near perfect parallelism throughout the boom raise and lower cycle. In addition, enhanced performance buckets and Z-Bar linkage on P and X tier utility loaders are designed to enable loaders to be configured in a manner that allows them to be as productive as possible.
The redesigned cab in the John Deere utility loader lineup features improvements that provide the operator a first-class work environment with a range of creature comfort options to keep operators comfortable and productive no matter the task at hand.
Electrohydraulic (EH) controls allow for increased functionality to customize machine operations based on operator preference to increase productivity on a range of jobsite applications
The Quad-Cool™ Cooling System on loaders is a John Deere exclusive that places the radiator, air-conditioner condenser, intercooler, and hydraulic, transmission, and axle coolers in a unique boxed configuration that is isolated from engine heat to cool these components more efficiently throughout the day.
With improvements to the electrical and hydraulic routing and features like ground level servicing and Quad-Cool, customers get an upgraded serviceability experience while building upon known features that they’ve come to expect from John Deere Wheel Loaders.
|Specs & Compare|
|Select up to 4 models to compare specifications||
Mid-Size Wheel Loader
|Engine Manufacturer||John Deere|
|Engine Model||PowerTech PSS 6090|
|Emission Rating||EPA Tier 4 / EU Stage V|
|Displacement, ltr (Inches³)||9 (548)|
|Rated Speed, rpm||1800|
|Engine Output - Net, kW (hp)||200 (268)|
|Torque, Nm (lbf / ft)||1325 (977)|
|Front Differential Type||Locking|
|Rear Differential Type||Open|
|Tire size - Standard||23.5 R25|
|Service Brake - Type||Wet Disc|
|Service Brake - Actuation||Hydraulic|
|Parking Brake - Type||Wet Multi Disc|
|Height - Over Cab, mm (ft/in)||3450 (11 ft 4 in)|
|Wheelbase, mm (ft/in)||3310 (10 ft 10 in)|
|Ground clearance, mm (inches)||386 (15.2)|
|Width Over tires - Std, mm (ft/in)||2880 (9 ft 5 in)|
|Height - Pivot Pin, mm (ft/in)||4160 (13 ft 8 in)|
|Reach - At 2130mm 45° Dump, mm (ft/in)||1680 (5 ft 6 in)|
|Fuel Tank, ltr (gallons (US))||351 (92.6)|
|Hydraulic Tank, ltr (gallons (US))||105.2 (27.8)|
|Heaped Capacity, m³ (yd³)||3.6 (4.75)|
|Breakout - Bucket, kgf (lbf)||15988 (35248)|
|Ride Control System||Optional|
|Pump Flow - 1, lt/min (gallons (US) / min)||310 (82)|
|System Pressure, bar (PSI)||275.8 (4000)|
|Operating Weight, kg (lbs)||19825 (43707)|
