We didn’t just build our tractors with you in mind. We built them with you by our side.
The reimagined 6M wasn’t born in a conference room. It started with you. You, the dairy and livestock producer, who needs a powerful loader tractor with incredible visibility and maneuverability to easily make your way around in those tight corrals, feed your herd, and bale your hay. You, the roadside mowing contractor, who needs a nimble tractor with a comfortable cab and JDLink™ connectivity to easily track your fleet. You, the winter warrior, who needs a strong tractor equipped with front hitch/front PTO to move that snow. With 8 models ranging from 110 to 195 hp, the 6M is fully customizable, so you get everything you need, and nothing you don’t.
6M Series Utility Tractors
110-195HP
4 frames. These mid-spec utility tractors are ready to meet any need, from baling hay to moving snow, from feeding your herd to roadside mowing.
Not sure which tractor is right for you? Compare all models.
6110M
110 HP
- Redesigned nose-down hood improves visibility, ideal for loader work
- 20 HP boost with Intelligent Power Management
- 94-in. (238cm) wheelbase for easy maneuverability in tight spaces
- Ideal for repetitive loader work and tasks requiring excellent front visibility
6120M
120 HP
- Redesigned nose-down hood improves visibility, ideal for loader work
- 20 HP boost with Intelligent Power Management
- 94-in. (238cm) wheelbase for easy maneuverability in tight spaces
- Ideal for repetitive loader work and tasks requiring excellent front visibility
6130M
130 HP
- Larger frame size for more weight with more horsepower
- 20 HP boost with Intelligent Power Management
- 101.6-in. (258cm) wheelbase
- Perfect for road-side mowing operations and larger implements
6140M
140 HP
- Larger frame size for more weight with more horsepower
- 20 HP boost with Intelligent Power Management
- Perfect for road-side mowing operations
6145M
145 HP
- 108.9-in. (276cm) frame provides the weight and stability for the larger jobs in varying terrain
- Closed center hydraulics with load sensing which provides pressure and flow when you need it
6155M
155 HP
- 108.9-in. (276cm) frame provides the weight and stability for the larger jobs in varying terrain
- Closed center hydraulics with load sense gift you lift and flow when you need it
- Move up to the 6-cylinder for greater displacement
6175M
175 HP
- Largest models with 6-cylinder engines and 110.2-in. (279cm) frames
- Compatible with the 680R loader with 176-in. (4,480mm) lift height and 5,408-lb. (2,453kg) lift capacity
- A favorite in larger feedlots and hay operations
6195M
195 HP
- Largest models with 6-cylinder engines and 110.2-in. (279cm) frames
- Compatible with the 680R loader with 176-in. (4,480mm) lift height and 5,408-lb. (2,453kg) lift capacity
- A favorite in larger feedlots and hay operations
Latest 6M Tractor Updates
AutoTrac™
It’s never been easier to get automatic hands-free steering, now available on your corner post display. No other display needed. Just what you need to reduce implement overlap and finish more acres in less time with less fatigue. Just add AutoTrac Ready and a StarFire™ receiver and you’re ready to run. Available factory-installed options on all 6M Tractors. Check Out Product Videos.
Infinitely Variable Transmission (IVT™)
Now available factory-installed on 6110M to 6140M Tractors. Match your speed precisely to your job—perfect for front-loader applications. Run as slow as 0.05 km/h up to 40 km/h, ideal for material transport. Or any speed in-between. All seamlessly and precisely.
Visibility
With a new sloped hood design and panorama roof, you can see it all – your front loader, attachments and front-mounted implements. Progress in our engineering means progress in your operation.
Nose Down, Eyes Up
You asked for better forward visibility of your loader, attachments and implements, and we listened. We engineered a complete hood redesign to deliver 18-ft. front view distance. Progress never looked so good.
Panoramic View
The best seat in the house belongs to you. Get an uninterrupted view of the full loader cycle, even at full lift height, without straining in your seat. That’s less guesswork, and more actual work.
Maneuverability
Shorter wheelbase. Tighter turning radius. No excuses. You’ll be impressed with where the new 6M can take you.
In the tightest of spaces
Designed with the shorter wheelbase found on the popular 6430, you’ll benefit from a 14-ft. (4.36m) turning radius on the 6110M and 6120M, so you get in, out and on with your day, even in the tightest of spaces. It’s the power of the 6M Series paired with the nimbleness of smaller tractors.
Comfort & Convenience
Relax, you’re at work. When you climb into the reimagined 6M cab, you’ll experience the comfort, control and convenience that comes with our new Digital Corner Post Display, compact CommandArm™ and more.
Digital Corner Post Display
At-a-glance access to critical machine data, including engine RPMs and PTO values—and now with AutoTrac™ hands-free steering system—all on the same display. Included in base on all 6M Series tractors.

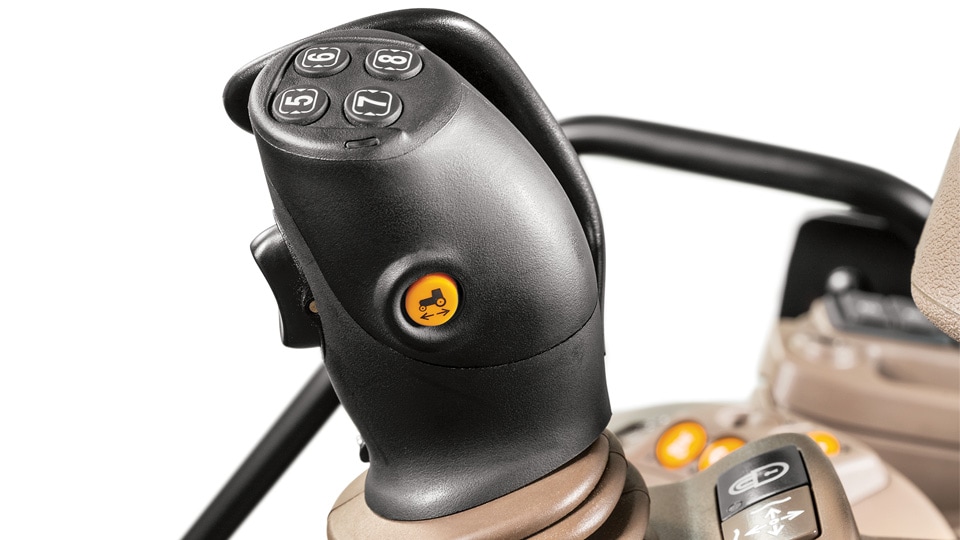

Loader Joystick Options + PowrReverser
We kept the mechanical joystick used in our previous model tractors, but if you’re looking to up your loader game, check out the optional electronic loader joystick available on both the armrest and compact CommandARM.
Both have the PowrReverser button for hands-free direction changes.
Lighting Packages
Designed and positioned to increase visibility while reducing eye strain, the lighting pattern of the new 6M Series provides 360 degrees of illumination for those early mornings and late nights. Upgrade your driving experience with your choice of two packages: economy or premium LED packages.
Compact CommandARM™
As the name implies, the compact CommandARM works like an extension of your own arm. By positioning all main tractor controls in one place and offering more than 37 degrees of seat swivel, the CommandARM provides effortless control of your tractor and implements.
E-SCVs
If you work hay, operating mechanical SCVs (M-SCVs) can be distracting and tiresome. With four electronic SCVs (E-SCVs) available in the new 6M Series, you’ll experience less fatigue when working with your mower-conditioner, baler and other implements. Not interested in E-SCVs? Mechanical SCVs are still available to fit your needs.
Front Axle Suspension
A first for the 6M Series, the front axle suspension elevates your comfort when working in bumpy field conditions or when traveling at road speed.
Front Hitch/Front PTO
Operate front-mounted implements, such as snow blowers and mowers, with the front hitch/front PTO. This factory-installed option adds even more versatility to the capable 6M Series.
Technology
If you’re managing a fleet, you’ll appreciate the optional JDLink™ connection, enabling you to track and document your fleet within your John Deere Operations Center account.
Intelligent Power Management
Available in base on 6110M, 6120M, 6130M and 6140M models, Intelligent Power Management (IPM) delivers an extra 20 engine HP boost, which is incredibly helpful in PTO and high-speed transport applications. That’s some big power in a small machine.
Compare our 6M Series Utility Tractors
| Model | Engine HP | PTO HP | Transmission | Hydraulics | Cab or Open Station | Loader Compatibility |
|---|---|---|---|---|---|---|
|
Max: 122 hp (90 kW) With IPM: 134 hp (98 kW) Rated: 110 hp (81 kW) With IPM: 130 hp (96 kW) |
Max: At 1000 PTO rpm with IPM: 109 hp (80 kW) Rated: 84 hp (62 kW) |
24-speed PowrQuad™ Plus, 16-speed PowrQuad Plus, 24-speed AutoQuad™ Plus, 24-speed CommandQuad™ Plus, or AutoPowr™/IVT™ |
Rated flow: 21.1 gpm (80L/min) or PFC of 30 gpm (114 L/min) |
Both |
600R or 620R |
|
|
Max: 133 hp (98 kW) With IPM 144 hp (106 kW) Rated: 120 (88 kW) With IPM 140 hp (103 kW) |
Max: At 1000 PTO rpm with IPM: 118 hp (87 kW) Rated: 94 hp (69 kW) |
24-speed PowrQuad™ Plus, 16-speed PowrQuad Plus, 24-speed AutoQuad™ Plus, 24-speed CommandQuad™ Plus, or AutoPowr™/IVT™ |
Rated flow: 21.1 gpm (80L/min) or PFC of 30 gpm (114 L/min) |
Both |
600R or 620R |
|
|
Max: 144 hp (106 kW) With IPM 156 hp (115 kW) Rated: 130 hp (96 kW) With IPM 150 hp (110 kW) |
Max: At 1000 PTO rpm with IPM: 127 hp (93 kW) Rated: 102 hp (76 kW) |
24-speed PowrQuad™ Plus, 16-speed PowrQuad Plus, 24-speed AutoQuad™ Plus, 24-speed CommandQuad™ Plus, or AutoPowr™/IVT™ |
Rated flow: 21.1 gpm (80L/min) or PFC of 30 gpm (114 L/min) |
Both |
620R or 640R |
|
|
Max: 155 hp (114 kW) With IPM 160 hp (122 kW) Rated: 140 (81 kW) With IPM 166 hp (122 kW) |
Max: At 1000 PTO rpm with IPM: 134 hp (99 kW) Rated: 109 hp (80 kW) |
24-speed PowrQuad™ Plus, 16-speed PowrQuad Plus, 24-speed AutoQuad™ Plus, 24-speed CommandQuad™ Plus, or AutoPowr™/IVT™ |
Rated flow: 21 gpm (80L/min) or PFC of 30 gpm (114 L/min) |
Cab |
620R or 640R |
|
|
Max: 161 hp (118 kW) Rated: 145 (107 kW) |
Max: At 1000 PTO rpm: 128 hp (94 kW) Rated: 116 hp (85 kW) |
24-speed PowrQuad™ Plus, 16-speed PowrQuad Plus, 24-speed AutoQuad™ Plus, or 24-speed CommandQuad™ Plus |
Rated flow: 21.1 gpm (80L/min) or PFC of 30 gpm (114 L/min) |
Both |
640R or 660R |
|
|
Max: 172 hp (126 kW) Rated: 155 (144 kW) |
Max: At 1000 PTO rpm: 136 hp (100 kW) Rated: 125 hp (92 kW) |
20-speed PowrQuad™ Plus, 16-speed PowrQuad Plus, 20-speed AutoQuad™ Plus, or 20-speed CommandQuad™ Plus |
Rated flow: 30 gpm (114L/min) |
Both |
640R or 660R |
|
|
Max: 194 hp (143 kW) Rated: 175 (129 kW) |
Max: At 1000 PTO rpm: 157 hp (116 kW) Rated: 141 hp (104 kW) |
20-speed PowrQuad™ Plus, 16-speed PowrQuad Plus, 20-speed AutoQuad™ Plus, or 20-speed CommandQuad™ Plus |
Rated flow: 30 gpm (114L/min) |
Cab |
660R or 680R |
|
|
Max: 216 hp (159 kW) Rated: 196 (143 kW) |
Max: At 1000 PTO rpm: 177 hp (130 kW) Rated: 159 hp (117 kW) |
20-speed PowrQuad™ Plus, 16-speed PowrQuad Plus, 20-speed AutoQuad™ Plus, or 20-speed CommandQuad™ Plus |
Rated flow: 30 gpm (114L/min) |
Cab |
660R or 680R |
