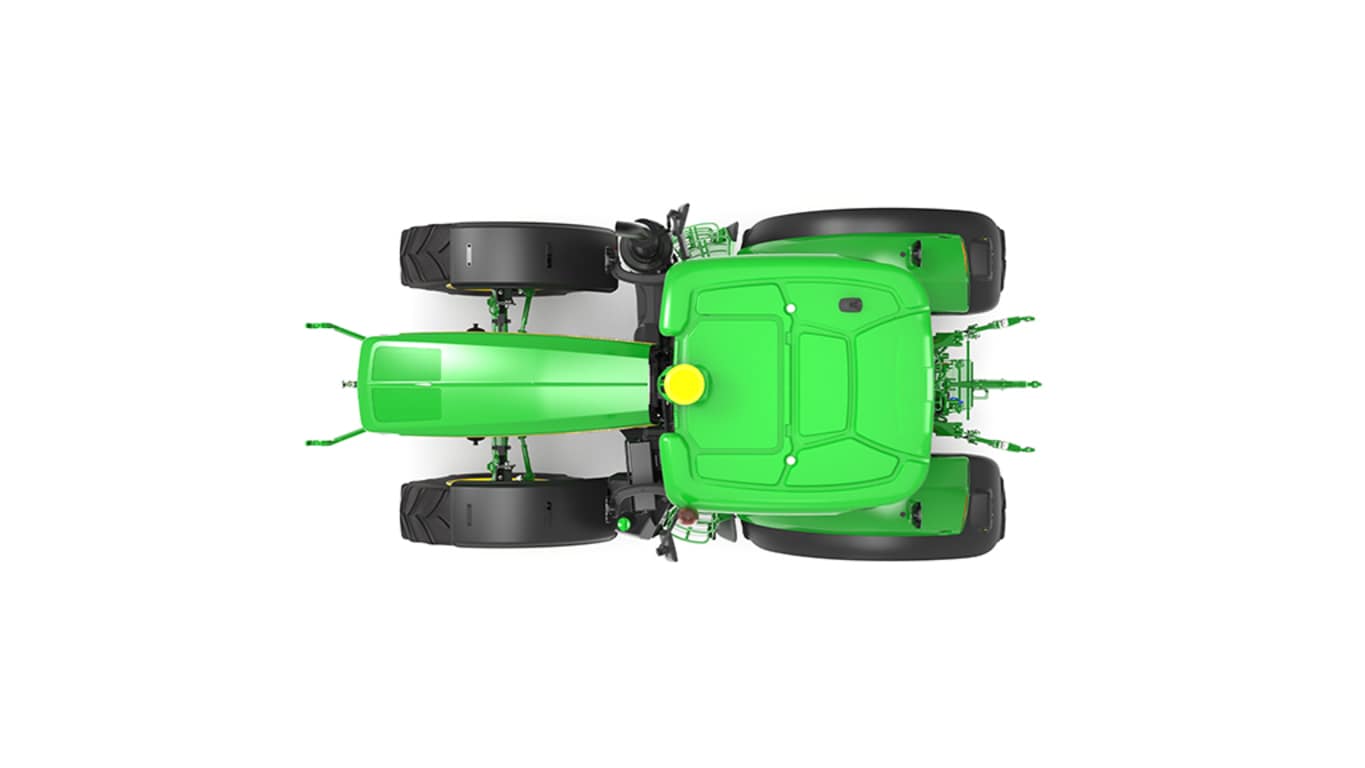

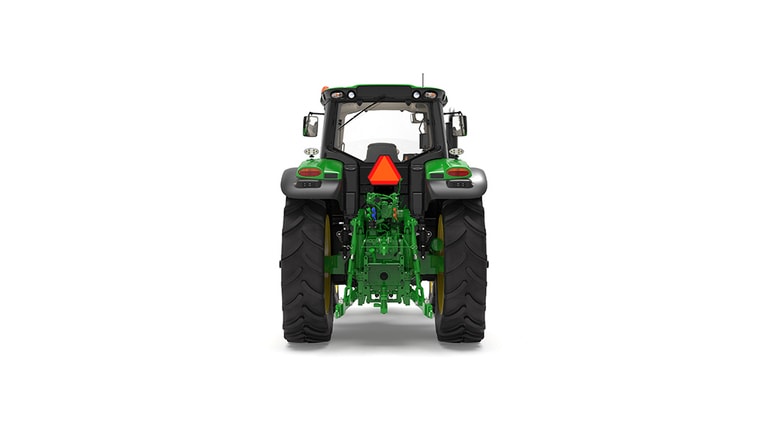

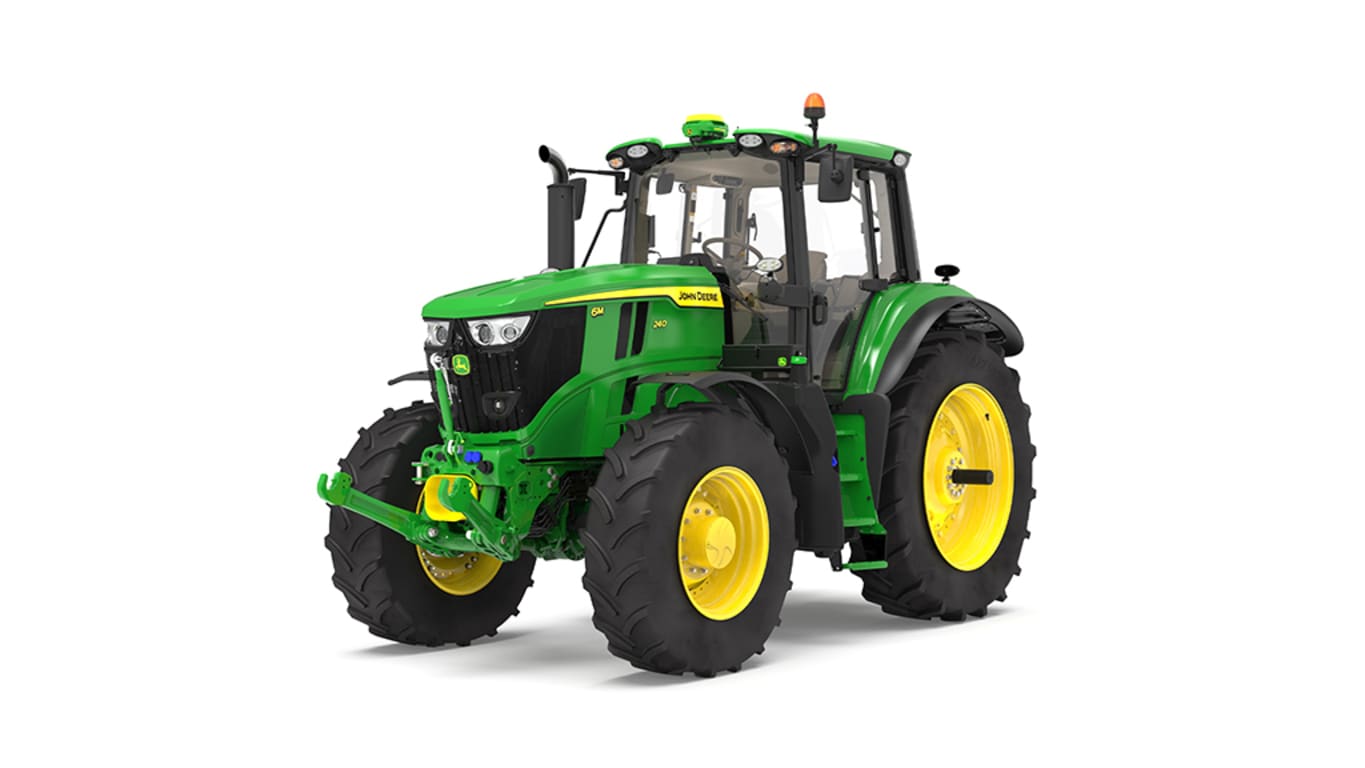

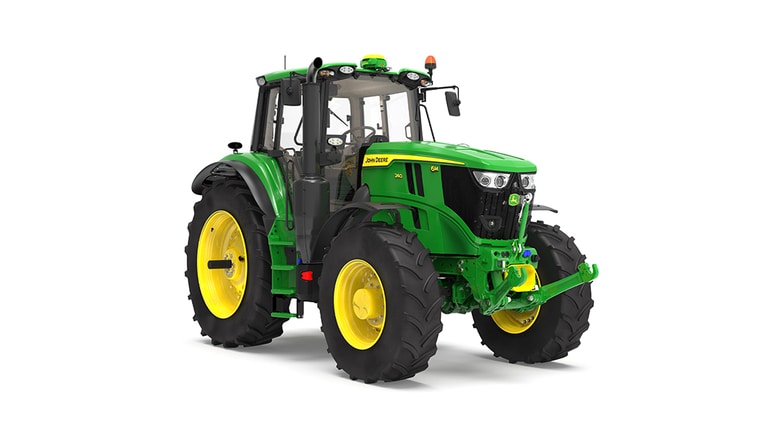

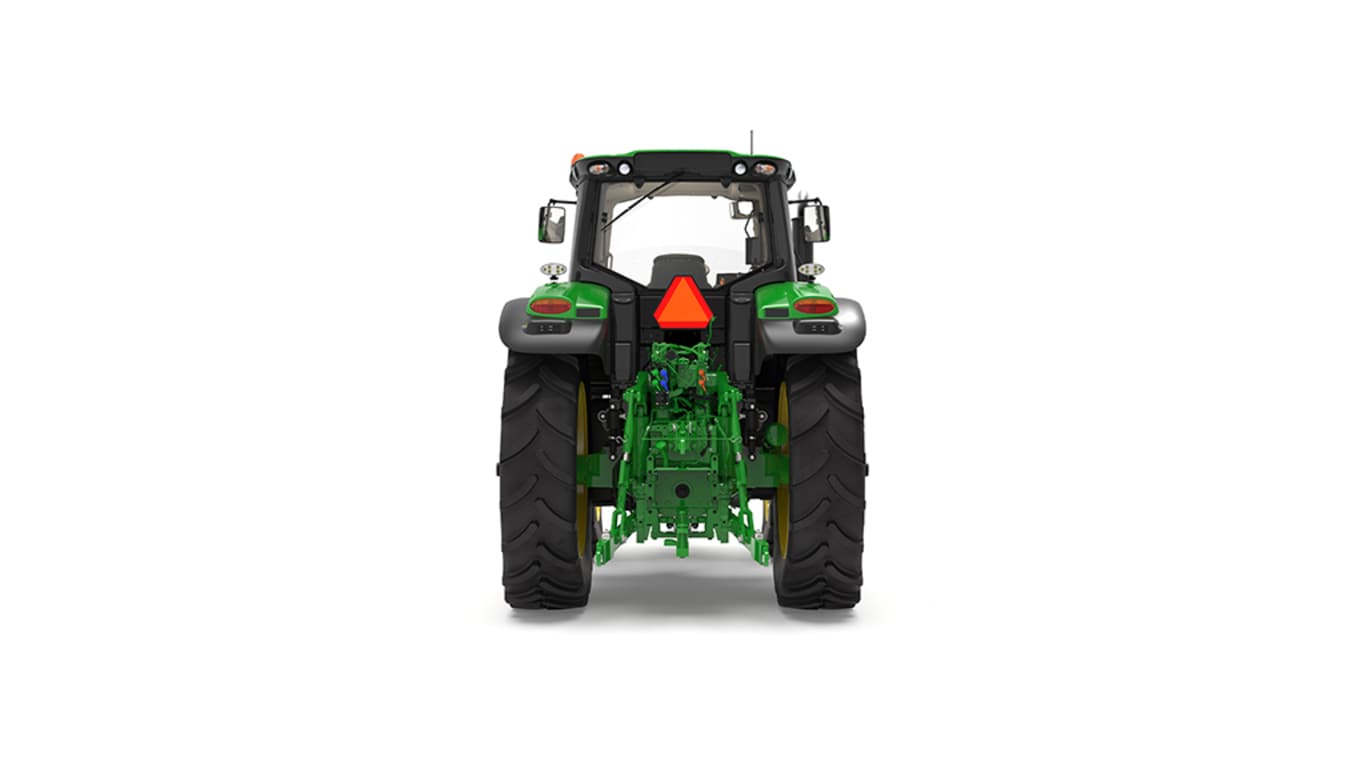

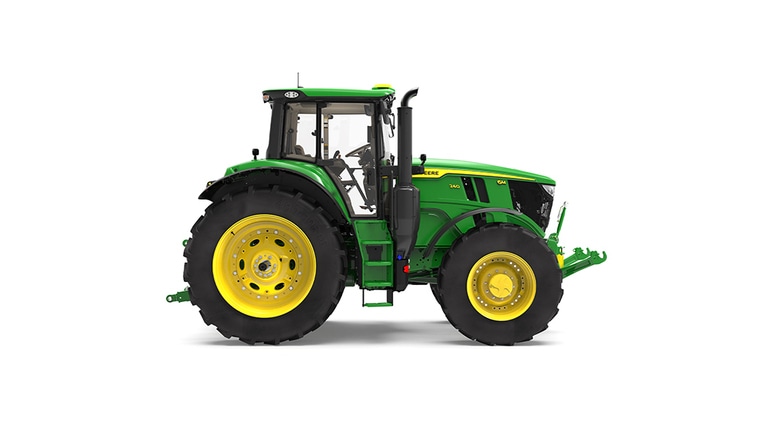

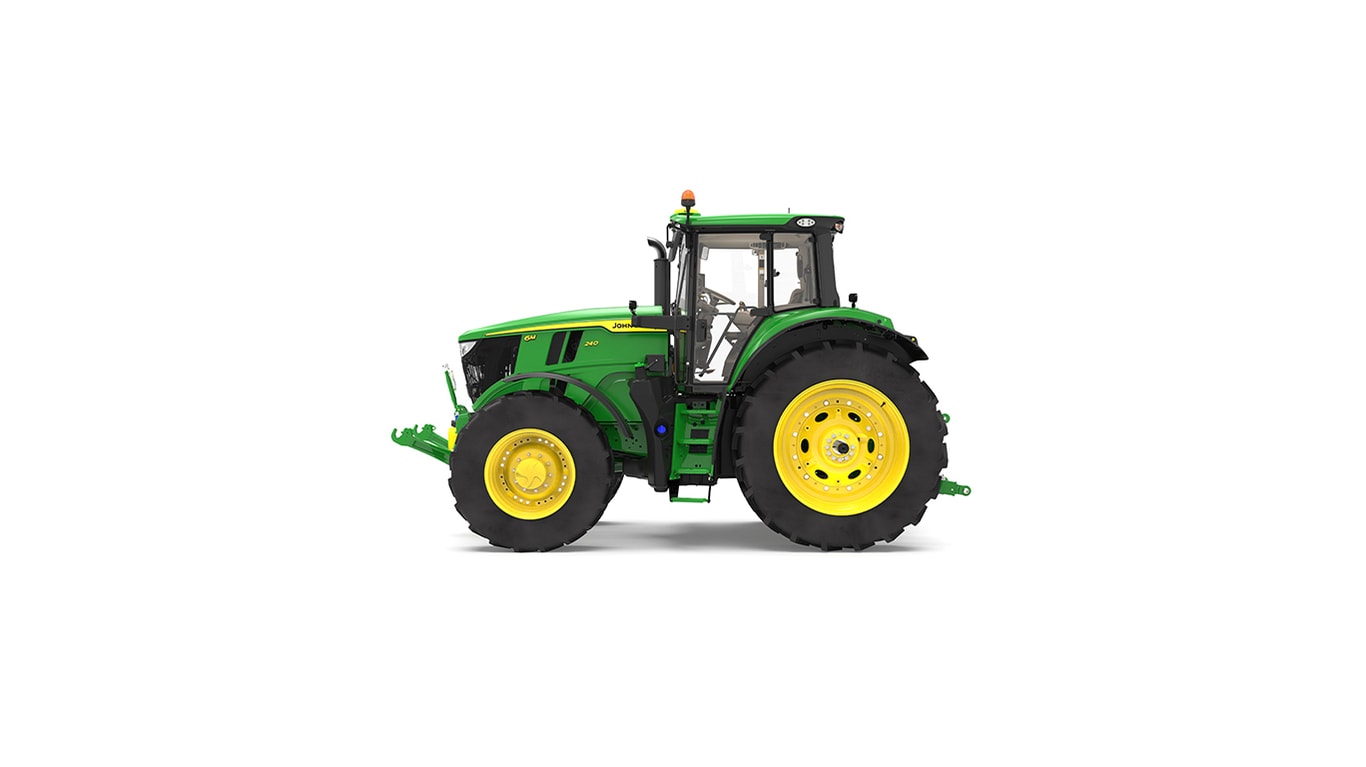

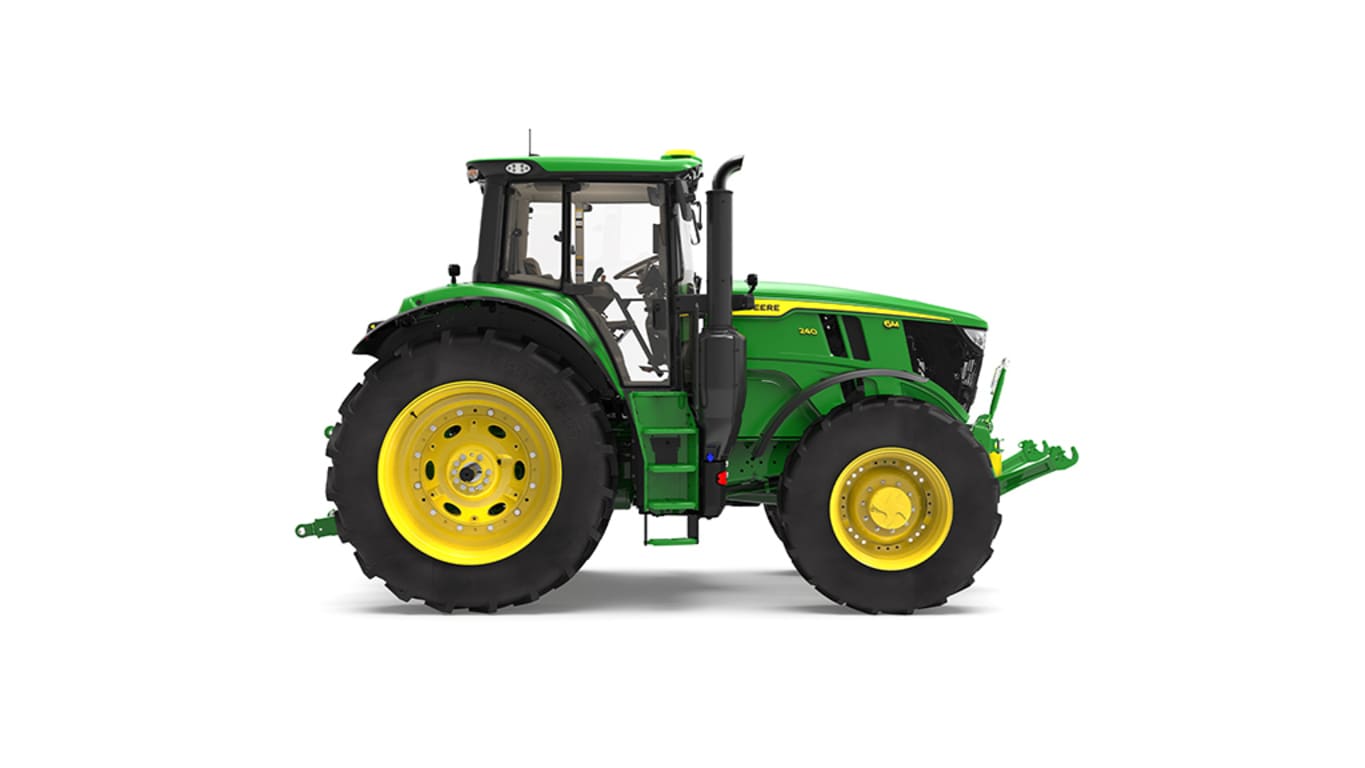

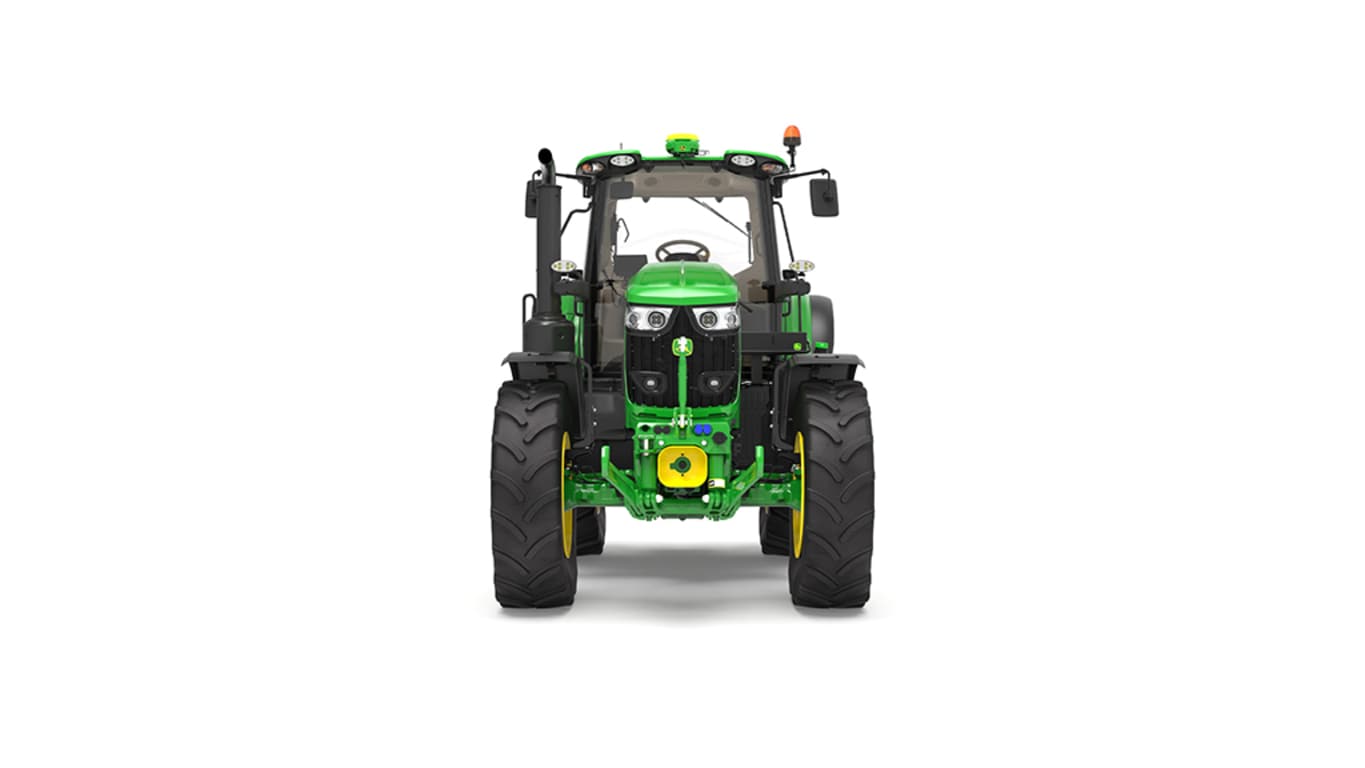

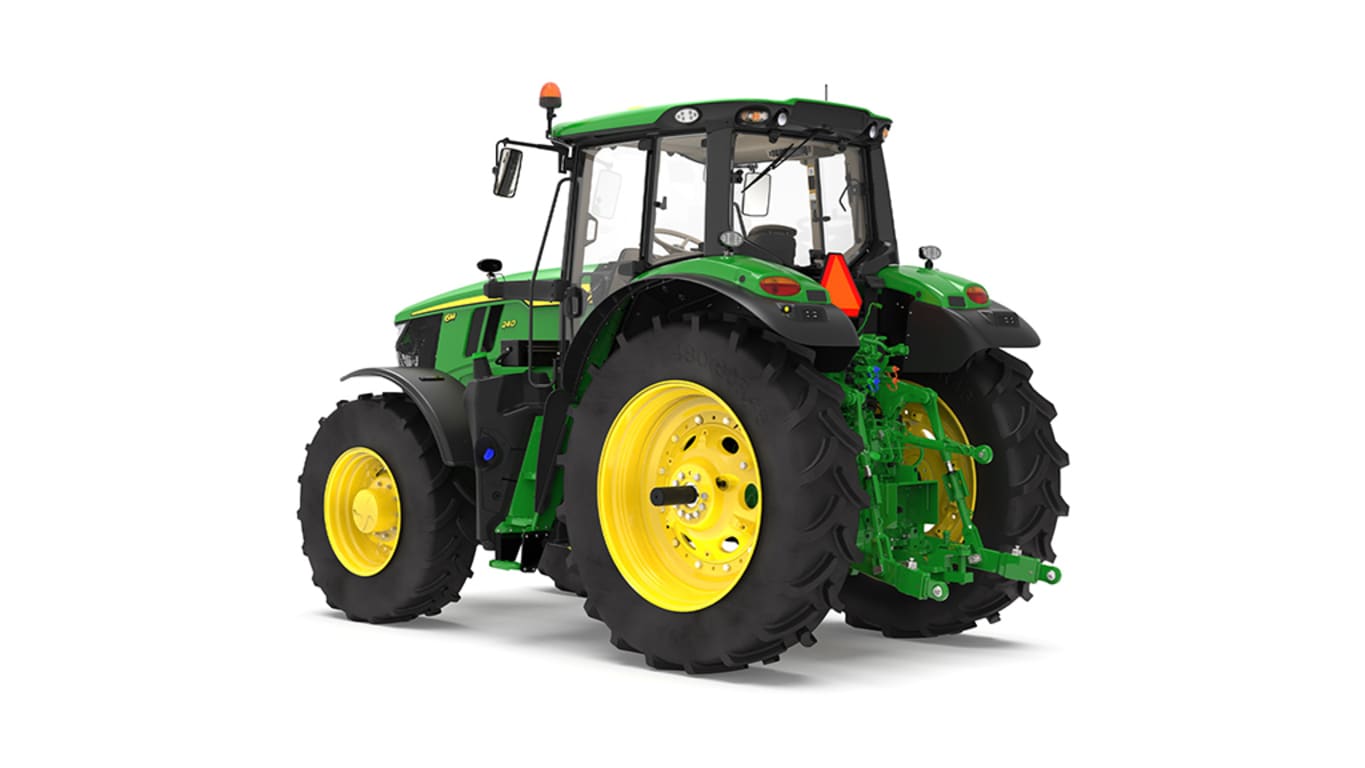

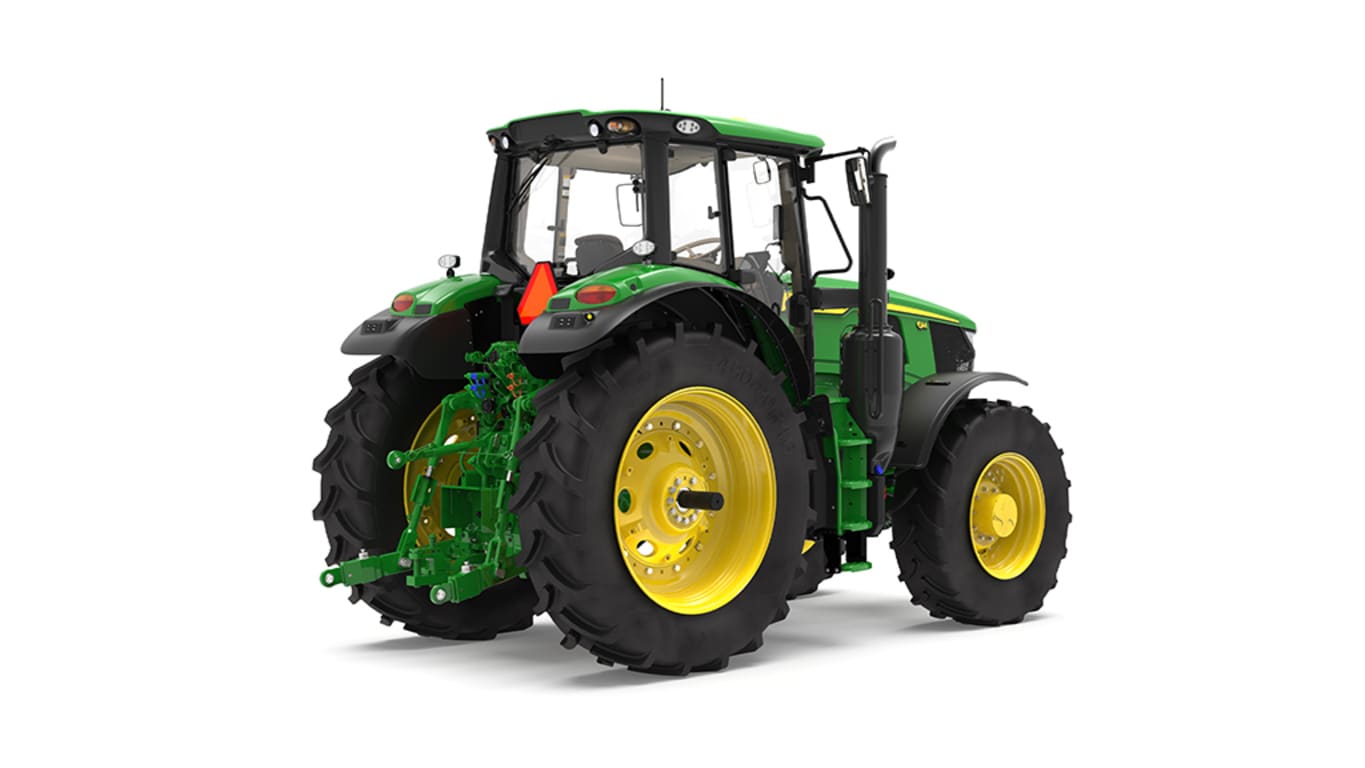

6M 240Utility Tractor
- Engine HP: 264 Max | 240 Rated
- John Deere PowerTech™ PSS Engine
- Transmission Options: IVT™ 25 mph (40 km/h) or 31 mph (50 km/h)
- Up to 20 HP Boost with IPM in non-stationary PTO and transport applications
Specs & Compare | ||||
---|---|---|---|---|
John Deere 6M 240 Utility Tractor |
Engine description | John Deere PowerTech™ PSS | |||
---|---|---|---|---|
Engine displacement | 6.8 L 415 cu in. |
|||
Rated engine power | 240 hp 177 kW |
|||
Maximum engine power | 264 hp 194 kW |
|||
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628) | ||||
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628) | ||||
Rated PTO power (hp SAE) | 194 hp 145 kW |
|||
Maximum PTO power | At 1000 PTO rpm: 158 kW 213 hp |
|||
Transmission type | Standard: Infinitely variable transmission (IVT™) 40 km/h Optional: IVT 50 km/h |
|||
Hydraulic pump rated output | Standard: 45-cc pump: 114 L/min 30 gpm Optional: 60-cc pump: 155 L/min 41 gpm |
|||
Rear hitch category (SAE designation) | 3N/3 | |||
Base machine weight | 8700 kg 19,180 lb |
|||
Maximum PTO power at rated engine speed with intellegent power management (IPM) |
Description | John Deere PowerTech™ PSS | |||
---|---|---|---|---|
Engine type | 6068HL551 | |||
Engine family | ||||
Rated speed | 2100 rpm | |||
Aspiration | Dual turbochargers, variable geometry turbo with fixed geometry turbo in series | |||
Cylinders liners | ||||
Emission level | Final Tier 4 / Stage V | |||
After treatment type | Diesel particle filter (DPF) with diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR) using diesel exhaust fluid (DEF) | |||
Displacement | 6.8 L 415 cu in. |
Rated power | 240 hp 177 kW |
|||
---|---|---|---|---|
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628) | ||||
Rated PTO power (hp SAE) | 194 hp 145 kW |
|||
Maximum PTO power | At 1000 PTO rpm: 158 kW 213 hp |
|||
Intelligent Power Management (IPM) | Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 14.9 kW 20 hp |
|||
Power boost | 10 percent | |||
Maximum engine power | 264 hp 194 kW |
|||
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628) | ||||
Engine peak torque | 1124 Nm | |||
Drawbar power | ||||
PTO torque rise | 40 percent | |||
Fuel injection system and control | ||||
Air cleaner type | ||||
Maximum PTO power at rated engine speed with intellegent power management (IPM) | ||||
Maximum engine torque (without power boost at 1.600 engine rpm) | ||||
Maximum engine power with intelligent power management (IPM) |
Type | Standard: Infinitely variable transmission (IVT™) 40 km/h Optional: IVT 50 km/h |
|||
---|---|---|---|---|
Integrated Electric Power Generation | ||||
Reverser | Electronic left-hand reverser | |||
Clutch; wet/dry | ||||
Creeper | Not available |
Type | Standard/optional: Pressure-and-flow compensated (PFC) system with Load Sensing function | |||
---|---|---|---|---|
Pump rated output | Standard: 45-cc pump: 114 L/min 30 gpm Optional: 60-cc pump: 155 L/min 41 gpm |
|||
Available flow at a single rear SCV | ||||
Available flow at front SCVs | ||||
Number of rear selective control valves (SCVs) | Standard: Two ISO couplers Optional: Two to four ISO couplers |
|||
Number of mid selective control valves (SCVs) | Up to three | |||
Number of front selective control valves (SCVs) | ||||
Joystick SCV control | Mechanical/electrical | |||
Auxiliary hydraulic features | ||||
SCV control | ||||
Available oil flow at a single rear SCV (200 Type) | ||||
Available oil flow at a single rear SCV (450 Type) | ||||
Available oil flow at a single rear SCV (450E Type) |
Hitch draft control load sense type | ||||
---|---|---|---|---|
Remote control valves available | Standard | |||
Hitch category (SAE designation) | 3N/3 | |||
Rear hitch lift capacity (SAE designation) | Standard: Category 3/3N: 4600 kg 10,132 lb Optional: Category 3/3N: 5151 kg 11,346 lb |
|||
Maximum lift capacity behind lift points | Standard: Category 3/3N: 8050 kg 17,731 lb Optional: Category 3/3N: 9050 kg 19,934 lb |
|||
Lift capacity at standard frame | ||||
Sensing type | Electronic at lower link | |||
Rear axle differential lock | Electrohydraulically with oil-cooled clutch | |||
Maximum lift capacity directly at coupling points | ||||
Throughout lift capacity, 610 mm behind the coupling points |
Drawbar category | Category 3 | |||
---|---|---|---|---|
Maximum vertical load | 1800-3000 kg (3968-6614 lb) Maximum vertical load dependent on drawbar position |
Type | Electrohydraulically operated, oil-cooled, multi-disc design | |||
---|---|---|---|---|
Engine rpm (at rated PTO speeds) | 540 PTO: 1960 rpm 1000 PTO: 1960 rpm |
|||
Economy PTO speeds | ||||
Reverse PTO speeds | ||||
Multispeed PTO option availability | ||||
Ground speed PTO option availability | ||||
PTO actuation | In-cab switch and optional external fender-mounted remote control | |||
Engine rpm at rated PTO speeds (540/1.000) | ||||
Engine rpm at rated PTO speeds (540/540E/1.000) | ||||
Engine rpm at rated PTO speeds (540E/1000/1.000E) |
Category | 3N | |||
---|---|---|---|---|
Electric power | Seven-pin electrical socket | |||
Standard lift capacity | At hook ends: 3300 kg 7269 lb |
|||
Front power take-off (PTO) | Electrohydraulically engaged with oil-cooled, multi-disc design | |||
PTO speed | 1000 PTO: 1967 rpm |
Type | Standard: Rack-and-pinion rear axle - 92-mm (3.6 in.) shaft (2.550-m/100.4 in.) Optional: flange-type rear axle Rack-and-pinion rear axle - 100-mm (3.94 in.) shaft (2806-mm/110.5 in.) Rack-and-pinion rear axle - 100-mm (3.94 in.) shaft (2550-mm/100.4 in.) Rack-and-pinion rear axle - 100-mm (3.94 in.) shaft (3009-mm/118.5 in.) |
|||
---|---|---|---|---|
Final drive type | ||||
Differential controls | ||||
Axle type | ||||
Brakes, type and control | ||||
Rear differential lock | Electrohydraulically with oil-cooled clutch | |||
Load rating |
Type | Standard: MFWD Optional: Triple-Link Suspension (TLS) MFWD axle (hydro-pneumatic, permanently active, triple link, self-leveling suspension with 100-mm [3.9-in.] suspension range) Triple-Link Suspension MFWD with brakes |
|||
---|---|---|---|---|
Front axle differential lock | Standard: Self-locking differential Optional: hydrualic actuated |
|||
Load rating |
Front | 420/85R30 | |||
---|---|---|---|---|
Rear | 480/80R46 | |||
Wheel tread range | ||||
Turning radius with brakes | ||||
Turning radius without brakes | ||||
Central Tire Inflation System (CTIS) |
Tread spacing | ||||
---|---|---|---|---|
Drive type | ||||
Track width | ||||
Mid-rollers |
Type | Dynamic load sensing, hydrostatic, flow metering |
---|
Primary brake (foot brake) | ||||
---|---|---|---|---|
Secondary brake | ||||
Park lock | ||||
MFWD braking | ||||
Front axle brakes | ||||
Auxiliary brakes | ||||
Hydraulic trailer brakes | ||||
Pneumatic trailer brakes |
Alternator size | Standard: 14 V/125 amp Optional: 14 V/250 amp |
|||
---|---|---|---|---|
Battery options | Standard: 12 V/154 amp-hr Optional: 12 V/174 amp-hr |
|||
Working lights | ||||
Type of bulb in headlight (Halogen, Zenon, LED) | ||||
Type of bulb in beacon (Halogen, Zenon, LED) | ||||
dB(A) rating for backup alarm | ||||
Total cold cranking amps |
Rollover protective structure, OOS | Gearshift location - console/floor Console |
|||
---|---|---|---|---|
Seat | Standard: Standard seat with air suspension Optional: Economy seat with mechanical suspension |
|||
Cab suspension | Optional: Mechanical Cab Suspension (MCS) | |||
Instructional seat | Optional | |||
Display | Cornerpost display (right-hand A-post) Functionality: Performance monitor and individual settings |
|||
Radio | Standard: Standard AM/FM stereo | |||
Inner cab volume | 3.0 m3 105.9 cu ft |
|||
dB(A) rating | 70 dBA | |||
Cab glass area | 4.85 m2 | |||
Safety glass rating | ||||
Front visibility |
Wheelbase | 2800 mm 110.2 in. |
|||
---|---|---|---|---|
Overall width | 2550 mm 100.3 in. (420/85R30 & 480/80R46) |
|||
Overall length | 4984 mm 196.2 in. (inc. weight bracket) |
|||
Overall height | 3060 mm 120.5 in. |
|||
Drawbar clearance | ||||
Front axle center | 545 mm 21.4 in. (ground clearance) |
|||
Approximate shipping weight, Open;Cab | Cab: 8500 kg 18,739 lb |
Base machine weight | Front axle 3480 kg 7672 lb Rear axle 5200 kg 11,508 lb 8700 kg 19,180 lb |
|||
---|---|---|---|---|
Maximum ballast level | ||||
Maximum permissible weight | 12,700 kg 27,999 lb |
Crankcase oil volume | 23.5 L 6.2 U.S. gal. |
|||
---|---|---|---|---|
Fuel tank | 325 L 85.9 U.S. gal. |
|||
Diesel exhaust fluid (DEF) tank | 20 L 5.3 U.S. gal. |
|||
Cooling system | 28 L 7.4 U.S. gal. |
|||
Transmission-hydraulic system | AutoPowr/IVT: 80.0 L 21.0 U.S. gal. |
Interval for engine oil change | 500 hours | |||
---|---|---|---|---|
Interval for hydraulic/transmission oil change | 1500 hours | |||
Interval for engine coolant change | 6000 hours |
Loader | 660R | |||
---|---|---|---|---|
Lift capacity at full height | MSL: 2592 kg 5716 lb NSL: 2737 kg 6035 lb |
|||
Maximum lift height | MSL: 4.5 m 178.8 in. NSL: 4.5 m 177.3 in. |
|||
Leveling type |
Guidance | Optional: AutoTrac™ with Universal Display | |||
---|---|---|---|---|
Telematic | Standard: JDLink™ | |||
Remote diagnostics | Standard: JDLink™ | |||
Connectivity |
AutoTrac ready | ||||
---|---|---|---|---|
ISOBUS ready | ||||
CommandCenter video inputs | ||||
Immobilizer | ||||
Side slope rating | ||||
Uphill/downhill slope rating | ||||
Country of manufacture | Germany |
Date collected | 25-Jun-24 |
---|
