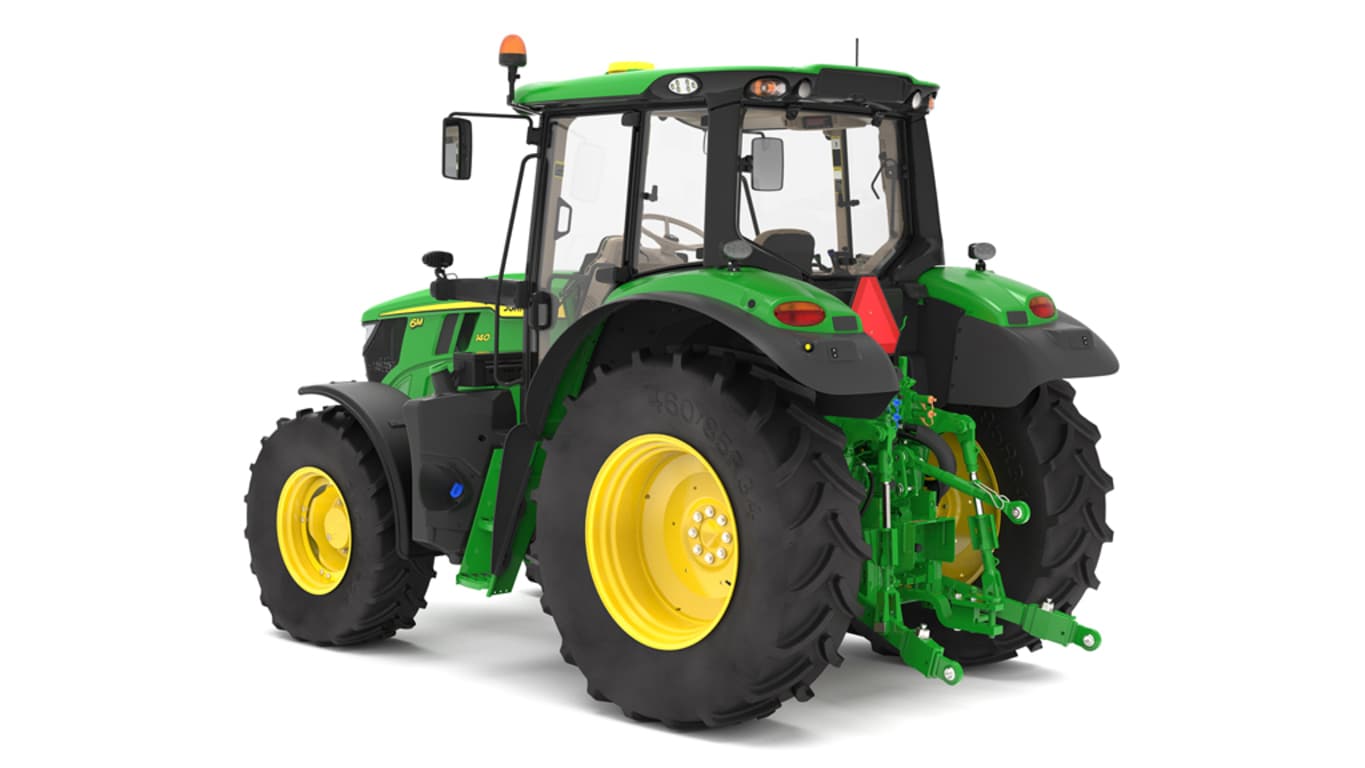

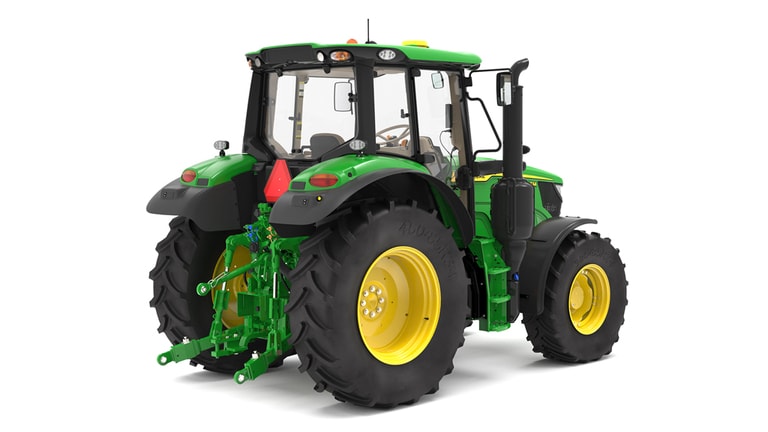

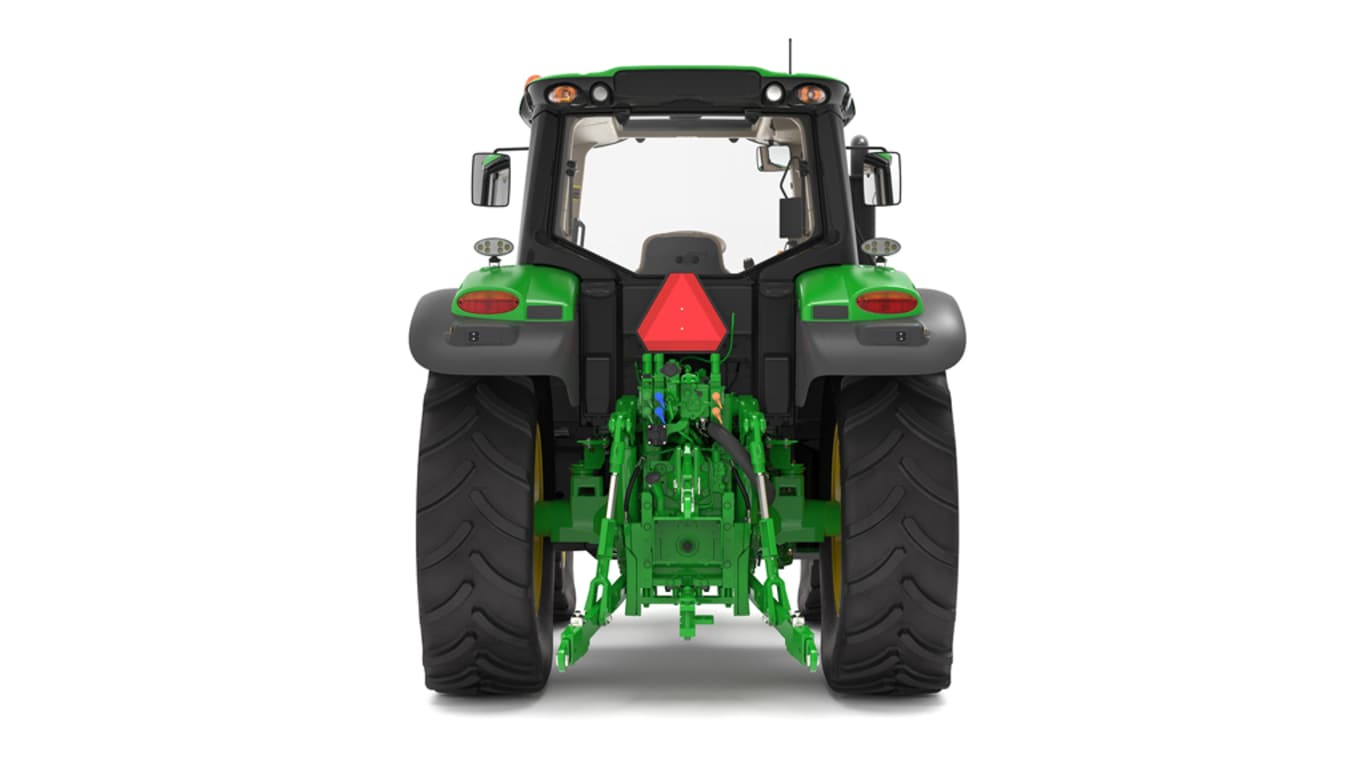

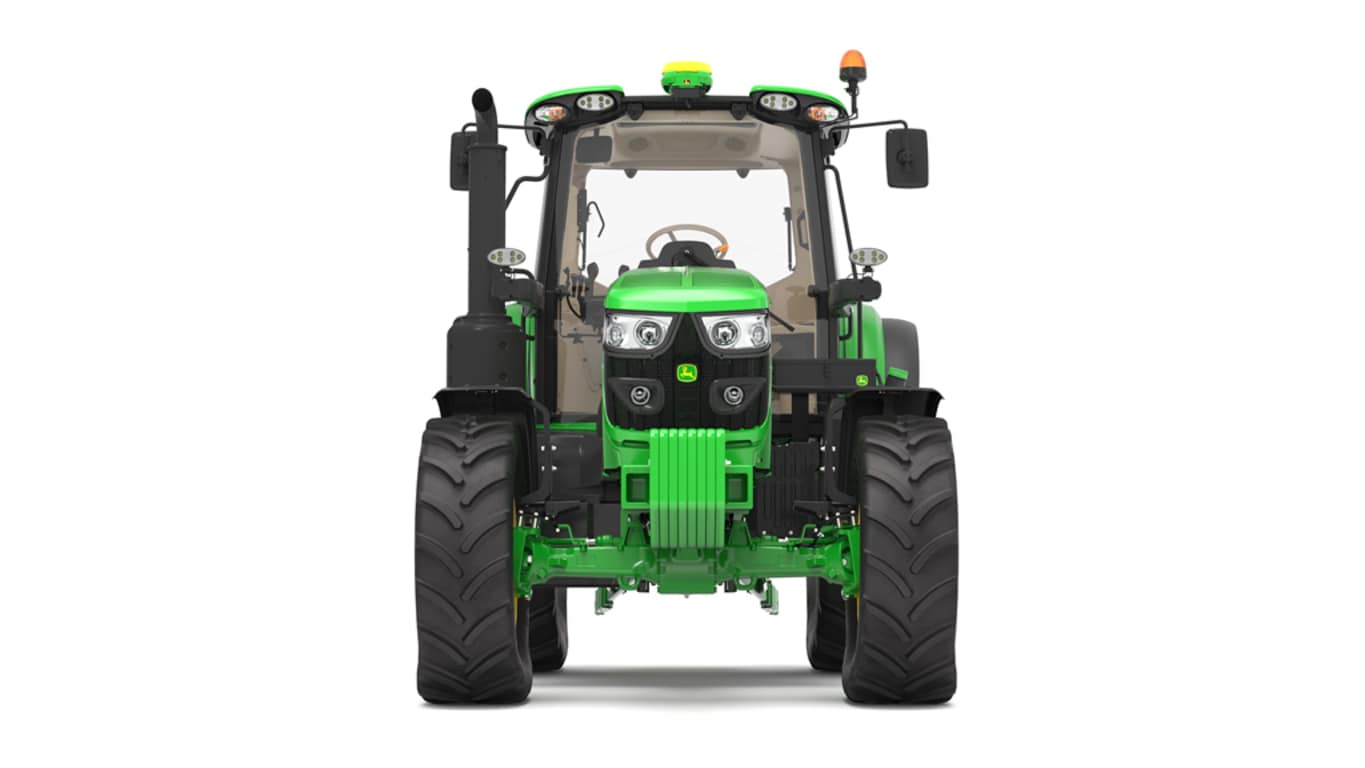

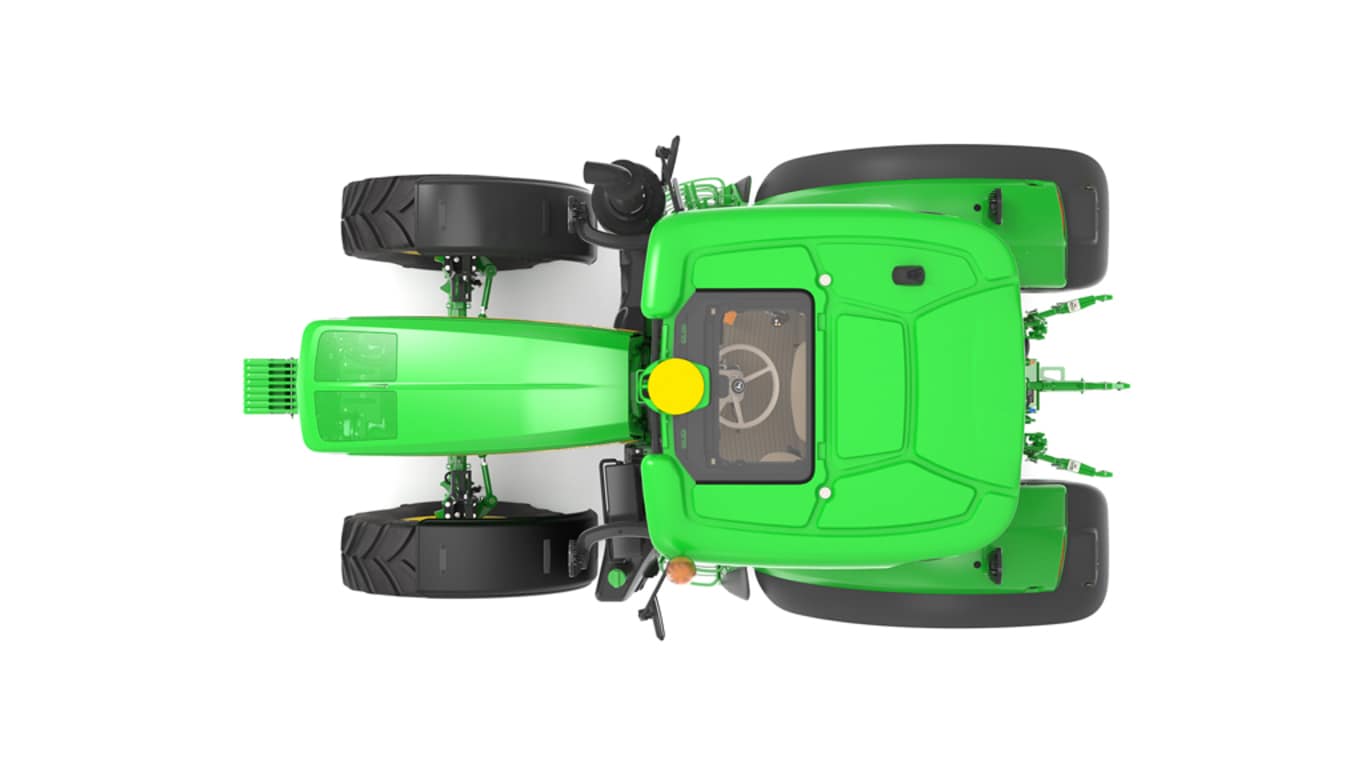

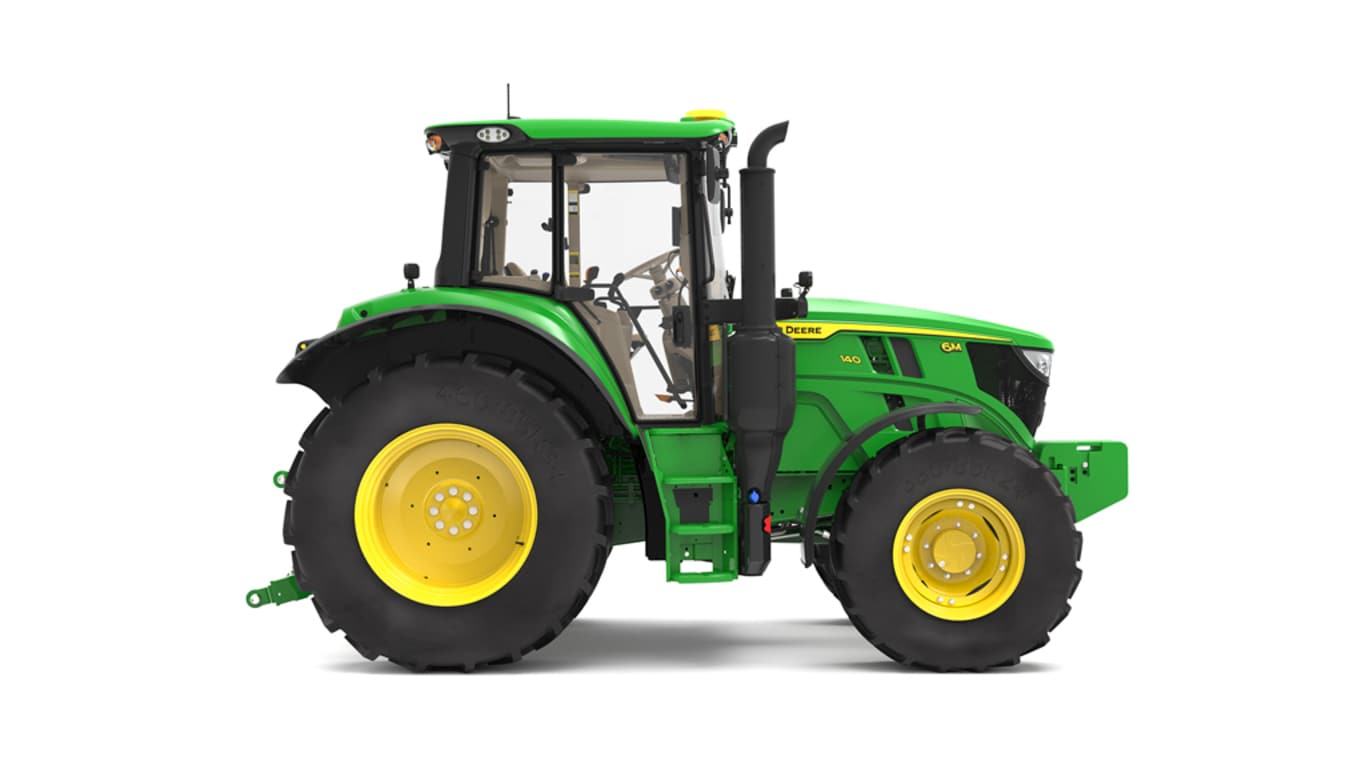

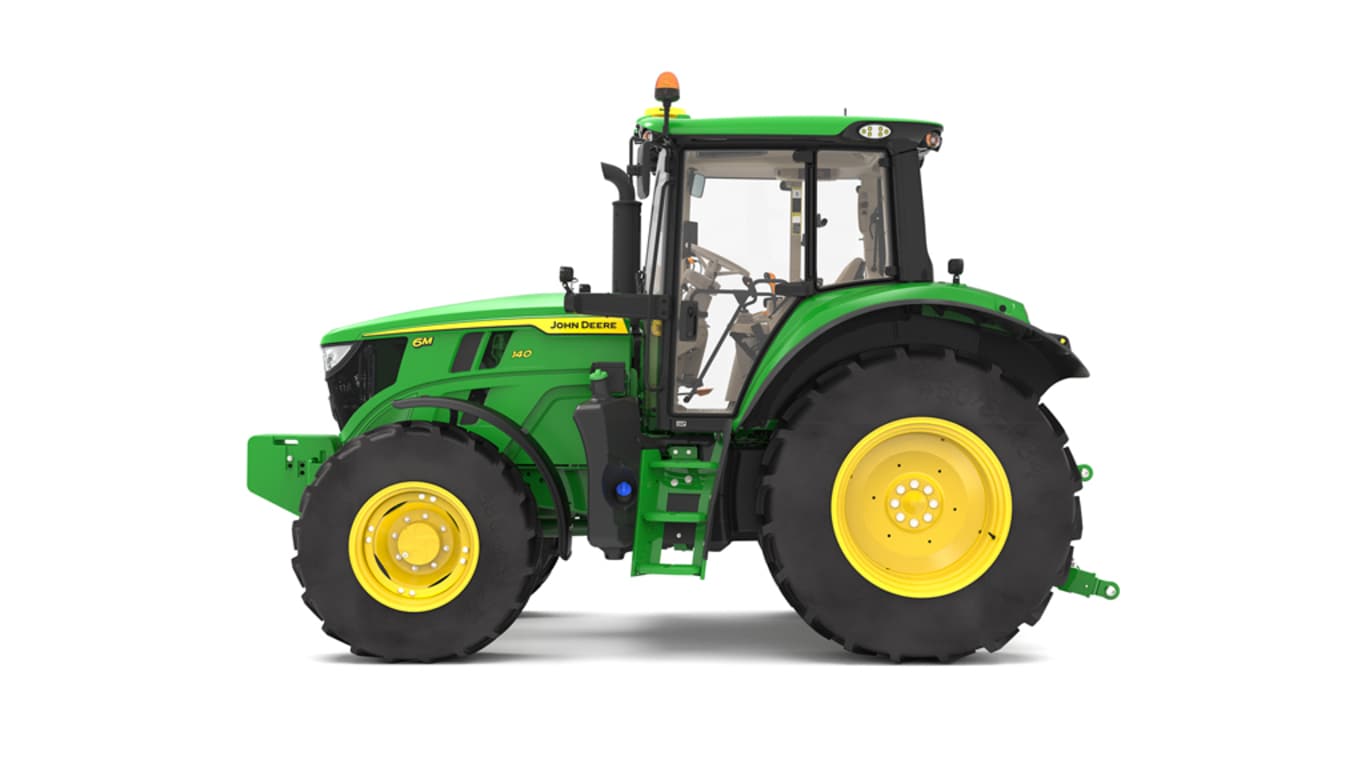

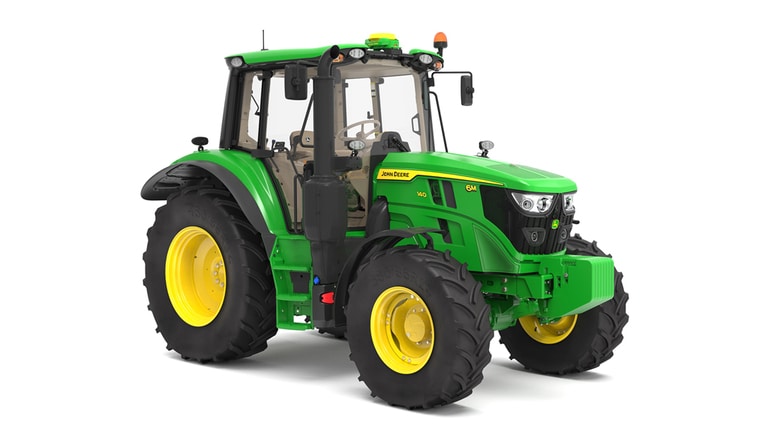

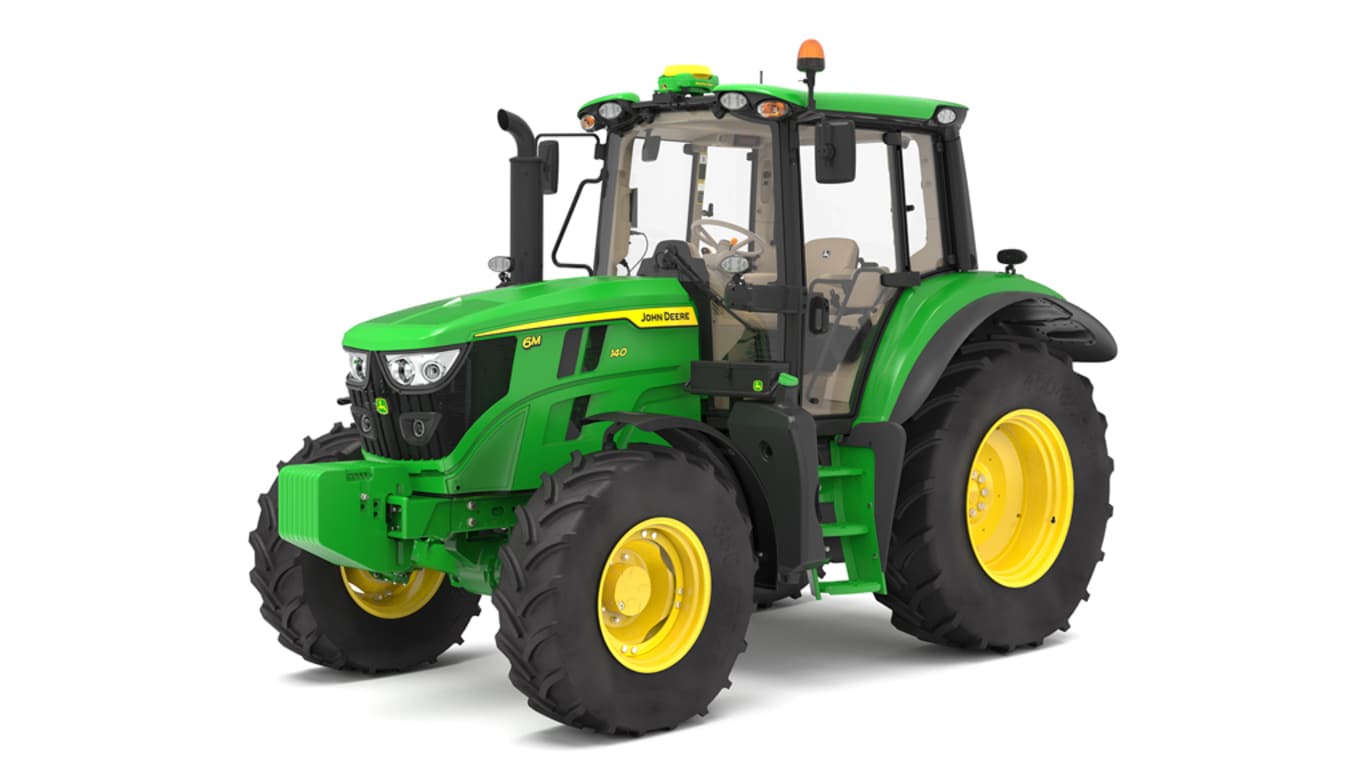

6M 140Utility Tractor
- Engine HP: 154 Max | 140 Rated
- John Deere PowerTech™ PSS Engine
- Transmission Options: PQT, AQT, CQT, or IVT™
- Up to 20 HP Boost with IPM in non-stationary PTO and transport applications
Specs & Compare | ||||
---|---|---|---|---|
John Deere 6M 140 Utility Tractor |
Engine description | John Deere PowerTech™ PSS | |||
---|---|---|---|---|
Engine displacement | 4.5 L 275 cu in. |
|||
Rated engine power | 140 hp 103 kW |
|||
Maximum engine power | 154 hp 113 kW |
|||
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628) | ||||
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628) | ||||
Rated PTO power (hp SAE) | 111 hp 83 kW |
|||
Maximum PTO power | At 1000 PTO rpm with IPM: 96 kW 129 hp |
|||
Transmission type | Standard: John Deere 24-speed PowrQuad Plus 40 km/h Optional: John Deere 16-speed PowrQuad Plus 30 km/h John Deere 24-speed AutoQuad Plus 40 km/h & 50 km/h John Deere 24-speed CommandQuad Plus 40 km/h & 50 km/h AutoPowr™/IVT™ 40 km/h & 50 km/h Creeper available: PowrQuad Plus and AutoQuad Plus |
|||
Hydraulic pump rated output | Standard: 35-cc pump: 80 L/min 21 gpm Optional: 45-cc pump: 114 L/min 30 gpm |
|||
Rear hitch category (SAE designation) | 2/3N | |||
Base machine weight | 6300 kg 13,889 lb |
|||
Maximum PTO power at rated engine speed with intellegent power management (IPM) |
Description | John Deere PowerTech™ PSS | |||
---|---|---|---|---|
Engine type | 4045HL557 | |||
Engine family | ||||
Rated speed | 2100 rpm | |||
Aspiration | Dual turbochargers, variable geometry turbo with fixed geometry turbo in series | |||
Cylinders liners | ||||
Emission level | Final Tier 4 | |||
After treatment type | Diesel particle filter (DPF) with diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR) using diesel exhaust fluid (DEF) | |||
Displacement | 4.5 L 275 cu in. |
Rated power | 140 hp 103 kW |
|||
---|---|---|---|---|
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628) | ||||
Rated PTO power (hp SAE) | 111 hp 83 kW |
|||
Maximum PTO power | At 1000 PTO rpm with IPM: 96 kW 129 hp |
|||
Intelligent Power Management (IPM) | Transport and/or mobile PTO applications Additional engine power (hp ISO) at 2100 rpm: 14.9 kW 20 hp |
|||
Power boost | 10 percent | |||
Maximum engine power | 154 hp 113 kW |
|||
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628) | ||||
Engine peak torque | 656 Nm | |||
Drawbar power | ||||
PTO torque rise | 40 percent | |||
Fuel injection system and control | ||||
Air cleaner type | ||||
Maximum PTO power at rated engine speed with intellegent power management (IPM) | ||||
Maximum engine torque (without power boost at 1.600 engine rpm) | ||||
Maximum engine power with intelligent power management (IPM) |
Type | Standard: John Deere 24-speed PowrQuad Plus 40 km/h Optional: John Deere 16-speed PowrQuad Plus 30 km/h John Deere 24-speed AutoQuad Plus 40 km/h & 50 km/h John Deere 24-speed CommandQuad Plus 40 km/h & 50 km/h AutoPowr™/IVT™ 40 km/h & 50 km/h Creeper available: PowrQuad Plus and AutoQuad Plus |
|||
---|---|---|---|---|
Integrated Electric Power Generation | ||||
Reverser | Electronic left-hand reverser | |||
Clutch; wet/dry | ||||
Creeper | Optional |
Type | Standard: Pressure compensated (PC) Optional: Pressure-and-flow compensated (PFC) system with Load Sensing function |
|||
---|---|---|---|---|
Pump rated output | Standard: 35-cc pump: 80 L/min 21 gpm Optional: 45-cc pump: 114 L/min 30 gpm |
|||
Available flow at a single rear SCV | ||||
Available flow at front SCVs | ||||
Number of rear selective control valves (SCVs) | Standard: Two ISO couplers Optional: Two to four ISO couplers |
|||
Number of mid selective control valves (SCVs) | Up to three | |||
Number of front selective control valves (SCVs) | ||||
Joystick SCV control | Mechanical/electrical | |||
Auxiliary hydraulic features | ||||
SCV control | ||||
Available oil flow at a single rear SCV (200 Type) | ||||
Available oil flow at a single rear SCV (450 Type) | ||||
Available oil flow at a single rear SCV (450E Type) |
Hitch draft control load sense type | ||||
---|---|---|---|---|
Remote control valves available | Standard | |||
Hitch category (SAE designation) | 2/3N | |||
Rear hitch lift capacity (SAE designation) | Standard: Category 2/3N: 3600 kg 7930 lb Optional: Category 2/3N: 4100 kg 9031 lb |
|||
Maximum lift capacity behind lift points | Standard: Category 2/3N: 5650 kg 12,445 lb Optional: Category 2/3N: 6400 kg 14,097 lb |
|||
Lift capacity at standard frame | ||||
Sensing type | Electronic at lower link | |||
Rear axle differential lock | Electrohydraulically with oil-cooled clutch | |||
Maximum lift capacity directly at coupling points | ||||
Throughout lift capacity, 610 mm behind the coupling points |
Drawbar category | Category 2 | |||
---|---|---|---|---|
Maximum vertical load | 1200-2000 kg (2649-4409 lb) Maximum vertical load dependent on drawbar position |
Type | Electrohydraulically operated, oil-cooled, multi-disc design | |||
---|---|---|---|---|
Engine rpm (at rated PTO speeds) | 540 PTO: 1977 rpm 1000 PTO: 1972 rpm |
|||
Economy PTO speeds | ||||
Reverse PTO speeds | ||||
Multispeed PTO option availability | ||||
Ground speed PTO option availability | ||||
PTO actuation | In-cab switch and optional external fender-mounted remote control | |||
Engine rpm at rated PTO speeds (540/1.000) | ||||
Engine rpm at rated PTO speeds (540/540E/1.000) | ||||
Engine rpm at rated PTO speeds (540E/1000/1.000E) |
Category | 3N | |||
---|---|---|---|---|
Electric power | Seven-pin electrical socket | |||
Standard lift capacity | At hook ends: 3300 kg 7269 lb |
|||
Front power take-off (PTO) | Electrohydraulically engaged with oil-cooled, multi-disc design | |||
PTO speed | 1000 PTO: 1969 rpm |
Type | Standard: flange-type rear axle Optional: Rack-and-pinion rear axle - 79-mm (3.1-in.) shaft (2550-mm/100.4 in.) Rack-and-pinion rear axle - 79-mm (3.1-in.) shaft - short version (2286-mm/90.0 in.) mm mm Rack-and-pinion rear axle - 86-mm (3.39 in.) shaft (2438-mm/96.0 in.) |
|||
---|---|---|---|---|
Final drive type | Three planetary gear reduction | |||
Differential controls | ||||
Axle type | ||||
Brakes, type and control | ||||
Rear differential lock | Electrohydraulically with oil-cooled clutch | |||
Load rating |
Type | Standard: MFWD Optional: Two-wheel drive (2WD) Triple-Link Suspension (TLS) MFWD axle (hydro-pneumatic, permanently active, triple link, self-leveling suspension with 100-mm [3.9-in.] suspension range) Triple-Link Suspension MFWD with brakes |
|||
---|---|---|---|---|
Front axle differential lock | Self-locking differential | |||
Load rating |
Front | 380/85R24 | |||
---|---|---|---|---|
Rear | 460/85R34 | |||
Wheel tread range | ||||
Turning radius with brakes | ||||
Turning radius without brakes | ||||
Central Tire Inflation System (CTIS) |
Tread spacing | ||||
---|---|---|---|---|
Drive type | ||||
Track width | ||||
Mid-rollers |
Type | Dynamic load sensing, hydrostatic, flow metering |
---|
Primary brake (foot brake) | ||||
---|---|---|---|---|
Secondary brake | ||||
Park lock | ||||
MFWD braking | ||||
Front axle brakes | ||||
Auxiliary brakes | ||||
Hydraulic trailer brakes | ||||
Pneumatic trailer brakes |
Alternator size | Standard: 14 V/125 amp Optional: 14 V/250 amp |
|||
---|---|---|---|---|
Battery options | Standard: 12 V/154 amp-hr Optional: 12 V/174 amp-hr |
|||
Working lights | ||||
Type of bulb in headlight (Halogen, Zenon, LED) | ||||
Type of bulb in beacon (Halogen, Zenon, LED) | ||||
dB(A) rating for backup alarm | ||||
Total cold cranking amps |
Rollover protective structure, OOS | Gearshift location - console/floor Console |
|||
---|---|---|---|---|
Seat | Standard: Standard seat with air suspension Optional: Economy seat with mechanical suspension |
|||
Cab suspension | Optional: Mechanical Cab Suspension (MCS) | |||
Instructional seat | Optional | |||
Display | Cornerpost display (right-hand A-post) Functionality: Performance monitor and individual settings |
|||
Radio | Standard: Standard AM/FM stereo | |||
Inner cab volume | 3.0 m3 105.9 cu ft |
|||
dB(A) rating | 70 dBA | |||
Cab glass area | 4.85 m2 | |||
Safety glass rating | ||||
Front visibility |
Wheelbase | 2580 mm 101.6 in. |
|||
---|---|---|---|---|
Overall width | 2460 mm 96.8 in. (380/85R24 & 460/85R34 |
|||
Overall length | 4470 mm 176.0 in. (inc. weight bracket) |
|||
Overall height | 2840 mm 111.9 in. (380/85R24 & 460/85R34) |
|||
Drawbar clearance | ||||
Front axle center | 462 mm 18.2 in. (ground clearance) |
|||
Approximate shipping weight, Open;Cab | Cab: 6200 kg 13,669 lb |
Base machine weight | Front axle 2520 kg 5556 lb Rear axle 3780 kg 8333 lb 6300 kg 13,889 lb |
|||
---|---|---|---|---|
Maximum ballast level | ||||
Maximum permissible weight | 9500 kg 20,944 lb |
Crankcase oil volume | 17 L 4.5 U.S. gal. |
|||
---|---|---|---|---|
Fuel tank | 205 L 54.2 U.S. gal. |
|||
Diesel exhaust fluid (DEF) tank | 13.5 L 3.6 U.S. gal. |
|||
Cooling system | 22 L 5.8 U.S. gal. |
|||
Transmission-hydraulic system | PowrQuad Plus/AutoQuad Plus/CommandQuad Plus: 53 L 14.0 U.S. gal. AutoPowr/IVT: 60.0 L 15.9 U.S. gal. |
Interval for engine oil change | 500 hours | |||
---|---|---|---|---|
Interval for hydraulic/transmission oil change | 1500 hours | |||
Interval for engine coolant change | 6000 hours |
Loader | 620R | |||
---|---|---|---|---|
Lift capacity at full height | MSL: 2246 kg 4951 lb NSL: 2468 kg 5442 lb |
|||
Maximum lift height | MSL: 4.1 m 161.5 in. NSL: 4.0 m 158.4 in. |
|||
Leveling type |
Guidance | Optional: AutoTrac™ with Universal Display | |||
---|---|---|---|---|
Telematic | Standard: JDLink™ | |||
Remote diagnostics | Standard: JDLink™ | |||
Connectivity |
AutoTrac ready | ||||
---|---|---|---|---|
ISOBUS ready | ||||
CommandCenter video inputs | ||||
Immobilizer | ||||
Side slope rating | ||||
Uphill/downhill slope rating | ||||
Country of manufacture | Germany |
Date collected | 25-Jun-24 |
---|
