XUV835M Honour Edition | Crossover Gator™ Utility Vehicles UTV

Features

Expand All Collapse All

Honor Edition recognizes military veterans

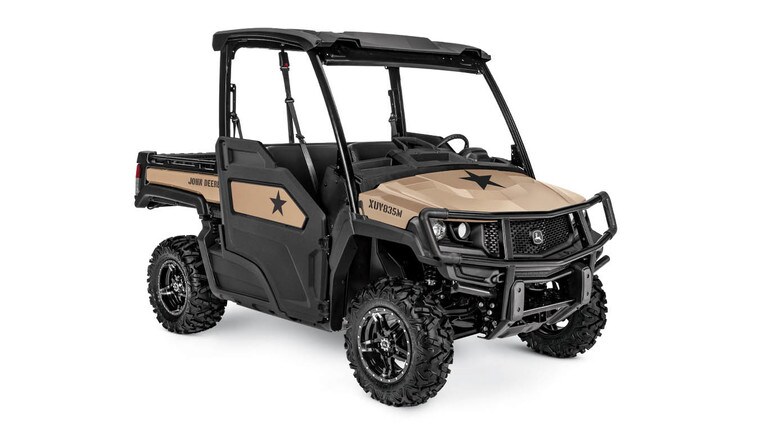

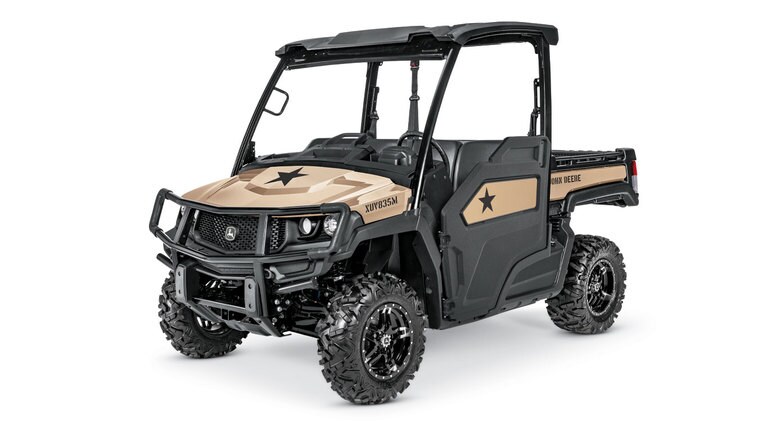

XUV835M Honor Edition Open Station

XUV835M Honor Edition HVAC Cab

The Honor Edition Gator™ Utility Vehicles pay tribute to the military, veterans, and the communities that support them. Honor Edition models feature desert sand exterior panels, military inspired graphics, and several feature upgrades.

In conjunction with the launch of the Honor Edition, John Deere is making a charitable contribution to The SAVE Farm to provide support to military veterans. The SAVE Farm provides farming, ranching, and agribusiness training and healing programs for service members, veterans, and their families. Visit The SAVE Farm’s website for more information.

IMPORTANT: When you click this link, you will be leaving the Deere site. You will be directed to a non-Deere site. Such linked websites are not under the control of Deere. To the full extent permitted under applicable law, Deere is not responsible for the contents of any linked site or any link contained in a linked site. The inclusion of any link does not imply endorsement by Deere of the site, and Deere shall have no responsibility for information which is referenced by or linked to this site.

www.thesavefarm.org

The Honor Edition is available on the XUV835M in an open-station configuration and an HVAC (heating, ventilation, and air conditioning) cab configuration. These special edition vehicles are only available for model year 2022.

The Honor Edition models include:

Desert sand exterior color panels
Military inspired model number, brand, and decorative graphics
Black alloy wheels with Maxxis® Bighorn® 2.0 extreme terrain radial or Predator Heavy-Duty all-terrain radial tires
Black vinyl 40/60 split-bench seat
Sport steering wheel
Half doors (open station)
Black roof
Stone headliner (HVAC cab)
Stone A- and B-post covers (HVAC cab)
Brush guard
Deluxe cargo box with spray in liner, brake lights, and taillights
Cargo box power lift
Single-beam LED headlights

Honor Edition operator station shown on HVAC cab model

Maxxis and Bighorn are trademarks of Cheng Shin Rubber Ind. Co., Ltd.

Conquer tough terrain with confidence

You will feel confident and comfortable, even on tough terrain, with a full-size Gator™ Utility Vehicle. You will feel stable with a low center of gravity and a wide stance. Engine braking and four-wheel hydraulic disc brakes keep you in control on steep descents, even when fully loaded. The power steering on M- and R-Trim vehicles, is smooth and responsive.

Standard four-wheel drive with front and rear differential locks

Dash mounted four-wheel drive and rear differential lock switches

With standard four-wheel drive and differential lock, both instantly available with the flip of a switch, you can get where you are going.

Dual A-arm front and rear independent suspension

Rear suspension and ground clearance

The independent suspension provides a smooth ride as 203 mm (8 in.) of front suspension travel and 229 mm (9 in.) of rear suspension travel cushions bumps and glides over ruts. And clearing rocks and roots is no problem with 284 mm (11.2 inches) of ground clearance.

Tires for any terrain

Terra Hawk all-terrain tire

Maxxis® Bighorn® 2.0 extreme terrain radial tire

Predator Heavy-Duty all-terrain radial tire

Full-Size Gator Utility Vehicles are available with three tire options:

Terra Hawk all-terrain tires
- Tread pattern and wide footprint provide excellent traction with minimal impact on terrain
Maxxis Bighorn 2.0 extreme terrain radial tires
- Radial construction provides shock absorption, allowing for a smoother ride
- Non-directional tread pattern provides predictable cornering and claws up roots and rocks
Predator Heavy-Duty all-terrain radial tire
- Radial construction provides shock absorption, allowing for a smoother ride
- Flat profile increases footprint area, reducing ground pressure
- 8-ply rating delivers up to three times the life of Bighorn tires

Maxxis® Bighorn® is registered trademark of Cheng Shin Rubber Ind. Co., Ltd.

Built for the long haul

Full-size Gator™ XUVs are built to work hard and go the extra mile.

Heavy-duty frame

Underside view of XUV865M

Underside view of XUV825M S4

The hefty frame is designed to stand-up to all the bumps and bends of the trail, and the standard front skid plate protects key components from damage.

Constant velocity boot protection

Constant velocity joints are enclosed to keep water and dirt out. A protector shield protects the boot from trail debris.

Automotive-grade panels and optional protection packages

TrueTimber® KANATI camo XUV865R with optional Premium Protection Package

The hood and side panels are made of automotive-grade materials that resist scratches and dents, and the cargo box is made of tough composite material that resists dents and rust. Optional protection packages look tough and provide even more protection.

TrueTimber® is a trademark of True Timber Outdoors Holding Company, LLC.

Automotive-like controls

Instrument display, shift lever, and switches (shown on XUV835R Signature Edition)

When you sit behind the wheel of a full-size Gator™ Utility Vehicle, you will be reminded of your favorite pick-up truck. There are controls at your fingertips, an easy-to-read instrument panel, and outlets to recharge your phone.

Shift from park and into gear with a throw of a single lever. Power steering on M- and R- trim vehicles is smooth and responsive.

When the going gets tough, you can instantly engage four-wheel drive and rear differential lock with switches. Even at night, the backlit switches are easy to see. If a front wheel starts to slip, the front differential automatically locks to pull you through.

Room for you, plus two

When you hop into the seat of a full-size Gator™ Utility Vehicle, you will notice there’s seating for you, plus two.

Three-passenger seating with room to spare

40/60 split three-passenger bench seat

Operator platform

The adjustable operator’s seat and tilt steering lets drivers of all sizes get comfortable, and the passenger grab handles help everyone feel secure. The low step height and generous opening between seat base and fender is even designed to accommodate bulky work boots.

Roof, windshield, rear panel, door, and heater options

XUV835M with optional half doors, roof, windshield, and rear panel

XUV865M with optional cab doors with roll down windows, roof, windshield, and rear panel

Roof, windshield, rear panel, and half doors attachments keep you dry, shaded, and out of the dust. Cab doors with roll down windows and heater attachments keep you warm all winter.

Haul more in fewer trips

The full-size Gator™ XUV can haul 454 kg (1000 lb), so load it up with confidence. You can also make fewer trips with 1814 kg (4000 lb) of towing capacity and a standard 51-mm (2-in.) receiver hitch.

Built-tough cargo box

Cargo box (shown with spray-in liner and optional taillight protectors)

Cargo box converted to flatbed

The cargo box resists dents, scratches, and rust because it is made from a tough composite material. You will have no problem securing loads with integrated tie bars and 14 tie-down points. You can also convert the cargo box to a flatbed when you need to haul big and bulky loads.

The cargo box measures 1143 mm (45 in.) long, 1320 mm (52 in.) wide, and 305 mm (12 in.) deep.

One-handed tailgate

Tailgate handle

Since your hands are always full, the tailgate can be opened and closed with one hand. You can also lower the tailgate to carry longer items or remove it for easy cleanout.

Power lift

Deluxe cargo box unloading rocks

To save your back, the optional cargo box power lift empties heavy loads with the push of a button.

Powerful EFI engine and drivetrain

812-cc (49.6-cu in.) gasoline engine and drivetrain

The XUV835 and XUV825M S4 Gator™ Utility Vehicles are powered by an electronic fuel injection (EFI) gasoline engine with liquid-cooled, dual-overhead cams. This engine is designed to provide maximum power and fuel efficiency to muscle through tough jobs.

It also has plenty of torque in low range, and fast speeds in high range. The enclosed drivetrain automatically adjusts for fast acceleration, along with powerful hauling and hill-climbing capabilities.

Store more gear

One-row full-size Gator XUVs come packed with places to store tools, gear, and beverages.

Cup holders

Four cup holders and center tray (shown on XUV835E)

Cab door cup holder and pocket

The dash has four cup holders, and cab vehicles have a cup holder in each door.

Dash and under-seat storage

Under seat storage (shown on XUV835E)

Glove box, storage pocket, and two dash bins (shown on XUV835M cab)

The vehicles also feature an enclosed glove box, center tray, dash storage pocket and under-seat storage. Depending on the configuration, vehicles may have up to three additional dash bins and under-hood storage.

Color options and styling

Green and yellow XUV835R Signature Edition with included Ultimate Protection Package

Olive and black XUV865M with cab and optional brush guard

TrueTimber® KANATI camo XUV865R with optional Premium Protection Package

Desert sand, XUV835M Honor Edition with included brush guard

You will get noticed with the distinctive styling of full-size Gator™ XUVs. Available in four colors, with various protection packages, and more than 100 attachments, you can create a custom look that will turn heads.

TrueTimber is a trademark of True Timber Outdoors Holding Company, LLC.

Go further between fill ups

Large fuel tank fill opening

Full-size Gator™ XUVs have a large 42.8-L (11.3-gal.) fuel tank so you go further between fill ups. A 76-mm (3-in.) diameter fill opening reduce spills.

Show More Show Less

Specs & Compare

Select up to 4 models to compare specifications

John Deere

XUV835M Honour Edition

Crossover Utility Vehicle

Engine power

40.3 kW
54 hp

Cargo box dimensions

1143 x 305 x 1320 mm
45 x 12 x 52 in.

Cargo box capacity (weight)

454 kg
1000 lb

Towing capacity

Up to 1814 kg
4000 lb

Front suspension

Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel

Rear suspension

Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel

Final drive

Park, high, low, neutral, reverse transaxle

Four wheel drive

Dash switch actuated four-wheel drive system

Fuel capacity

42.4 L
11.2 U.S. gal.

Type

4-cycle gas, electronic fuel injection (EFI)

Displacement

812 cc

Power

40.3 kW
54 hp

Cooling system

Liquid

Transmission

Continuously Variable Transmission (CVT) with clutch enclosure

Final drive

Park, high, low, neutral, reverse transaxle

Four wheel drive

Dash switch actuated four-wheel drive system

Traction assist

Limited slip front differential, Positive locking, switch actuated rear differential lock

Descent control

Yes

Front

Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel

Rear

Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel

Type

Front/rear hydraulic disc with twin piston front calipers

Park brake

Park in-transmission, Optional factory-installed secondary foot operated with hand release

Front

27x9-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on steel or alloy wheels
27x9-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels

Rear

27x11-R14 Maxxis Bighorn 2.0 extreme terrain radials on steel or alloy wheels
27x11-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels

Wheelbase

2146 mm
84.5 in.

Weight

With fuel and fluids: 868 kg
1913 lb

Length

3228 mm
127 in.

Width

1618 mm
63.7 in.

Height

1987 mm
78.2 in.

Tread centers

Front: 1341 mm
52.8 in.
Rear: 1259 mm
49.6 in.

Ground clearance

284 mm
11.2 in.

Fuel capacity

42.4 L
11.2 U.S. gal.

Cargo box dimensions

1143 x 305 x 1320 mm
45 x 12 x 52 in.

Cargo box capacity (weight)

454 kg
1000 lb

Payload capacity

677 kg
1493 lb

Towing capacity

Up to 1814 kg
4000 lb

Hitch

Standard receiver: 5.1 cm
2 in.

Color

Desert sand

Power steering

Yes

Battery / Alternator / Power port

Battery: 12 V 480 CCA
Alternator: 85 amp
DC outlet: 12 V

Instrumentation

Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light)

Storage

Total: 97.8 L 25.8 gal.
Four cup holders: 1.3 L 0.3 gal.
Center tray: 1.2 L 0.3 gal.
Three dash bins: 5.0 L 1.3 gal.
Storage pocket: 1.4 L 0.4 gal.
Glove box: 3.8 L 1.0 gal.
Under seat: 55.3 L 14.6 gal.
Optional under hood: 30.0 L 7.9 gal.

Seating

Black vinyl 40/60 split three-passenger bench

Country of Manufacture

U.S.

Date collected

8-Jun-22
