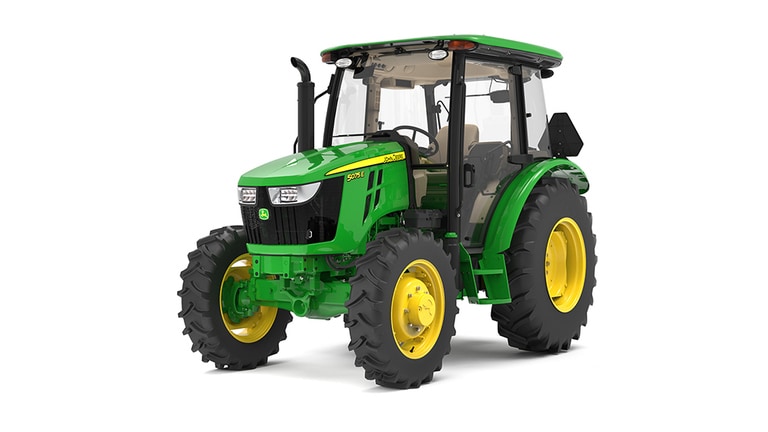

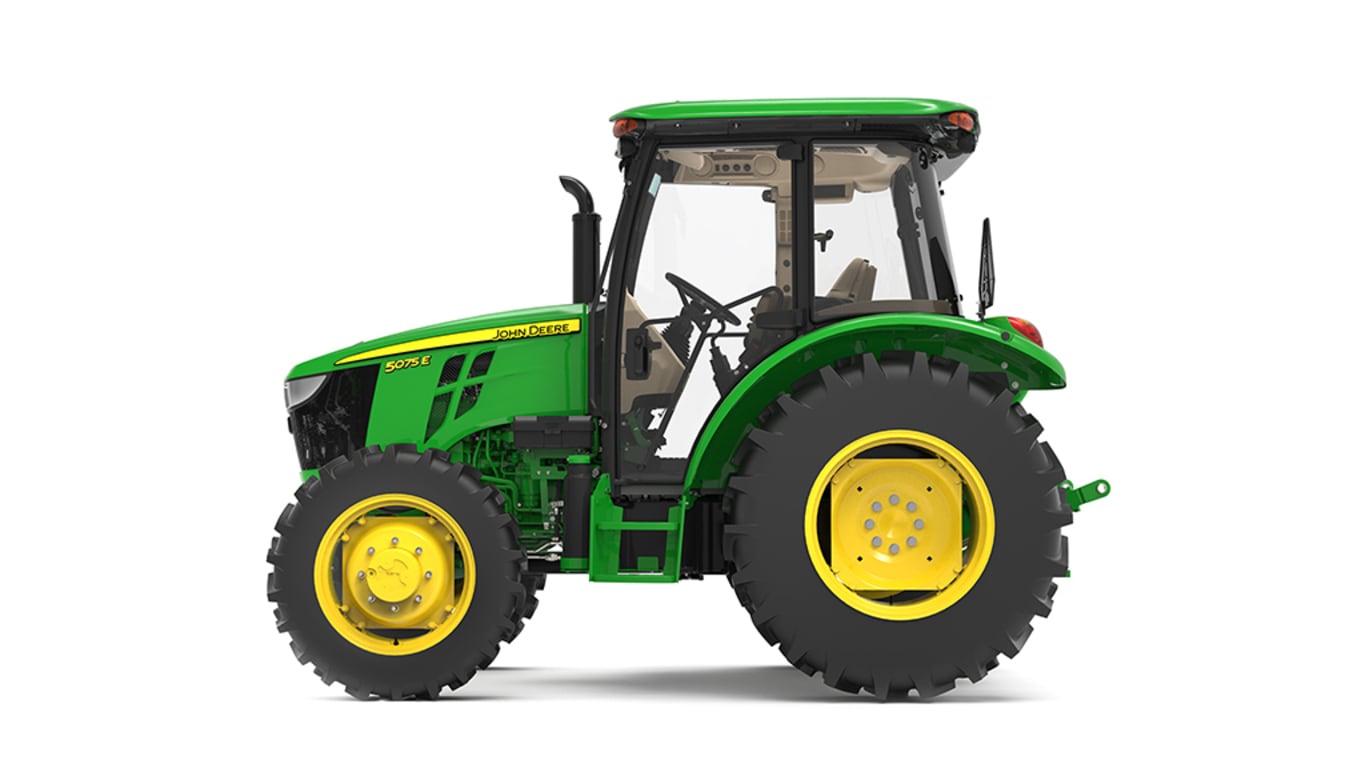

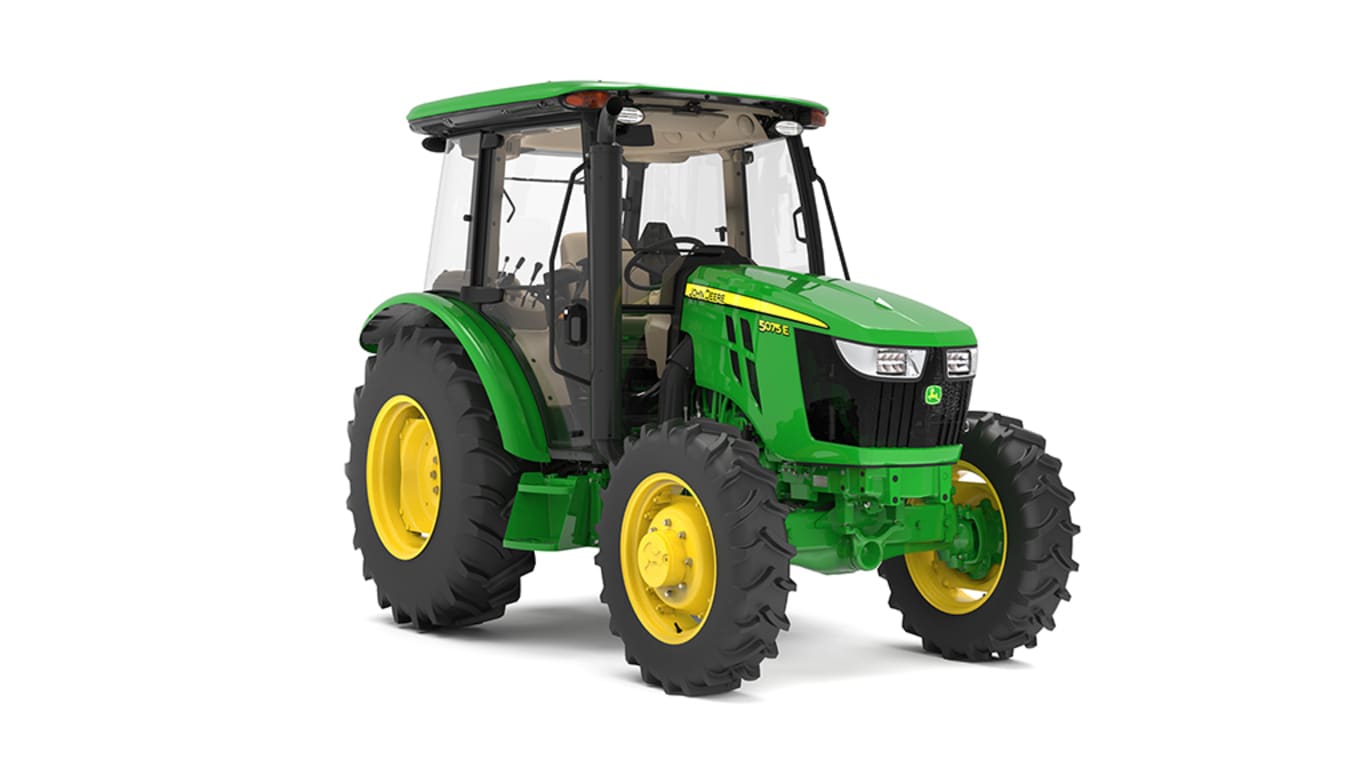

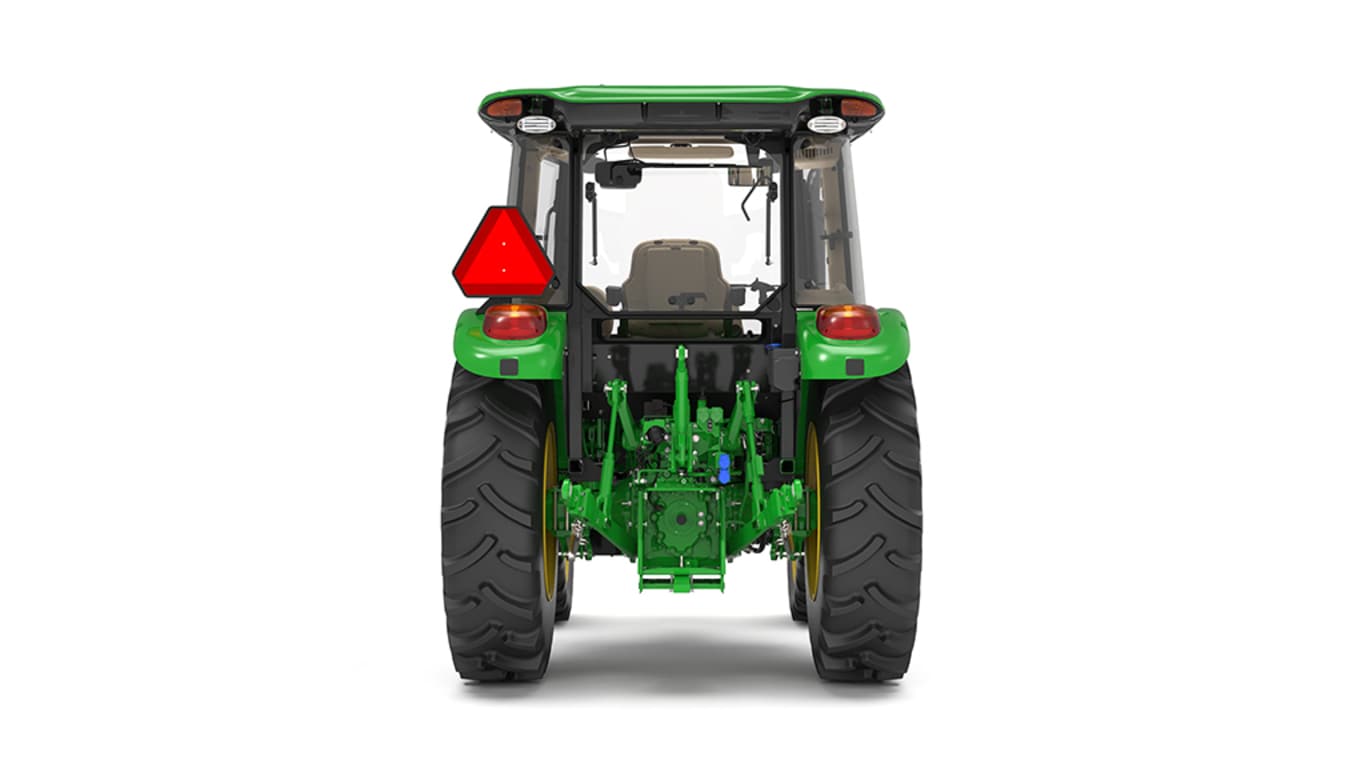

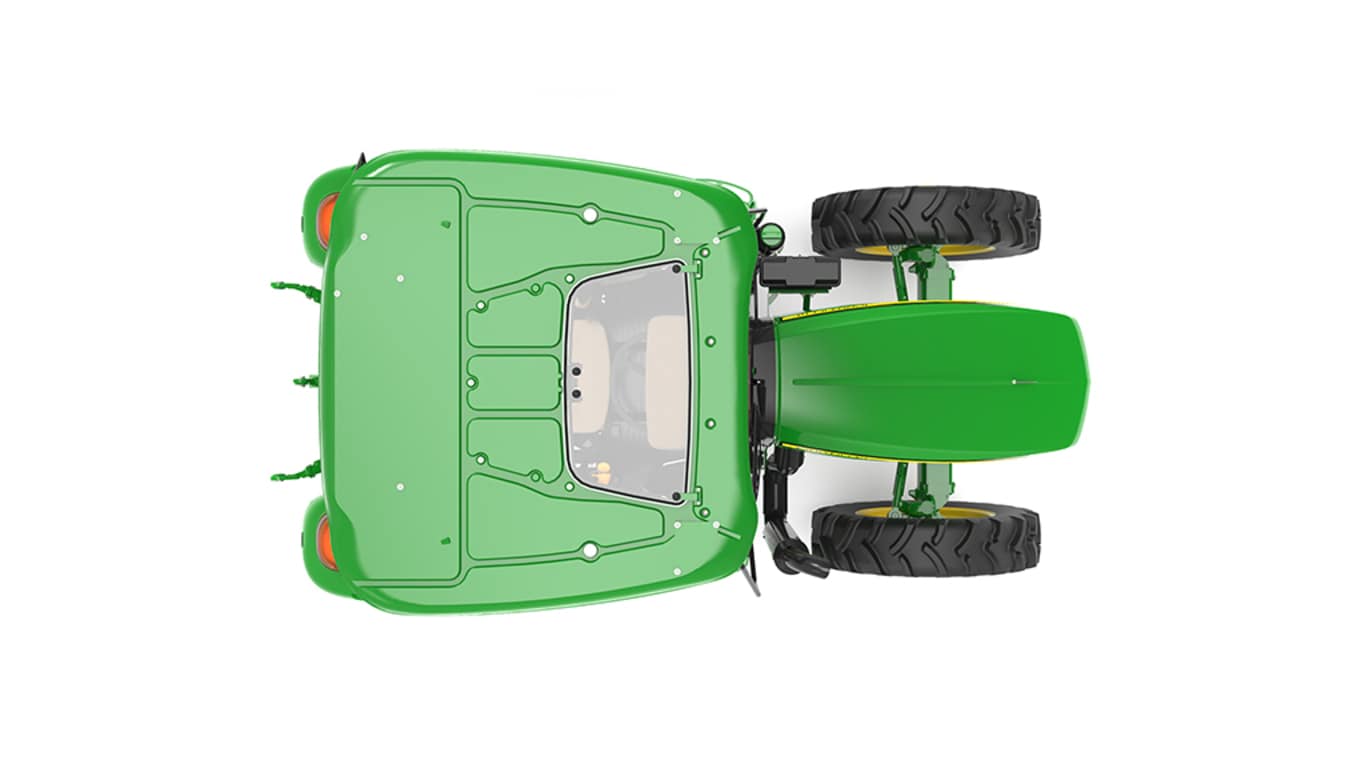

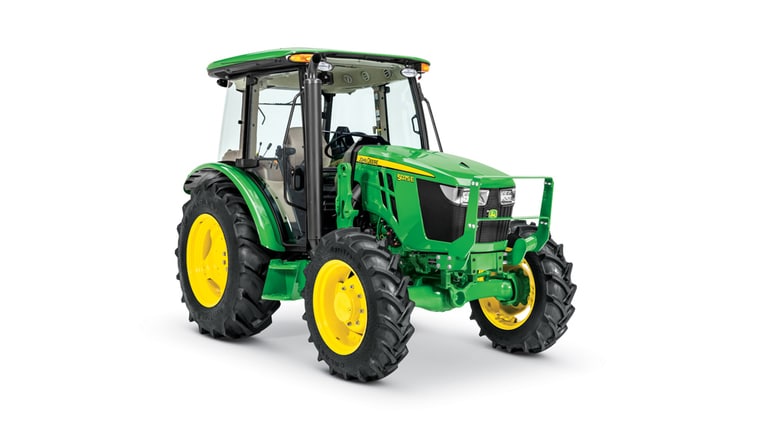

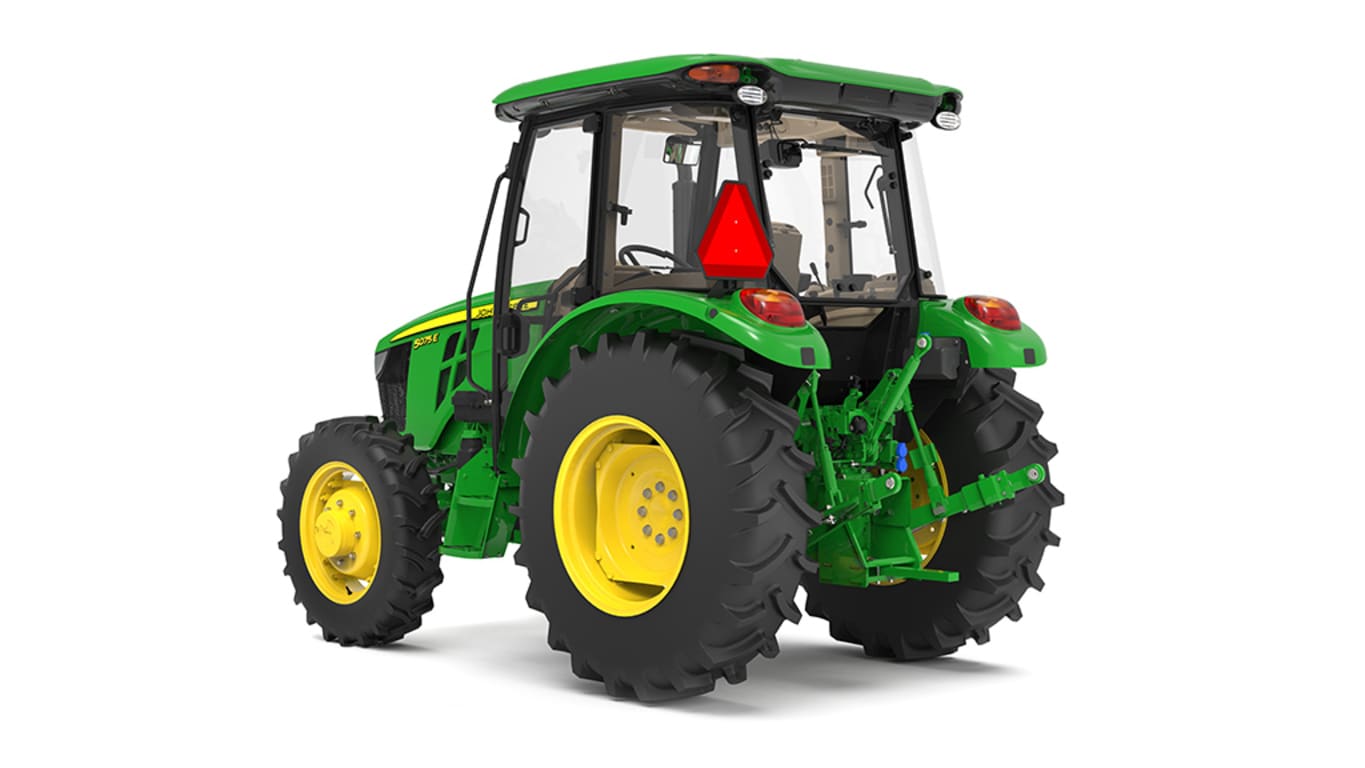

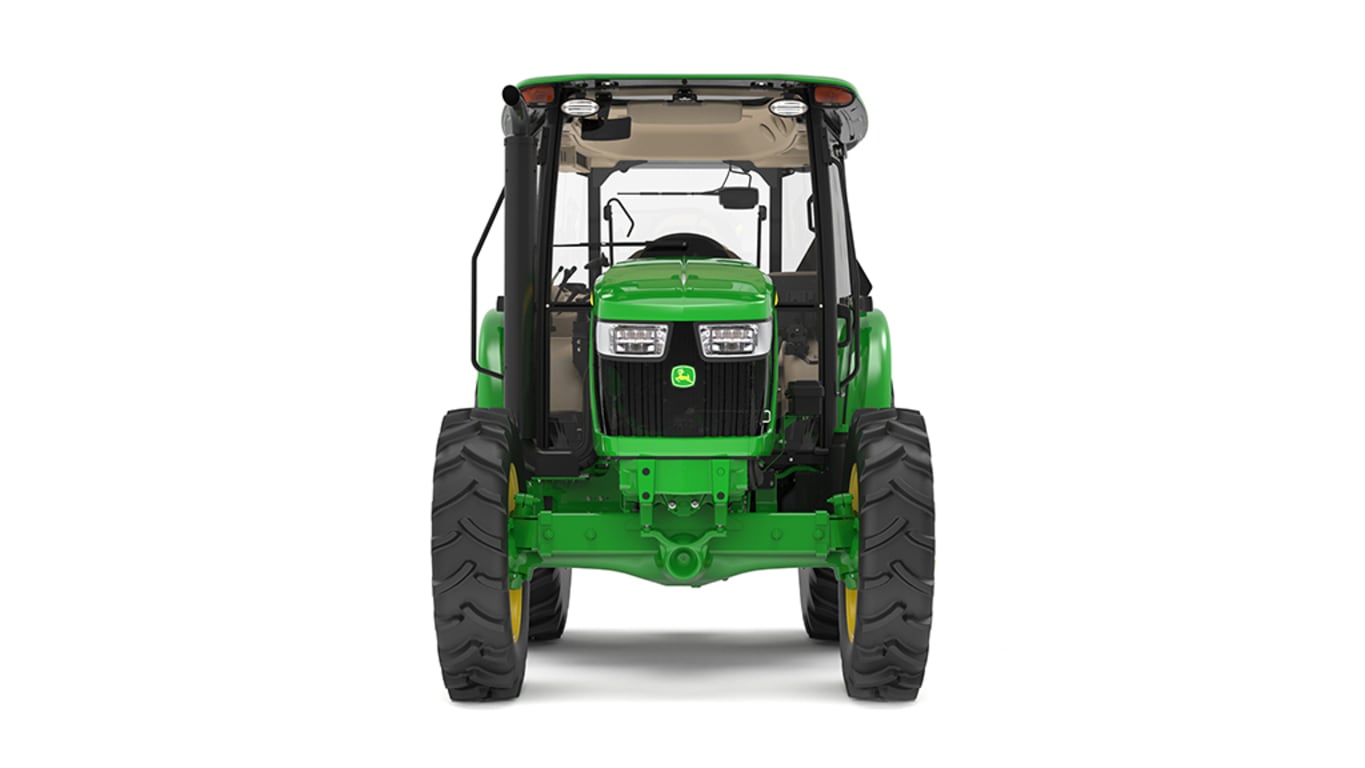

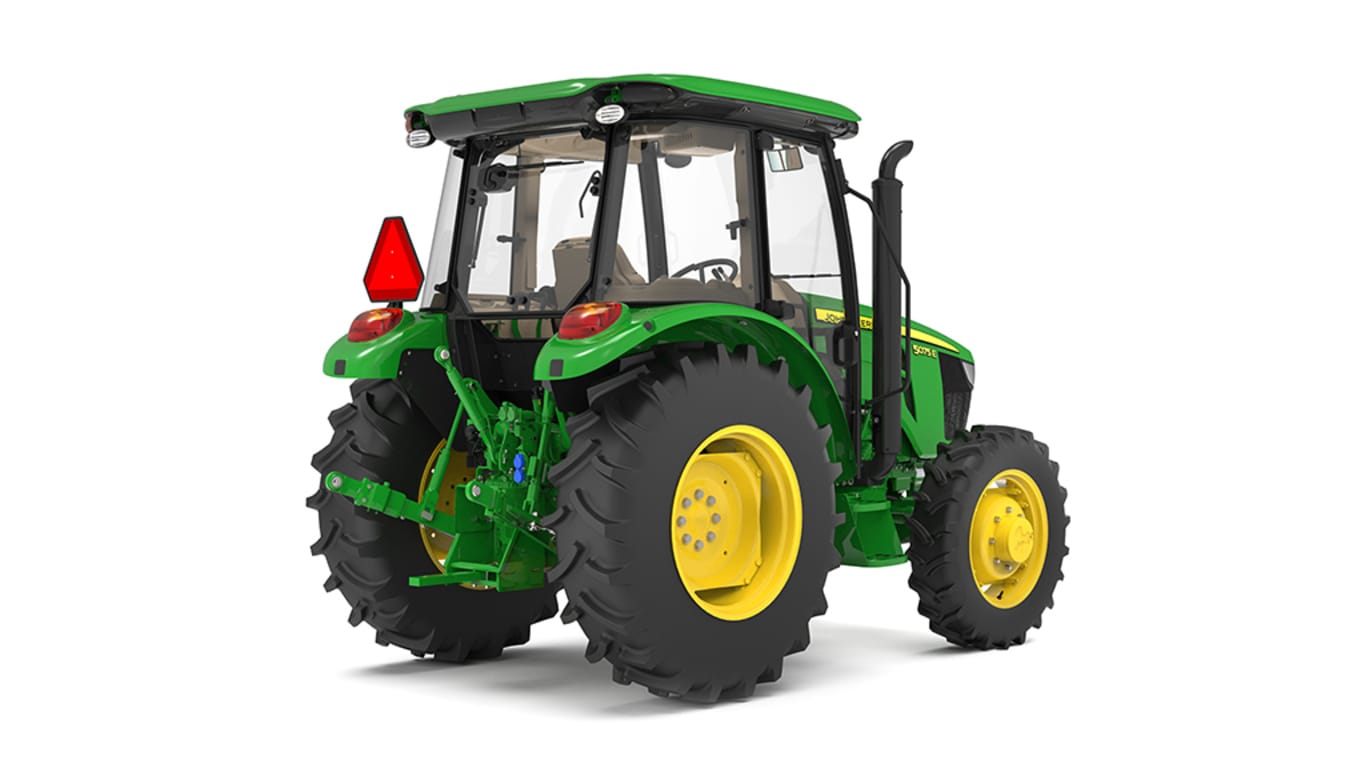

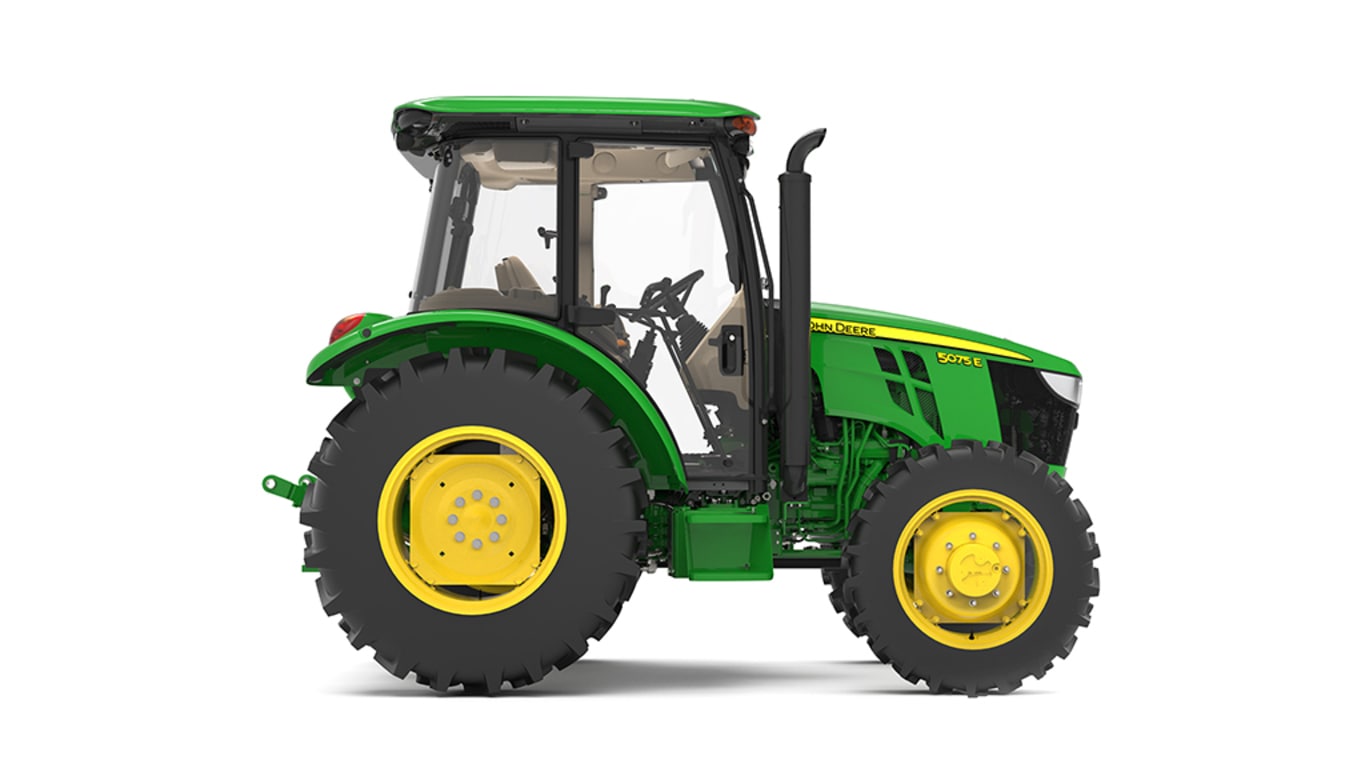

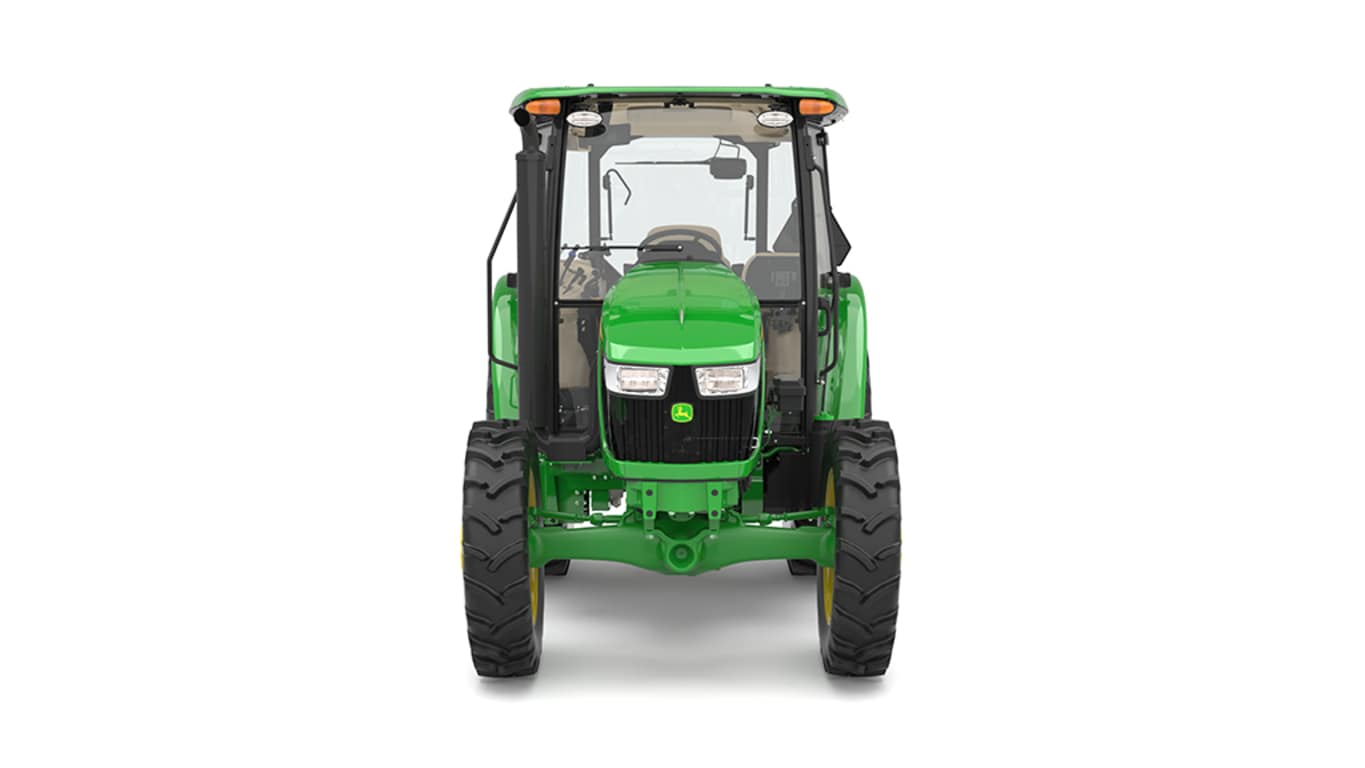

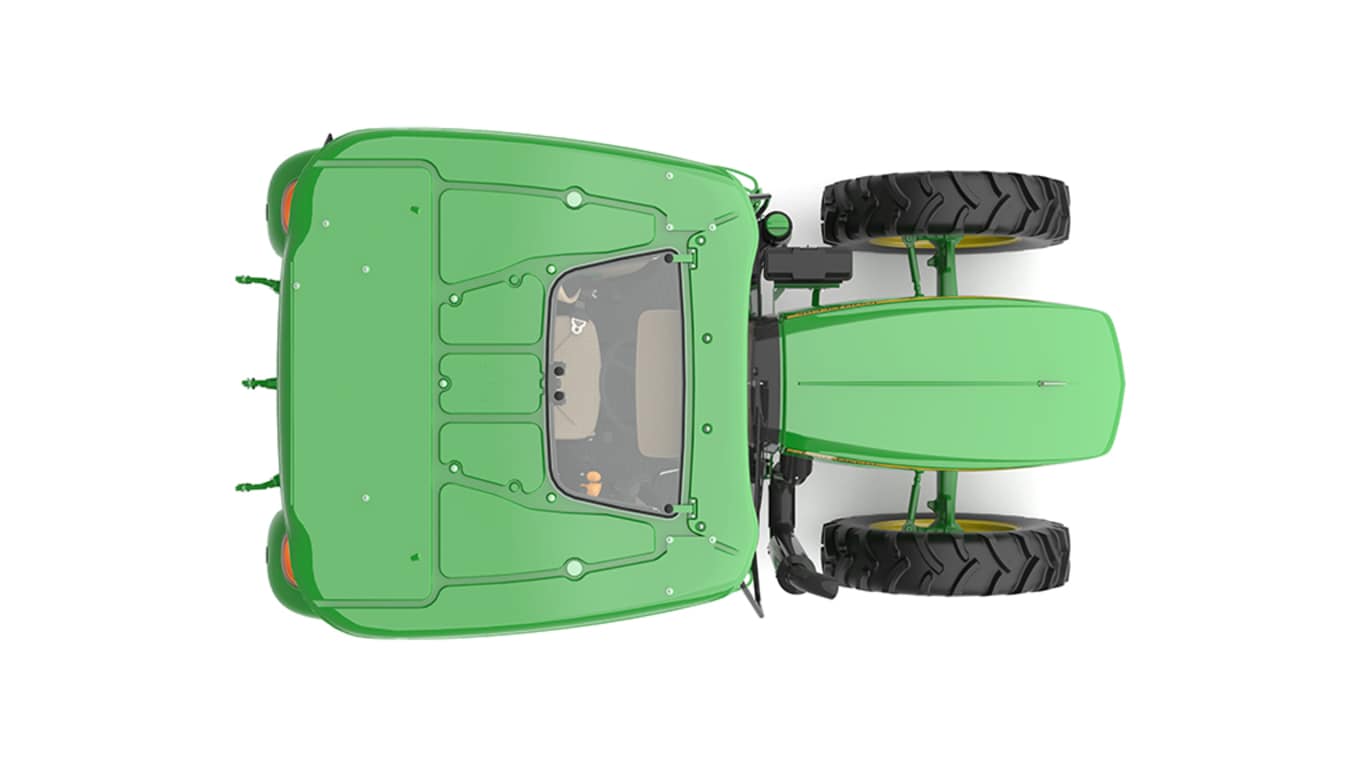

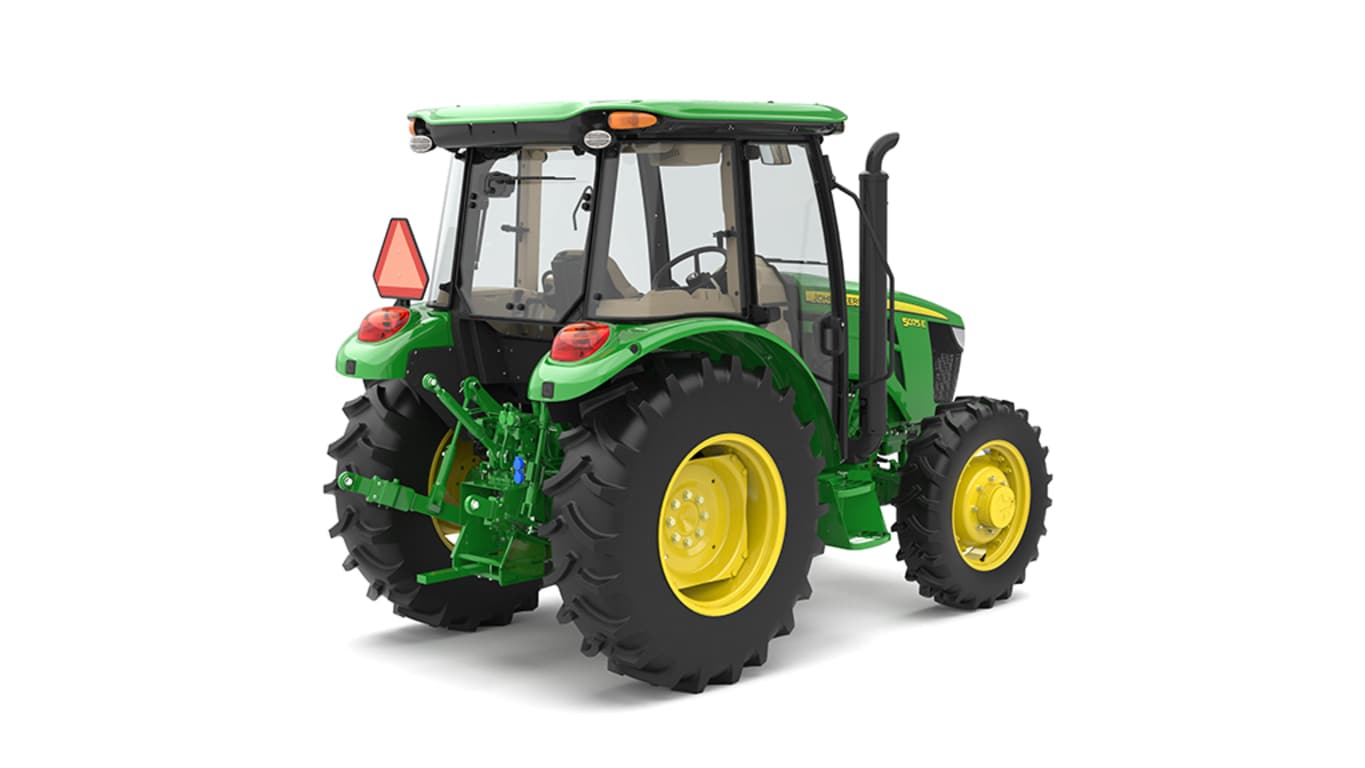

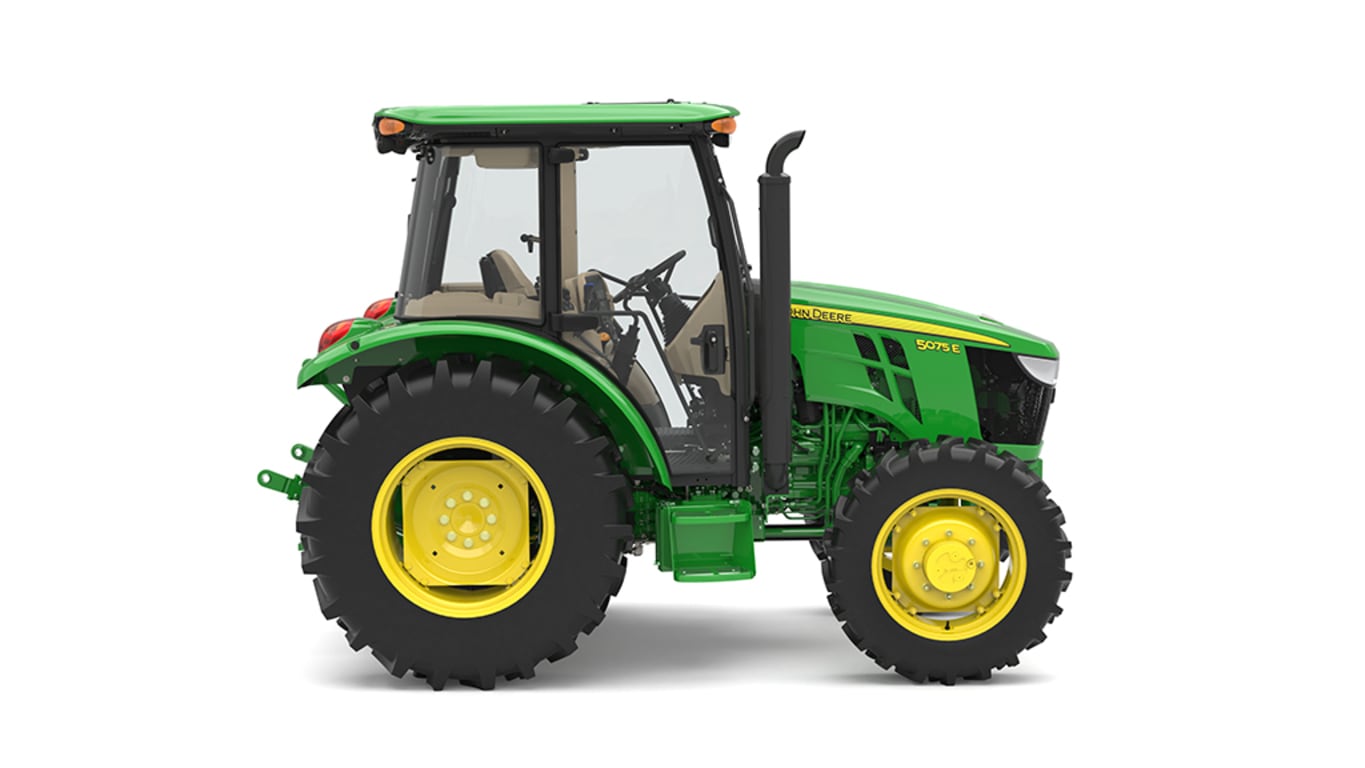

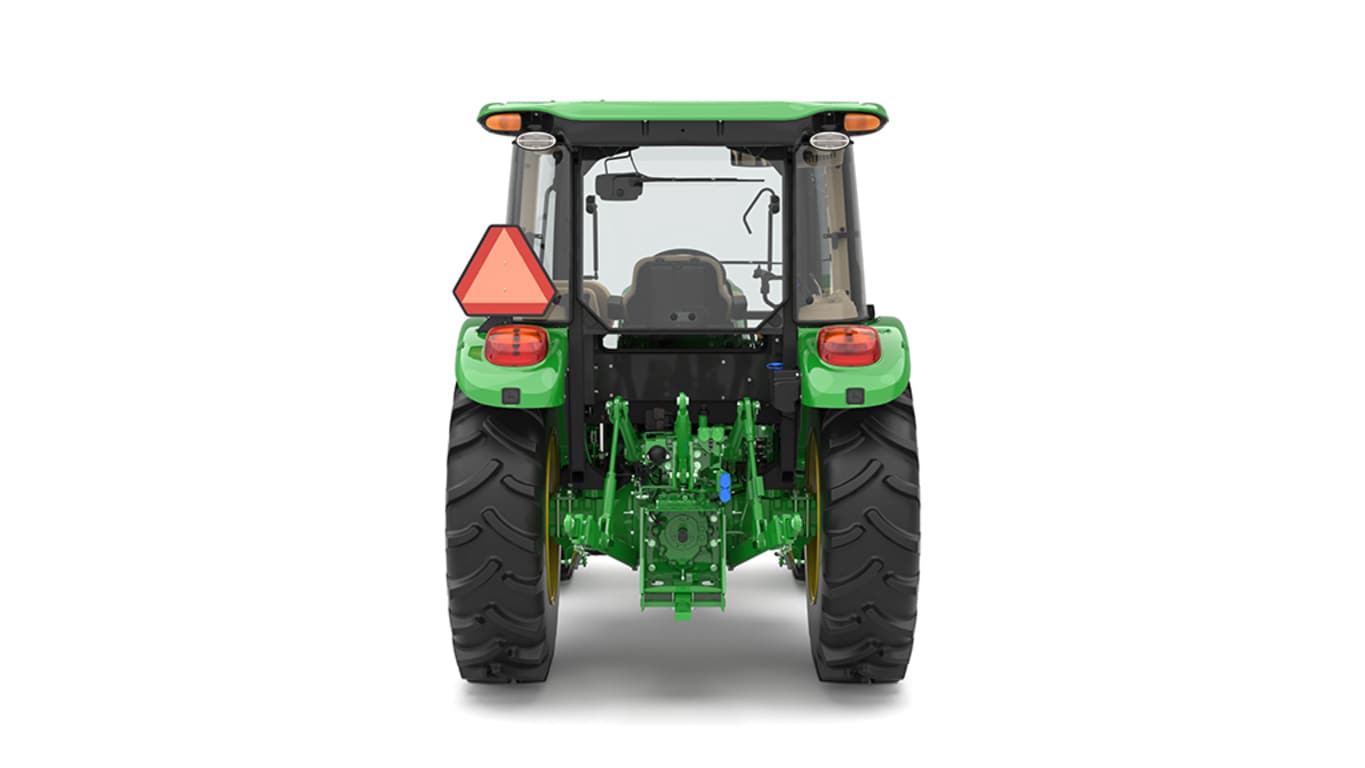

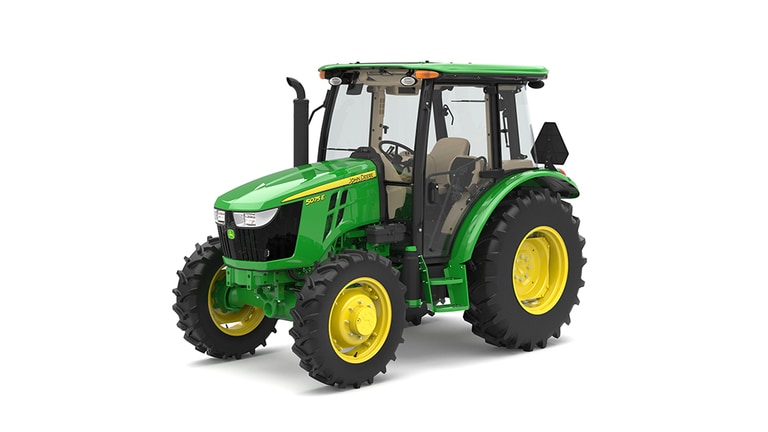

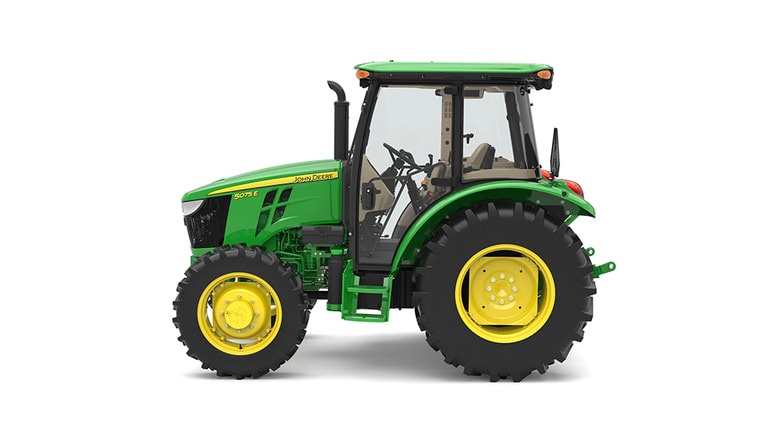

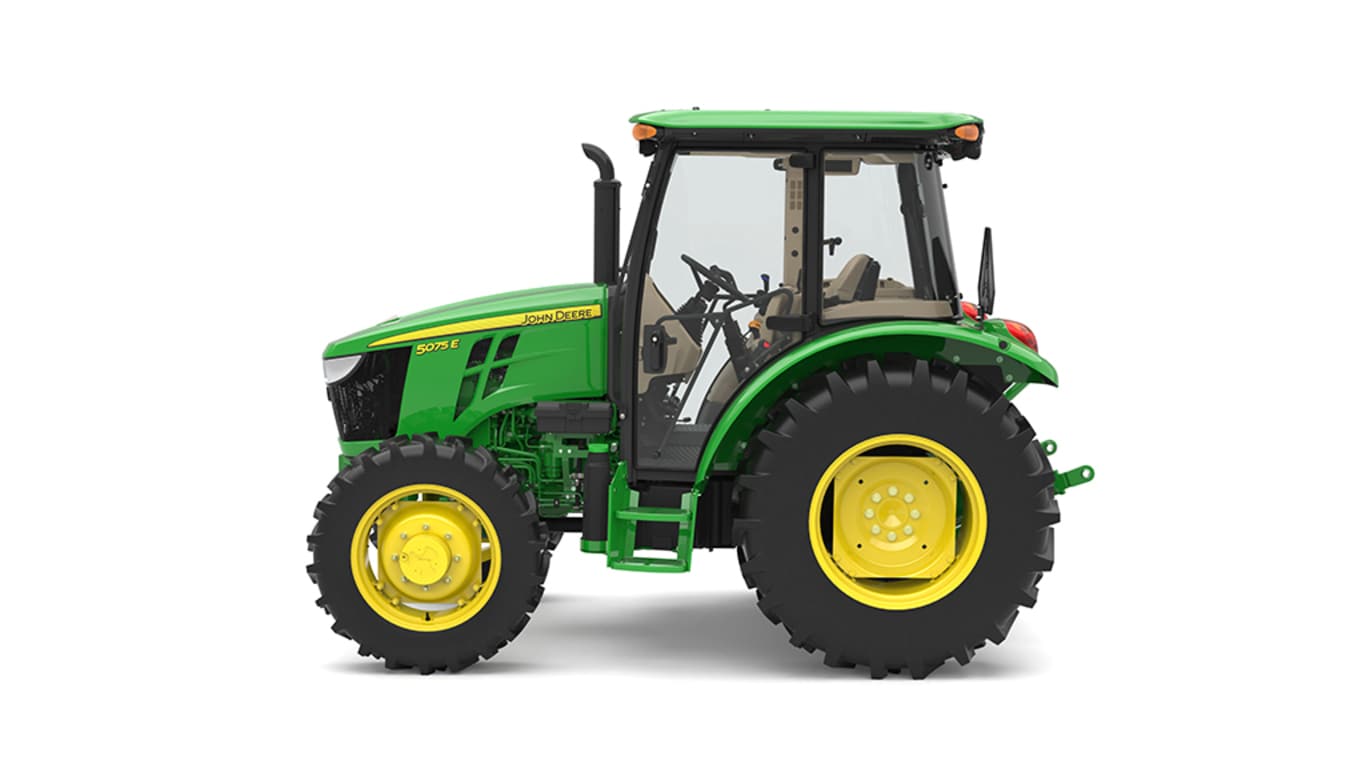

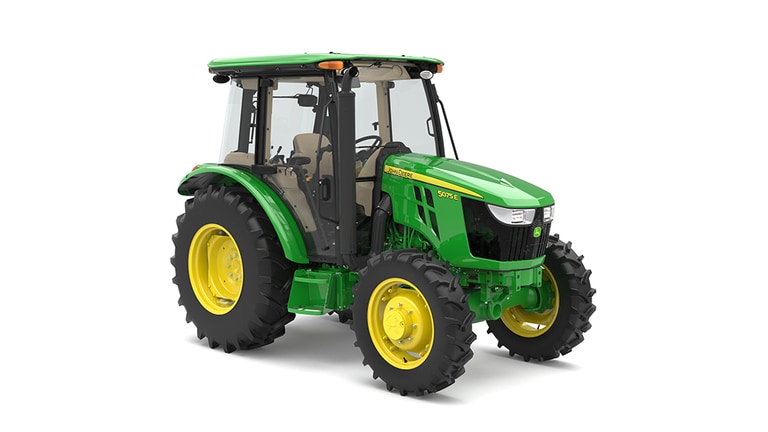

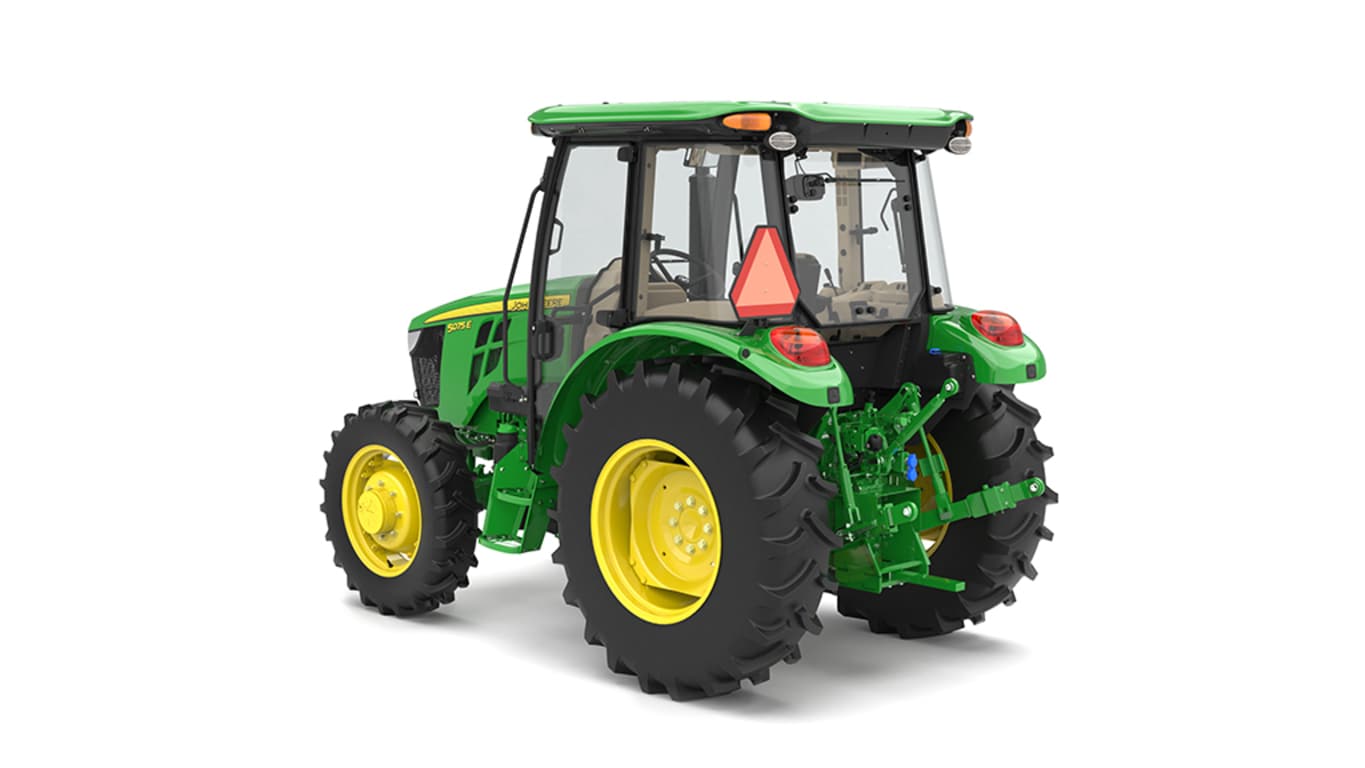

5075EUtility Tractor
- 2WD or MFWD
- 5-year Powertrain warranty*
- Available in premium cab, standard cab or open operator station
- No Regen required
Specifications | ||||
---|---|---|---|---|
Select up to 4 models to compare specifications | John Deere 5075E Utility Tractor |
Engine description | John Deere PowerTech™ 3029 EWR | |||
---|---|---|---|---|
Engine displacement | 3 cylinders: 2.9 L 179 cu in. |
|||
Rated engine power | At 2100 rpm: 55 kW 75 hp |
|||
Maximum engine power | 55 kW 75 hp |
|||
Rated PTO power (hp SAE) | At 2100 rpm: OOS 45 kW (60.3 hp) Cab 43 kW (57.6 hp) |
|||
Maximum PTO power | ||||
Transmission type | Standard: SyncShuttle™ 9F/3R Optional: PowrReverser™ 12F/12R |
|||
Hydraulic pump rated output | 68.8 L/min 18.2 gpm |
|||
Rear hitch category (SAE designation) | Category 2; convertible to 1 | |||
Base machine weight | ||||
Maximum PTO power at rated engine speed with intellegent power management (IPM) | ||||
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628) | ||||
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628) |
Description | John Deere PowerTech™ 3029 EWR | |||
---|---|---|---|---|
Engine type | 3029HPY110 | |||
Engine family | NJDXL02.9339 | |||
Rated speed | 2100 rpm | |||
Aspiration | Turbocharged | |||
Cylinders liners | Wet sleeved | |||
Emission level | Final Tier 4 | |||
After treatment type | DOC/EGR | |||
Displacement | 3 cylinders: 2.9 L 179 cu in. |
Rated power | At 2100 rpm: 55 kW 75 hp |
|||
---|---|---|---|---|
Rated PTO power (hp SAE) | At 2100 rpm: OOS 45 kW (60.3 hp) Cab 43 kW (57.6 hp) |
|||
Maximum PTO power | ||||
Intelligent Power Management (IPM) | ||||
Power boost | 0 percent | |||
Maximum engine power | 55 kW 73.7 hp |
|||
Engine peak torque | At 1500 rpm: 304 Nm 224 lb-ft |
|||
Drawbar power | ||||
PTO torque rise | 21 percent | |||
Fuel injection system and control | ||||
Air cleaner type | ||||
Maximum PTO power at rated engine speed with intellegent power management (IPM) | ||||
Maximum engine torque (without power boost at 1.600 engine rpm) | ||||
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628) | ||||
Maximum engine power with intelligent power management (IPM) | ||||
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628) |
Type | Standard: SyncShuttle™ 9F/3R Optional: PowrReverser™ 12F/12R |
|||
---|---|---|---|---|
Reverser | SyncShuttle™: No PowrReverser™: Yes |
|||
Clutch; wet/dry | SyncShuttle™: Dry PowrReverser™: Wet |
|||
Creeper | Kit available for OOS SyncShuttle™ 9F/3R transmission | |||
Integrated Electric Power Generation |
Type | Open center | |||
---|---|---|---|---|
Pump rated output | 68.8 L/min 18.2 gpm |
|||
Available flow at a single rear SCV | 43.1 L/min 11.4 gpm |
|||
Available flow at front SCVs | ||||
Number of rear selective control valves (SCVs) | Standard: One Optional: Two |
|||
Number of mid selective control valves (SCVs) | Standard: Zero Optional: Up to Three |
|||
Number of front selective control valves (SCVs) | ||||
Joystick SCV control | Mechanical | |||
Auxiliary hydraulic features | ||||
SCV control | ||||
Available oil flow at a single rear SCV (200 Type) | ||||
Available oil flow at a single rear SCV (450 Type) | ||||
Available oil flow at a single rear SCV (450E Type) |
Hitch draft control load sense type | Mechanical | |||
---|---|---|---|---|
Remote control valves available | Standard: One Optional: Two |
|||
Hitch category (SAE designation) | Category 2; convertible to 1 | |||
Maximum lift capacity behind lift points | 1448 kg 3192 lb |
|||
Lift capacity at standard frame | ||||
Sensing type | Top link | |||
Rear axle differential lock | ||||
Maximum lift capacity directly at coupling points | ||||
Rear hitch lift capacity (SAE designation) | ||||
Throughout lift capacity, 610 mm behind the coupling points |
Drawbar category | ||||
---|---|---|---|---|
Maximum vertical load | Road/field use (short position): 1120 kg 2470 lb Field use (fully extended): 760 kg 1675 lb |
Type | SyncShuttle™: Independent 540 PowrReverser™: Independent 540/540E |
|||
---|---|---|---|---|
Engine rpm (at rated PTO speeds) | 540 at 2100 rpm 540E at 1588 rpm |
|||
Economy PTO speeds | ||||
Reverse PTO speeds | ||||
Multispeed PTO option availability | ||||
Ground speed PTO option availability | ||||
PTO actuation | SyncShuttle™: Mechanical (lever) PowrReverser™: Electrohydraulic |
|||
Engine rpm at rated PTO speeds (540/1.000) | ||||
Engine rpm at rated PTO speeds (540/540E/1.000) | ||||
Engine rpm at rated PTO speeds (540E/1000/1.000E) |
Category | ||||
---|---|---|---|---|
Electric power | ||||
Standard lift capacity | ||||
Front power take-off (PTO) | ||||
PTO speed |
Type | Flange | |||
---|---|---|---|---|
Final drive type | Planetary | |||
Differential controls | Mechanical (pedal) | |||
Axle type | ||||
Brakes, type and control | Hydraulic wet disc | |||
Rear differential lock | ||||
Load rating |
Type | Standard: Two-Wheel Drive (2WD) Optional: Mechanical Front Wheel Drive (MFWD) |
|||
---|---|---|---|---|
Front axle differential lock | ||||
Load rating |
Rear | 2WD: 16.9-28 R1 Bias MFWD: 16.9-28 R1 Bias |
|||
---|---|---|---|---|
Wheel tread range | ||||
Turning radius with brakes | 2WD: 3.1 m 10.2 ft MFWD: 3.94 m 12.9 ft |
|||
Turning radius without brakes | 2WD: 3.5 m 11.5 ft MFWD: 4.65 m 15.3 ft |
|||
Central Tire Inflation System (CTIS) | ||||
Front |
Tread spacing | ||||
---|---|---|---|---|
Drive type | ||||
Track width | ||||
Mid-rollers |
Type |
---|
Primary brake (foot brake) | ||||
---|---|---|---|---|
Secondary brake | ||||
Park lock | ||||
MFWD braking | ||||
Front axle brakes | ||||
Auxiliary brakes | ||||
Hydraulic trailer brakes | ||||
Pneumatic trailer brakes |
Alternator size | OOS: 70 amp Cab: 110 amp |
|||
---|---|---|---|---|
Battery options | 12 V | |||
Working lights | Standard: Halogen Premium Cab: LED |
|||
Type of bulb in headlight (Halogen, Zenon, LED) | OOS: Halogen Cab: LED |
|||
Type of bulb in beacon (Halogen, Zenon, LED) | Kit: Halogen | |||
dB(A) rating for backup alarm | ||||
Total cold cranking amps |
Rollover protective structure, OOS | Rigid - foldable - telescopic Foldable, two-post Platform - flat/straddle Straddle Gearshift location - console/floor Floor, on the side |
|||
---|---|---|---|---|
Seat | Standard: Mechanical Premium Cab: Air Ride |
|||
Cab suspension | ||||
Instructional seat | Optional | |||
Display | Simple automotive-style instrument cluster | |||
Radio | Optional | |||
Inner cab volume | ||||
dB(A) rating | 81 dBA | |||
Cab glass area | ||||
Safety glass rating | ||||
Front visibility |
Wheelbase | 2WD and MFWD: 2050 mm 80.7 in. |
|||
---|---|---|---|---|
Overall width | ||||
Overall length | 3639 mm 143.3 in. |
|||
Overall height | ||||
Drawbar clearance | ||||
Front axle center | ||||
Approximate shipping weight, Open;Cab | 2WD OOS: 2520 kg 5555 lb 2WD Cab 2989 kg 6590 lb MFWD OOS: 2735 kg 6029 lb MFWD Cab: 3090 kg 6812 lb |
Base machine weight | ||||
---|---|---|---|---|
Maximum ballast level | ||||
Maximum permissible weight |
Crankcase oil volume | ||||
---|---|---|---|---|
Fuel tank | OOS: 72.5 L 19 U.S. gal. Cab: 82 L 21 U.S. gal. |
|||
Diesel exhaust fluid (DEF) tank | Not Applicable | |||
Cooling system | ||||
Transmission-hydraulic system |
Interval for engine oil change | ||||
---|---|---|---|---|
Interval for hydraulic/transmission oil change | ||||
Interval for engine coolant change |
Loader | ||||
---|---|---|---|---|
Lift capacity at full height | ||||
Maximum lift height | ||||
Leveling type |
Guidance | ||||
---|---|---|---|---|
Telematic | ||||
Remote diagnostics | ||||
Connectivity |
AutoTrac ready | No | |||
---|---|---|---|---|
ISOBUS ready | No | |||
CommandCenter video inputs | ||||
Immobilizer | ||||
Side slope rating | ||||
Uphill/downhill slope rating | ||||
Country of manufacture | Sub assembly in Pune, India, Final assembly in Augusta, GA |
Date collected | 6-Jan-2023 |
---|
Images of equipment models may be digitally generated, are for illustration purposes only, and are subject to change. Equipment models shown are typically base models and may not reflect all features, options, or attachments. Equipment availability may be limited. See your John Deere dealer for additional information.
*Beginning 9/1/2016 all 5E Series Utility Tractors purchased new from an authorized John Deere Dealer come standard with a 5 year/2000 hour (whichever comes first) Powertrain Warranty. See the Limited Warranty for New John Deere Turf & Utility Equipment at dealer for details.
