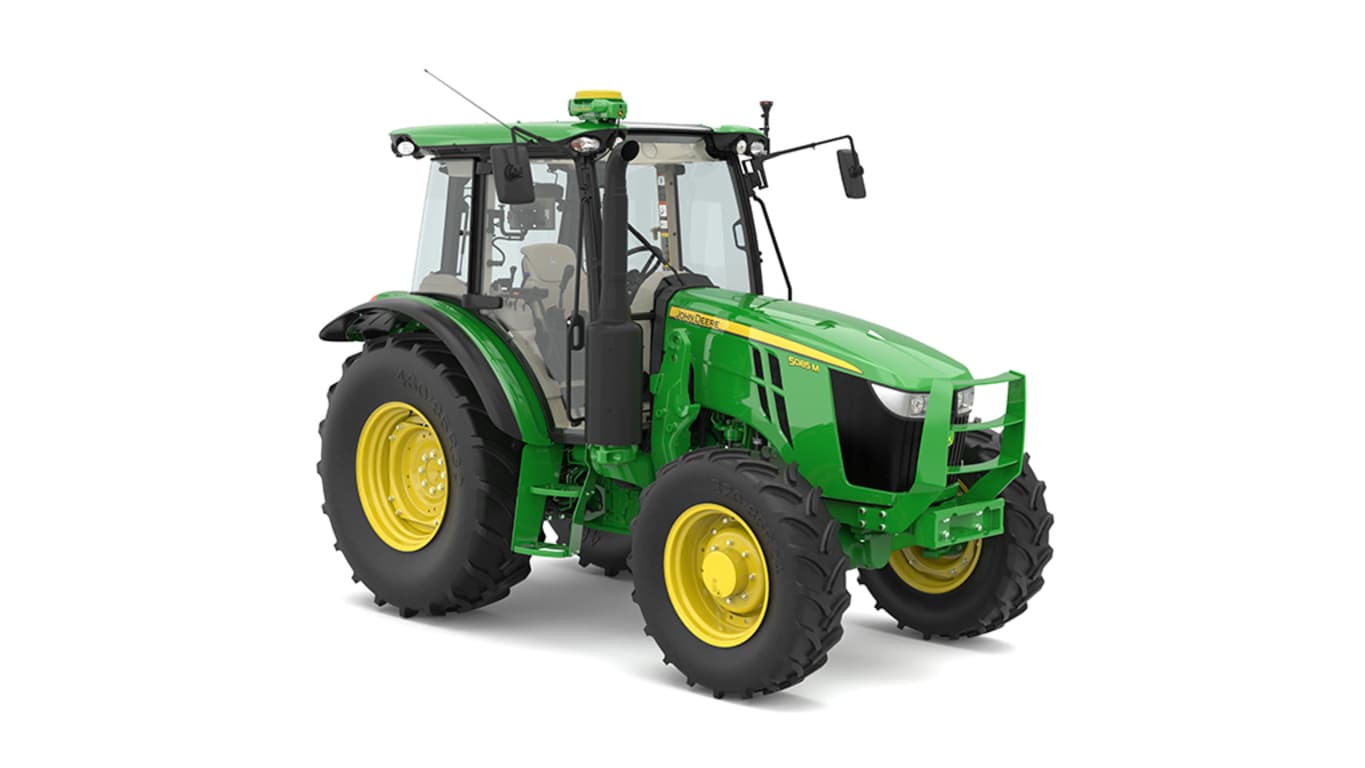

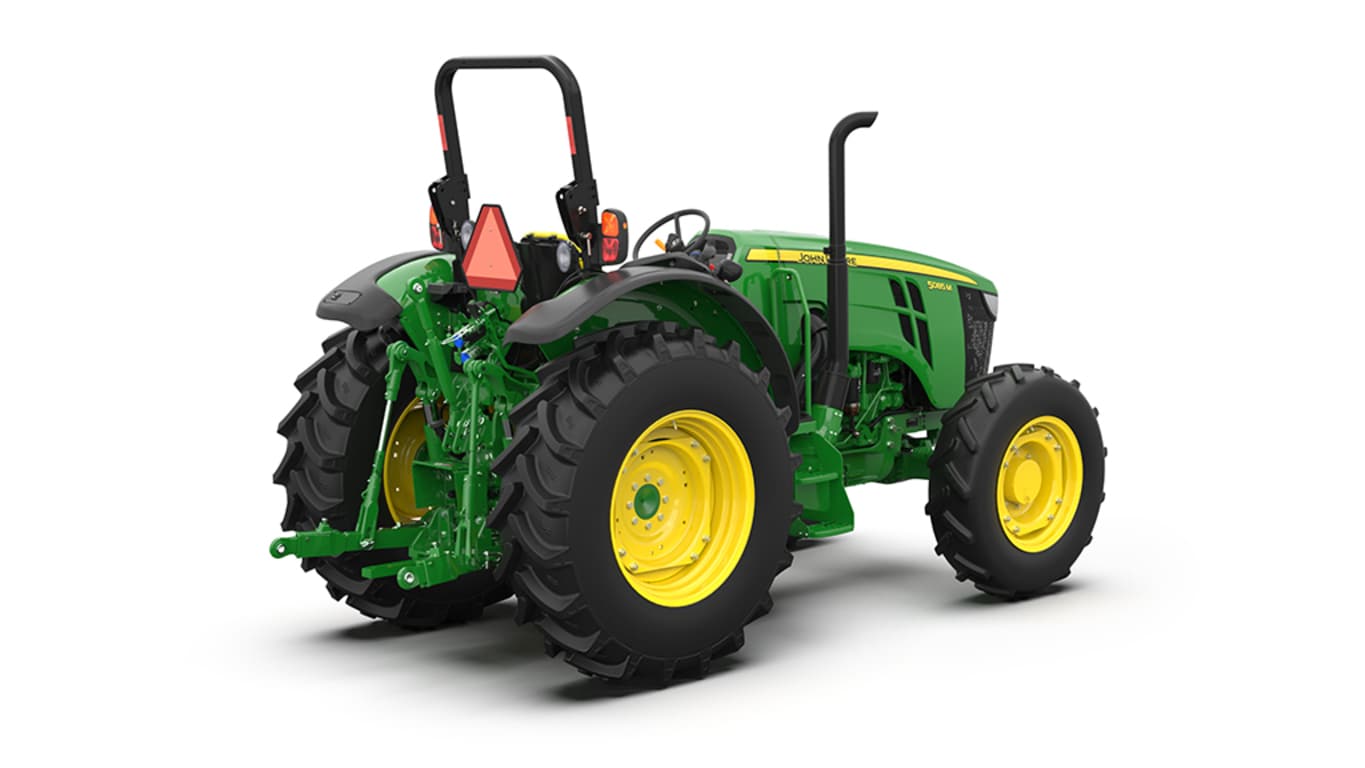

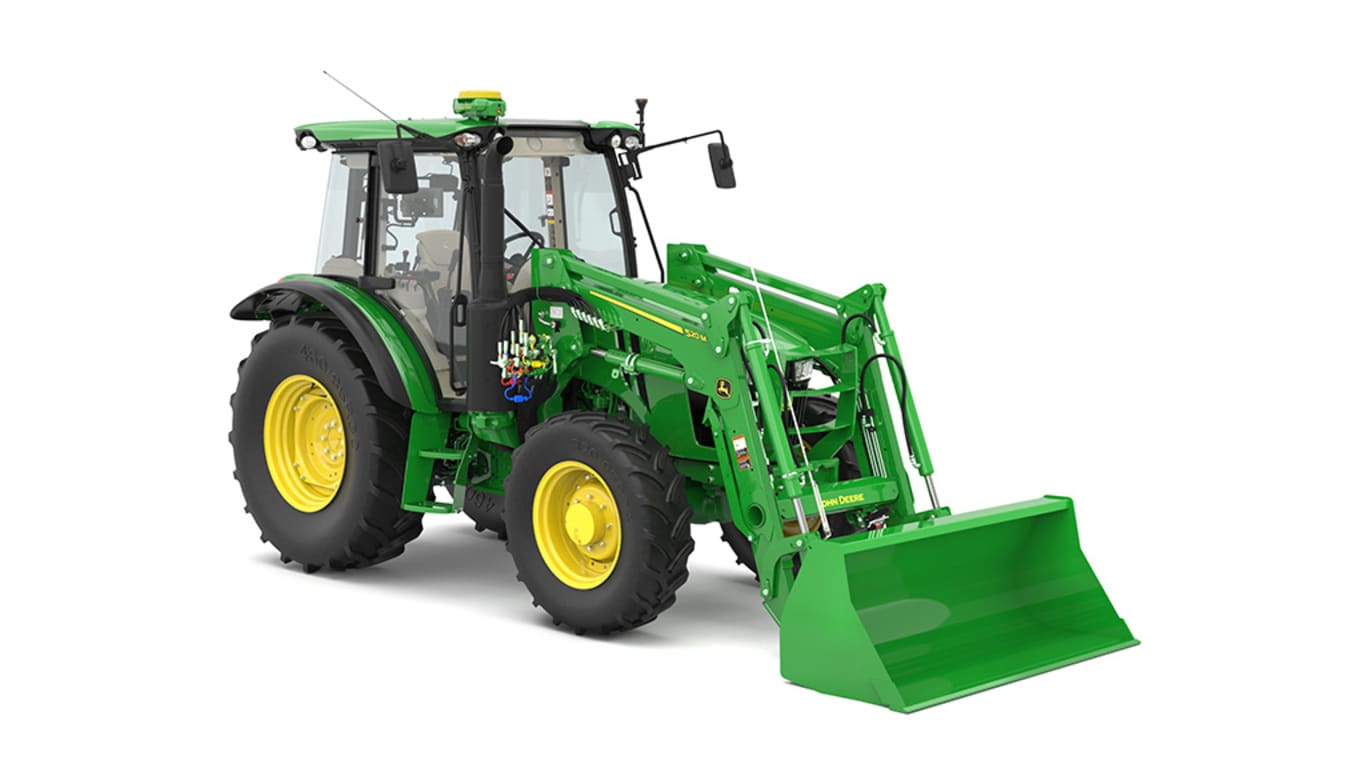

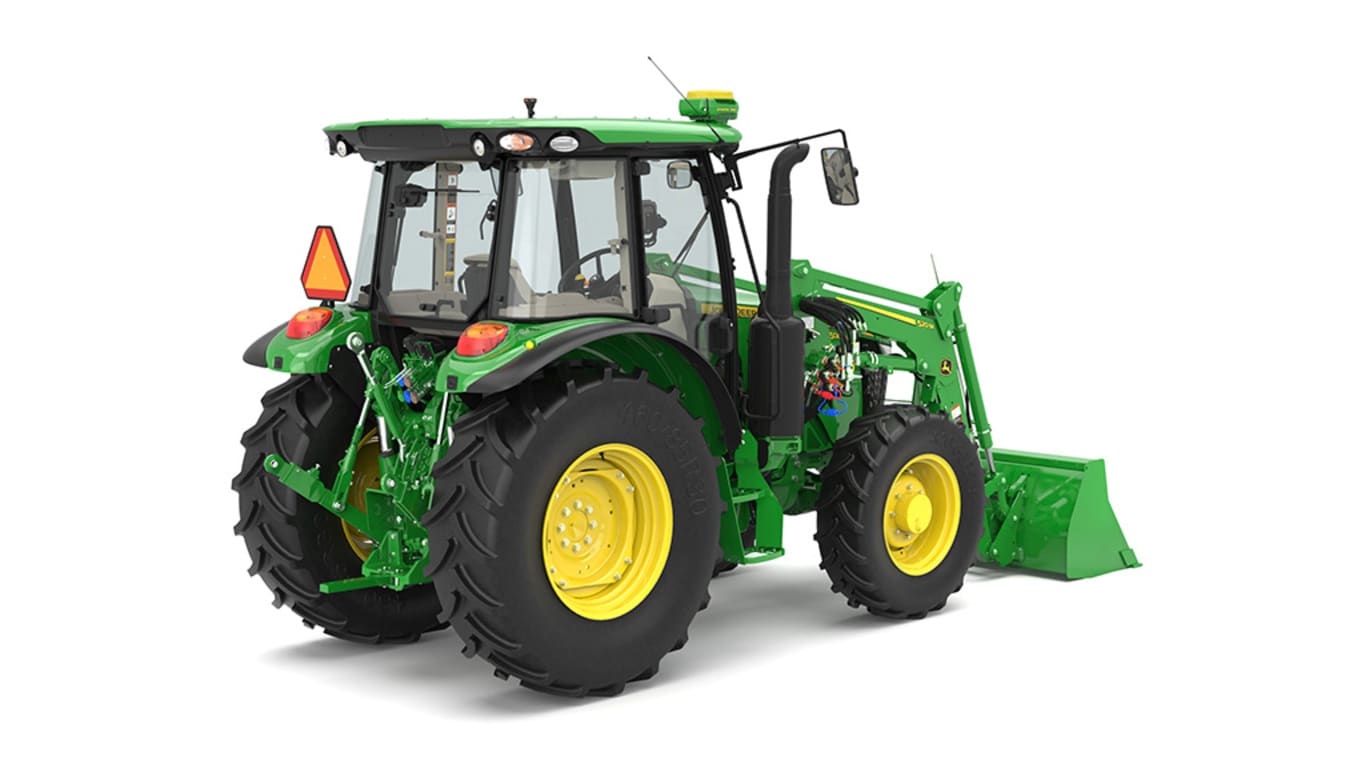

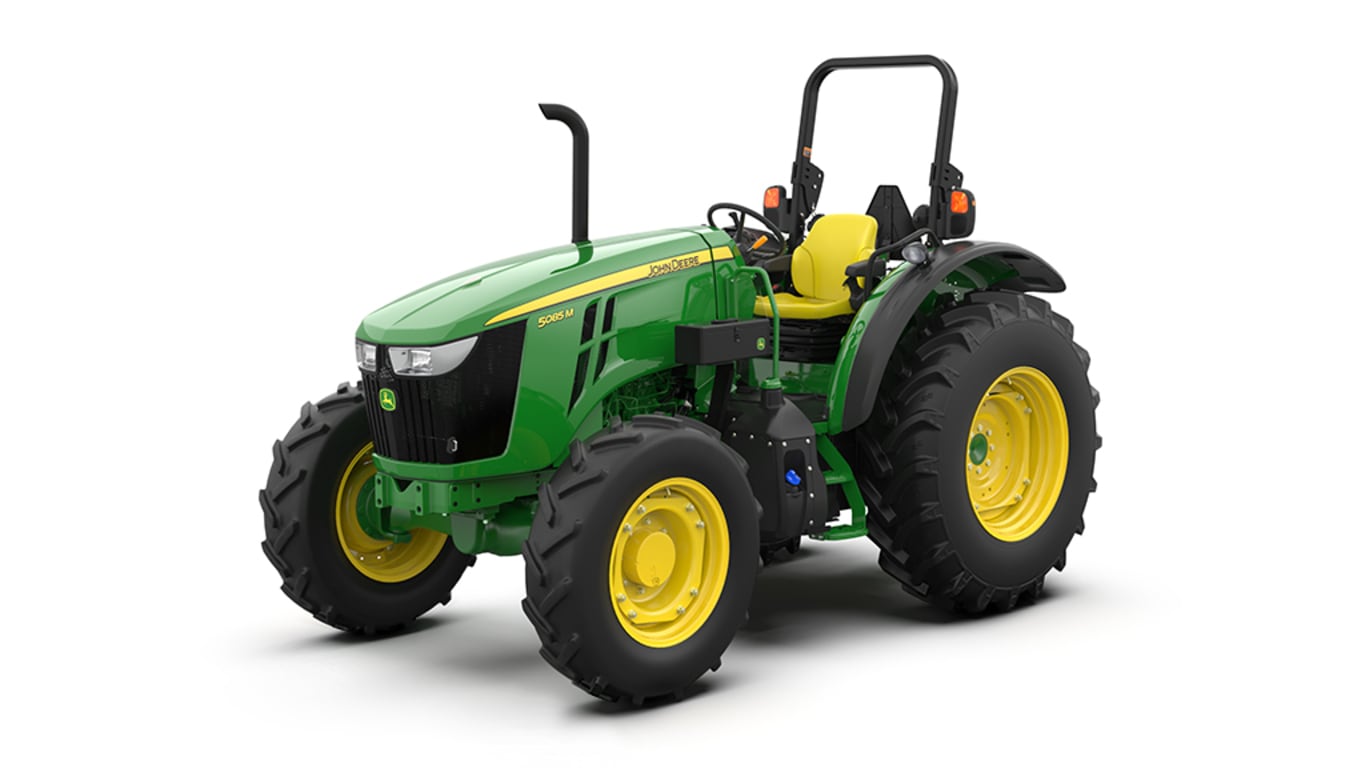

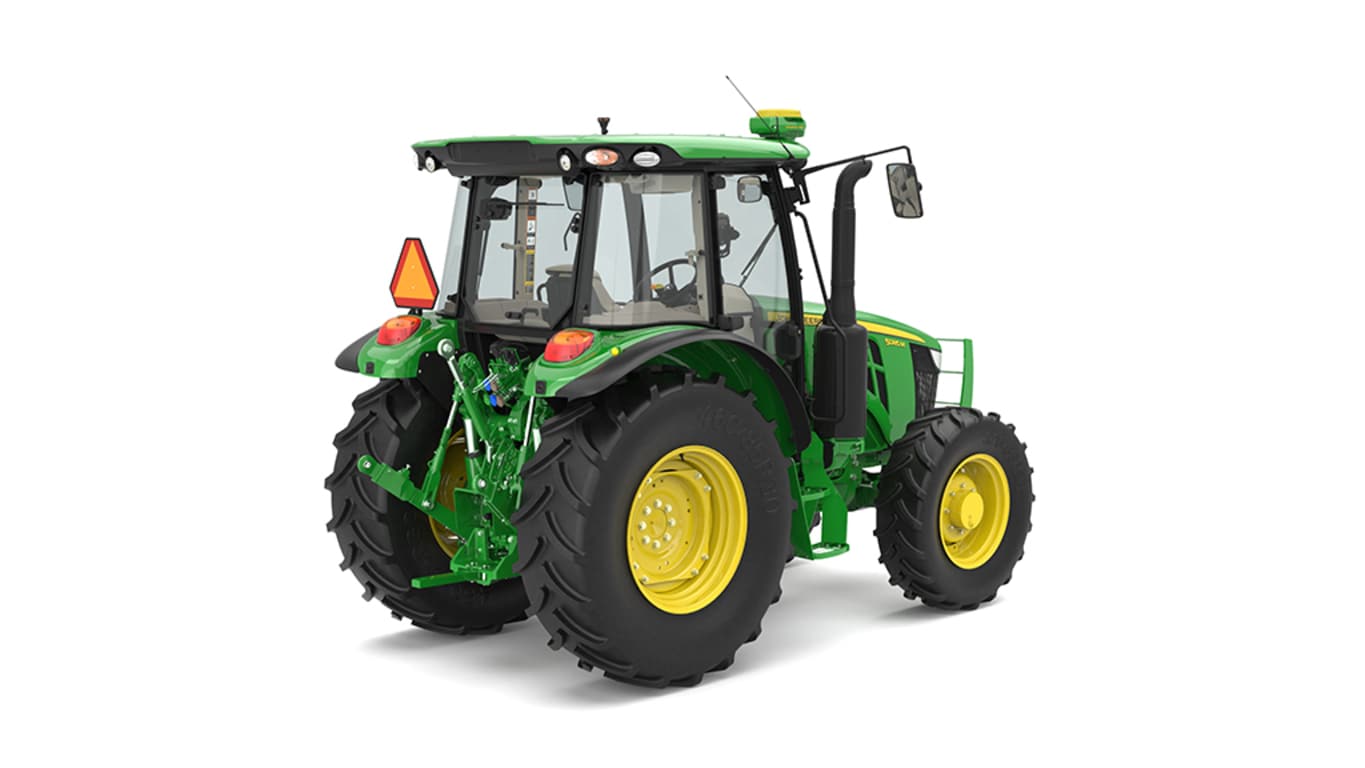

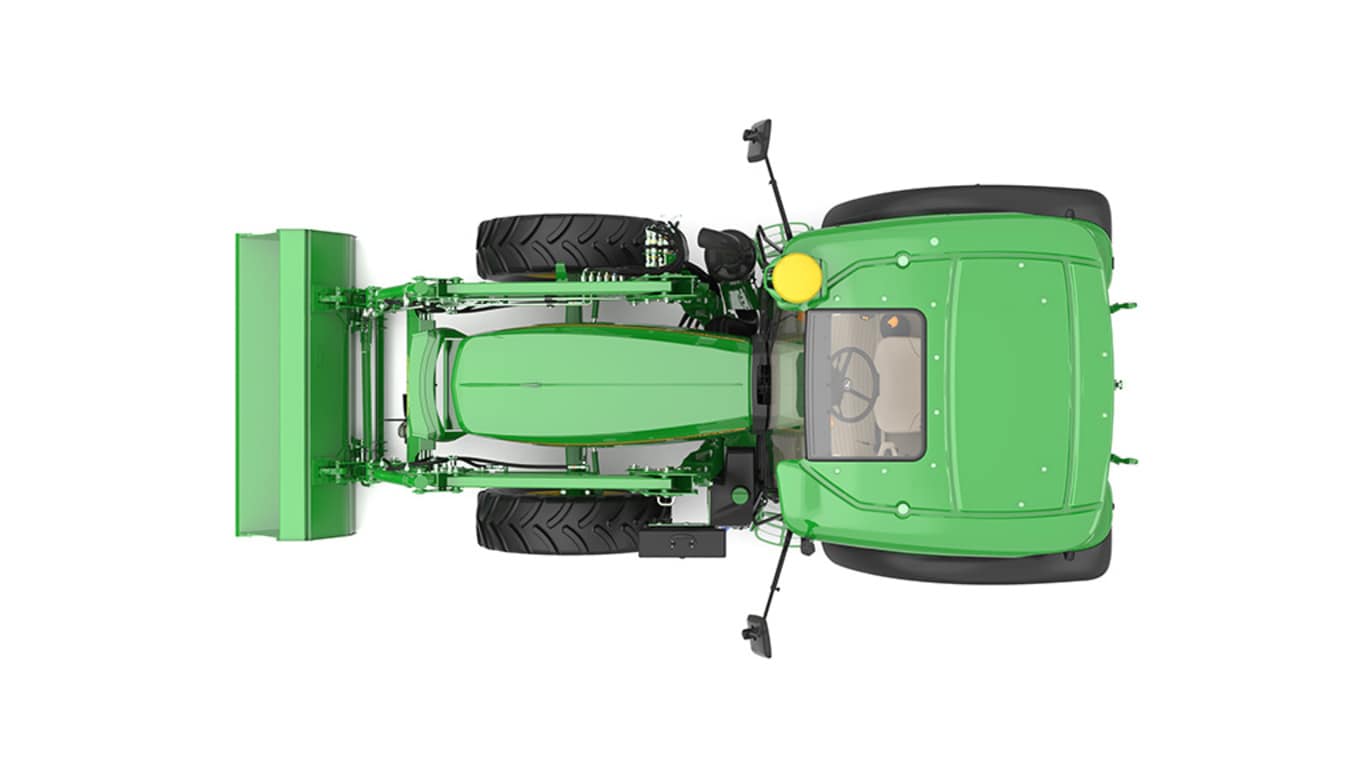

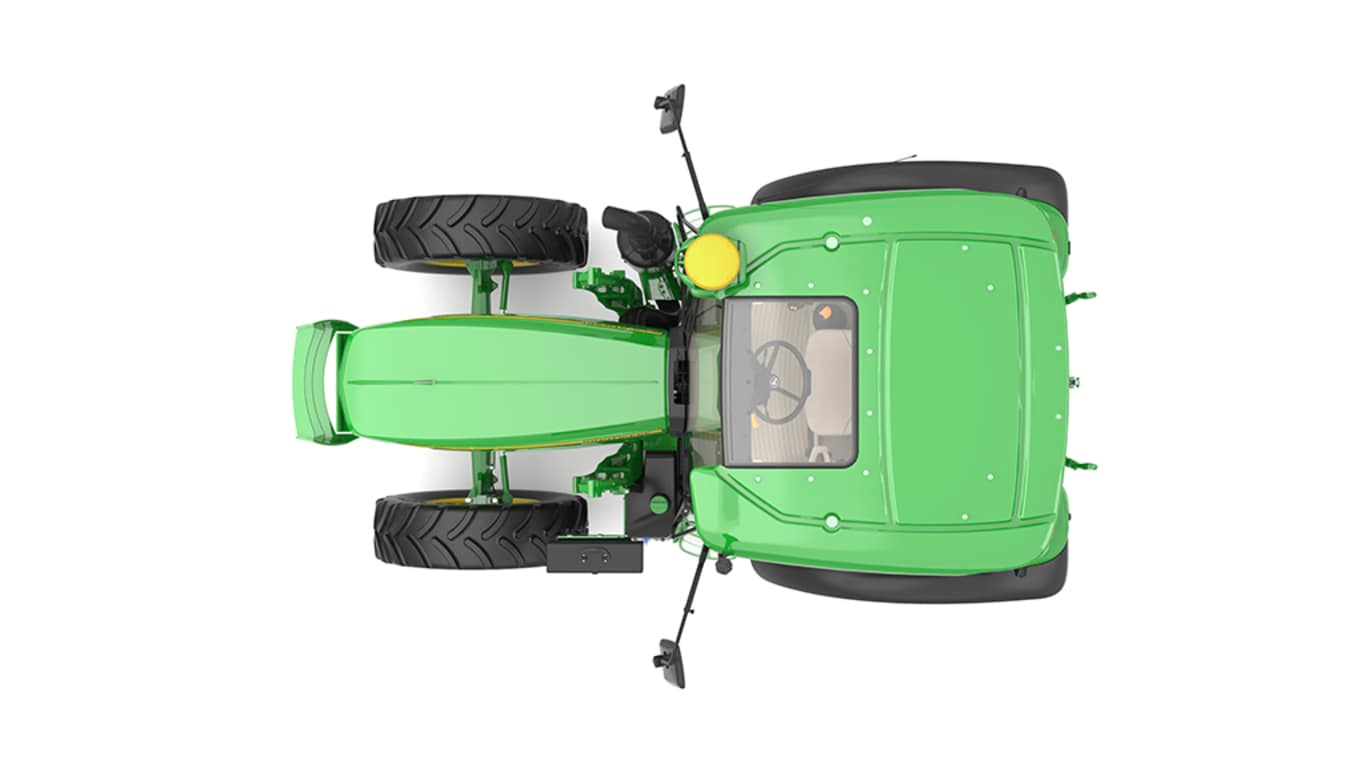

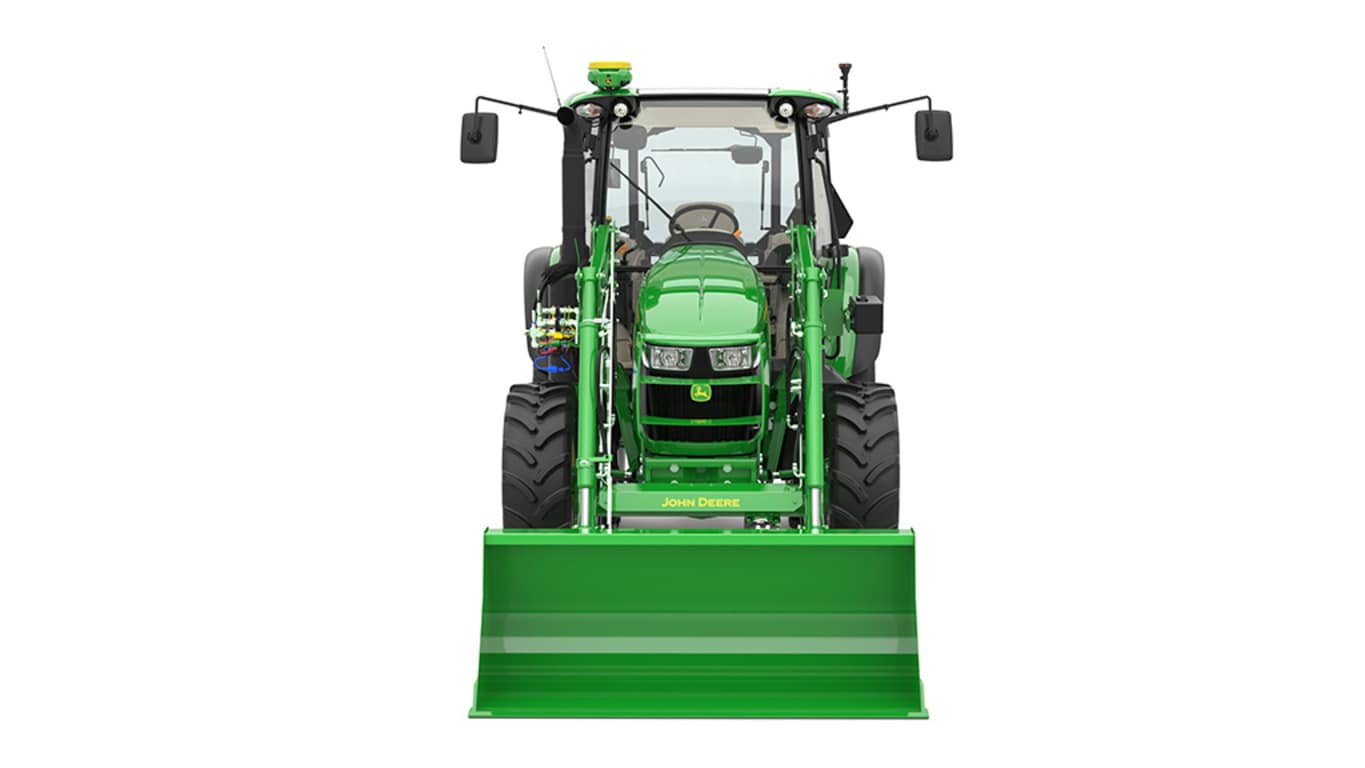

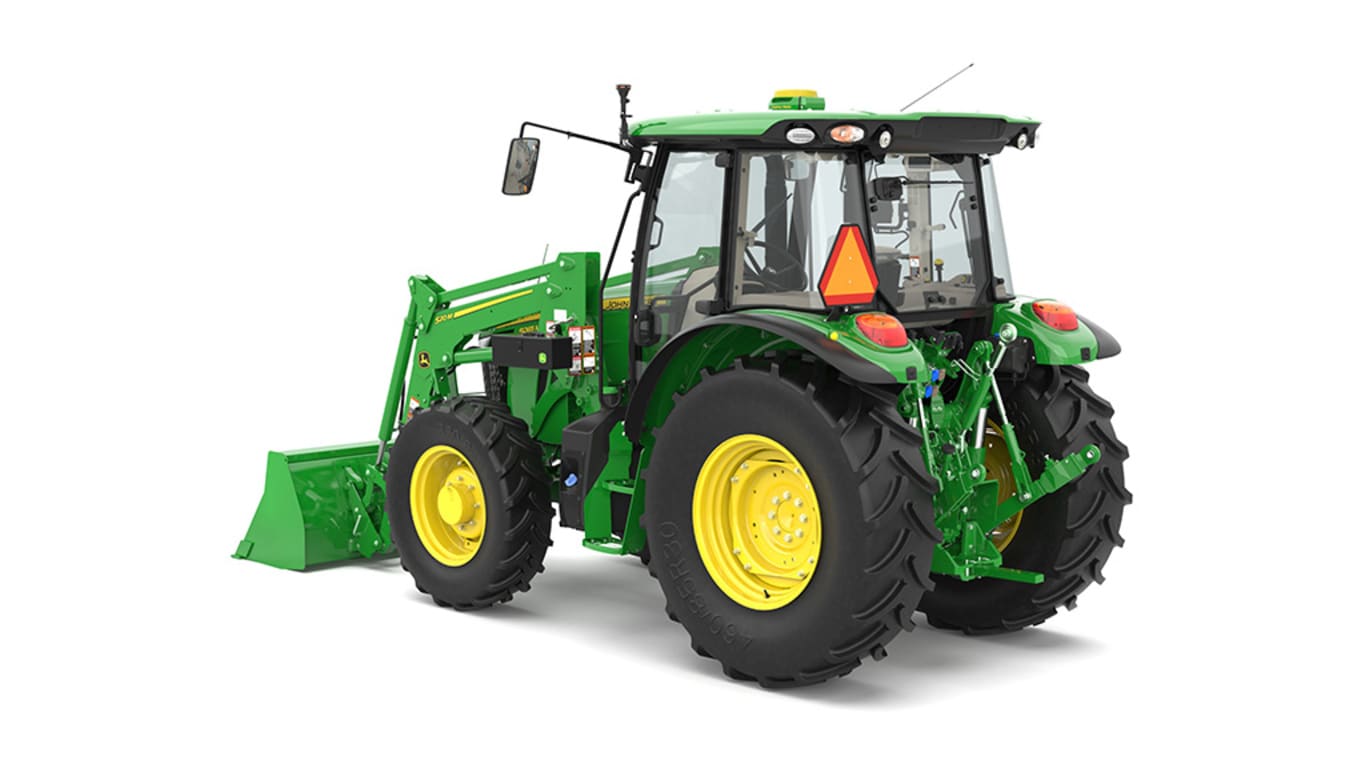

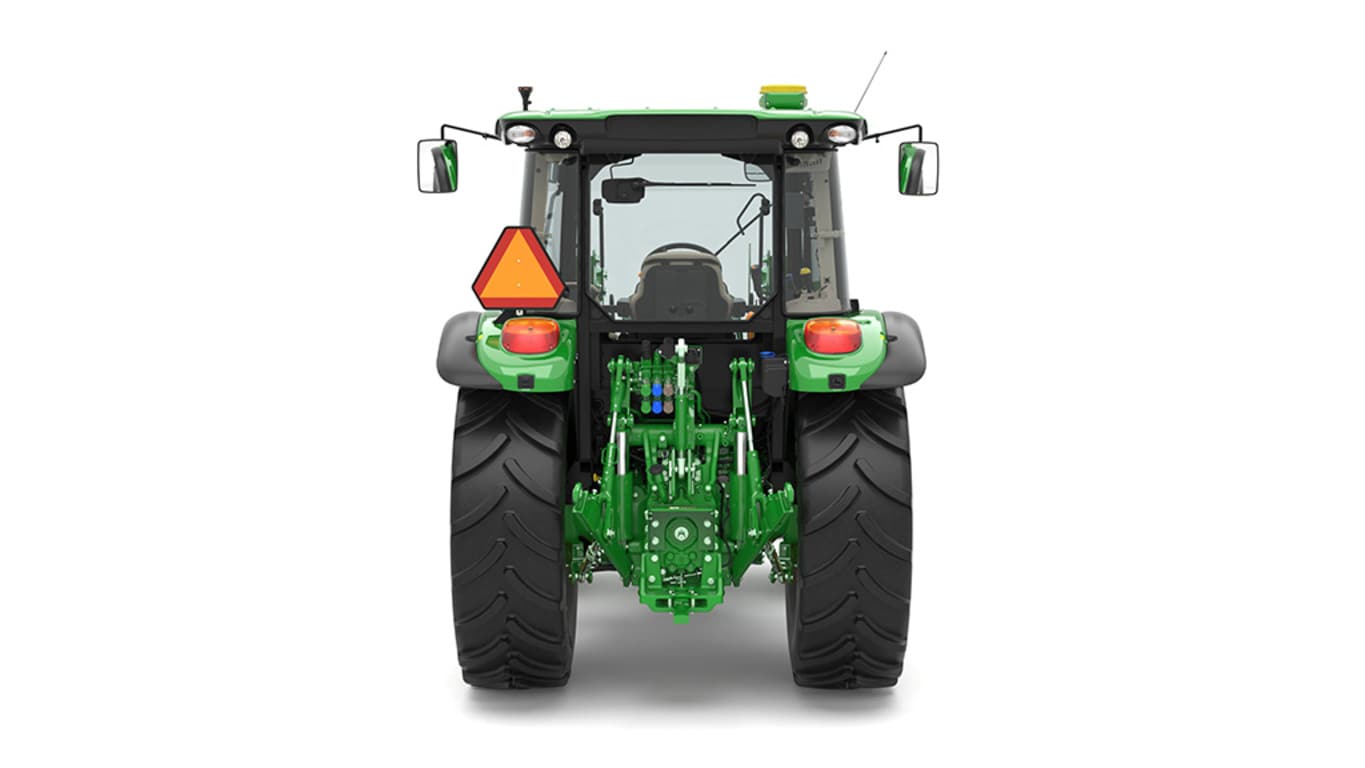

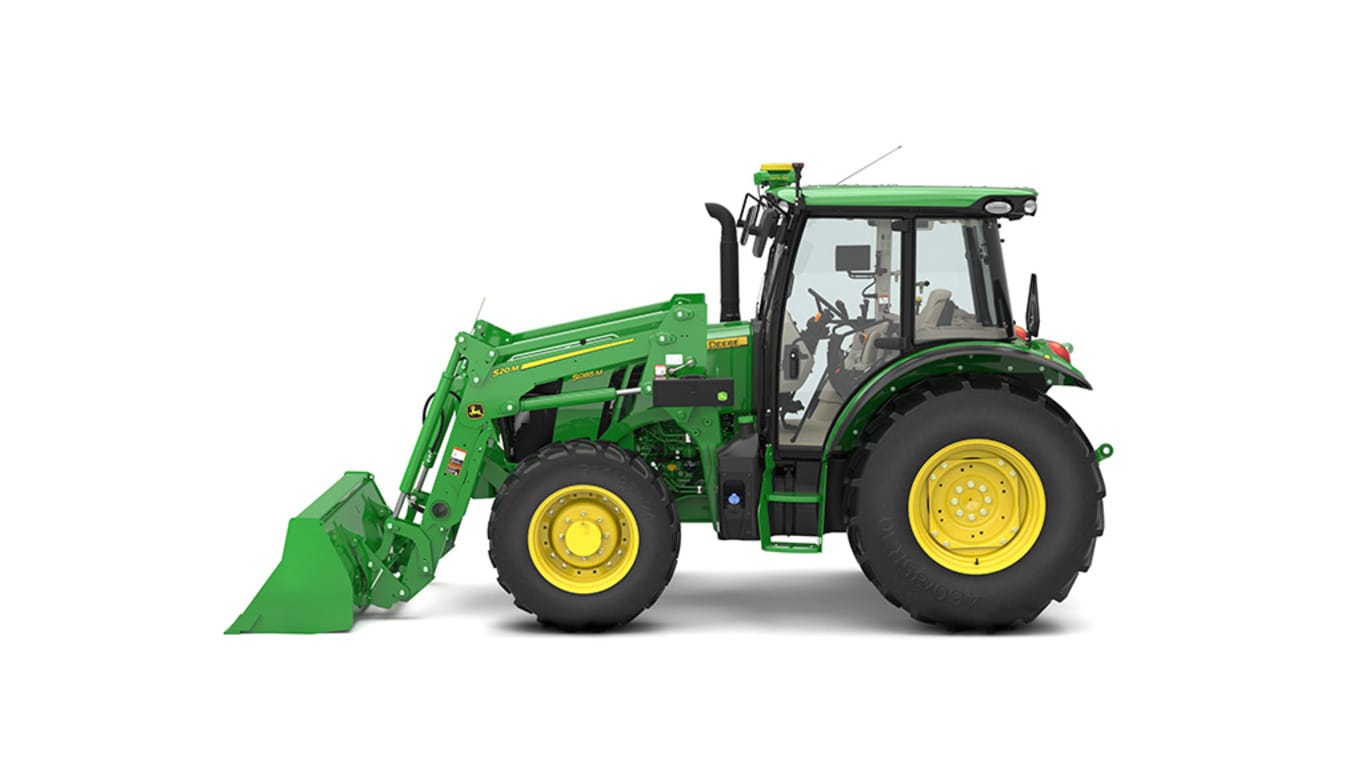

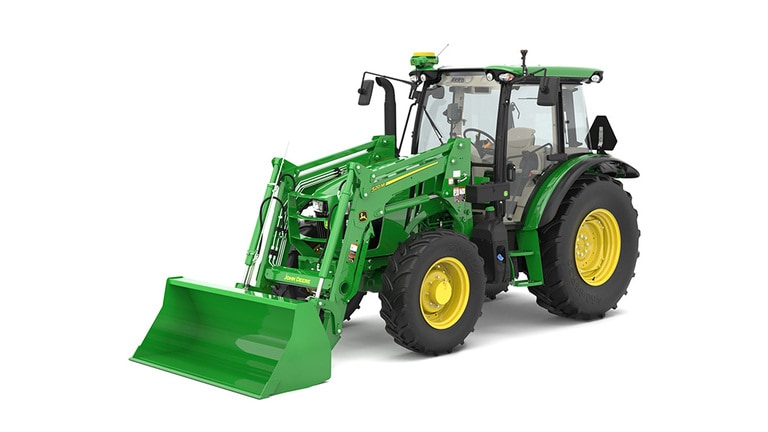

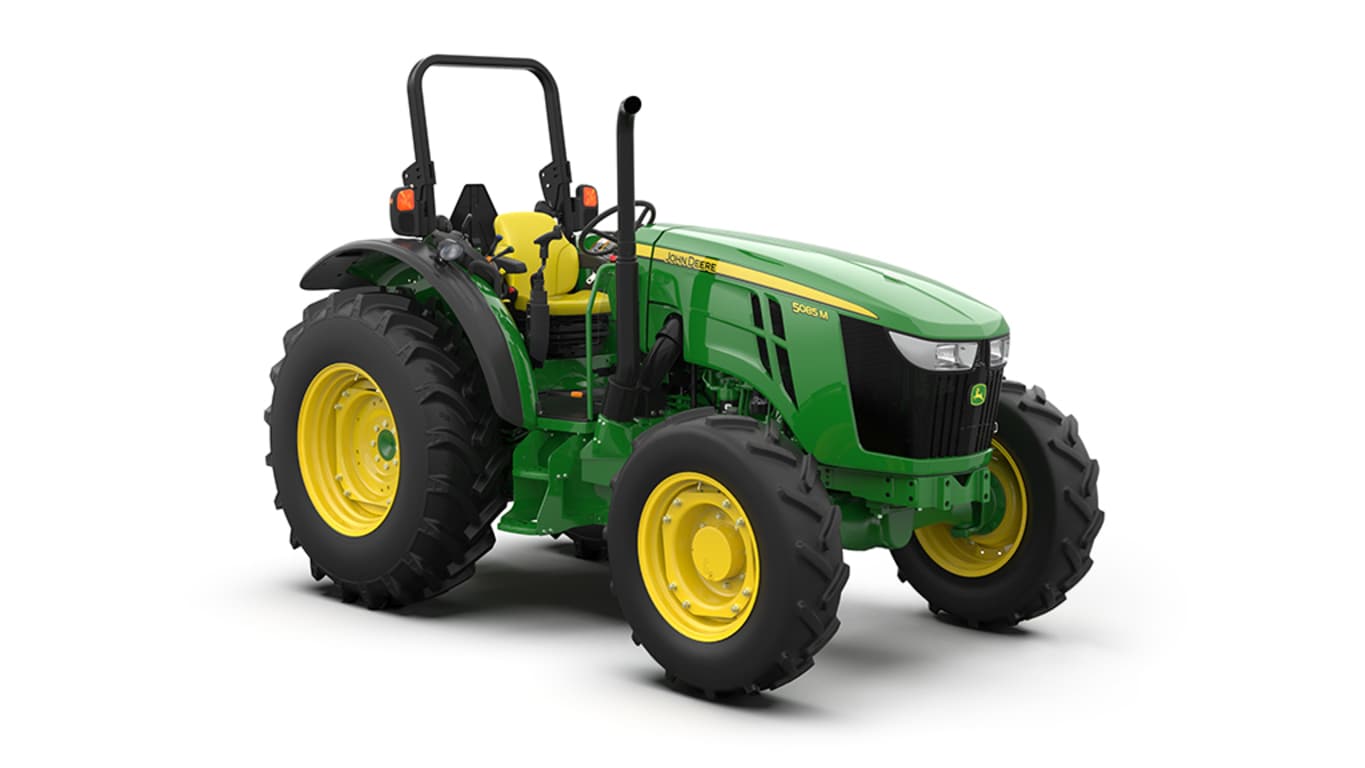

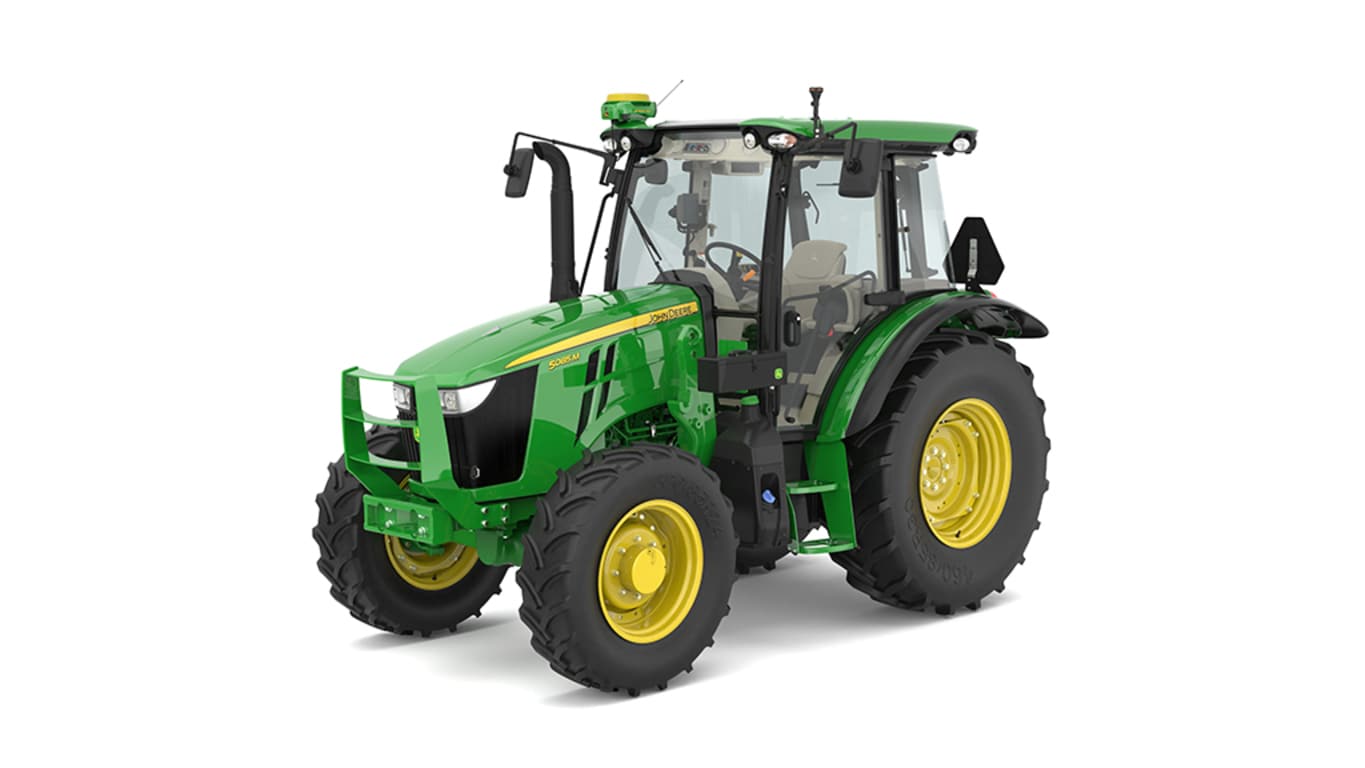

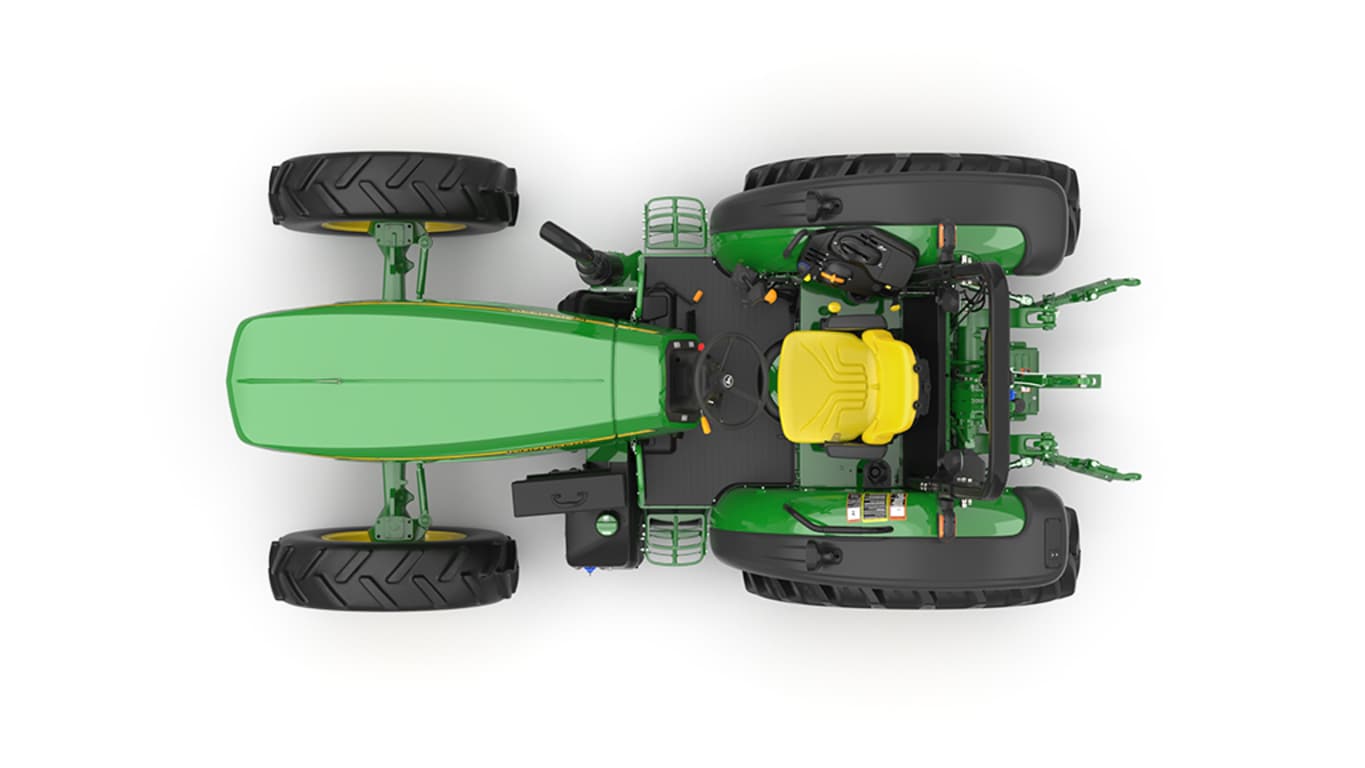

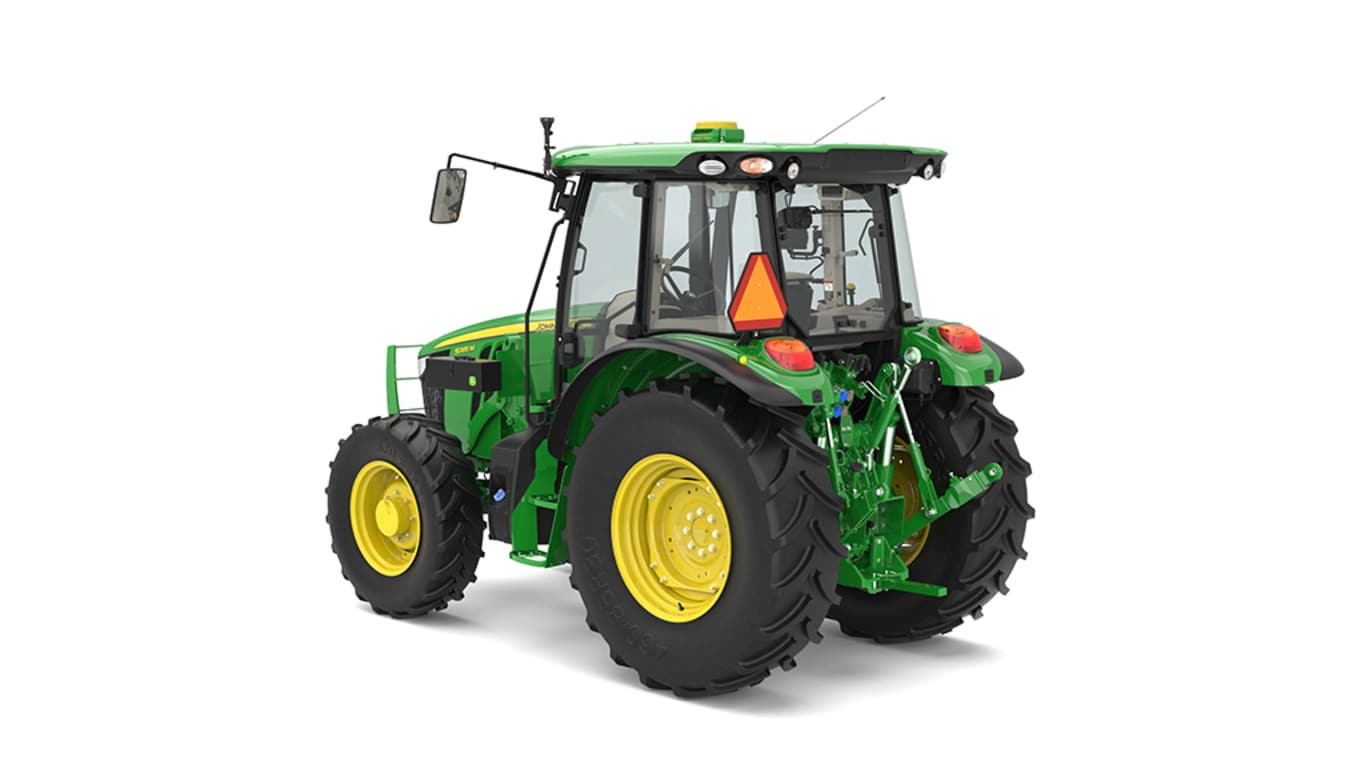

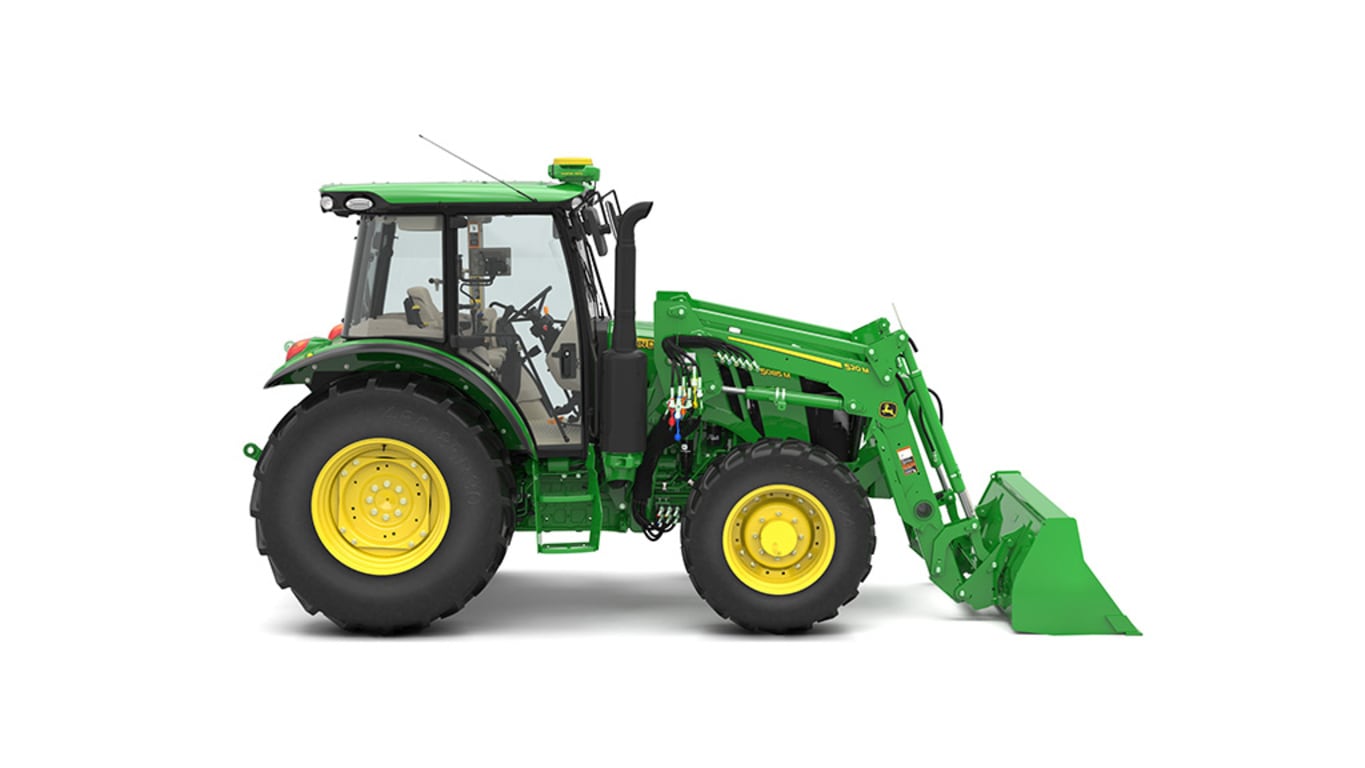

5085M | 5M Series Utility Tractor

Adjust to job with flexible wheel spacing

Additional flexibility with bar axle on 5M adds to rear axle offerings

Overview

Whether fitting down a row spacing, straddling a windrow, or a wide stance for stability mowing on hills – there is a 5M configuration to meet operator’s needs. The rack-and-pinion (better known as ‘bar’) axle joins the existing flange axle offerings of the 5M adding nearly 25.4 cm (10 in.) of tread width on rear axles and brings additional options such as cast wheels that unlock the compatibility for duals. This increased flexibility all comes in the same versatile 5M tractor.

Benefits

134.874 cm (53.1 in.) to 205.486 cm (80.9 in.) wheel tread range on flange axle configurations
Up to 228.6 cm (90 in.) wheel tread range on bar axle configuration
Find the fit with fixed flange axle or fine-tune with adjustable bar axle offerings
Increased ballast options with cast wheel offerings for bar axles
Increase flotation with duals compatible with cast wheels on bar axles

Both the bar and flange axles are proven designs used on tractors for years, but this is the first time that bar axles have been brought to the 5-Series lineup.

Bar axle shown with steel wheelt

Flange axle with steel wheel

Consult the operator’s manual for specific wheel spacing configurations by tire offering.

Premium cab for the ultimate operating experience

5M Tractor Premium Cab with panorama roof

Overview

Experience ultimate operator experience in comfort and convenience by upgrading to the Premium Cab on 5M tractors. Upgrading to the Premium Cab unlocks a fixed panorama roof ideal for loader work.

Benefits

Improve upward visibility by 80 percent vs standard cab for easier bale stacking, pallet stacking, and dumping loads into walled trailers with the panorama roof
Additional storage space with the rear floor mat behind the seat
Excellent visibility to rear operations with the rearview mirror
Shield the operator from the sun with an easy-to-use front sunshade

Features	Standard Cab	Premium Panorama Roof Cab
Deluxe isolated cab with flat floor	X	X
Tilt and telescopic steering column	X	X
Convenience power outlet	X	X
Air conditioning and heater	X	X
Speedometer	X	X
Beverage Holder	X	X
Sun visor for front window	X	X
Two-speed front windshield wiper and washer	X	X
Two front/two rear roof-mounted worklights	X	X
Two front/two rear roof-mounted warning lights	X	X
Two fender-mounted taillights	X	X
120Amp Alternator	X	X
Convenience power outlet	X	X
Monitor mounting bosses (two Sets)	X	X
Swing-out rear window with two removable rear plugs for monitor	X	X
Right-hand console light	X	X
Radio preparation (with speakers, wiring)	X	X
Rear window grab handle	X	X
Bluetooth® ready	X	X
Requires option code 3025 (Deluxe cornerpost exhaust).	X	X
Fixed panorama roof with shade	-	X
Radio (Bluetooth® Capable)	Option	X
Rear window wiper	Option	X
Radio antenna	-	X
Requires option code 4030 (electrohydraulic [EH] rear hitch)	-	X

Bluetooth is a trademark of Bluetooth SIG, Inc.

Heavy-duty 3-point hitch lift capacity for implement versatility

5M Tractor 3-point hitch

Overview

Heavy-duty 3-point hitch provides lift capacity and adjustability for implement versatility with Category 2 implements or adaptable to Category 1. Precisely raise and lower heavy implements such as planters, sprayers, and field cultivators, using the rockshaft control lever. The operator can also adjust the speed at which an implement is lowered by adjusting the rockshaft rate of drop.

Benefits

Convenience hooking up implements with telescoping draft links, adjustable sway bars, and interchangeable hitch balls with the choice of either mechanical or electrohydraulic controls.
Consistency when lowering hitch with depth stop on both mechanical and electrohydraulic hitch controls - each time the position control lever is pushed forward, it stops where the depth stop has been positioned. Useful when preparing a seedbed.
Compatible with implements needed to perform multiple jobs. Increased lift capacity is available with optional larger cylinders. See Specifications for lift capacity by model.
Convenience when leveling implements with right lift link being able to adjust without tools - lift links can be adjusted for lateral float to allow implements with gauge wheels or skids to follow the ground contour

Additional details

Mechanical or electrohydraulic hitch control operation

Raise and lower rear implements with precision with either the mechanical or electrohydraulic (EH) hitch control. The operator can also adjust the speed at which an implement is lowered by adjusting the rockshaft rate of drop.

The mechanical hitch control is paired with the tractors equipped with a PowrReverser™ transmission while the EH hitch control is paired with units equipped with a PowrQuad™ PLUS or Powr8™ transmission. Both control types enable the operator to adjust the speed at which an implement can be lowered by adjusting the rockshaft rate of drop. In addition to this feature, the EH hitch control adds repeatable movements by enabling the operator to set both an upper and lower limit.

The adjustable depth stop (found on both control types) provides consistency when lowering the hitch. Each time the position control lever is pushed forward, it stops where the depth stop has been positioned. This feature is a value to anyone who desires a consistent, level ground, like when preparing a seedbed.

The center link can be set in one of three positions to accurately set the implement position and draft sensing. The right lift link is adjustable without tools for added convenience when leveling implements.

Optional larger cylinders:

Transmission	Cylinder diameter	Lift capacity at 610-mm (24-in) behind lift point
PowrReverser™ transmission models	Two 65-mm (2.56-in.) cylinders	See specifications for lift capacity.
PowrReverser models with optional high-capacity hitch	One 65-mm (2.56-in.) cylinder One 75-mm (2.95-in.) cylinder
PowrQuad PLUS or Powr8 transmission models	Two 75-mm (2.95-in.) cylinders
PowrQuad PLUS or Powr8 models with optional high-capacity hitch	Two 80-mm (3.15-in.) cylinders

Rear fender hitch controls

5M rear fender hitch controls

Operators do not need to carry a tool to adjust the rear hitch. Operators can also raise and lower the 3-point hitch from outside of the tractor with the conveniently located rear fender hitch controls.

Rear quick hitch

Sideview of quick hitch shown on 5M

An updated three-point quick hitch is offered on the 5M Tractors.

This updated design is a break from the existing welded quick hitch as the frame is cast.
The curved design eliminates the potential for contact with the rear fender and extensions.
The quick hitch is available as a field kit option.

Sway bars

5M Tractor sway bars

Adjustable sway bars and telescoping draft links can be easily adjusted to adapt to a wide variety of implements. The right lift link also adjusts without tools for added convenience when leveling implements.

Focus on the job while AutoTrac™ guidance keeps on track

Mowing with AutoTrac™

Spraying with AutoTrac™ Basic

Manage in-field efficiency and reduce operator fatigue by engaging AutoTrac on your 5M or 5ML tractor. AutoTrac provides operators with a hands-free guidance solution with accuracy on a variety of field conditions. Reduce operator fatigue without the need for an additional display with AutoTrac Basic which provides straight line AutoTrac guidance in the digital dash display.

Enable the following benefits by equipping your tractor with AutoTrac, a GreenStar™ Display and a StarFire™ receiver:

Simple and user friendly
Reduces operator fatigue and error
Saves time by eliminating implement overlap
Optimizes machine efficiency
Increase data driven decisions by documenting jobs

Potential jobs to use with AutoTrac:

Cutting hay
Over seeding
Cultivation
Disking
Spraying
Mowing
Planting
Fertilizer applications
Pulling in irrigation pipe
Cutting ditches
Transplanting
Harvesting

Learn more about the benefits of 4240 universal display and Gen5 universal display.

Learn more about the benefits of a StarFire 6000 receiver and StarFire 7000 receiver.

Learn more about the benefits of Precision Essentials.

Take charge with PowrQuad™ PLUS and Powr8™ transmissions

Integrated declutch and gear buttons on single transmission control lever

Overview

A more productive transmission in a mid-spec utility tractor is found with PowrQuad PLUS and Powr8 transmissions which builds on the clutch less hydraulic shifting between forward and reverse of the PowrReverser™ transmissions with simple push-button gear shifting.

Benefits

Ergonomically placed transmission control lever allows the operator to change gears and ranges using one lever
Improved efficiencies by reducing steps to change gears by 35 percent
Effortlessly switch directions with a small finger motion using the electrohydraulic fingertip directional lever
Ideal for loader work and any applications that require frequent directional changes in tight spaces
Eliminates wear on the clutch by automating gear shifts at the push of a button

Additional details

The PowrQuad™ transmission can be ordered with different options to meet customer needs:

	PowrQuad™ PLUS 16F/16R	Powr8™ 32F/16R	Powr8™ 32F/16R with creeper
5M Cab	Option	Option	Option
5ML Open Station	Option on 5105ML and 5120ML Base on 5130ML	Option on 5105ML and 5120ML Base on 5130ML	Not Applicable
5ML Cab	Base	Not Applicable	Option

PowrQuad/Powr8 transmissions include:

Wet clutch
Ergonomically mounted transmission lever controlling both gear and range changes
Declutch button on the range lever for range shifting optionally without use of foot clutch
Left-hand reverser for seamless directional changes
Constant-mesh, helical-cut gears
Pressure-lubricated top shaft
Positive park pawl
Three-speed PTO
Neutral start switch

Integrated declutch button on transmission control lever

Integrated gear buttons on transmission control lever

Ranges on the transmission control can be selected by moving the controller in an H pattern. The lever selects ranges A, B, C, or D. Ranges are fully synchronized. That means when upshifting, operators can move between any range A-D without stopping the tractor.

Two buttons allow operators to gear up (rabbit) or gear down (turtle) within a range. A PowrQuad has 4 gear speeds per range while a Powr8 has 8 per forward range which is precisely how they got their names.

Increase speed control with PowrReverser™ Hi-Lo 32F/16R transmission

Hi-Lo selector on gear lever

Overview

For operators requiring more field speeds to achieve the most precise operating ranges, as well as for quickly moving from task to task with transport speeds of up to 40.23 km/h (25 mph), the PowrReverser™ Hi-Lo 32F/16R transmission is the ideal choice. This transmission provides 32F/16R speeds for the ultimate in speed selection.

Benefits

Effortlessly switch directions with a small finger motion using the electrohydraulic fingertip directional lever
- Frees the right hand to operate other tractor controls, such as the loader, rear implements, or throttle, as the directional lever allows the operator to steer and shift direction with the left hand
- The control is located on the left side of the instrument console and selects forward, reverse, and neutral positions
Clutch-less hydraulic shifting between forward and reverse
Convenient push-button controls actuate the electrohydraulic hi-lo selector providing an extra 20% increase/decrease in speed for each forward gear
Lower engine vibration, reduced noise, less wear and tear on the engine, reduced fuel consumption, and increased operator comfort from the standard economy PTO (E-PTO)

Additional details

32F/16R transmission includes:

Hydraulic wet clutches (forward and reverse)
- Maximize durability and outlast the life of any dry clutch
- When tractors are run by multiple operators with a variety of experience levels, a wet clutch is the best way to maintain transmission integrity and performance while decreasing clutch replacement costs
Platform-mounted shift levers (four gears, four ranges)
- Two platform-mounted levers offer easy and comfortable shifting for a pleasant operator experience
- The gear-shift lever is easy to reach, and the less-used range lever is shorter. Unique knobs make it easy to distinguish between the two
Left-hand reverser
Constant-mesh helical-cut gears
- Provide quieter operation and excellent reliability while the pressure-lubricated top shaft adds to the transmission durability
- Fully enclosed, rigid shift linkages for short throw and crisp shifts enable all operators to clearly know in what range and gear they are operating
Pressure-lubricated top shaft
Positive park pawl: provides positive park and eliminates the need for a hand brake
Neutral start switch

The gear lever selects one of four speeds, all synchronized shifts for on-the-go shifting with the use of the clutch. This same lever is where the hi-lo control buttons are located which provide a single shift up/down in speed within each forward range. The rear lever selects ranges A, B, C, or D. All ranges are fully synchronized which means, when shifting, operators can move between any range A-D without stopping the tractor.

The hi-lo feature benefits operators who frequently transport their tractors from field to field or find themselves in bog-down situations during rear power take-off (PTO) work such as baling in variable sized windrows. Customers can push the rabbit button (high) without having to depress the clutch to get a 20 percent increase in speed. They can also push the turtle button (low) to get a 20 percent decrease in speed, similar to downshifting or engine braking without having to grab another gear.

Shuttle control knob

The 32F/16R transmission includes the infinitely variable shuttle control feature allowing fine-tuning of the speed of directional changes to the operator's preference or application demands. This dial adjusts the aggressiveness of the tractor’s directional change. Some prefer a quicker more precise change, whereas other operators are more comfortable with a slow roll out before moving in the opposite direction. This feature can be significant for precision work with pallet forks or changing to bale stacking applications.

The PowrReverser™ has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor.

NOTE: A neutral start switch requires the directional lever be in the neutral position to start the engine.

NOTE: See PTO detailed feature for more information on E-PTO.

PowrReverser™ 16F/16R transmission

Overview

Ample speeds and ease of operation for demanding applications with the 16F/16R PowrReverser, providing 16 forward speeds and 16 reverse speeds. This transmission comes standard with a dual speed 540/540 Economy power take-off (PTO), and it is ideal for applications requiring frequent directional changes, such as loader work.

Benefits

Effortlessly switch directions with a small finger motion using the electrohydraulic fingertip directional lever
- Frees the right hand to operate other tractor controls, such as the loader, rear implements, or throttle, as the directional lever allows the operator to steer and shift direction with the left hand
Ideal for rear blading and any applications that require frequent directional changes in tight spaces
Clutch-less hydraulic shifting between forward and reverse
Lower engine vibration, reduced noise, less wear and tear on the engine, reduced fuel consumption, and increased operator comfort from the standard economy PTO (E-PTO)

Additional details

16F/16R transmission includes:

Hydraulic wet clutches (forward and reverse)
- Maximize durability and outlast the life of any dry clutch
- When tractors are run by multiple operators with a variety of experience levels, a wet clutch is the best way to maintain transmission integrity and performance while decreasing clutch replacement costs
Platform-mounted shift levers (four ranges, four gears)
- Two platform-mounted levers offer easy and comfortable shifting for a pleasant operator experience
- The gear-shift lever is easy to reach, and the less-used range lever is shorter. Unique knobs make it easy to distinguish between the two
Left-hand reverser
- The control is located on the left side of the steering column and selects forward, reverse, and neutral positions
Constant-mesh helical-cut gears
- Provide quieter operation and excellent reliability while the pressure-lubricated top shaft adds to the transmission durability
- Fully enclosed, rigid shift linkages for short throw and crisp shifts enable all operators to clearly know in what range and gear they are operating
Pressure-lubricated top shaft
Positive park pawl: provides positive park and eliminates the need for a hand brake
Neutral start switch

Gear and range shift levers (cab)t

Gear shift lever open operator’s station (OOS)

Range shift lever (OOS)

The forward lever selects one of four speeds, all synchronized shifts for on-the-go shifting with the use of the clutch. The rear lever selects ranges A, B, C, or D. All ranges are fully synchronized. When upshifting, operators can move between ranges without stopping the tractor providing convenience for on-the-go shifting from field to transport.

Left-hand reverser lever

NOTE: A neutral start switch requires the directional lever be in the neutral position to start the engine.

Integrated declutch button on gear shifter

NOTE: The PowrReverser transmission is not available for the 5130M or 5130ML tractors.

The PowrReverser has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor.

See the PTO functional area for more information on E-PTO.

Creeper lever on 5MH only

The creeper gears are accessible by engaging the creeper lever into rabbit or turtle position. This provides 2 additional slow working ranges perfect for bedded crops.

See the PTO functional area for more information on E-PTO.

Power bulge and torque reserve pull through the tough spots

Power bulge and torque curve

Overview

When the tractor is under load, power bulge and torque rise work together to get through the tough spots without having to downshift.

As rpm drops, the only way to maintain or increase horsepower is to provide additional torque. Whether bailing wet hay or lifting a heavy load, the additional power allows the tractor to continue performing the job without stopping. The rated economy power take-off (EPTO) speed occurs near the peak torque rise providing power when operator need it in PTO applications.

Benefits

Increased productivity in demanding conditions with more power when operator need it
More lugging ability for quicker power recovery
Additional torque provides force to remain horsepower as engine rpm drops below rated speed

Additional Details

Horsepower and torque are mathematically related.

5M 4-Cylinder tractors provide 4% power bulge. Note: There is no power bulge on 3-Cylinder tractors (5075M).

5M Power and Torque Curves

5M power curve summary

5M torque curve summary

Automotive-style light-emitting diode (LED) instrument cluster

Instrument cluster

Power take-off (PTO) target bars

Overview

Operators can view information in a crisp, vibrant, and useful array on the tractor instrument cluster.

Benefits

Clear and bright indicators, warning lights, and gauges
Provides operators with crucial onboard diagnostics through the roll-mode function
Visibility of engine hours, ground speed, Hi-Lo indicator, forward, neutral, and reverse all at the same time
Light-out indicator for trailer light, turn light, and hazard light bulbs
Clearly presented PTO target bars to indicate the correct PTO speeds when operating the PTO

Additional details

There are daytime and nighttime modes which are based on the position of the light switch. The mode adjusts the backlight levels of the display for optimum visibility.

EPA Final Tier 4 (FT4) compliant engines with maximum fluid efficiency

5E 3-Cylinder Engine

Overview

The U.S. EPA and Environment Canada requires all off-road diesel engines with 18.6 kW (25 hp) or more to meet stringent FT4 emissions regulations.

5E 3-Cylinder models are equipped with powerful, reliable engine with no regen required while still meet the U.S. Environmental Protection Agency (EPA) Final Tier 4 (FT4) exhaust emissions regulations. The John Deere PowerTech™ 3029 EWR engine utilizes a diesel oxidation catalyst (DOC) and cooled exhaust gas recirculation (EGR) aftertreatment system – with no DEF fluid, no DPF, and no regen required, you can focus on completing your jobs while your tractor keeps providing the power you need.|

Provide excellent torque and fuel efficiency
See over the hood with compact aftertreatment design
Outstanding performance and durability

PowerTech EWL/EWR/EWX/PWL/PWS/PSS/PVS engine identification

NOTE: find a tractor’s 3 character engine identification by referencing the ‘engine description’ in specifications.

EWL

Aftertreatment

X – DOC and DPF
S - Exhaust filter and SCR
R – DOC and EGR
L - DOC and SCR

Turbocharger

V - Variable geometry turbocharger (VGT)
S - Series turbochargers
W - Wastegate turbocharger

Technology

P - PowerTech Plus
E - PowerTech E

Several defining features on 5 Series tractors maximize the performance and reliability of the emissions package. A completely shielded DOC/DPF not only protects essential components from damage, it also keeps out dirt and debris. The well-packaged and tightly organized circulation system means there is more room to work around the tractor.

Key components of the emissions system

Shielded for protection

Diesel oxidation catalyst (DOC), diesel particulate filter (DPF), and cooled exhaust gas recirculation (EGR) Deere has chosen to utilize an exhaust filter (DOC) and/or diesel particulate filter (DPF) to reduce particulate material so the engine can operate at a level which produces less nitrogen oxide (NOx). With less NOx created, it requires less DEF to treat or no DEF for 3-cylinder models. The result is improved total fluid economy (diesel and DEF). Some applications also reduce NOx using cooled exhaust gas recirculation (EGR) that allows a controlled amount of exhaust gas to be returned to the engine leading to lower combustion temperature for a cleaner, more efficient exhaust.

The engine is programmed to aggressively respond to changes in power needs, which can temporarily increase particulate matter. Since the exhaust filter removes particulate matter instead of the engine, the engine is left free to do what it is designed to do – deliver all of the power, torque, plus transient response needed at the exact moment needed.

Wastegate Turbocharger

Wastegate turbochargers are designed to develop more airflow at lower engine speeds to improve low-speed torque. The wastegate control device bleeds off a portion of the exhaust flow at higher engine speeds. Wastegate turbos deliver improved transient response and higher peak torque without compromising engine envelope size. They also provide the lowest installed cost across a given power range.

For more information regarding EPA regulations and the technology behind John Deere Integrated Emissions Control systems, please visit the following link: http://www.deere.com/wps/dcom/en_US/campaigns/ag_turf/emissions/final_tier_4.page or https://www.deere.ca/en/engines-and-drivetrain/final-tier-4/

5085MUtility Tractor

SHARE

Features

Overview

Benefits

Overview

Benefits

Overview

Benefits

Additional details

Optional larger cylinders:

Rear fender hitch controls

Rear quick hitch

Sway bars

Overview

Benefits

Additional details

Overview

Benefits

Additional details

Overview

Benefits

Additional details

Overview

Benefits

Additional Details

5M Power and Torque Curves

Overview

Benefits

Additional details

Overview

PowerTech EWL/EWR/EWX/PWL/PWS/PSS/PVS engine identification

Key components of the emissions system

Wastegate Turbocharger

Offers and Discounts

Related Products

Shop and Buy

Maintenance and Support

You May Also Be Interested In
