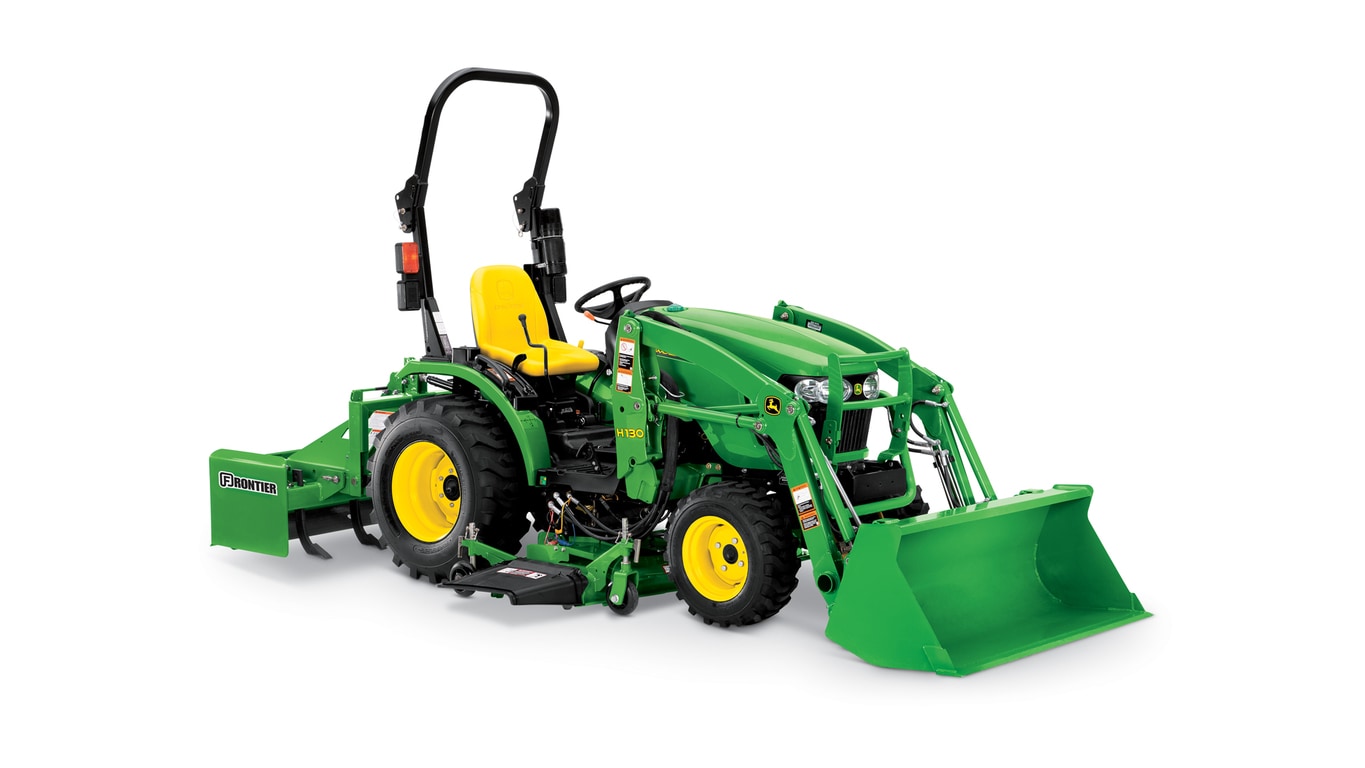

H130Loader
- Compatible with the 2025R and 2032R
- Quik-Park™ loader mounting system
- Built to improve visibility and stand up to years of use
- Up to 717 pounds (326 kg) of lift capacity
Features
Expand All
Collapse All
Quik-Park loader mounting system
Pivot pin
Quik-Park™ loader mounting system
Quik-Park loader mounting system
The H130 Loader is designed for easy removal/mounting to/from the tractor without tools.
The parking stand is attached to the mast and lowers into position by moving the joystick to the raise position once the latches are opened to allow the loader to move to the park position.
To view a video of how the Quik-Park™ system works, click here.
NOTE: This video only shows the dismount and mount of the loader without disconnecting the hydraulics. To completely remove the loader, the operator must turn the tractor off, relieve the hydraulics, and then disconnect the hoses from the couplers.
End-of-pin lubrication on cylinder and pivot pins allows easy access for servicing grease points
Pivot pin
The unique offset head design eliminates cross-pins and cotter pins to retain the pin.
A nut ensures the pins remain in position.
A lubrication groove provides a path for lubrication.
End-of-pin lubrication allows easy access for servicing grease points, which are visible from the side of the loader.
Specifications
| Specifications | ||||
|---|---|---|---|---|
| John Deere H130 Loader |
Key Specs
| Maximum lift height (A) | 1865 mm 73.4 in. |
|||
|---|---|---|---|---|
| Lift capacity at full height | Measured at pivot (U) 368 kg 810 lb Measured at 500 mm ahead of pivot (V) 257 kg 656 in. |
|||
| Boom breakout force | Measured at pivot (Y) 792 kg 1742.4 lb Measured at 500 mm ahead of pivot (Z) 553 kg 1216.6 lb |
|||
| Bucket rollback force capacity | At ground-level line (ZZ) 710 kgf 1562 lbf |
|||
| Clearance at full height - bucket dumped (C) | 1426 mm 56.1 in. |
|||
| Dump angle, degrees (E) | 38 degree (angle) | |||
| Rollback angle, degrees (G) | 32 degree (angle) |
Tractor
| Model | 2305 | |||
|---|---|---|---|---|
| Front tire | 18X8.50-10.4PR R4 | |||
| Rear tire | 26X12.00-12.4PR R4 | |||
| Front axle configuration | ||||
| Wheelbase | 1450 mm 57.1 in. |
|||
| Pump capacity | 10.8 L/min 2.85 gpm |
|||
| Rated pressure | 137 bar 1987 psi |
Loader
| Base weight | ||||
|---|---|---|---|---|
| Leveling configuration | Non-Self Leveling | |||
| Bucket used | 1250 pin-on mm 49 pin-on in. |
|||
| Bucket weight | 50.6 kg 111.3 lb |
|||
| Lift capacity at full height | Measured at pivot (U) 368 kg 810 lb Measured at 500 mm ahead of pivot (V) 257 kg 565 lb |
|||
| Lift capacity at 59 in. (1500 mm) | Measured at pivot (W) 428 kg 942 lb Measured at 500 mm ahead of pivot (X) 312 kg 686 lb |
|||
| Boom breakout force | Measured at pivot (Y) 792 kg 1742.4 lb Measured at 500 mm ahead of pivot (Z) 553 kg 1216.6 lb |
|||
| Bucket rollback force capacity | At maximum height (VV) 612 kgf 1346.4 lbf At 59-in. (1500-mm) lift height (XX) 728 kgf 1601.6 lbf At ground-level line (ZZ) 710 kgf 1562 lbf |
|||
| Dimensions | Maximum lift height (A) 1865 mm 73.4 in. At full height - bucket level(B) 1699 mm 66.9 in. At full height - bucket dumped (C) 1426 mm 56.1 in. |
|||
| Overall length (I+F), ft (m) | 2.8 m 9.1 ft |
|||
| Overall height in carry position (J) | 1.1 m 3.5 ft |
|||
| Digging depth (H) | 231 mm 9.1 in. |
|||
| Reach | At maximum height (D) 727 mm 28.6 in. At ground level - bucket level (F) 1332 mm 52.4 in. |
|||
| Bucket angle | Dump angle, degrees (E) 38 degree (angle) Rollback angle, degrees (G) 32 degree (angle) Dump angle, ground 111 degree (angle) |
|||
| Cycle times | Loader raise, seconds 5.56 seconds Loader lower, seconds 3.39 seconds Bucket dump, seconds 5.56 (without regen)/2.17 (with regen) seconds Bucket rollback, seconds 3.39 seconds |
